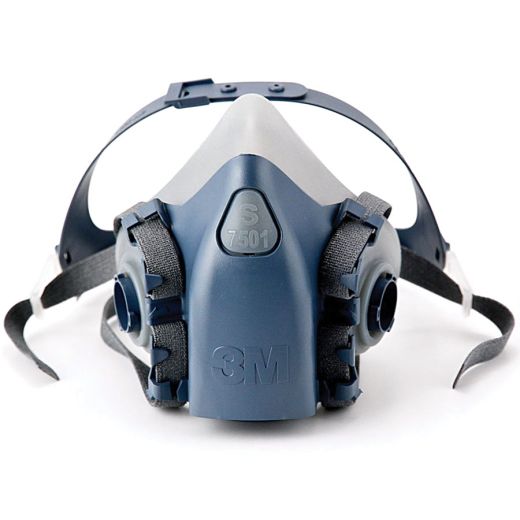

3M 7501 Half Mask Respirator Review
Is the 3M 7501 the Right Small Premium Half-Face Respirator for Long-Shift Comfort?
Short answer: Yes — if comfort on extended shifts is your priority and you work in painting, chemical handling, manufacturing, or any application where the mask goes on and stays on for 4+ hours. The soft silicone facepiece and Cool Flow exhalation valve make the 7501 the most comfortable small-size half-face respirator in 3M's lineup.
Editorial Verdict — 3M 7501: 4.7/5
The benchmark small-size premium half-face respirator. Soft silicone seal, Cool Flow valve, and cradle headband combine for exceptional comfort on long shifts. Worth the premium over the 6501QL for workers who wear a respirator for extended periods daily.
The benchmark small-size premium half-face respirator. Soft silicone seal, Cool Flow valve, and cradle headband combine for exceptional comfort on long shifts. Worth the premium over the 6501QL for workers who wear a respirator for extended periods daily.
Product Specifications
| Feature | Details |
|---|---|
| Model | 3M 7501 Half Mask Respirator (Small) |
| Series | 3M 7500 Premium Comfort Series |
| Facepiece Material | Soft silicone — premium conformability |
| Exhalation Valve | 3M Cool Flow — reduces heat and moisture buildup |
| Headband System | Cradle design — adjustable, reduces pressure hotspots |
| Cartridge Mount | 3M bayonet — full ecosystem compatibility |
| OSHA APF | 10 (per 29 CFR 1910.134) |
| NIOSH Approval | Yes (with approved cartridges/filters) |
| Size | Small — fit for smaller facial profiles |
| Companion Models | 7502 (Medium), 7503 (Large) |
Soft Silicone Facepiece: The 7501's Primary Advantage
The defining difference between the 3M 7501 and the 6501QL (its rugged counterpart) is the facepiece material. The 7500 Series uses a proprietary soft silicone compound that conforms more closely to individual facial contours than the thermoplastic elastomer of the 6500 Series. The result:
- Less facial pressure and reduced skin irritation during long shifts
- Better conformability for workers with facial contour variations
- Remains soft and flexible even in cooler temperatures (TPE stiffens in cold)
- Slightly higher risk of contamination absorption — requires more careful cleaning
Cool Flow Exhalation Valve
The Cool Flow valve reduces the effort and heat of exhalation by providing a lower-resistance exit path for exhaled air. Benefits in real-world use:
- Reduced CO2 buildup in the facepiece dead space
- Significantly less moisture condensation on filter elements
- Lower perceived breathing effort — critical for high-exertion tasks
- Less "stuffy" feeling during extended wear that leads workers to remove respirators
Workers doing physical labor — insulation installation, spray painting, roofing, fabrication — report meaningfully lower fatigue with the Cool Flow valve vs. standard valve designs.
Small Size Fit Guide
The Small facepiece is designed for workers in the lower percentiles of facial breadth and chin cup depth. Typical candidates:
- Most women (approximately 80% of the female face population fits Small or Medium)
- Smaller-statured men with narrower jaw and nose bridge profiles
- Workers who fail fit tests on Medium respirators with leakage at the chin or nose
Always confirm with a proper fit test — use qualitative (QLFT) or quantitative (QNFT) methods. Do not assume size based on general body size. Some larger workers have facial profiles that fit Small; some petite workers fit Medium better due to facial proportions.
Performance vs. 6501QL: Side-by-Side
| Attribute | 3M 7501 | 3M 6501QL |
|---|---|---|
| Material | Soft silicone | Thermoplastic elastomer (TPE) |
| Comfort (long shift) | Excellent | Good |
| Cool Flow valve | Yes | No (standard valve) |
| Quick Latch | No | Yes |
| Durability (abuse) | Good | Excellent |
| Price | Higher (~2×) | Lower |
| Best for | Long wear, painting, chemical work | Construction, frequent on/off |
Compatible Cartridges and Filters
- 3M 2091 P100 — best for particulates: asbestos, lead, silica, woodworking dust
- 3M 2097 P100/OV nuisance — woodworking with nuisance organic vapors
- 3M 60921 OV/P100 — spray painting, lacquers, solvents, adhesives
- 3M 60923 — welding, acid gases, chemical processing
- 3M 60926 — multi-contaminant environments
Frequently Asked Questions
Q: What makes the 3M 7501 different from other 3M half-face respirators?
A: The 7501 uses 3M's premium soft silicone facepiece material and Cool Flow exhalation valve — features not found on the 6000 or 6500 Series. These make it significantly more comfortable for extended wear. The trade-off is higher cost and the absence of the Quick Latch mechanism found on the 6500 Series.
Q: What is the OSHA APF for the 3M 7501?
A: APF 10 — the same as all half-face air-purifying respirators. It can be used in environments where airborne concentrations are up to 10 times the OSHA PEL.
Q: What cartridges fit the 3M 7501?
A: All 3M bayonet-mount cartridges and filters: the 2000 Series (2091 P100, 2097 P100/OV nuisance), the 6000 Series OV cartridges, and the 60900 Series multi-gas cartridges. 3M's unified bayonet system means any approved cartridge that fits a 6200 also fits the 7501.
Q: Is the 3M 7501 good for spray painting?
A: Yes — pair it with 3M 60921 OV/P100 cartridges for spray painting with lacquers, enamels, and solvent-based paints. The Cool Flow valve is particularly valuable in spray environments as it reduces mask internal humidity and keeps the lens area clearer.
Q: How does the 7501 small fit compare to the 7502 medium?
A: The Small is designed for workers in lower facial dimension percentiles — narrower jaw, shorter chin cup. If you're unsure, get fit tested on both. Many workers who assume they need Medium actually achieve a better seal on Small due to facial shape, and vice versa. NIOSH quantitative fit testing (QNFT) gives the definitive answer.
Q: Does the 3M 7501 have a Cool Flow valve?
A: Yes. The Cool Flow exhalation valve is standard on all 7500 Series respirators. It reduces breathing resistance and heat buildup significantly compared to standard valve designs, making extended-wear fatigue noticeably lower.
Q: Can the 3M 7501 be used for woodworking?
A: Yes — it's one of the most popular woodworking respirators. Pair with 3M 2091 P100 filters for dust control, or 3M 2097 P100/OV nuisance filters if you're also working with finishing products. The comfort of the soft silicone makes multi-hour shop sessions significantly more bearable.
Q: How do I clean the 3M 7501?
A: Wash with mild soap and warm water, or use 3M respirator cleaning wipes. Rinse thoroughly and air dry. Inspect the silicone facepiece for cracks, hardening, or deformation before each use. Store in a clean sealed bag away from UV, ozone, and heat.
Q: Is the 3M 7501 NIOSH-approved?
A: The 7501 facepiece is part of a NIOSH-approved respirator assembly. The approval applies to the facepiece + approved cartridge combination. The TC approval number is printed on the facepiece and in the instruction leaflet.
Q: What is the difference between 3M 7501, 7502, and 7503?
A: They are identical respirators in Small (7501), Medium (7502), and Large (7503). The design, materials, Cool Flow valve, cradle headband, and cartridge compatibility are the same across all three. Size selection requires fit testing for each individual worker.
Q: How long does the 3M 7501 facepiece last?
A: With proper care, typically 1–3 years of regular industrial use. Replace when: silicone cracks or hardens; straps lose elasticity; the worker fails a previously passed fit test; or the respirator is visibly damaged. Do not continue using a facepiece past any visible integrity issue.
Q: Can I use the 3M 7501 for asbestos work?
A: Yes — with 3M 2091 P100 HEPA-class filters for Class III asbestos work (concentrations at or below 10× PEL / 1 f/cc). For Class I and II removal where concentrations may exceed 1 f/cc, a full-face APF 50 respirator is required under OSHA 29 CFR 1926.1101.
Q: Does the 3M 7501 work with the 3M FT-30 fit test kit?
A: Yes. The 7501 is compatible with qualitative fit testing using saccharin or Bitrex (the standard QLFT methods). For quantitative fit testing, a PortaCount or similar instrument is used without any special adapter.
Q: Is the 3M 7501 good for chemical handling?
A: Yes — with the appropriate cartridges. For general chemical handling with organic solvent exposure, use 3M 60921 OV/P100 cartridges. For acid gases (HCl, SO2, H2S), use 3M 60923 or 60926 multi-gas cartridges. Always verify that the specific chemical is covered by the cartridge type and that concentrations are within APF 10 limits.
Q: Where can I buy the 3M 7501 and compatible cartridges?
A: The 3M 7501 and all compatible cartridges are available at WC Safety. Browse the full 7500 Series and cartridge selection at wcsafety.com/collections/respirator-cartridges-and-filters.
