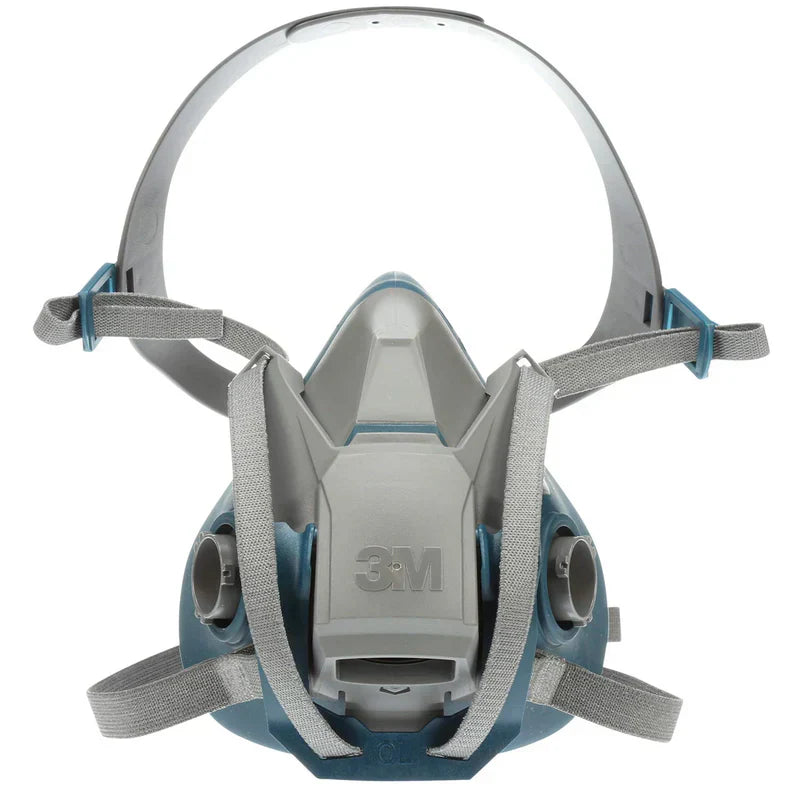

3M 6501QL Rugged Comfort Half Mask Respirator Review
3M 6501QL Rugged Comfort Half Mask Respirator Review: Small-Size Quick Latch for Intermittent Hazard Exposure in Welding, Painting, and Confined Space Work
The problem with standard half-mask respirators in intermittent exposure environments is not protection when worn — it is what happens when they are removed. A welder who steps out of a hazard zone to confer with a coworker, a painter who exits the spray booth to mix another batch, a maintenance worker who walks in and out of a confined space — all of these workers face the same frustration: taking the respirator completely off, having nowhere to put it cleanly, and then re-donning and re-adjusting before re-entering the hazard zone. Every extra step increases the probability of error, delays, and non-compliance.
The 3M 6501QL Rugged Comfort Half Mask solves this with its Quick Latch (QL) mechanism — a hinged latch on the face seal that allows the worker to drop the facepiece below the chin while keeping the head harness in place. When re-entering the hazard zone, a single upward push re-seats the respirator without removing the harness, re-adjusting straps, or interrupting gloved work. For intermittent-exposure operations, this is a material improvement in compliance behavior.
Quick Specs — 3M 6501QL Rugged Comfort Half Mask
Size: Small | Series: 6500 QL (Rugged Comfort) | Facepiece Material: Soft silicone
Cartridge System: Bayonet (3M 6000/7000 series compatible) | APF: 10 (OSHA 1910.134 Table 1)
NIOSH Approval: 42 CFR Part 84 | Quick Latch: Yes — drops below chin, harness stays on
Head Straps: Dual adjustable | Exhalation Valve: Center-mount, low-profile
Speaking Diaphragm: No
Size: Small | Series: 6500 QL (Rugged Comfort) | Facepiece Material: Soft silicone
Cartridge System: Bayonet (3M 6000/7000 series compatible) | APF: 10 (OSHA 1910.134 Table 1)
NIOSH Approval: 42 CFR Part 84 | Quick Latch: Yes — drops below chin, harness stays on
Head Straps: Dual adjustable | Exhalation Valve: Center-mount, low-profile
Speaking Diaphragm: No
Understanding the Quick Latch System
The QL (Quick Latch) mechanism is the defining feature of the 6500 Series. A hinged latch connects the face seal to the head harness. When the wearer pushes the latch release tabs on each side simultaneously, the face seal drops forward and down, hanging below the chin. The head harness remains in position — straps are not loosened, removed, or readjusted. When the wearer needs to re-enter the hazard zone, they push the facepiece back up until it clicks into the sealed position.
This matters operationally for several reasons:
- Time efficiency: Donning and doffing time drops from 30–60 seconds (full removal + readjustment) to 2–3 seconds (latch release or re-engagement)
- Compliance accuracy: Workers are more likely to re-don correctly when re-entry requires a single motion rather than multi-step adjustment
- Glove compatibility: The latch can be operated with gloves on — critical for workers in chemical handling, welding, or painting environments
- Contamination control: The facepiece is not set down on work surfaces during breaks, reducing exterior contamination risk
It is important to understand that the QL latch is for brief transitions between zones — not for sustained off-respirator work in a hazardous environment. When the facepiece is in the dropped position, the worker is not protected. The latch solves the transition problem; it does not create a new protection mode.
Silicone Face Seal: Why It Matters for the Small Size
The 6501QL uses a soft silicone face seal in place of the thermoplastic elastomer (TPE) used in the 3M 6100. For workers with small facial profiles, the difference is significant. Silicone is more pliable and conforms more readily to facial contours — particularly important at the nose bridge and chin areas where the seal is most likely to gap in a small face that does not perfectly match the facepiece geometry.
Workers with smaller faces often have facial geometry that varies more from any given mold than the average case the mold was designed for. Silicone's higher flexibility accommodates this variation better, increasing the probability of a good seal without excessive strap tension. This also translates to better comfort for workers who wear the respirator for extended periods: silicone does not create the same pressure points against bony facial prominences that a stiffer TPE can produce.
The trade-off is chemical resistance. TPE (as used in the 6100) is more resistant to degradation from chemical contact with the facepiece exterior. If the facepiece regularly contacts strong solvents, acids, or other chemicals, TPE holds up better over time. For most painting, welding, and light chemical environments, the silicone of the 6501QL is entirely adequate.
Target Workers and Applications
Welders and Fabricators
Welders who work in shared spaces — stepping on and off welds, conferring with other workers, moving between tasks — are the most natural users of the Quick Latch system. Welding generates metal fume and ozone; the respirator needs to be on during welding and can come off during setup, positioning, and equipment changes. The 6501QL makes these transitions faster and more reliable than a standard half-mask. Pair with 3M 2091 P100 filters or 60921 cartridges depending on flux and coating hazards.
Automotive Painters
Spray booth work involves significant time at respirator-required status, but also frequent booth exits for material prep, equipment adjustments, and inspections. The QL mechanism supports this pattern well. With 3M 60921 (OV/P100) or 60922 cartridges, the 6501QL covers both solvent vapor and paint mist hazards.
Maintenance and Facilities Workers
Maintenance workers frequently move through varied hazard zones — a brief entry into a chemical storage area, a short repair in a poorly ventilated space, and then back to a clean environment. The QL system reduces the friction of this work pattern without requiring workers to carry or store respirators between tasks.
6501QL vs 6100: Direct Comparison for Small-Face Workers
| Feature | 3M 6501QL | 3M 6100 |
|---|---|---|
| Series | 6500 QL (Rugged Comfort) | 6000 |
| Facepiece Material | Soft silicone | Thermoplastic elastomer |
| Quick Latch | Yes | No |
| Extended Comfort | Better (silicone) | Good (TPE) |
| Chemical Resistance (exterior) | Good | Better |
| Best For | Intermittent exposure, longer shifts | Sustained single-zone use, chemical splash environments |
| APF | 10 | 10 |
| Cartridge System | Bayonet (same) | Bayonet (same) |
Full 3M Small Half-Mask Lineup
| Model | Series | Material | QL | Speaking Diaphragm |
|---|---|---|---|---|
| 3M 6100 | 6000 | TPE | No | No |
| 3M 6501QL | 6500 QL | Silicone | Yes | No |
| 3M 7501 | 7500 | Premium silicone | No | Yes |
For a comprehensive comparison of all 3M half-mask series, see our 2026 3M Half Mask Buyer's Guide.
OSHA Compliance and Program Integration
The 6501QL meets all OSHA 29 CFR 1910.134 requirements for half-mask respirator use: NIOSH 42 CFR Part 84 approval, APF of 10, compatible with standard fit test protocols (qualitative and quantitative), and appropriate for medical clearance programs. Workers using the 6501QL require the same annual fit testing and medical evaluation as those using any other elastomeric half-mask.
One program consideration specific to QL respirators: train workers on the proper latch mechanism and the critical point that the dropped position provides zero protection. Workers who misunderstand the QL as a "lower protection mode" rather than a "no protection" mode create a compliance gap. This should be part of the initial respirator training required under 1910.134(k). See our NIOSH standards guide for program structure guidance.
Pair with appropriate PPE: safety glasses or goggles for chemical splash, hearing protection in noisy environments, and gloves rated for your chemical hazards. Workers on elevated platforms should also assess hard hat requirements.
Frequently Asked Questions — 3M 6501QL Small Half Mask
Q: What does "QL" mean on the 3M 6501QL?
QL stands for Quick Latch. It refers to the hinged mechanism that allows the facepiece to drop below the chin without removing the head harness. The latch engages and disengages with a single motion, allowing fast transitions between hazardous and non-hazardous zones for workers with intermittent exposure patterns.
Q: Does the Quick Latch provide any protection when the mask is dropped?
No. When the facepiece is in the dropped (unlatched) position, it provides zero respiratory protection. The QL is designed only to speed up the donning/doffing cycle between zone entries — not to create a partial protection mode. Workers must latch the respirator fully before entering any hazardous area.
Q: How does the 6501QL compare to the 6100 for small-face workers?
The 3M 6100 uses thermoplastic elastomer (firmer, more chemical-resistant) without the QL feature. The 6501QL uses softer silicone (more comfortable, more conforming to facial contours) and adds the Quick Latch. For workers in intermittent-exposure environments or those wearing the respirator for extended shifts, the 6501QL typically wins. For sustained single-zone use with chemical facepiece exposure, the 6100 is appropriate.
Q: What cartridges are compatible with the 3M 6501QL?
All 3M bayonet-mount cartridges — the same ones used with the 6000 and 7500 series. Key options: 3M 6001 (OV), 3M 2091 P100, 3M 60921 (OV/P100), 3M 60922 (OV/P100/acid gas). Browse the full cartridge collection for all options.
Q: Is the silicone facepiece better for extended wear?
Generally yes. Silicone is softer and more pliable than thermoplastic elastomer, creating less pressure against facial bones during sustained use. Workers who previously experienced discomfort or skin irritation from the 6100's TPE facepiece often find the 6501QL's silicone seal significantly more comfortable for 4+ hour sessions.
Q: Is the 6501QL NIOSH-approved?
Yes. The 3M 6501QL Rugged Comfort Half Mask is NIOSH-approved under 42 CFR Part 84 and carries an APF of 10 per OSHA 29 CFR 1910.134 Table 1. It meets all requirements for use in OSHA-regulated respiratory protection programs.
Q: Can I use the 6501QL for spray painting?
Yes. With 3M 60921 (OV/P100) or 60922 cartridges, the 6501QL is suitable for spray painting applications. The QL feature is particularly useful in painting environments where workers frequently step out of the spray booth to mix materials or check color matches.
Q: What is the APF of the 3M 6501QL?
APF = 10, per OSHA 1910.134 Table 1 for all half-mask air-purifying respirators. This applies regardless of the QL feature — the protection level when properly sealed and worn is the same as any other half-mask.
Q: Does the 6501QL require fit testing?
Yes. Like all tight-fitting elastomeric respirators, the 6501QL requires initial fit testing before use and annual retesting per OSHA 1910.134. Fit testing verifies the specific facepiece achieves a compliant seal on the individual worker — the QL feature does not change this requirement.
Q: How do I operate the Quick Latch with gloves on?
The QL latch is designed for gloved operation. Squeeze both release tabs simultaneously (one on each side of the facepiece) to unlatch; push the facepiece upward until you hear and feel the click to re-latch. Practice this with gloves on before first use in a live hazard environment.
Q: Is the 6501QL or the 7501 better for small-face workers in long-shift applications?
For strictly long-shift comfort, the 3M 7501 (7500 Series, small) uses a premium soft silicone facepiece with lower breathing resistance and a speaking diaphragm — offering the best comfort profile in the small size. The 6501QL adds the QL feature but does not have the speaking diaphragm or the lower breathing resistance of the 7500 platform.
Q: Can the Quick Latch be used in an IDLH atmosphere?
No. Half-mask air-purifying respirators (APF 10) cannot be used in IDLH (immediately dangerous to life or health) atmospheres under any circumstances. IDLH conditions require supplied-air respirators or self-contained breathing apparatus (SCBA). The 6501QL, like all half-masks, is for non-IDLH environments where the contaminant concentration is within APF-10 limits.
Q: How does the 6501QL compare to the 6502QL for safety managers buying for a mixed workforce?
The 3M 6502QL is the medium-size version of the same platform. If your workforce has varied facial profiles, stock all three QL sizes (6501QL, 6502QL, 6503QL) and use fit testing to assign the correct size to each worker.
Q: How do I clean the silicone facepiece?
Clean with mild soap and warm water or 3M respirator cleaning wipes. The silicone material is compatible with most mild cleaning agents. Do not use strong solvents or bleach solutions on the silicone seal — these can cause degradation over time. Allow to air-dry before storage in a sealed bag.
Q: Where can I buy the 3M 6501QL?
Available at WC Safety's half-face respirator collection alongside compatible cartridges. Also available on Check Price on Amazon →. See our 2026 Buyer's Guide for a full comparison of all 3M half-mask options before purchasing.
Related articles: 3M 6502QL review | 3M 6503QL review | best half-face respirator guide | NIOSH standards guide. For full respiratory protection beyond APF 10, see the full-face respirator collection and our 3M full-face respirator guide.
