Lockout Tagout Stations — Organized LOTO Equipment Storage for Quick Access

Lockout/tagout stations are organized equipment centers that store the full complement of LOTO hardware — padlocks, hasps, lockout devices, tags, scissors, and forms — at a single, clearly identified location accessible to authorized maintenance personnel throughout a facility. OSHA 29 CFR 1910.147 requires that LOTO equipment be readily available to authorized employees, and best practice safety programs provide LOTO stations positioned throughout work areas so that the nearest station is always within a reasonable travel distance from any energy isolation point. Well-organized, fully stocked LOTO stations eliminate the improvisation and delays that occur when workers must search for LOTO equipment from scattered or poorly organized storage locations.

LOTO station designs range from simple wall-mounted shadow boards that display equipment on hooks in clearly labeled positions to enclosed cabinets with lockable doors that control access to LOTO equipment for security-sensitive environments. Shadow boards with color-coded silhouettes for each equipment type provide immediate visual inventory status — missing items are instantly obvious when the silhouette position is empty. This visual inventory management supports daily pre-shift checks that verify station completeness before the workday begins, ensuring equipment gaps are identified and restocked before a LOTO procedure reveals an unresourced equipment need.

Standard LOTO station contents should be specified based on the energy types and isolation devices present in the area the station serves. A station serving electrical maintenance needs circuit breaker lockouts, electrical panel lockout covers, padlocks with hasps, and electrical hazard LOTO tags. A station serving process piping maintenance needs ball valve lockouts, gate valve lockouts, and process hazard LOTO tags. Stations serving mixed mechanical/electrical environments benefit from universal component sets covering the full range of common energy isolation hardware. Many organizations maintain standardized station configurations across similar work areas, simplifying restocking and enabling maintenance workers to use any station in the facility with the same equipment organization.

Individual padlock assignment is a key principle of effective LOTO programs — each authorized employee has a unique personal padlock for which only they hold the key, ensuring that no other person can remove their lock from an energy isolation point. LOTO stations should include a padlock storage section where personal locks are stored when not in use, with each lock position clearly labeled with the employee's name. This ensures that personal locks are available when needed and are not lost or mixed with spare locks in the LOTO kit inventory.

Padlock color coding at LOTO stations can visually distinguish isolation types: red for electrical, green for hydraulic, blue for pneumatic, yellow for chemical. This color coding helps supervisors and safety auditors immediately assess the type and status of active LOTO conditions by observing which colored locks are in use at equipment points versus stored at the station. Annual LOTO audits required by OSHA 1910.147 are simplified when LOTO stations maintain organized records of current station configuration and assigned padlock inventory.

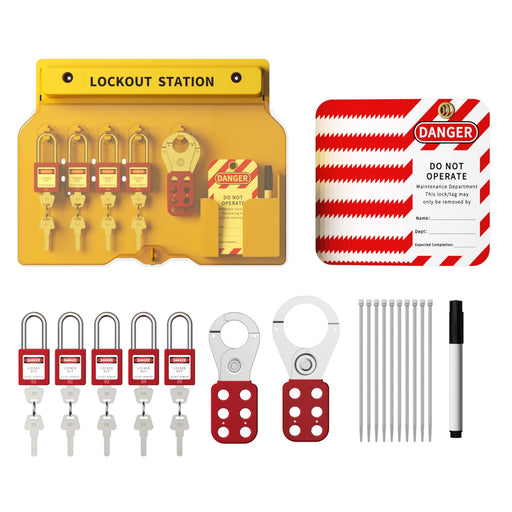

Our lockout station collection includes wall-mounted shadow boards, enclosed lockable cabinets, portable LOTO bags for field maintenance work, and complete LOTO station kits that include all hardware needed for initial program setup. Custom labeling and custom component configurations are available for organizations building LOTO stations tailored to their specific energy isolation requirements. All stations are designed to comply with OSHA 1910.147 equipment availability requirements and support best-practice LOTO program management.

🔧 Free tool: Before you service that machine, run our Lockout/Tagout Checklist (OSHA 1910.147).

Frequently Asked Questions

What is lockout/tagout?

As set out in OSHA 1910.147, lockout/tagout isolates hazardous energy during servicing and maintenance, stopping a machine from starting without warning and injuring a worker.

Why does each worker apply their own lock?

When every authorized worker carries a personal lock and the lone key to it, the equipment cannot be re-energized until each one finishes and pulls their own lock away.

How does group lockout work?

During group lockout, a hasp or group lock box collects a personal lock from each worker, and the equipment stays isolated until the whole team has completed the work.

What is the difference between lockout and tagout?

Energization is physically blocked by a lock, while a tag offers only a warning. OSHA prefers lockout and permits tag-only control where locking is not feasible, with added protection.

Why use a lockout station or board?

A station keeps padlocks, hasps, and tags displayed and stocked right where they are needed, so the proper devices stay organized and within reach the moment work begins.

What energy sources must be controlled?

Thermal, electrical, hydraulic, pneumatic, and mechanical energy each have to be isolated, along with stored energy from springs, capacitors, and gravity, before work starts.

Who is allowed to remove a lockout device?

Only its applier may remove a device, with the lone exception of a documented, supervised procedure carried out after that worker is verified to be off-site and unavailable.

What belongs on a stocked lockout station?

A well-stocked station displays the padlocks, hasps, and tags a crew needs at the point of work, keeping the right devices organized and available when service begins.

Do I need written lockout procedures?

Yes indeed, OSHA insists on documented energy-control procedures tailored to each machine, plus periodic inspections and a trained group of authorized employees.

Are lockout stations and their devices reusable?

The station and its padlocks and hasps are durable and reusable from job to job, though the warning tags it holds are usually single-use and swapped out each time.

Related Safety Gear & Guides

Standards & references
Selection guidance on this page is mapped to these primary sources:

OSHA 29 CFR 1910.147 — Control of Hazardous Energy (Lockout/Tagout)

Cited for reference only. Standards text is not a substitute for a written program, a hazard assessment, or evaluation by a qualified safety professional.
