Short answer: confined space equipment is a system purchase — — tripod, winch and SRL above the hole, ventilation blower beside it, gas monitor and harness on the entrant. Twenty-five listings from 3M DBI-SALA, Peakworks, VEVOR, FallTech and others cover the retrieval hardware, with seven cross-listed gas monitors and the permit logic governed by OSHA 1910.146.

Which confined space equipment does a permit entry need?

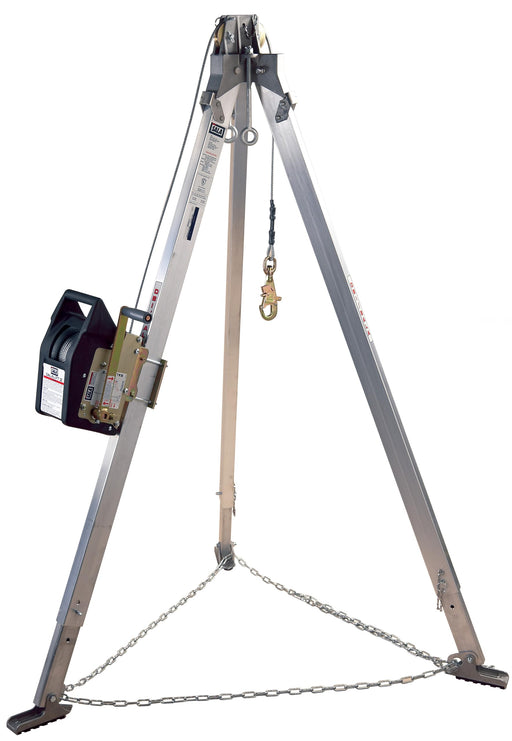

Editor's pick — 3M DBI-SALA retrieval line
The fleet-standard tripod and winch hardware permits are written around — six DBI-SALA listings anchor this shelf. Read the full listing.

VIEW THE LISTING →   CHECK PRICE ON AMAZON →

As an Amazon Associate, WC Safety earns from qualifying purchases. This has no bearing on which products appear here or in what order.

Confined space equipment for permit-required entries: rescue tripods, man-rated winches, 3-way retrieval SRLs, ventilation blowers, and the rigging accessories that tie them together. OSHA 29 CFR 1910.146 requires a retrieval system for most permit-space entries — and a mechanical retrieval device for vertical entries deeper than 5 feet — which is exactly what the tripod systems here provide. Every product links to its Amazon listing with current pricing, from astarter kit to full DBI-SALA rescue systems.

Deciding between systems? Our Best Confined Space Tripod Kits 2026 guide ranks all 12 with the winch-vs-3-way-SRL decision explained.

Editor's picks

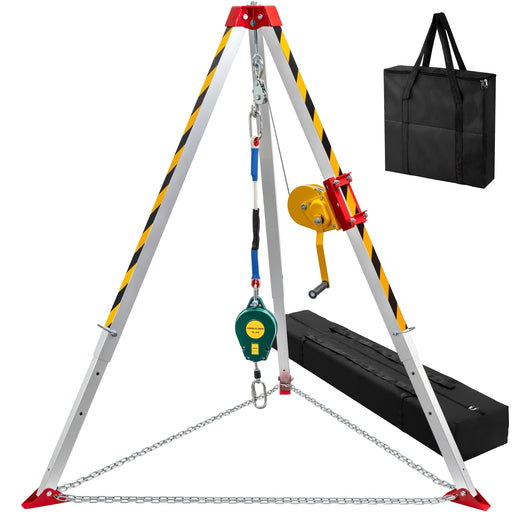

• Budget starter kit: TRSMIMA 1200 lb kit — tripod, winch, 98 ft cable; the entry point for crews formalizing manhole work.

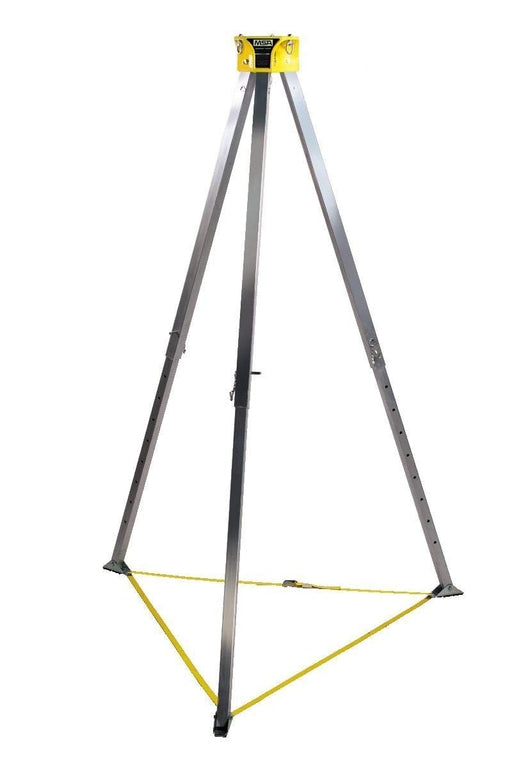

• Certified-brand tripod: MSA Workman 8 ft — the standard aluminum head assembly to build a component system around.

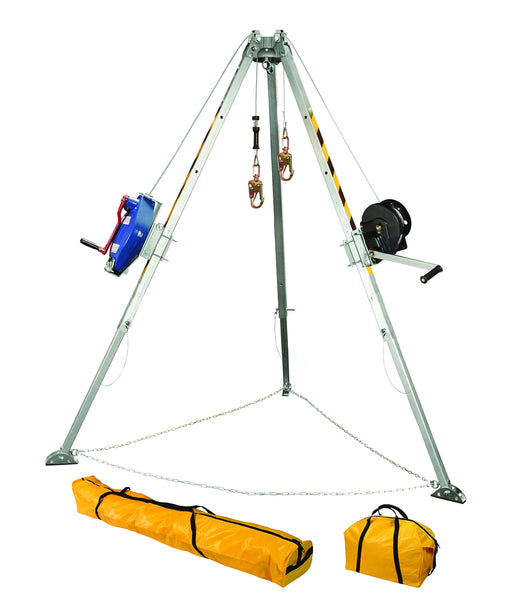

• Complete rescue system: FallTech 7509 — tripod, personnel winch, and 3-way retrieval SRL in one package: fall arrest plus rescue-raise, which a winch alone can't do.

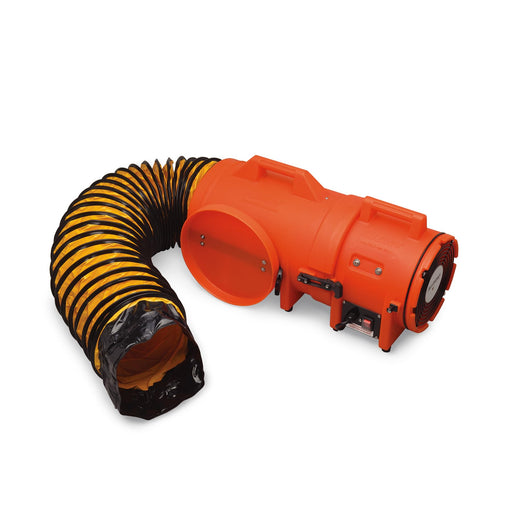

• Ventilation: Allegro 9533-25 — 831 CFM with 25 ft of duct; the standard pre-entry purge setup.

Compare confined space equipment

Prices captured from Amazon listings on 2026-07-11 — click through for current pricing.

How to choose

Kit or components? Kits (tripod + winch, sometimes + SRL) are the fast path to a compliant setup and cost less than assembling pieces. Component builds — an 8000140 tripod plus your choice of winch, pulley, and retrieval SRL — make sense when you're standardizing across crews or matching existing hardware.

Winch vs 3-way SRL. The winch positions and retrieves under control; the 3-way SRL arrests a fall instantly, then cranks over to raise the worker. A rescue-ready vertical entry usually runs both: worker on the SRL, winch as the working line. If budget forces one, the 3-way SRL covers the life-safety function.

Certified brands vs import kits. DBI-SALA, MSA, FallTech, Guardian, and Peakworks publish ANSI Z359-family test documentation. Import kits (VEVOR, TRSMIMA) list capacity ratings at a quarter of the price, but certification paperwork varies by listing — verify what your safety program requires before standardizing on them for permit entries.

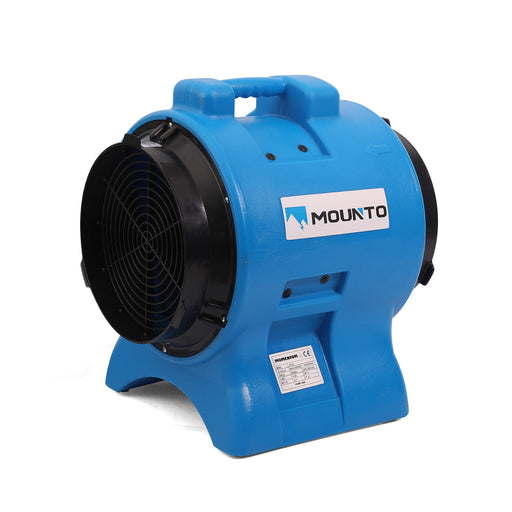

Ventilation sizing. Purge before entry, ventilate continuously during work, and size CFM to the space: an 831 CFM Allegro covers typical manholes; large vaults justify the 3,000 CFM MOUNTO. Then verify with a 4-gas monitor — ventilation never replaces atmospheric testing.

Round out the entry program. Every permit entry also needs a full-body harness (see the harness collection), calibrated gas detection — start with the H2S monitor guide, industrial CO monitors, or gas leak detectors — plus lockout/tagout on connected energy, and a staged trauma kit. Where atmospheres can't be cleared, step up to supplied-air respirators or a PAPR system. For the rules themselves, see when fall protection is required, OSHA ladder requirements, and assigned protection factors.

Related protective equipment

Browse the wider fall protection range: self-retracting lifelines (compared in the SRL buyer's guide), fall protection kits, horizontal lifelines, carabiners & connectors, and tool lanyards. Head-to-toe for the same crews: hard hats, hi-vis vests, and respiratory protection.

Confined space equipment FAQ

Do I need the tripod or can I anchor to structure?

A rated tripod (or davit) gives you the overhead point retrieval demands where no rated structure exists — which is most manholes and tanks. Structural anchorage must be rated and positioned for vertical retrieval, not just fall arrest.

Is the gas monitor part of the kit?

Usually not — retrieval kits ship the mechanical chain, and the 4-gas monitor is a separate purchase from the 4-gas shelf. A permit entry needs both before anyone descends.

When does OSHA require a retrieval system for confined space entry?

Under 29 CFR 1910.146(k)(3), retrieval systems are required whenever an authorized entrant enters a permit-required confined space, unless the equipment would increase overall risk or wouldn't contribute to rescue. For vertical entries deeper than 5 feet, a mechanical retrieval device is required.

What's the difference between a winch and a 3-way retrieval SRL?

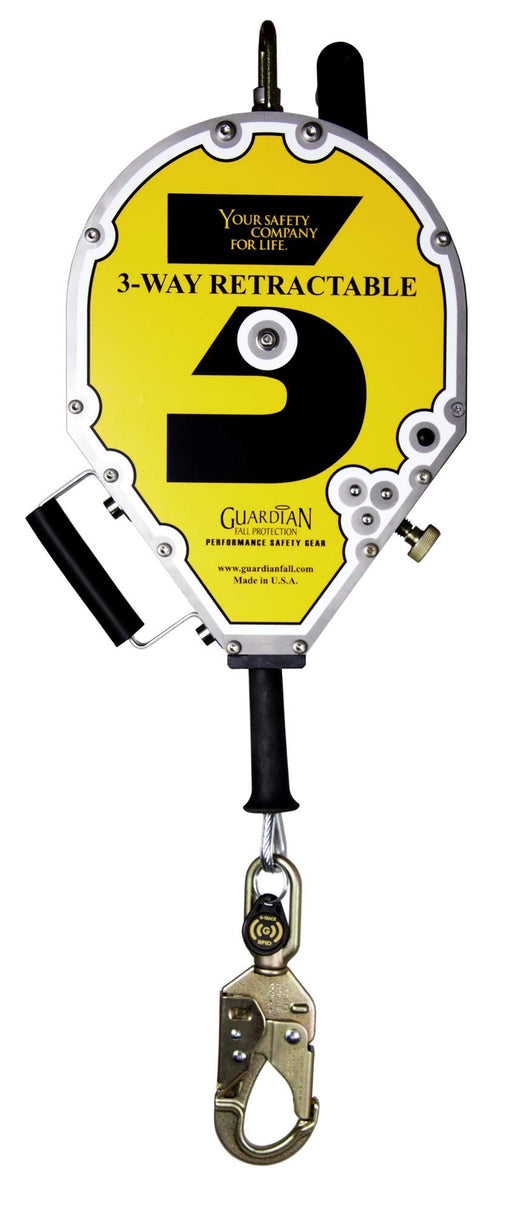

A winch raises and lowers a worker under control but provides no independent fall arrest. A 3-way retrieval SRL is a self-retracting lifeline that arrests a fall instantly and can then be cranked over to retrieval mode to raise the worker. Full rescue-ready systems typically mount both on the tripod.

Do I need both a tripod system and a gas monitor?

Yes. The retrieval system handles non-entry rescue; atmospheric testing before and during entry is a separate 1910.146 requirement. A calibrated 4-gas monitor (O2, LEL, CO, H2S) is the minimum for most permit spaces.

Are import-brand tripod kits (VEVOR, TRSMIMA) OSHA compliant?

OSHA doesn't certify products — it sets performance requirements. Certified fall-protection brands (3M DBI-SALA, MSA, FallTech, Guardian, Peakworks) publish ANSI Z359 test documentation; budget import kits list capacity ratings but documentation varies. For permit-required entries, most safety managers specify equipment with verifiable ANSI test data.

How much ventilation does a confined space need?

Size the blower to the space volume and target air changes: continuous ventilation during occupancy, plus a pre-entry purge (commonly around 7+ air changes). An 831 CFM unit handles typical manholes; large vaults need 3,000 CFM class units. Always retest the atmosphere after ventilating — airflow never replaces gas testing.

What else does a permit-required entry need besides this equipment?

A written permit program: atmospheric testing, an attendant at the opening, communication, a rescue plan (non-entry retrieval first), lockout/tagout of connected energy sources, and trained entrants. Equipment supports the program; it doesn't replace it.

Can I use a tripod winch to lift tools and materials?

Use a dedicated material line, not the personnel winch. Personnel winches are man-rated and should stay rigged for the entrant; hauling tools on the same line risks dropped-object injuries and takes your rescue line out of service.

How deep can these tripod systems work?

The kits here carry 60–98 ft of cable. Match cable length to your deepest entry with margin, and remember retrieval-SRL working length differs from winch cable length — check both when a kit includes the pair.

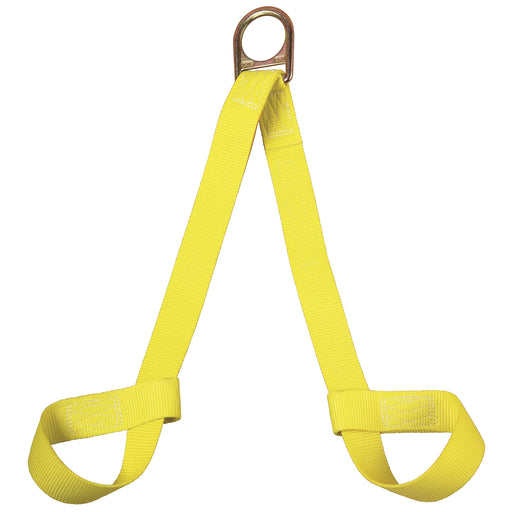

What is a retrieval wristlet and when is it used?

Wristlets attach the retrieval line to both wrists so an unconscious worker can be pulled arms-first through an opening too narrow for a shoulders-first extraction with a dorsal D-ring. They're a rescue-plan component for tight manholes and tank nozzles.

Do confined space blowers make a space safe to enter?

No. Ventilation reduces contaminant levels, but entry decisions rest on gas-monitor readings taken after ventilation, plus the rest of your permit program. If readings stay outside limits, the answer is supplied-air respiratory protection and a revised plan, not more airflow alone.

Every listing on this shelf

• Confined Space Ventilation Fan
• Allegro 9533-25 Confined Space Blower
• Retrieval Wristlets

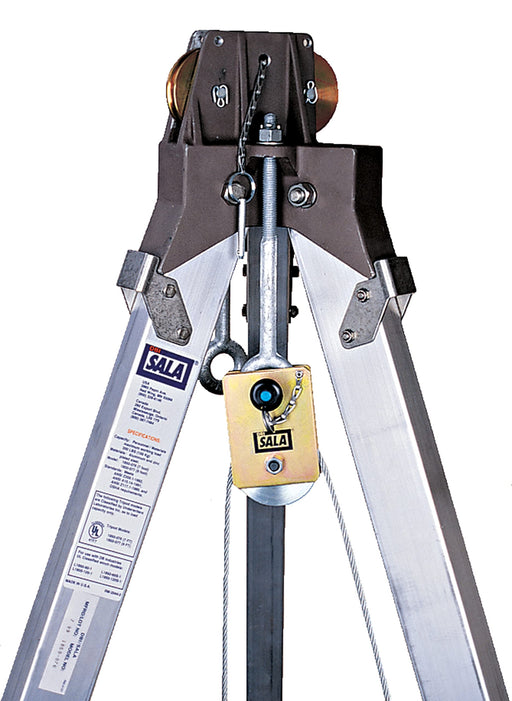

• DBI-SALA 8003205 Tripod Pulley

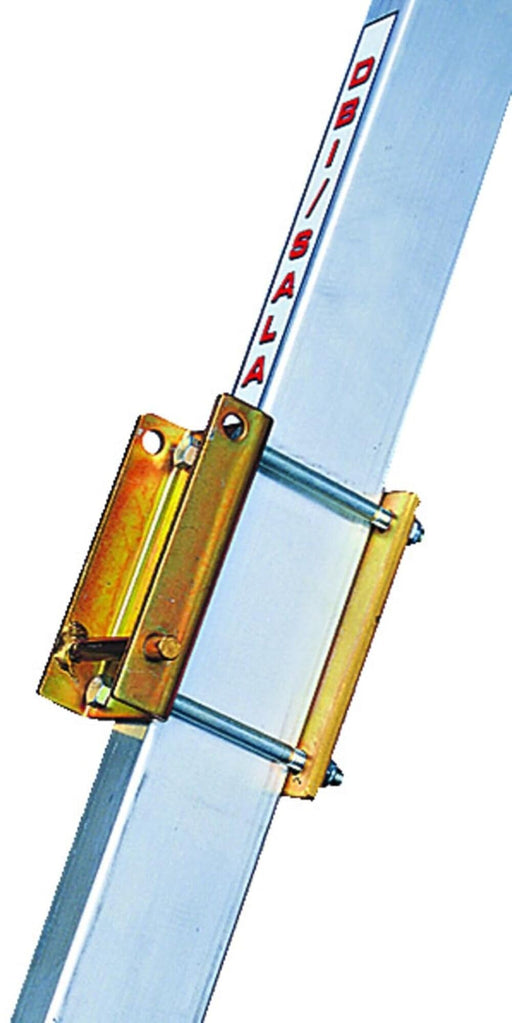

• DBI-SALA 8005048 Tripod Mounting Base
• Confined Space Retrieval System SRL
• DBI SALA Winch + Tripod System

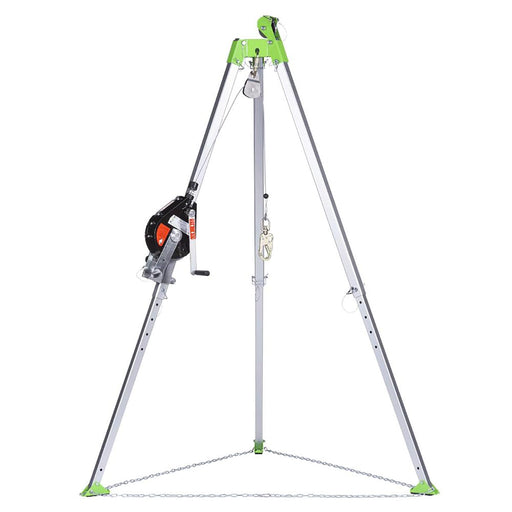

• Peakworks Confined Space Rescue Kit

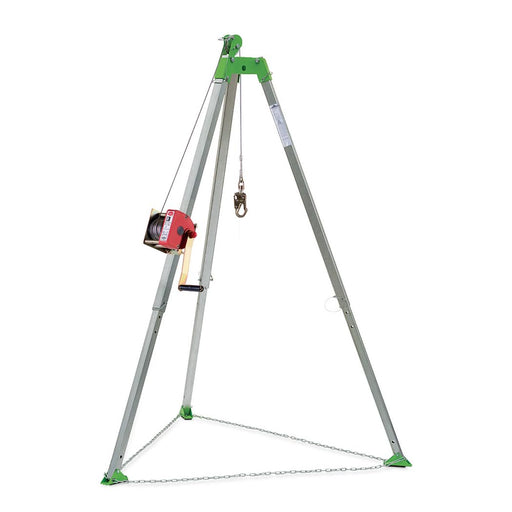

• Peakworks Confined Space Kit
• FallTech 7509 Confined Space Tripod Kit

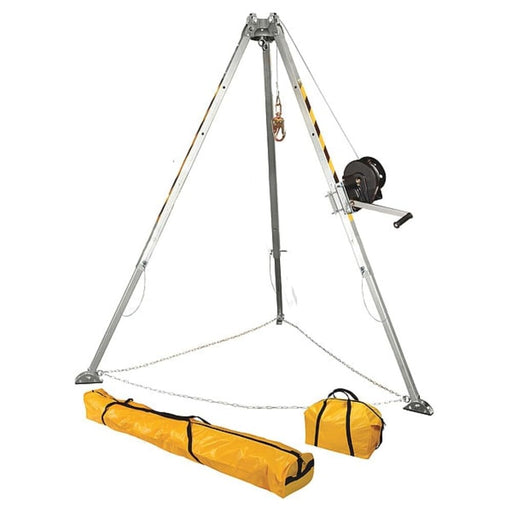

• FallTech 7507 Confined Space Tripod Kit

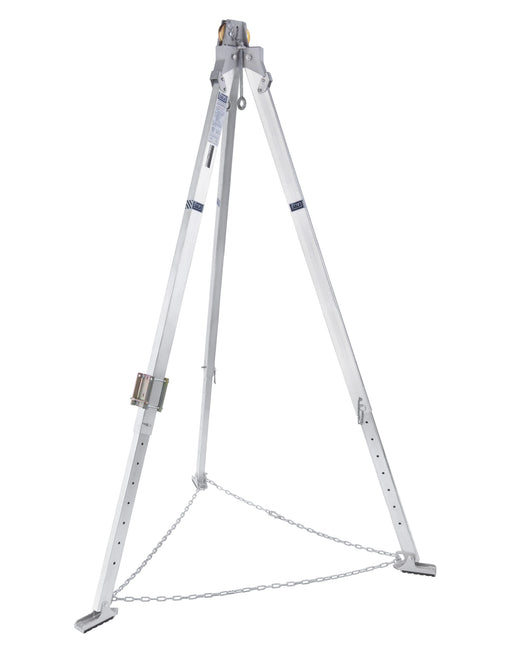

• DBI-SALA 8000141 Confined Space Tripod
• Confined Space Entry Tripod
• Confined Space Tripod

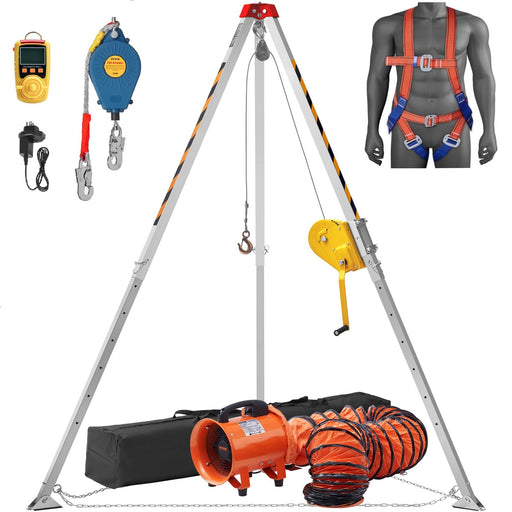

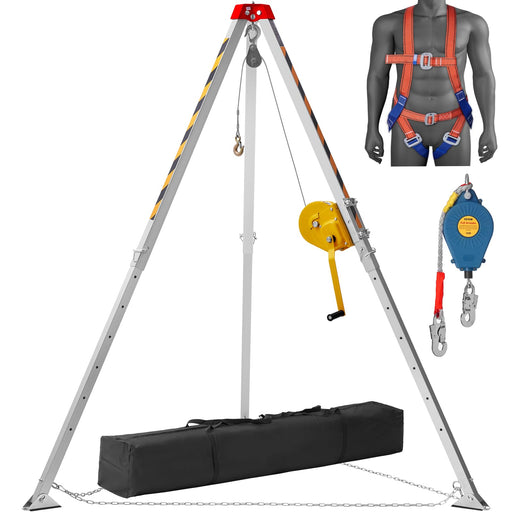

• VEVOR Confined Space Tripod Kit 2600 lb Winch
• VEVOR Confined Space Tripod Kit
• TRSMIMA Confined Space Tripod Kit
• Forsensal 4 Gas Detector with Pump
• Forensics 4 Gas Monitor with Pump
• TopTes Guard-156 4 Gas Monitor
• TopTes Guard-101 4 Gas Detector
• TopTes Guard-863Pro 4 Gas Monitor
• Forensics Detectors 4 Gas Monitor
• Forensics 4 Gas Meter
• Ergodyne Skullerz 8960 Bump Cap with LED Brim Lighti

Honest shelf notes

Seven members are gas monitors cross-listed from the 4-gas and detection shelves — the copy above treats atmosphere testing as its own discipline, and the full instruments live there. One member (an Ergodyne bump cap) has no confined-space role and is flagged for re-shelving rather than dressed up as entry gear. Six tripod-kit records carry empty SKU fields.
