Dock Plate vs Dock Board — Only One of These Takes a Forklift

Which dock plate is rated for your loaded pallet jack in 2026?

Short answer: Do the math first: loaded pallet jack + operator can pass 6,000 lb, so the 5,300 lb 36x48 aluminum plate is the pallet-jack pick, the Vestil AH-3024 covers hand-truck docks at 700 lb, and forklifts need a steel dock board - never an aluminum plate.

Dock & Warehouse Equipment (2026)

The gap between dock and trailer is where wheels stop and injuries start. Aluminum dock plates bridge it for hand trucks and manual pallet jacks; steel dock boards with locking legs take forklift traffic. Capacity is TOTAL rolling load - equipment plus cargo plus operator - and every rating below is quoted from the manufacturer's listing. Part of the Jobsite Equipment & Tools department; related: Hand Trucks & Dollies, Utility & Platform Carts, Jobsite Ladders, Cargo Control & Tie-Downs, Casters & Wheels, Pallet Jacks.

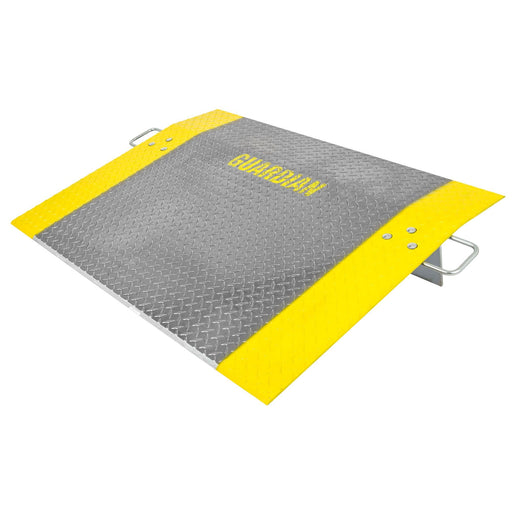

Editor's pick - Guardian Aluminum Dock Plate
Aluminum with carrying handles and a track record at real docks - the standard plate for manual pallet jack and cart traffic.

VIEW OUR PICK → CHECK PRICE ON AMAZON → (affiliate link - see disclosure below)

Compare the lineup

Shop Dock & Warehouse Equipment on Amazon → 48in L 36in W Dock Plate Guardian Dock Loading Ramp, 36in Dock Plate, 36in x 48in, Guardian Global Industrial

Ten of these eleven are not rated for a forklift

Short answer: this collection is ten aluminum dock plates and one steel dock board, and only the board takes a forklift.

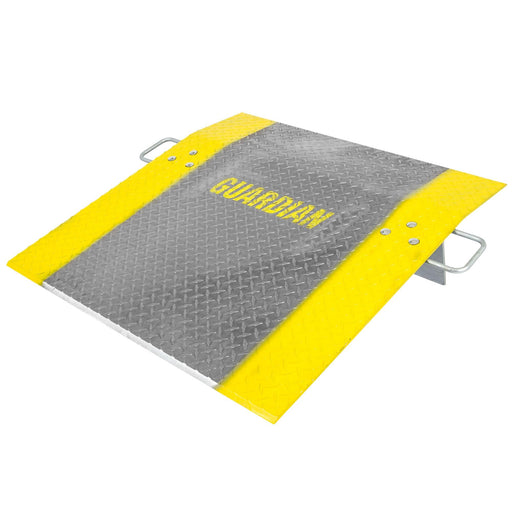

Every loading dock plate here is aluminum, and each one is a portable dock plate rather than a fixed installation. The ten aluminum plates are rated 700 lb to 5,300 lb and every one of them is listed for pallet jacks and hand carts. The single steel dock board is rated 13,000 lb — two and a half times the strongest plate here, and the only unit whose listing says forklift.

⚠ That is not a tier, it is a different product. A dock board is steel, carries locking legs, and has raised side curbs whose job is to stop a wheel leaving the edge. A plate has none of that. And the bottom of the range is worth naming too: the 700 lb hand-truck plate is not rated for a loaded pallet jack either — the spread across this page is 700 lb to 13,000 lb, roughly eighteen-fold.

Why the biggest plate is not the strongest one

Capacity does not track size, in either direction. Two plates of near-identical footprint on this page differ by more than two and a half times:

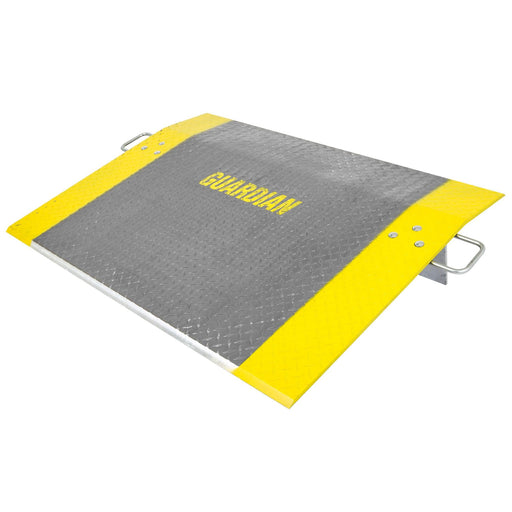

• A 36 in × 48 in plate is rated 5,300 lb.

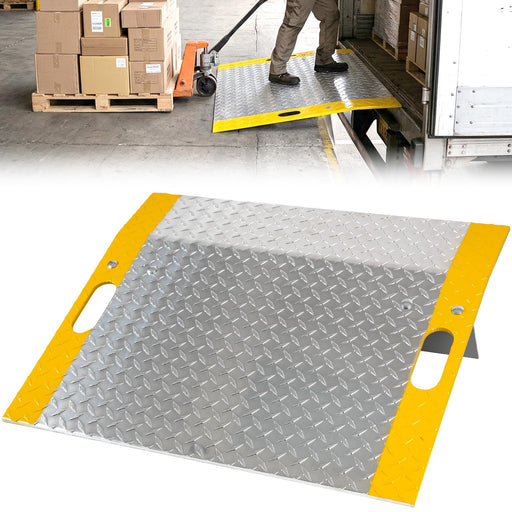

• A 48 in × 36 in plate is rated 2,000 lb.

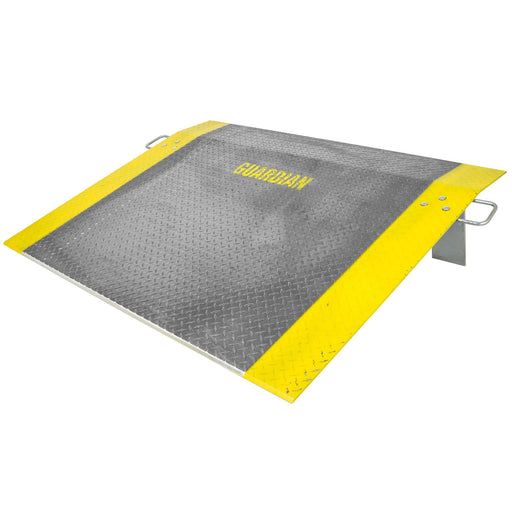

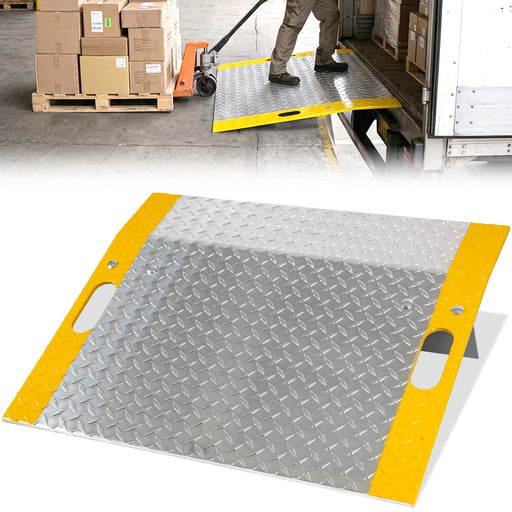

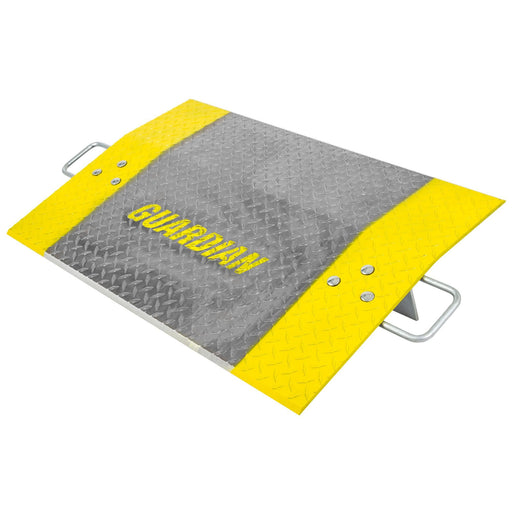

• The largest plate here, 48 in × 60 in, is rated 2,900 lb — less than a 24 in × 36 in at 3,600 lb.

The reason is that a dock plate's rating is span-dependent: the longer the unsupported bridge between dock and trailer, the less it carries, and plate thickness and alloy move the number again. ⚠ None of these listings publishes the span-versus-capacity curve that would make them directly comparable — two state a thickness of 0.42 in, one states 3/8 in, and the rest state none. So read the rating rather than inferring it from the dimensions, and size against your heaviest real crossing rather than your average one.

Which one should you buy?

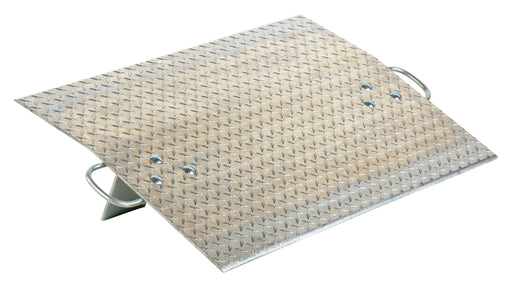

• Buy the Vestil AH-3024 for hand-truck-only docks - light enough for one person to place.

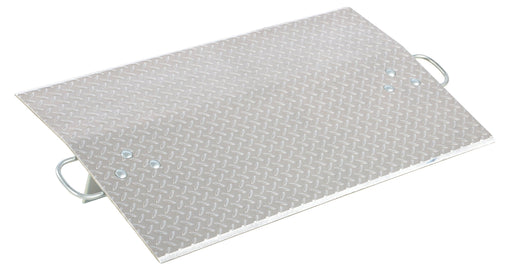

• Buy the Guardian plate or Vestil E-3624 for general manual-jack duty.
• Buy the 5,300 lb 36x48 plate when loaded jacks run heavy skids all day.

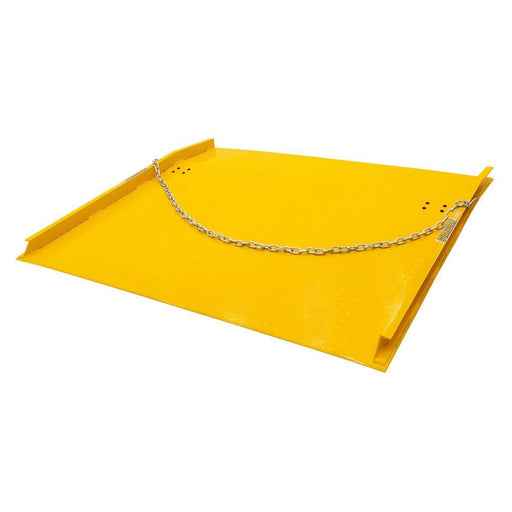

• Buy the Guardian 13,000 lb steel dock board for any forklift crossing - aluminum plates are not forklift equipment.
• Buy wheel chocks from cargo control with whatever you pick - the trailer moves before the plate fails.

How to choose

Total rolling load, not cargo weight

A 4,400 lb pallet plus a 200 lb jack plus a 200 lb operator is a 4,800 lb rolling load - and dynamic force on the plate lip runs higher than the static number. Size with margin above your heaviest real crossing.

Plate vs board

Dock plates (aluminum, no legs) serve hand trucks and manual jacks. Dock boards (steel, locking legs, side curbs) serve forklifts. The distinction is a safety rule, not a marketing tier.

Width and height difference

Plates need overlap on both surfaces and are rated for a maximum dock-to-trailer height difference - the listings here state usable dimensions. A plate that just barely spans is a plate that walks.

Dock discipline

Chock the trailer, verify the plate seats flat, keep the crossing clear, store the plate flat where it cannot fall on feet.

Regulatory context

The dockboard rule is short, specific, and worth reading in full. ⚠ It also moved: OSHA relocated dockboards to 29 CFR 1910.26 in the 2016 Walking-Working Surfaces final rule, effective 17 January 2017. Older guidance citing 1910.30 for dockboards is out of date — 1910.30 is now the training-requirements section and does not cover dockboards at all.

What 1910.26 actually requires:

• (a) Capacity — dockboards put into service on or after 17 January 2017 must be capable of supporting the maximum intended load.
• (b) Secured — portable dockboards must be secured by anchoring them in place or by using equipment or devices that prevent the dockboard from moving out of a safe position. ⚠ Bent-down locking legs count. Friction and good intentions do not.
• (c) Run-off — dockboards must be designed, constructed and maintained to prevent transfer vehicles from running off the edge, unless the dock has run-off guards. This is what the side curbs on a dock board are for, and it is the clearest reason a plate is not a substitute for forklift traffic.
• (d) Handling — portable dockboards must be equipped with handholds or other means to permit safe handling. ⭐ That is why the plates on this page carry handles or hand slots: it is a requirement, not a courtesy.

Around the plate, 29 CFR 1910.176(a) requires sufficient safe clearance in aisles and at loading docks and that aisles be kept in good repair, and 1910.178(k)(1) requires that the brakes of highway trucks be set and wheel chocks placed under the rear wheels before a powered truck boards them. ⚠ Trailer creep, not plate failure, is the classic dock incident — chocks are the control, and cargo control is where they live.

The manual side is real too: a dock plate gets placed and repositioned for every trailer, which is a two-handed lift at ground level. NIOSH publishes the manual-handling research and our NIOSH lifting equation reference covers the model. The capacity and dimension figures in our table are the manufacturers' published numbers — verify your dock-to-trailer height difference against each listing before buying.

Frequently asked questions

What is the difference between a dock plate and a dock board?

Plates are aluminum spans for manual equipment - hand trucks, pallet jacks, carts. Boards are steel, higher capacity, with locking legs and usually curbs, rated for forklift traffic. Using a plate where a board belongs is a bent plate at best.

How do I size a dock plate capacity?

Add equipment weight, max cargo, and operator, then buy comfortable margin above the total. The models here publish 700 to 13,000 lb ratings - the spread exists because the loads differ that much.

Can a forklift cross an aluminum dock plate?

No - forklift crossings need a steel dock board with locking legs like the Guardian 60x60. Aluminum plates are rated for manual equipment only.

What width dock plate do I need?

Wider than your widest equipment with clearance to spare - 36 in suits standard pallet jacks; 48-60 in gives working room. Length is set by your dock-to-trailer height difference; each listing states its usable range.

Why do dock plates have handles?

⭐ Because OSHA requires them. 29 CFR 1910.26(d) says portable dockboards shall be equipped with handholds or other means to permit safe handling. The practical reason is placement — a plate gets moved for every trailer. The Guardian and Vestil AH-3024 carry handles or hand slots so placement does not become the injury.

Do I need to chock the trailer if I have a good plate?

Always - trailer creep, not plate failure, is the classic dock incident. Chocks live in the cargo control collection and cost less than any alternative outcome.

What keeps a dock plate from sliding?

Bent-down locking legs or side stops that drop into the gap, plus the diamond-tread surface. Verify seating before the first crossing every time the trailer shifts.

Are these ratings verified?

They are the manufacturers' published capacities, quoted as listed - we do not load-test. Guardian, Vestil, and Global Industrial are established dock-equipment names; the unbranded plates publish the same spec categories, and our table shows exactly what each claims.

What about dock bumpers and seals?

Facility-install items that did not clear our Amazon-supply screen this round - they join the collection when listing quality does. The plate-and-chock core is what ships today.

Which regulation covers dock plates?

29 CFR 1910.26. ⚠ It moved there in the 2016 Walking-Working Surfaces final rule, effective 17 January 2017 — older guidance citing 1910.30 for dockboards is out of date, because 1910.30 is now the training-requirements section. 1910.26 requires the board to support the maximum intended load, to be secured against moving out of safe position, to prevent vehicles running off the edge, and to have handholds for safe handling.

Is a bigger dock plate a stronger one?

No, and often the reverse. Capacity is span-dependent — a longer unsupported bridge carries less — and thickness and alloy shift it again. On this page a 36 in × 48 in plate is rated 5,300 lb while a 48 in × 36 in is rated 2,000 lb, and the largest plate of all is rated 2,900 lb. ⚠ Read the number; do not infer it from the dimensions.

Which unit here is rated for a forklift?

One: the steel dock board rated 13,000 lb. All ten aluminum plates are listed for pallet jacks and hand carts, at 700 lb to 5,300 lb. ⚠ The difference is not just capacity — a dock board has locking legs and raised side curbs, which is how 1910.26(c) is satisfied for run-off. A plate has neither.

How does this connect to the rest of the department?

The plate carries what the pallet jack rolls, chocks come from cargo control, and stock lands on rated shelving - dock equipment is the doorway of that loop.

Our methodology: what is on this page, and what it cannot do

We counted this collection against the storefront and read all eleven listing titles before describing it, and the count holds up: ten aluminum plates rated for manual equipment and one steel dock board rated for a forklift. ⚠ What we corrected was a citation. An earlier version of this page pointed at OSHA 1910.30 for dockboards. That was right until January 2017 and has been wrong since — the 2016 Walking-Working Surfaces rule moved dockboards to 1910.26, and 1910.30 is now the training-requirements section. A page can look well sourced and point at a paragraph that no longer says what it used to, so we have quoted the four current requirements rather than the section number alone. We also added the span point: capacity on these plates does not track footprint, two near-identical plates here differ by more than two and a half times, and none of the listings publishes the span-versus-capacity curve that would make them comparable. We judge attributes from listing titles and variant data only, never from shared descriptive copy that repeats across product pages. Capacities and dimensions are the manufacturers' published figures quoted as listed — we do not load-test plates. ⚠ What we will not do is imply an aluminum plate will take a forklift because the number looks large. It will not, the reason is run-off rather than strength, and that distinction is the whole point of the category.
