Machine Skates and Toe Jacks — Read the Toe Rating, Not the Label

How do you move a machine a forklift cannot reach in 2026?

Short answer: Machine skates and a toe jack, bought together: the VEVOR 4-piece skate set carries a published 17,637 lb across smooth slab, the TEMCo 5-10 ton toe jack lifts each corner just enough to slip them under, and 12-ton sets take the heavy end. Hard floor, slow moves, rigging plan.

Equipment Movers & Machine Skates (2026)

Machine skates move the equipment that ships on a truck but lives beyond forklift reach - lathes, presses, cabinets, safes. The lineup covers 4-piece swivel-skate sets from 2 to 12 tons, fixed skates, and the hydraulic toe jacks that lift a machine the few inches skates need. Every capacity is the manufacturer's published figure. Part of the Jobsite Equipment & Tools department; related: Hand Trucks & Dollies, Utility & Platform Carts, Jobsite Ladders, Cargo Control & Tie-Downs, Casters & Wheels, Pallet Jacks.

Editor's pick - VEVOR 4-Piece Machinery Skate Set, 17,637 lb
Four PU-wheeled skates with a published 8-ton-class combined rating at a price that undercuts renting a rigging crew for an afternoon.

VIEW OUR PICK → CHECK PRICE ON AMAZON → (affiliate link - see disclosure below)

Compare the lineup

Shop Equipment Movers & Machine Skates on Amazon → VEVOR VEVOR Machine Skates, 8800 lbs Fixed Machinery Skate fo VEVOR Machine Skates, Heavy Du

A 10-ton toe jack is a 5-ton jack at the toe

Short answer: every toe jack has two ratings, and the one on the label is the one you are not going to use.

A toe jack lifts from two places. The toe is the low steel lip that slides into the inch or two of gap under a machine base — that is the whole reason the tool exists. The top is the pad on the head, which works like any conventional jack when you have room above.

They are not rated the same, and the gap is consistent:

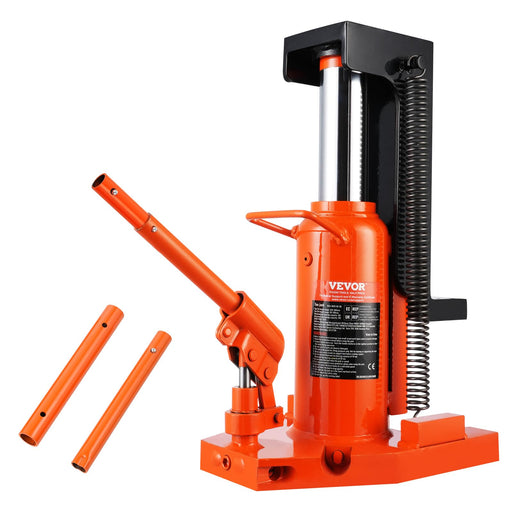

• VEVOR — 5 ton on toe, 10 ton on top

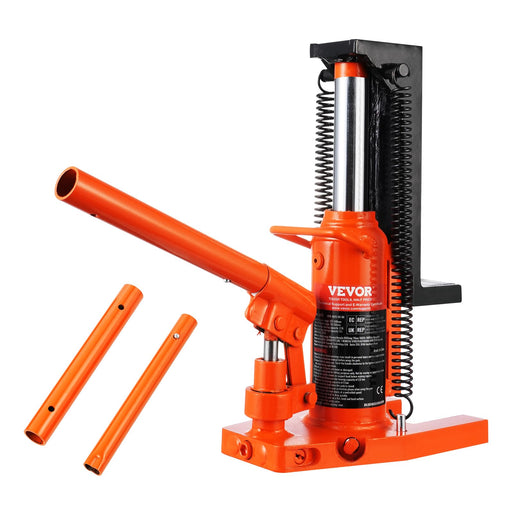

• VEVOR (smaller) — 2.5 ton on toe, 5 ton on top

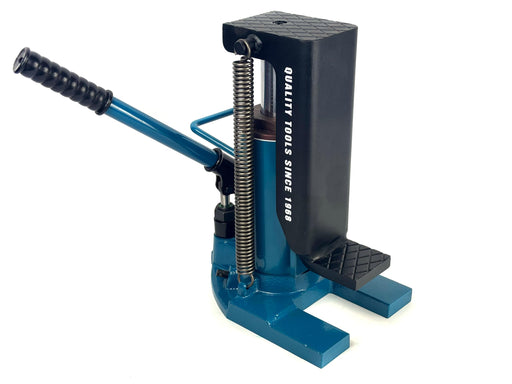

• TEMCo — listed as a 5-10 ton range, which is the same two-to-one relationship stated as a span

⚠ The toe rating is half the top rating on every unit here, and the headline tonnage in a listing title is almost always the top figure. So a jack advertised as ten tons gives you five where you actually need it. Size on the toe number, and size it against the corner weight the jack lifts — not the machine's total weight, because you are lifting one corner at a time.

That is also why searching for a 10 ton toe jack is a slightly misleading way to shop: the number in that phrase is the top rating, and the toe underneath it is five.

The four-piece sets are quoted as totals, the single skates are not

Divide before you compare, because the biggest number on this page belongs to the weakest skate.

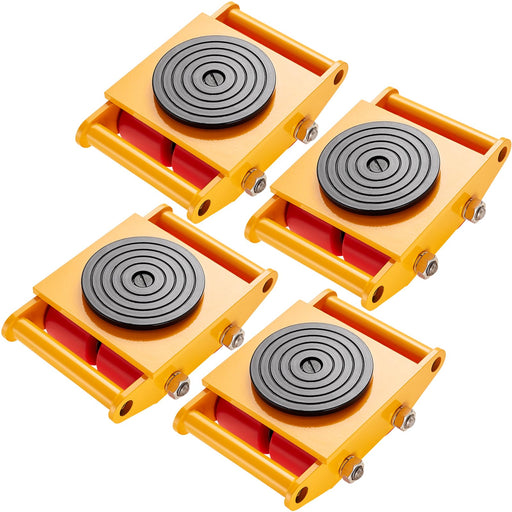

• The 17,637 lb four-piece set of equipment moving skates is 4,409 lb per skate.

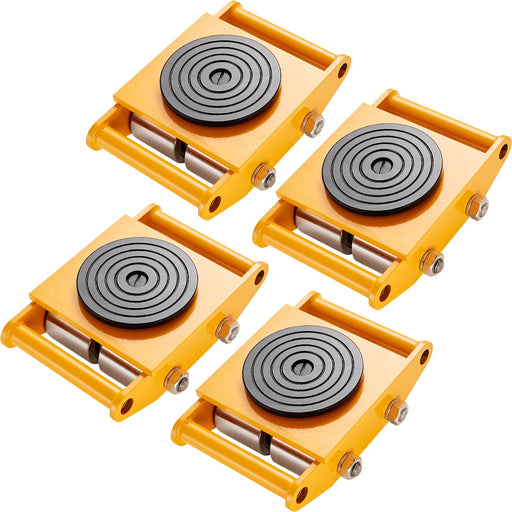

• The 26,455 lb (12T) four-piece set is 6,614 lb per skate.

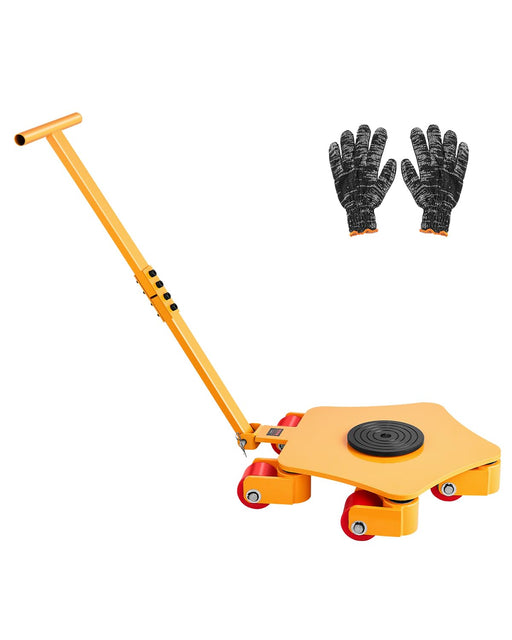

• A single skate rated 8,800 lb is 8,800 lb, on its own.

⚠ So one single skate carries twice what each skate in the 17,637 lb four-pack carries — while the four-pack advertises a number twice as large and costs less. Neither is wrong; they are quoted differently, and the listings do not flag it.

⚠ The units are mixed three ways across these eleven listings — metric tonnes (8T, 2t, 12T), pounds (8,800 lb, 5,500 lb, 17,637 lb) and tons on the jacks. Nothing in the grid compares directly without converting first. As a working rule: set rating ÷ 4 = per skate, and buy well past your machine's nameplate weight because a machine is never balanced evenly across four corners.

Which one should you buy?

• Buy the VEVOR 17,637 lb set for shop machinery up to the mid-size class.
• Buy the VEVOR 12-ton set when the load runs heavy — margin is cheap.
• Buy the TEMCo toe jack as the lifting half of the system - skates without a toe jack are ornaments.

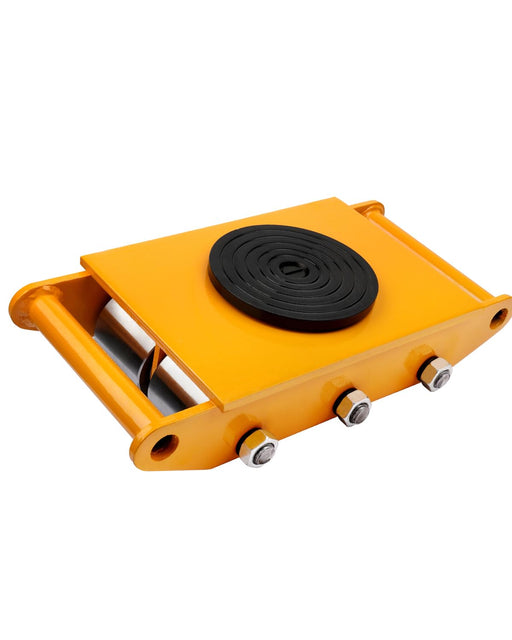

• Buy a 6-roller 8-ton skate for point loads that need roller area.

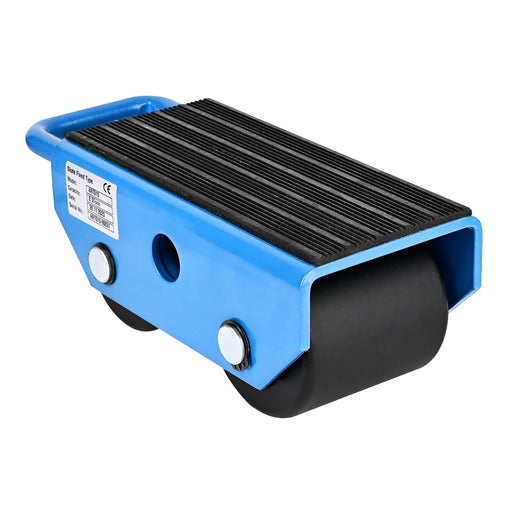

• Buy the fixed 5,500 lb skate as the budget steering pair with a swivel set.

How to choose

The system is skates plus jack

A toe jack lifts the machine edge a few inches on its low toe; skates slide under; the load rolls. Buy them together - the jack rating must carry the corner weight it lifts, not the whole machine.

Combined capacity with margin

Set ratings assume load shared across all skates - machines are never balanced, so buy the set rated comfortably past the nameplate weight. The table quotes each manufacturer figure.

Floor is everything

Skates need hard, smooth, clean slab. Cracks, slopes, and debris stop or steer the load - sweep the route, plan the path, and keep speeds to a walk.

Never under the load

No body part goes under a machine supported only by a jack. Block as you lift, and keep hands at the skate handles - not the frame edges.

Regulatory context

There is a specific OSHA standard for jacks, and it says exactly what the practice on this page says. 29 CFR 1910.244(a) covers jacks, and three of its requirements matter here:

• 1910.244(a)(1) — the rated load must be legibly and permanently marked in a prominent place on the jack. If you cannot find a rating on the tool itself, that is a problem with the tool.
• 1910.244(a)(2)(iii) — "after the load has been raised, it shall be cribbed, blocked, or otherwise secured at once." ⚠ Not eventually. At once.
• The base must sit on a firm, level foundation, with blocking under it if the surface is soft or uneven — which on a shop floor usually means a steel plate rather than the concrete itself.

⭐ That converts "never get under the load" from good advice into a written rule with a number. A hydraulic jack holds a machine only as long as its seals do, and a machine that comes down on a hand does not stop for the difference between a good jack and a bad one.

The move itself falls under 29 CFR 1910.176, materials handling and storage — clear routes, stable loads, nothing stored where it can slide or collapse. And the manual side is real: pushing a multi-ton load on skates means high initial force and almost no stopping ability, which is why NIOSH push/pull research and our NIOSH lifting equation reference are worth reading before rather than after. For machines past these capacities, that is what professional riggers are for — these sets cover shop-scale moves.

Frequently asked questions

What is a machine skate?

A low steel platform on rollers rated for several tons - a set of three or four goes under a machine so it can be rolled across smooth concrete. Swivel-roller models steer; fixed models track straight.

How do I lift the machine to get skates under?

A hydraulic toe jack like the TEMCo TH0023 - its toe slips into the gap at floor level and lifts the edge a few inches. Lift, block, place skate, lower, repeat per corner.

How much weight can these skates actually move?

⚠ Careful — the published figures are not all measuring the same thing. Six of the skates here are sold singly and quote a per-skate rating (4,400 lb to 8,800 lb each). Two are four-piece sets quoting a combined total (17,637 lb and 26,455 lb), which works out to 4,409 lb and 6,614 lb per skate. Divide any set figure by four before comparing it to a single skate. Real capacity also depends on load balance — machines are never evenly distributed across four corners — so buy well past your nameplate weight.

Can I use machine skates on asphalt or gravel?

No - small hard rollers need hard smooth slab. Asphalt dents, gravel stops rollers dead. Outside the building, machinery moves ride trailers and trucks.

How fast can I move a machine on skates?

Walking pace or slower, with people at the corners and nothing in the path. Momentum on multi-ton loads is the hazard - slow is the entire technique.

Toe jack or floor jack?

Toe jack - the low toe reaches the inch-high gap under machine bases where a floor jack saddle cannot. The top pad also works as a conventional jack at higher ratings.

Do I need a rigging plan for a shop move?

For anything heavy enough to need skates, yes - route, floor condition, lift points, blocking, and who stands where. Ten minutes of plan beats any incident report.

What PPE pairs with machinery moving?

Safety-toe footwear above all, plus grip gloves - and clear toes means clear everyone else's toes too.

Why is a toe jack rated twice on the same tool?

Because it lifts from two places. The toe — the low lip that slides under a machine base — is rated at roughly half what the top pad is rated, on every unit here: 5 ton toe against 10 ton top, and 2.5 ton toe against 5 ton top. ⚠ The toe is the point of the tool, so size on the toe figure. The tonnage in a listing title is usually the top rating.

Do I need to block the machine after lifting it?

Yes, and it is a rule rather than a preference. OSHA 29 CFR 1910.244(a)(2)(iii) requires that after a load has been raised it be cribbed, blocked or otherwise secured at once. A hydraulic jack holds only while its seals hold. No part of you goes under a machine supported by a jack alone — block it, then work.

Is a 12-ton skate set stronger than an 8,800 lb skate?

Per skate, no. The 12-ton (26,455 lb) figure is a four-piece total, which is 6,614 lb per skate; the 8,800 lb figure is a single skate on its own. ⚠ Divide any set rating by four before comparing. The mismatch is easy to miss because the collection mixes tonnes, pounds and tons across eleven listings.

Why no riggers dollies or crane gear here?

Overhead rigging (slings, spreaders, cranes) is engineered-lift territory beyond marketplace scope - this collection covers the floor-level moving system that shops can run safely themselves.

How does this connect to the department?

Skates take over where the pallet jack tops out, and the load lands on rated storage or a machine base - one system, different weights.

Our methodology: what is on this page, and what it cannot do

We counted this collection against the storefront and read all eleven listing titles before describing it, and two things in those titles changed the page. ⚠ The first is that every toe jack here publishes two ratings and the toe figure is half the top figure — stated outright in two of the three titles — which an earlier version of this page mentioned in passing without ever giving the ratio. The second is that six of the skates are sold singly and two are four-piece sets, and the earlier version described all of them as combined ratings. Six of them are not. Both corrections are arithmetic on published figures rather than judgements. We judge attributes from listing titles and variant data only, never from shared descriptive copy that repeats across product pages, and we note the internal product-type field reads the same for every item and cannot sort them. Capacities, roller counts and toe heights are the manufacturers' published numbers quoted as listed — we do not load-test jacks or skates, and where a listing mixes tonnes and pounds we convert rather than assume. ⚠ What we will not do is tell you a shop move is safe. Route, floor, corner weights and blocking are site-specific, the standards above set a floor rather than a plan, and a machine past these capacities belongs with a rigger.
