Cable Lockouts — Flexible Multi-Point LOTO for Complex Energy Isolation

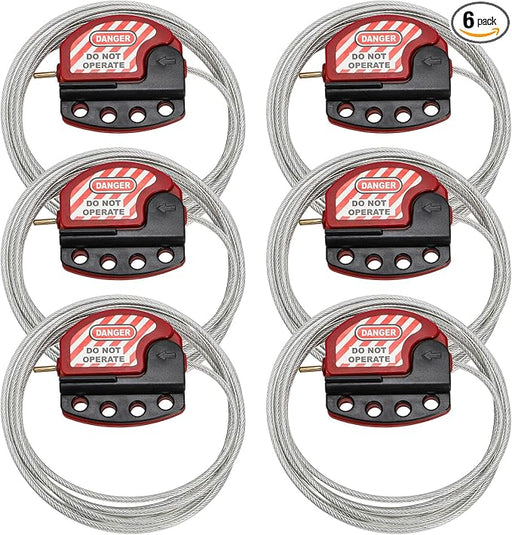

Cable lockouts use flexible steel or polypropylene-coated cables with hasp ends to secure multiple energy isolation points simultaneously with a single cable loop, addressing complex LOTO scenarios where multiple valve handles, switchgear arms, or disconnect levers must be immobilized together and a single rigid lockout device cannot span all isolation points. The cable's flexibility allows it to loop through, around, or across multiple energy isolation devices in any configuration, providing versatile multi-point lockout capability that rigid lockout devices cannot accommodate without multiple separate devices at each point.

Cable lockout applications include: locking multiple ball valve handles in a manifold in the closed position simultaneously; immobilizing multiple switchgear handles in an electrical panel when circuit-breaker-specific lockouts are unavailable; securing ganged disconnect handles that control multiple circuits from a single mechanism; and reaching around equipment or into tight spaces where rigid lockout devices cannot be positioned properly. The cable diameter and construction must provide adequate rigidity to resist the force required to pull the isolation device out of position — cables that can be stretched or deformed allow circumvention of the lockout without removing the lock.

Steel cable lockouts provide higher tensile strength than nylon cable alternatives, resisting cutting, abrasion, and deformation forces that might be applied to circumvent the lockout in high-risk industrial environments. The cable jacket — typically vinyl or nylon coating over the steel core — provides electrical non-conductivity for electrical LOTO applications and protection against the environmental corrosion of industrial process environments. Stainless steel cable cores provide corrosion resistance for wet environments, chemical handling areas, and outdoor installations where zinc-coated carbon steel cable would rust and seize over time.

Cable length selection is critical for the application: cables should be long enough to comfortably reach all required isolation points without over-straining the cable, but short enough that the excess cable length does not create a tangling or tripping hazard around the work area. Standard cable lockout lengths range from 6 inches to 10 feet, with custom lengths available for specialized applications. Quick-reeler cable lockout sets that automatically retract excess cable provide practical convenience in high-use applications where cable management is otherwise time-consuming.

Combination cable lockout sets that include hasps, padlocks, and LOTO tags provide complete capability for complex multi-point lockout procedures without requiring assembly from separate component stock. These sets are well suited for maintenance teams that perform variable LOTO procedures across different equipment configurations and need flexible capability rather than fixed-equipment-specific devices. Our cable lockout collection includes single-point cable lockouts, multi-loop configurations for complex manifold isolation, and complete cable LOTO kit sets.

Frequently Asked Questions

What is lockout/tagout?

The OSHA 1910.147 practice known as lockout/tagout isolates hazardous energy throughout service and maintenance, ensuring a machine cannot spring to life and injure the worker.

Why does each worker apply their own lock?

Issuing one personal lock and its only key to each authorized worker means the equipment holds isolation until everybody has finished and detached the lock they added.

How does group lockout work?

Through group lockout, a hasp or group lock box takes a personal lock from each worker, and isolation is held until the complete crew has wrapped up its part of the work.

What is the difference between lockout and tagout?

Whereas a lock makes energization physically impossible, a tag simply warns. OSHA favors lockout and permits tag-only control where a lock is not feasible, plus added protection.

Where should cable lockouts be stored?

Coil cable lockouts with the padlocks, hasps, and tags at a board or station near the job, keeping the proper devices organized and easy to account for once work starts.

What does a cable lockout secure?

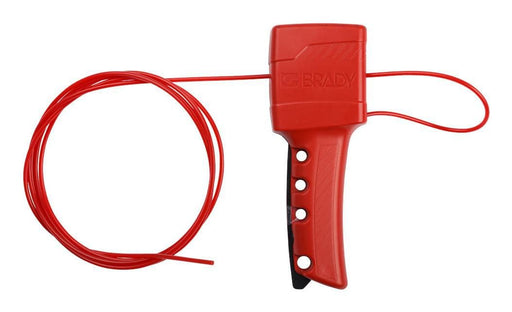

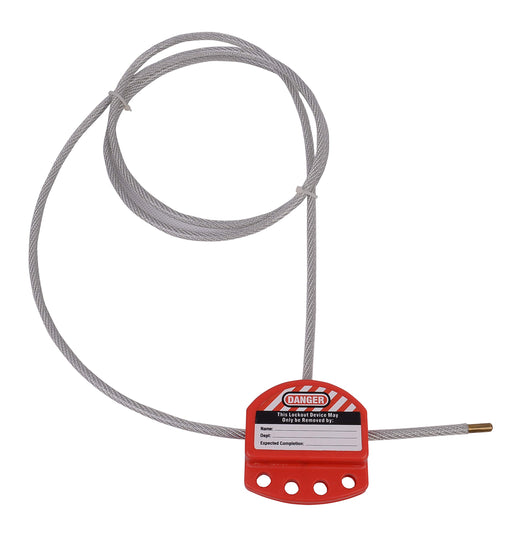

A cable lockout feeds through breakers, valves, or handles and cinches down tight, holding several points or awkwardly shaped points isolated all at the same time.

Who is allowed to remove a lockout device?

The applier alone removes a device, other than under a documented, supervised procedure used when that worker has been verified off-site and is otherwise unavailable.

When is a cable lockout the right choice?

Choose a cable lockout when one rigid device will not fit, since its flexible cable threads through multiple or oddly shaped points and cinches them isolated together.

Do I need written lockout procedures?

Certainly; OSHA mandates documented energy-control procedures specific to each machine, together with periodic inspections and authorized employees who are properly trained.

Are cable lockouts reusable?

Made to endure, cable lockouts and their companion padlocks and hasps are reusable job after job, while warning tags are normally single-use and changed out each time.

Related Safety Gear & Guides

Standards & references
Selection guidance on this page is mapped to these primary sources:

OSHA 29 CFR 1910.147 — Control of Hazardous Energy (Lockout/Tagout)

Cited for reference only. Standards text is not a substitute for a written program, a hazard assessment, or evaluation by a qualified safety professional.
