Electrical Plug Lockouts — LOTO Devices for 110V, 220V, and Industrial Power Plugs

Electrical plug lockouts secure power cords in the disconnected position during maintenance, repair, and servicing of portable electrical equipment, preventing the plug from being reinserted into an outlet while the equipment is being worked on. Unlike fixed-installation circuit breaker lockouts that isolate upstream panel circuits, plug lockouts address the portable equipment scenario where the plug-to-outlet connection is the primary energy isolation point — locking out the plug at source ensures that even if the outlet remains energized, the equipment cannot receive power until the maintenance worker removes their personal padlock and releases the plug for reinsertion.

Plug lockout devices come in several configurations to accommodate the range of electrical plug types found in industrial, commercial, and residential environments. Standard 3-prong and 2-prong 110V NEMA 5-15 and 5-20 plug lockouts are the most common, sized for the standard North American outlet plug form factor. 30-amp NEMA L6-30 and 50-amp NEMA 14-50 lockouts address larger single-phase equipment connections. Three-phase industrial plug lockouts accommodate the larger NEMA L15, L16, and L21 twist-lock configurations used for high-power industrial equipment. Each lockout style must match the specific plug configuration — a 110V lockout will not properly secure a 220V twist-lock plug.

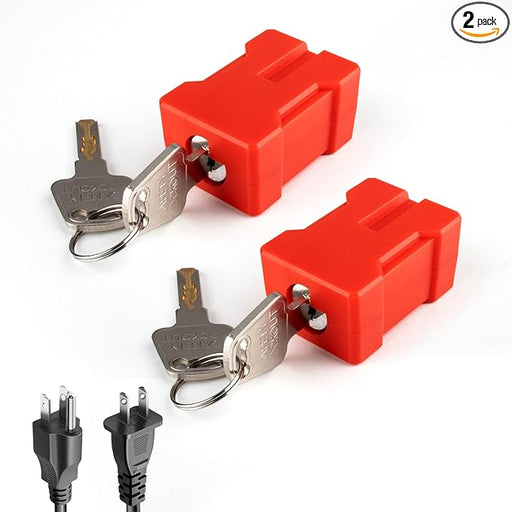

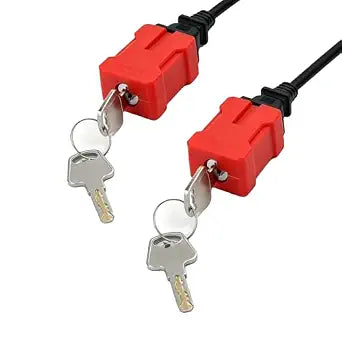

The lockout mechanism typically encloses the plug body in a hard plastic housing that captures the plug face and prongs, preventing insertion while the device is locked. The housing incorporates a hasp that accepts a standard padlock shackle, with the locked padlock preventing the housing from being opened to release the plug. Some designs use a cable tie or breakaway attachment that must be physically destroyed to release the plug without the key, creating a tamper-evident record of unauthorized LOTO removal similar to the intent of lockout tagout tags. Applying a LOTO tag to the locked plug lockout device completes the OSHA 1910.147 identification and warning requirement.

Cord grip plug lockouts address the specific scenario of identifying and locking out a specific plug among many similar cords in multi-cord equipment rooms, server areas, and shop floor power strips where individual plug identification and isolation requires securing one cord among dozens. Cord grip lockouts cinch around the cord body near the plug, providing both a visual identification flag and a physical barrier that prevents the plug from being slipped into an outlet while the lockout is applied. These devices are particularly valuable in data center and laboratory environments where proper cord identification is critical for preventing accidental equipment de-energization during maintenance on adjacent equipment.

Including a spare supply of plug lockouts at LOTO stations ensures that maintenance workers have immediate access to the specific plug lockout configuration they need without searching for equipment. Our plug lockout collection covers the full range of North American NEMA plug configurations from 110V residential to three-phase industrial, in standard and twist-lock configurations, with compatible LOTO tags and padlocks available separately or in complete plug lockout kit configurations.

Frequently Asked Questions

What is lockout/tagout?

Lockout/tagout, governed by OSHA 1910.147, is how hazardous energy gets isolated during service and maintenance so a machine will not start on its own and injure a worker.

Why does each worker apply their own lock?

Handing every authorized worker a personal lock and the single key keeps equipment isolated, since nothing re-energizes until each worker is done and removes their lock.

How does group lockout work?

For group lockout, a hasp or group lock box accepts one personal lock per worker, and the equipment cannot be released until every member of the crew has finished up.

What is the difference between lockout and tagout?

Physical prevention of energization comes from a lock; a tag only warns. OSHA prefers lockout and allows tag-only control where lockout is not feasible, adding extra protection.

Where should plug lockouts be stored?

Stash plug lockouts with the padlocks, hasps, and tags at a station or board near the work, so every device stays organized and accounted for whenever a job kicks off.

What does a plug lockout secure?

A plug lockout boxes in a power plug, making it impossible to push back into an outlet while maintenance on the equipment is still underway and the worker is exposed.

Who is allowed to remove a lockout device?

Devices are removed by the worker who put them on, save for a documented, supervised procedure used after that worker is confirmed unavailable and verified off-site.

When should I choose a plug lockout?

Pick a plug lockout for cord-and-plug equipment, where enclosing the male plug is the surest way to stop someone re-inserting it into an outlet during maintenance.

Do I need written lockout procedures?

Required, yes; OSHA wants documented energy-control procedures written per machine, backed by periodic inspections and authorized employees who have completed training.

Are plug lockouts reusable?

Sturdy by design, plug lockouts and the padlocks and hasps used with them get reused across jobs, while warning tags are typically single-use and replaced each application.

Related Safety Gear & Guides

Standards & references
Selection guidance on this page is mapped to these primary sources:

OSHA 29 CFR 1910.147 — Control of Hazardous Energy (Lockout/Tagout)

Cited for reference only. Standards text is not a substitute for a written program, a hazard assessment, or evaluation by a qualified safety professional.
