Horizontal Lifeline Systems — Temporary & Engineered HLL Kits (2026)

Which horizontal lifeline system fits your span — and who signs off on it?

Short answer: The buying question on a horizontal lifeline system is really two questions: what span and duration do you need, and who is the qualified person supervising the design — because OSHA requires one for every HLL. For temporary work, the DBI-SALA PRO-Line 60 ft is the editor's pick (full analysis in the PRO-Line review); the Sayfline cable system adds a turnbuckle tensioner, the SecuraSpan kit runs galvanized cable, and the Guardian HTL covers 100 ft spans in rope, per each listing.

Editor's pick — 3M DBI-SALA PRO-Line 1200101 (60 ft Temporary)
The temporary horizontal lifeline that crews actually deploy: 60 ft of span in a kit built for setup-teardown cycles, from the DBI-SALA engineering line that anchors this category, per the listing.

VIEW PRO-LINE 60 FT → CHECK PRICE ON AMAZON → (affiliate link — see disclosure below)

What this horizontal lifeline collection covers

Four HLL kits inside the site's fall protection silo — the traverse layer that works with anchor points, full-body harnesses, shock-absorbing lanyards, and SRLs to make a complete system. Vertical work belongs to the vertical lifelines and rope grabs line instead.

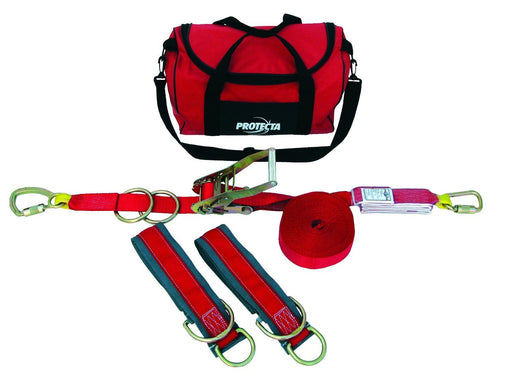

• DBI-SALA PRO-Line 1200101 — 60 ft temporary system, the deploy-daily pick
• DBI-SALA Sayfline — cable HLL with turnbuckle tensioner for controlled sag
• DBI-SALA SecuraSpan 7403060 — 60 ft galvanized-cable system kit

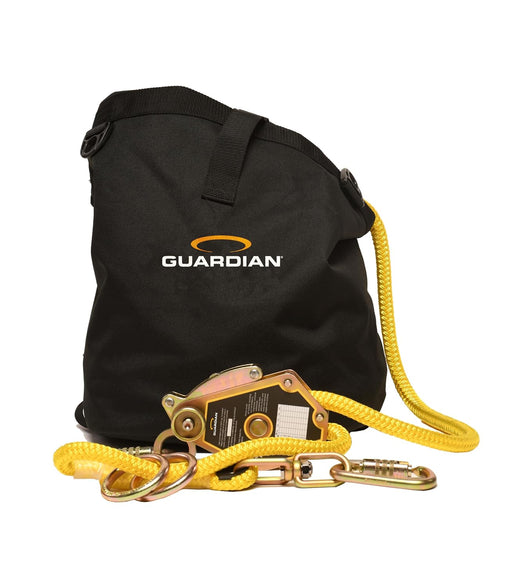

• Guardian 04665 HTL — 100 ft rope HLL with built-in tensioner, the longest span here

Horizontal lifeline system comparison

• Buy the PRO-Line when the line moves with the crew — temporary horizontal lifeline duty, job to job.
• Buy the Sayfline when the qualified person specifies a tensioned cable span with turnbuckle adjustment.
• Buy the Guardian HTL when 60 ft isn't enough — its 100 ft rope span is the reach option in this lineup.
• Buy anchors first — every span ends at two rated anchorages from the anchor points collection; the line is only as good as what it ties to.

How do you deploy horizontal lifeline fall protection legally?

The qualified-person rule is not optional

OSHA's fall protection systems criteria (29 CFR 1926.502(d)(8)) require horizontal lifelines to be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system maintaining a two-to-one safety factor. A kit purchase equips the crew; it does not replace the engineering judgment the rule demands.

Sag and clearance decide whether the system saves anyone

An HLL deflects under load, adding fall distance a fixed anchor never would. Run the numbers with the fall clearance calculator before committing to a span — a lifeline that lets a worker reach the deck below arrests nothing, and NIOSH's falls-prevention resources at cdc.gov/niosh put falls at the top of construction fatality causes for exactly this class of miscalculation.

Count the users, derate the span

Every worker on the line adds load and sag; each system's listing states its user rating, and the qualified person confirms it for the actual span and anchorage. Never add a second worker to a line rated for one.

Complete the system before anyone ties off

An HLL is the middle of a system, not the whole of one: rated anchors at both ends, a full-body harness on every worker, and an energy-absorbing connector — shock lanyard or SRL — sized to the clearance math. Inspect the line, tensioner, and terminations before each shift and after any arrest.

Why the lineup runs on two engineering brands

Searches for a dbi sala horizontal lifeline and a guardian horizontal lifeline dominate this category for a reason: both companies publish the engineered instructions a qualified person can actually design against — span tables, user ratings, tension specs — rather than marketing sheets. That documentation is the real product. It is also why generic imported spans are absent from this page: a lifeline kit without engineering documentation cannot satisfy 1926.502(d)(8) no matter how strong the cable tests, because the rule regulates the design process, not just the hardware. Buy the documents with the line, keep them with the program records, and re-verify the design whenever the span, anchorage, or user count changes.

Horizontal lifeline system FAQ

What is a horizontal lifeline system?

A cable or rope span between two anchorages that a worker's connector rides along, providing continuous tie-off while moving laterally at height — the traverse component of a fall arrest system.

Does OSHA require an engineer for horizontal lifelines?

OSHA 1926.502(d)(8) requires design, installation, and use under a qualified person's supervision, with the system maintaining a safety factor of at least two. Many programs meet this with a qualified person working from the manufacturer's engineered instructions for kit systems.

What is the difference between temporary and permanent horizontal lifelines?

Temporary systems like the PRO-Line install and strike with the job; engineered cable systems like SecuraSpan-class hardware serve longer-term structural work. Duration, reuse cycle, and the qualified person's design govern the choice.

How many workers can use one horizontal lifeline?

Only the number stated in that system's listing and instructions — user count changes the loads and the sag. Adding workers beyond the rating is the classic HLL misuse.

Cable or rope for a horizontal lifeline?

Cable (Sayfline, SecuraSpan) gives lower stretch and durable tension control; rope (Guardian HTL) runs lighter and longer in kit form — the 100 ft HTL is this lineup's longest span. The qualified person's clearance math decides which stretch behavior the site can afford.

How much clearance does a horizontal lifeline need below it?

More than a fixed anchor — total fall distance adds line sag to lanyard extension, deceleration distance, and harness stretch. The fall clearance calculator walks the stack-up; if the number reaches the lower level, redesign before anyone ties off.

Can you connect an SRL to a horizontal lifeline?

Only when the SRL's and HLL's instructions both allow it — leading-edge rating and connector compatibility matter. Check the SRL lineup against the specific line's documentation.

What inspection does an HLL need?

User inspection before each use — line condition, terminations, tensioner, connectors — plus the program's documented periodic inspection, and immediate removal from service after arresting a fall.

What anchors do horizontal lifeline kits attach to?

Rated anchorages per the system's instructions — structural steel, engineered anchor points, or the fittings the qualified person approves from the anchor collection. Anchorage strength requirements for HLLs are system-specific and higher than single-point tie-offs.

Why does this collection carry only four systems?

Because HLLs are engineered products the site lists only with documented span, line type, and tensioner details — the four kits here are the ones with listings complete enough to compare honestly; the wider fall-protection catalog covers the rest of the system.
