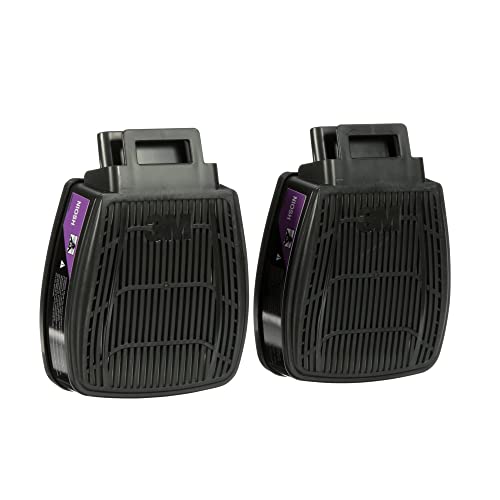

3M Secure Click D80921 Organic Vapor P100 Combination Cartridge, 1 Pair

3M Secure Click D80921 OV P100 Combination Cartridge — NIOSH-Approved for Spray Painting and Solvent + Aerosol Environments

3M Secure Click D80921 OV P100 combination cartridge — sold as 1 pair per pack — is the standard combination cartridge for workers on 3M Secure Click respirators facing concurrent organic vapor and particulate exposure. It is the correct cartridge for spray painting, automotive refinishing, bodywork with solvent-borne coatings, and any task where aerosol is generated alongside organic solvent vapor. The D80921 integrates an OV activated carbon sorbent (NIOSH TC-23C) with a P100-rated particulate filter (99.97% efficiency, oil-resistant) in a single Secure Click positive-lock housing — the Secure Click equivalent of stacking a 3M 2091 P100 filter over a 3M 6001 OV cartridge on a bayonet respirator, but in one unit that clicks into place without stacking.

Jump to: Features  ·  Specs  ·  Use Cases  ·  Compatibility  ·  Comparison  ·  FAQ

The 3M Secure Click D80921 is a NIOSH TC-23C and TC-84A approved organic vapor + P100 combination respirator cartridge in 3M's Secure Click D-series, providing simultaneous activated carbon sorbent protection against vapor-phase organic solvents and 99.97% P100 particulate filtration against aerosols, mists, fumes, and dusts — in a single Secure Click positive-lock housing for 3M HF-800 and FF-800 facepieces.

Key features — 3M Secure Click D80921

• NIOSH TC-23C (OV) + P100 combination approval — covers organic vapor and all particulate types at 99.97% minimum efficiency, oil-resistant filter element under 42 CFR Part 84 Subpart L
• Integrated OV + P100 in one housing — no stacking required; replaces the legacy 6001 cartridge + 501 retainer + 2091 P100 pancake combination with a single Secure Click unit
• Secure Click positive-lock mount — audible click confirms full engagement; cartridge requires deliberate pressure to release, preventing accidental disengagement during spray work
• Default spray-painting cartridge on the HF-800 platform — solvent-borne basecoat, clearcoat, alkyd primer (non-isocyanate), lacquer, varnish, and enamel applications via HVLP, airless, or conventional gun
• Compatible with all Secure Click facepiece sizes — HF-801 (S), HF-802 (M), HF-803 (L) and the FF-800 full-face series; APF 10 on half-face, APF 50 on full-face
• Sold as 1 pair per pack — two cartridges, one for each port; both installed and replaced together
• Secure Click equivalent of the 3M 60921 bayonet combination cartridge — same OV + P100 coverage, Secure Click mount for HF-800/FF-800 platform

Specifications — 3M Secure Click D80921

When to order the 3M Secure Click D80921

Order the D80921 when your task generates both organic vapor and airborne aerosol or particulate simultaneously — the two most common co-hazards in spray application of solvent-borne coatings.

• Spray painting with solvent-borne coatings — HVLP, airless, conventional gun, and pressure pot application of alkyd enamels, lacquers, varnishes, and solvent-borne basecoats and clearcoats (without isocyanate hardeners)
• Automotive refinishing and bodywork — solvent-borne primer surfacer application, solvent-borne basecoat spray, and non-isocyanate clearcoat application in paint booths and prep areas
• Industrial spray coating — coating application on structural steel, industrial equipment, and machinery with solvent-borne products in manufacturing and maintenance environments
• Wood finishing and furniture spray — lacquer, varnish, shellac, and solvent-borne stain application with a spray system where both vapor and overspray mist are generated
• Grinding and welding with solvent co-exposure — tasks where metal grinding or welding fume is present in the same work area as organic solvent use, requiring both particulate and vapor protection
• Aerosol can and spray bottle application — any application generating spray mist from a solvent-borne product, including maintenance spray operations in enclosed areas

Not for: isocyanate-containing coatings (2K urethane, 2K clearcoat, MDI/HDI/TDI hardeners — these require a supplied-air respirator per OSHA 29 CFR 1910.94(c)), acid gas environments (upgrade to 3M D80923), or ammonia/formaldehyde environments (upgrade to 3M D80926). Also not for OV-only brush painting without aerosol — the 3M D8001 is lower-cost for pure vapor tasks.

What respirators does the 3M Secure Click D80921 fit?

The 3M Secure Click D80921 OV P100 combination cartridge is compatible only with 3M Secure Click platform facepieces. It does not fit any bayonet-mount respirator (3M 6000, 6500, 7000, 7500, or 7800S series). The Secure Click push-and-click mount is physically incompatible with all bayonet ports. For bayonet-mount respirators, the equivalent OV + P100 cartridge is the 3M 60921.

For spray painting operations where solvent concentrations exceed 10 times the OSHA PEL — such as high-throughput production painting in enclosed spray booths — the FF-800 full-face Secure Click respirator with D80921 provides APF 50 and complete eye protection from overspray mist. The D80921 cartridge SKU and change-out schedule remain the same on both the HF-800 and FF-800 facepieces.

For particulate-only tasks on your Secure Click facepiece (dry sanding, grinding with no solvent co-exposure), the 3M D3091 P100 particulate filter provides equivalent particulate protection at lower cost than the D80921 when no OV sorbent is required. For OV-only brush painting with no spray, the 3M D8001 is the lower-resistance, lower-cost option. Consult the 3M Secure Click guide for the full cartridge selection logic.

3M Secure Click D80921 — installation and spray painting use video

Search "3M Secure Click D80921 installation" on YouTube for the official 3M donning and combination cartridge attachment videos.

3M Secure Click D80921 vs D8001 vs D3091 vs D80923 — which Secure Click cartridge to order

The D80921 is the standard combination cartridge when both vapor and particulate are present. The question is whether your specific hazard is OV + particulate only, or whether acid gas or multi-gas coverage is also needed:

When to choose the D80921 over the D8001: any time spray application is part of the work — even intermittently. The D8001 provides zero particulate filtration; spray generates aerosol that requires P100-class filtration. If workers alternate between brush and spray tasks in a single shift, equip them with the D80921 for the entire shift rather than swapping cartridges. The D80921 costs more than the D8001 per pair but provides the comprehensive OV + P100 protection that spray work demands.

When to choose the D80921 over the D80923: when your SDS lists only organic solvent vapor and no acid gas (Cl2, HCl, SO2, HF). The D80923 adds acid gas coverage; if acid gases are absent from your hazard assessment, the D80921 is the correct and typically lower-cost option.

Frequently asked questions — ordering the 3M Secure Click D80921

What does the "1 pair" designation mean for the D80921 — does the pack include both cartridges?

Yes. The "1 pair" designation means the 3M Secure Click D80921 package contains two cartridges — one for the left port and one for the right port of your HF-800 or FF-800 respirator. Both cartridges must be installed simultaneously and replaced together at the same change-out interval. Do not operate the respirator with a new D80921 on one side and an expired or missing cartridge on the other. Pair pricing is the industry standard for all dual-cartridge Secure Click combination cartridges.

Which size HF-800 half-face respirator should I buy with the D80921?

The D80921 fits all three sizes of the 3M HF-800 half-face Secure Click respirator (HF-801 small, HF-802 medium, HF-803 large) with one cartridge SKU. Facepiece size is determined by fit test results, not by cartridge selection. Consult the 3M HF-800 sizing chart and conduct a qualitative or quantitative fit test (per your written respiratory protection program) to determine which size achieves the required face seal on each worker before spray painting use. The cartridges and the facepiece are ordered separately.

Can I use the D80921 with the FF-800 full-face respirator for spray booth work?

Yes. The 3M D80921 mounts on the FF-800 full-face Secure Click respirator, increasing the OSHA assigned protection factor from APF 10 (half-face HF-800) to APF 50 (full-face FF-800). For spray booth applications where solvent concentrations exceed 10 times the OSHA PEL — as can occur in production painting operations — the FF-800 with D80921 provides APF 50 and complete eye and face protection from overspray. The D80921 cartridge SKU, installation procedure, and change-out schedule are identical on both the HF-800 and FF-800 facepieces.

Can the D80921 be used for dry sanding and grinding without solvent exposure?

The D80921's integrated P100 filter will protect against particulate from dry sanding and grinding. However, if no organic vapor is present in the task (no solvents, no coatings, no VOC sources), the more economical choice is the 3M D3091 P100 particulate filter, which provides the same P100 particulate protection at lower cost per pair. The D80921's OV sorbent layer is unnecessary in a pure particulate environment and adds cost without benefit. Use the D80921 when both vapor and particulate are confirmed co-hazards; use the D3091 for particulate-only tasks on your Secure Click respirator.

When should I upgrade from the D80921 to the D80923?

Upgrade to the 3M D80923 OV/AG + P100 combination cartridge when acid gases (chlorine, hydrogen chloride, sulfur dioxide, hydrogen fluoride) appear on your SDS alongside the OV + particulate hazard profile of the D80921. The D80923 provides identical OV + P100 coverage as the D80921, with the addition of an acid gas sorbent layer. For spray operations in environments where chlorinated solvents may decompose into HCl, or where acid cleaning processes co-exist with spray painting, the D80923 is the minimum correct Secure Click combination cartridge. The D80921 has no acid gas protection.

Is the D80921 approved for silica dust from grinding or concrete work with solvent use?

The D80921's integrated P100 filter meets or exceeds the OSHA silica standard (29 CFR 1910.1053 for general industry, 29 CFR 1926.1153 for construction) minimum respirator requirements for most silica-generating operations. P100 is the highest NIOSH particulate filtration class at 99.97% efficiency — it covers respirable crystalline silica (RCS) effectively. If your task involves both silica-generating grinding or cutting and organic solvent use in the same work zone, the D80921's OV + P100 combination is the correct Secure Click cartridge. For silica exposure with no solvent co-hazard, use the standalone 3M D3091 P100 filter.

How many D80921 pairs do I need per week for a spray painting crew?

For a spray painting crew using the D80921 with end-of-shift replacement (the widely adopted conservative default for most solvent-borne coating operations), calculate: number of workers × shifts per week × 1 pair per shift. For a crew of 6 spray painters working 5 days per week, that is 30 pairs per week. For a production painting operation running two shifts per day, that is 60 pairs per week. Add a 15–20% buffer for extended tasks or cartridges discarded due to contamination. If your industrial hygiene sampling or 3M service life calculation supports a multi-shift interval, document that calculated interval in your written respiratory protection program and adjust the ordering quantity accordingly.

Is the D80921 appropriate for automotive refinishing shops that also spray 2K urethane clearcoat?

Only for the non-isocyanate portions of the job. The D80921 is not adequate for isocyanate-containing coatings — including 2K urethane clearcoats, 2K primers, and any product whose SDS lists MDI, HDI, TDI, or any diisocyanate hardener in the hazard ingredients. No air-purifying cartridge protects against isocyanates. Under OSHA 29 CFR 1910.94(c), spray application of isocyanate-containing coatings requires a supplied-air respirator (SAR). Check your coating SDS for isocyanate content before assuming the D80921 is adequate. The D80921 is correct for solvent-borne basecoat application and solvent-borne sealer and primer-surfacer spray operations without isocyanate hardeners.

Can I order D80921 cartridges in bulk quantities for a large industrial program?

Yes. WC Safety stocks the 3M Secure Click D80921 for individual pair purchase and for bulk program ordering. Browse the full 3M respirator filters and cartridges collection for current inventory and volume options. For large programs, calculate your total program requirement based on your documented change-out schedule (end-of-shift or calculated multi-shift interval), number of workers, and shifts per period. Contact WC Safety for bulk pricing and program support if you need to set up a recurring replenishment order for a fixed-duration coating project or ongoing facility program.

What change-out schedule applies to the D80921 for spray painting operations?

OSHA 29 CFR 1910.134(d)(3)(iii)(B) requires a documented change-out schedule for all activated carbon cartridges without ESLI. The D80921 has no end-of-service-life indicator. Use 3M's free Chemical Cartridge Service Life Estimation Software at 3m.com, entering your specific solvent identity, air concentration, relative humidity, temperature, and worker breathing rate. For most spray painting operations at or near OSHA PELs for common paint solvents (toluene, xylene, MEK, naphtha), end-of-shift replacement is the widely used conservative default. The P100 filter element typically has a longer service life than the OV sorbent — the change-out schedule is driven by the OV sorbent, not the filter. Never extend cartridge use based on absence of odor from the coating solvent.

Is the D80921 the right cartridge for woodworking shops that do both finish spraying and dust sanding?

Yes — the D80921 is the correct Secure Click cartridge for woodworking shops where spray finishing (generating organic solvent vapor + aerosol mist) and sanding (generating wood dust particulate) occur in the same work environment or the same shift. The integrated OV sorbent covers the solvent vapor from lacquers, conversion varnishes, and waterborne coatings with organic co-solvents; the P100 filter covers wood dust, sanding dust, and spray mist aerosol. If formaldehyde is present from urea-formaldehyde resin composite wood sanding alongside the spray work, upgrade to the 3M D80926 multi-gas + P100, which adds formaldehyde sorbent to the same OV + P100 combination. For spray-only finishing with no sanding, the 3M D8001 would only be correct if no aerosol is generated — any spray operation requires the D80921.

Where can I read a full evaluation of the D80921 before setting up my spray painting program?

The 3M Secure Click D80921 review covers the complete evaluation including spray painting applications, the isocyanate exclusion, comparison with the D80923, service life calculation guidance, and the D80921 vs D8001 decision logic. For a side-by-side view of all Secure Click cartridge and filter options, browse the 3M respirator filters and cartridges collection. The 3M Secure Click guide provides the full cartridge selection decision tree across the D-series line.

Order the 3M Secure Click D80921 OV P100 combination cartridge

The 3M Secure Click D80921 OV P100 combination cartridge is in stock at WC Safety — sold as 1 pair (2 cartridges), ready to ship for spray painting programs. Confirm your SDS lists organic solvent vapor and aerosol/particulate with no acid gas or isocyanate hardener, then add to cart. For acid gas environments add the 3M D80923. For OV-only brush application, the 3M D8001 is the lower-cost option.
