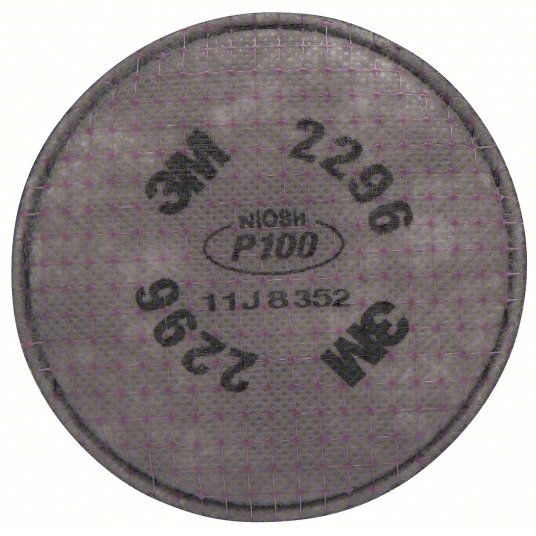

3M 2296 P100 Respirator Filter with Nuisance Acid Gas

The 3M 2296 Advanced P100 Respirator Filter with Nuisance Acid Gas Relief (vendor: 3M · SKU: 2296) is a NIOSH-approved P100 particulate filter that pairs the highest particulate class with an activated-carbon layer for nuisance-level acid gas odour relief. It captures 99.97% of oil and non-oil aerosols — silica dust, welding and metal fume, lead dust, grinding and sanding dust, and mold spores — while 3M's advanced low-resistance electret media makes long shifts easier to breathe. It carries the magenta P100 band and mounts directly on the 3M bayonet connection, so there is no cartridge to stack underneath. This page is the complete buyer's reference for the 2296: what it protects against, where it fits in the respirator cartridge selection process, and exactly how it compares to the 2096, 2297, 2091, 60922 and 7093.

Where the 3M 2296 Fits in the Respirator Cartridge Selection Process

Choosing the right air-purifying element starts with one question: are you fighting a particle or a gas/vapor? The two hazards are stopped by completely different technologies, and the 3M 2296 sits on the particulate side of that line. Understanding the distinction is the difference between compliant protection and a false sense of safety — our respirator filter types explained guide walks through the full hierarchy.

Filters vs. cartridges. A filter traps solid and liquid particles — dust, fume, mist, and spores — on a mechanical/electrostatic media. A cartridge uses chemically treated sorbent (activated carbon, often impregnated) to capture gases and vapors that pass straight through a particle filter. The 2296 is a filter. For the full breakdown, see organic vapor vs multi-gas cartridges.

Particulate hazards & P100. P100 is the highest U.S. particulate class — 99.97% efficient and oil-proof — and the correct choice for silica, lead, asbestos, welding fume, and mold. See P100 vs N95 and organic vapor vs P100.

Acid gas hazards & nuisance relief. Chlorine, hydrogen chloride and sulfur dioxide are gases that a P100 alone does nothing against. The 2296 adds a thin carbon layer for nuisance-level relief — odour reduction below the OSHA PEL only. When acid gas is regulated, you must move to a real acid gas cartridge. Class colour coding is in our respirator cartridge color chart.

Who Should Buy the 3M 2296?

Buy the 3M 2296 if you spend long shifts in respirators and need 99.97% P100 protection against silica, welding fume, lead, grinding or sanding dust, or mold — and there is a low-level acid-gas odour (chlorine, HCl, SO₂) confirmed below the OSHA PEL. The advanced low-resistance media is the reason to pick the 2296 over the cheaper 2096: it noticeably reduces breathing effort and fatigue across an 8- to 12-hour day.

Do not buy the 3M 2296 if acid gas is at or above the PEL, if the contaminant is organic vapor or solvent paint, or if you face oxygen-deficient, unknown, or IDLH atmospheres. The 2296 is a filter with nuisance relief — it is not certified gas protection and is never a substitute for a NIOSH gas cartridge or a supplied-air system.

Choose the 2096 if you want the exact same P100 + nuisance acid gas protection at a lower price and breathing comfort is not a priority — it is the standard-resistance version of the 2296.

Choose the 2297 if the odour you are managing is solvent rather than acid — same advanced P100, but with nuisance organic vapor relief instead of acid gas.

Choose the 60922 if acid gas is regulated — it is a NIOSH acid gas cartridge with a built-in P100, giving certified gas protection and particulate filtration in one unit.

Choose the 6002 if you need certified acid gas protection but particulate is not a concern — it is the gas-only acid gas cartridge. For pure particulate with no odour at all, the budget 2091 or advanced 2291 is the simpler, cheaper pick.

Best Applications for the 3M 2296

3M 2296 for Silica Dust

Respirable crystalline silica from cutting, grinding, or drilling concrete, stone, and masonry is a P100-class hazard under OSHA 1926.1153. The 2296's 99.97% P100 media captures silica fully, and the low-resistance design keeps breathing comfortable through long table-saw or grinder sessions. The nuisance acid gas layer is a bonus, not the reason to buy here. If there is no acid odour at all, the particulate-only 2291 or budget 2091 is sufficient. Acid gas at regulated levels is rare in silica work, so a 60922 is seldom required for dust alone.

3M 2296 for Welding Fumes

Welding and thermal cutting produce fine metal-oxide fume that a P100 captures at 99.97%, and some flux and galvanized processes give off acidic odours the nuisance layer helps tame. The 2296's easier breathing is a real advantage when a hood and respirator are worn together for hours — see our best respirator for welding fumes guide. If there is no acid odour, the 2096 equivalent or plain P100 is sufficient; if cutting releases organic solvent vapor, step to the 2297; for regulated acid gas, the 60922 is required.

3M 2296 for Mold Remediation

Mold spores and the dust disturbed during demolition are particulate, and P100 is the recommended class for remediation work. The 2296 filters spores at 99.97% while easing breathing inside hot, sealed containment. Most mold jobs have no acid gas, so the simpler 2096 or particulate-only 2291 covers them — the 2296 earns its place when a remediation site also has an acidic chemical odour below the PEL. If you are cleaning with solvent-based biocides, the organic-vapor 2297 or a true OV cartridge is the better match.

3M 2296 for Grinding Dust

Angle-grinding metal, weld seams, and masonry throws heavy particulate plus sparks and, on coated or treated surfaces, acidic fume. The 2296's P100 media holds 99.97% efficiency even at high dust loading, and its abrasion-resistant construction stands up to grinding debris. The low-resistance media matters most when grinding is continuous. Where there is no odour, the 2096/2291 is enough; where grinding releases organic solvent vapor from coatings, move to the 2297; where acid gas is regulated, the 6002 or 60922 cartridge is required.

3M 2296 for Sanding Applications

Sanding wood, drywall, body filler, and old painted surfaces generates fine respirable dust that P100 captures fully. The 2296 keeps breathing easy through repetitive sanding, and the nuisance acid gas layer helps where treated materials give off a faint acidic odour. Plain sanding with no odour is well served by the cheaper 2096 or 2291. If you are sanding cured solvent finishes that off-gas vapor, the organic-vapor 2297 is the right choice; lead-paint sanding adds the compliance points below.

3M 2296 for Lead Dust

Lead dust from abrasive blasting, sanding old paint, or demolition is a P100 hazard regulated under OSHA 1926.62. The 2296 captures lead particulate at 99.97% and the advanced media reduces fatigue during long abatement shifts inside coveralls and a full facepiece. Acid gas is rarely the issue in lead work, so the nuisance layer is incidental — a 2096 or 2291 is functionally equivalent on the particulate side. Always pair lead work with a fit-tested facepiece and your written exposure-control plan; the filter is only one part of compliance.

3M 2296 for Industrial Maintenance

General plant maintenance — grinding, cleaning, filter changes, and work near plating or chemical lines — mixes particulate with low-level acid-gas odour, which is exactly the 2296's sweet spot. One filter covers dust and fume at P100 while easing the odour without swapping elements. When a maintenance task moves into regulated acid gas (acid tank work, plating line breaks), switch to the 60922; when it involves solvents, switch to the 2297 or an OV cartridge. Confirm every match against the 3M filter & cartridge guide.

3M P100 Filter & Acid Gas Cartridge Comparison Hub

The 2296 lives in a family of 3M bayonet elements that look similar but solve different problems. Use this table to place it against every neighbour, from plain P100 filters to true acid gas cartridges.

3M 2296 vs 2096

The 2296 and 2096 are the closest pair in the range: identical protection — both are NIOSH P100 filters at 99.97% efficiency with the same nuisance-level acid gas relief layer for chlorine, HCl, and SO₂ odour below the PEL. The single difference is breathing resistance. The 2296 uses 3M's advanced low-resistance electret media, while the 2096 uses standard P100 media that takes more effort to pull air through.

The decision is purely comfort vs. cost. For full-shift wear, the 2296's lower breathing effort reduces fatigue and keeps masks on. For short or budget-driven jobs, the 2096 delivers the exact same regulatory protection for less. Neither protects against regulated acid gas. Verdict: 2296 for long-shift comfort, 2096 to save money on the same protection — see the 3M 2096 review.

3M 2296 vs 2297

The 2296 and 2297 are mechanical twins — both are advanced low-resistance P100 filters at 99.97% with the same easier-breathing media. They differ only in which odour the carbon layer addresses. The 2296 carries nuisance acid gas relief (chlorine, hydrogen chloride, sulfur dioxide); the 2297 carries nuisance organic vapor relief (solvent and paint odour). Choosing wrong means the relief layer simply does nothing for your hazard.

Pick by chemistry. If the smell is acidic — plating lines, acid flux, chlorine processes — the 2296 is correct. If the smell is solvent — paints, adhesives, degreasers, fuels — the 2297 is correct. Both layers are nuisance-level only: at regulated concentrations you escalate to the matching cartridge (an acid gas cartridge like the 6002/60922 for acid, or an organic vapor cartridge like the 6001 for solvent). Verdict: acid odour → 2296; solvent odour → 2297. See the 3M 2297 review.

3M 2296 vs 2091

The 2091 is 3M's straightforward P100 particulate filter — 99.97% efficiency, no odour layer. The 2296 is a P100 plus a nuisance acid gas relief layer built on advanced low-resistance media. On pure particulate capture (silica, lead, mold, fume) the two are equivalent: both are P100.

The choice is about odour and comfort. With zero gas or odour — clean dust, sanding, demolition — the 2091 is the cheaper, lighter answer and the 2296's carbon adds nothing. With a low-level acid-gas odour and long shifts, the 2296 is worth the upgrade; the 2291 is the 2296 without the acid gas layer. Verdict: no odour → 2091 (or 2291 for low-resistance); acid odour present → 2296. See the 3M 2091 review.

3M 2296 vs 60922

This is the most important comparison to get right, because the two are not interchangeable. The 2296 is a filter with nuisance acid gas relief — odour comfort below the OSHA PEL only. The 60922 is a NIOSH-certified acid gas cartridge with a built-in P100, providing genuine respiratory protection against chlorine, HCl, and SO₂ at regulated concentrations, plus 99.97% particulate.

The deciding factor is exposure level. If monitoring confirms acid gas below the PEL and the main hazard is particulate, the 2296 is the comfortable, lower-cost solution. If acid gas is at or above the PEL — or you cannot rule that out — the 2296 is unsafe for that gas and the 60922 is mandatory: certified protection, not relief. Verdict: below PEL with particulate focus → 2296; regulated acid gas → 60922. See the acid gas cartridge guide.

3M 2296 vs 7093

The 7093 is a rigid, hard-shell P100 particulate cartridge — durable, reusable, and popular on full facepieces where its low-profile shape preserves the field of view. Like the 2296 it captures particulate at 99.97%, but the 7093 has no acid gas relief layer. The 2296 is a flat bayonet filter that adds nuisance acid gas odour relief and advanced low-resistance media.

Choose the 7093 when you want a tough, washable particulate cartridge for heavy industrial or full-face use and have no gas/odour concern. Choose the 2296 when an acid-gas odour is present and you want the carbon layer plus easier breathing. If you need both rugged particulate and regulated acid gas, neither is right — that is the 60922's job. Verdict: rugged particulate-only → 7093; particulate + acid odour comfort → 2296.

3M 2296 Quick Answers

What is the 3M 2296?
A NIOSH P100 particulate filter (99.97%, oil-proof) with an added activated-carbon layer for nuisance-level acid gas odour relief, built on 3M's advanced low-resistance media for easier breathing.

What does the 3M 2296 protect against?
P100 particulate — silica, lead, asbestos, welding fume, mold and other dusts and mists at 99.97% — plus nuisance-level (below-PEL) relief for acid-gas odours like chlorine, HCl and SO₂.

Does the 3M 2296 protect against acid gas?
Only at nuisance level, below the OSHA PEL. It is not a NIOSH gas cartridge. For regulated acid gas use a 3M 6002 or 60922 cartridge.

Does the 3M 2296 protect against organic vapor?
No. It has no organic vapor protection. Use the 3M 2297 for nuisance solvent odour, or a 3M 6001 cartridge for regulated organic vapor.

What respirators fit the 3M 2296?
3M bayonet facepieces: the 6000, 6500QL and 7500 half masks, and the 6000 Series, 7800S and Ultimate FX FF-400 full facepieces. It mounts directly, with no cartridge underneath.

When should I choose the 3M 60922 instead?
When acid gas is at or above the OSHA PEL. The 60922 is a NIOSH acid gas cartridge with a built-in P100; the 2296 only relieves odour below the PEL.

Compatible 3M Respirators

The 2296 uses the 3M bayonet connection and mounts directly on the facepiece — no gas cartridge underneath. It fits the full 3M bayonet range:

• 3M 6000 Series half masks — the 6100 / 6200 / 6300
• 3M 6500QL Series half masks — the 6501 / 6502 / 6503 Rugged Comfort
• 3M 7500 Series half masks — the 7501 / 7502 / 7503 silicone half masks
• 3M 6000 Series full face — the 6000 full facepieces (APF 50)
• 3M 7800S Series full face — the 7800S full facepieces
• 3M Ultimate FX FF-400 full face — the Ultimate FX FF-400 respirators

Browse all compatible bodies in the 3M half mask and 3M full face collections. 3M bayonet filters do not fit Honeywell North, MSA, or Moldex masks, and the 2296 is not a Secure Click filter — if you are unsure, read are respirator cartridges universal?
