Honeywell North N75001L + 7506N95 vs 7581P100L

Honeywell North N75001L + 7506N95 vs 7581P100L: Cartridge-Prefilter Setup vs Integrated Combination

When a job involves both organic vapors and airborne particles — spray painting, solvent cleaning with overspray, lacquering, or coating work — you need protection against two distinct hazards at once. Honeywell North gives you two fundamentally different ways to get it: build a cartridge-plus-prefilter setup using the N75001L organic vapor cartridge with a 7506N95 prefilter clipped over it, or install a single 7581P100L integrated combination cartridge that bonds OV and P100 protection into one sealed unit. These are not interchangeable approaches. Each has genuine engineering advantages, a different cost profile, and specific job-site conditions where it wins. This guide lays out the tradeoffs so you can pick the right configuration before the next shift.

For a full overview of Honeywell North cartridge and filter options, see the Honeywell North Cartridge Guide before or after reading this comparison.

Honeywell North N75001L vs 7581P100L: Side by Side

Best Choice at a Glance

• N75001L + 7506N95: Best for dry-particle + solvent environments (wood finishing, lacquer, non-oil coating) where particle loads vary and you want to swap filters cheap without replacing cartridges.
• 7581P100L: Best for oil-mist + OV environments (automotive spray painting, oil-based coatings, urethane clear-coats) where P100 oil-proof filtration is required and a single lower-profile unit is preferred.

Comparison Table

What Each Option Protects Against

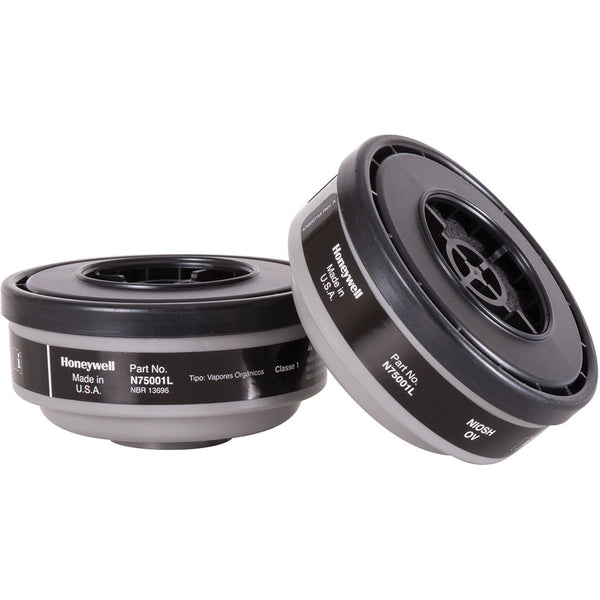

N75001L Organic Vapor Cartridge — Alone vs. With Prefilter

The Honeywell North N75001L is a NIOSH-approved organic vapor cartridge. Its activated-carbon bed adsorbs organic vapors — solvents, thinners, acetone, toluene, xylene, paint solvents. However, the N75001L by itself gives zero particulate protection. No activated carbon removes particles. If you are working around overspray, dust, or any airborne particulate and you are only wearing the N75001L without a prefilter, you are unprotected against those particles. This is a safety-critical point that is frequently misunderstood on job sites.

When you clip a Honeywell North 7506N95 prefilter over the N75001L using a North prefilter retainer/cover, the combined assembly addresses both hazards: the outer N95 prefilter captures at least 95% of non-oil airborne particles; the inner N75001L adsorbs organic vapors. The prefilter is NIOSH class N — Not resistant to oil aerosols. In environments with oil-based mist (oil-based paints, oil aerosols, metalworking fluids), an N-class filter may degrade faster and does not carry the oil-proof guarantee that a P100 does.

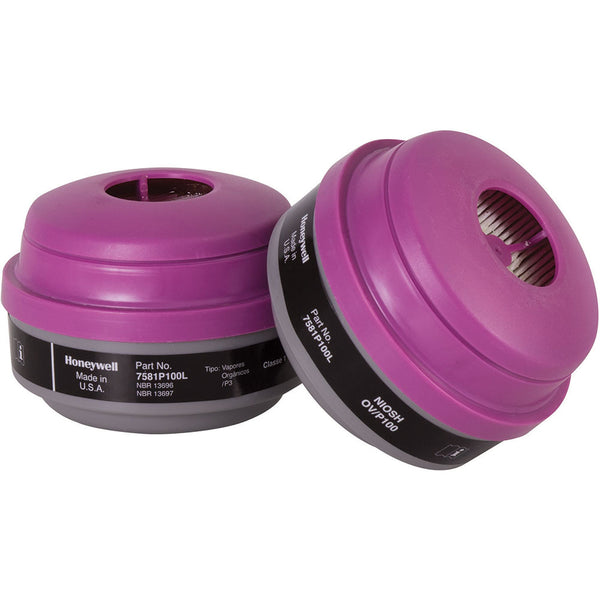

7581P100L Integrated Combination Cartridge

The Honeywell North 7581P100L is a single-piece NIOSH-approved OV/P100 combination cartridge. The P100 particulate layer is bonded into the cartridge housing — there is no separate prefilter, no retainer needed, no assembly step. The P100 class means 99.97% filtration efficiency and is fully oil-proof (Proof against oil aerosols) — the highest NIOSH particulate class available for half-mask and full-face respirators. The organic vapor section handles the same solvents and vapors as the N75001L. In a single install, the 7581P100L covers the full spray-painting hazard profile.

Key Differences

1. N95 vs P100: What the Classification Actually Means

NIOSH rates particulate filters by two variables: efficiency and oil resistance. The letter (N, R, P) describes oil resistance; the number (95, 99, 100) describes filtration efficiency at the standard 0.3-micron particle size. N = Not oil resistant. R = somewhat Resistant to oil (single shift only). P = oil-Proof. So:

• 7506N95: 95% efficiency, not oil-resistant.
• 7581P100L integrated layer: 99.97% efficiency, fully oil-proof.

For dry, non-oil particles (wood dust, drywall, non-oil overspray), N95 performs well. For any oil-containing environment — oil-based paints, two-part urethanes, metalworking — P100 is the correct designation.

2. Modularity vs Integration

The cartridge-plus-prefilter approach is modular. In heavy-dust spray work, the prefilter loads up with particles long before the cartridge's OV capacity is exhausted. With the N75001L + 7506N95 setup, you replace the cheap prefilter when it restricts airflow, and the N75001L keeps working until you detect OV breakthrough (smell solvent through the mask). That can mean one cartridge pair outlasts three or four prefilter changes, significantly reducing cost per shift.

The 7581P100L is integrated: when any component reaches end of service life — whether the P100 layer loads or the OV carbon is exhausted — the entire cartridge is replaced. No assembly errors, no risk of forgetting to attach a retainer, but each replacement costs more.

3. Profile and Fit

Adding a prefilter and retainer to any cartridge increases the side profile of the respirator. For spray painting in tight booths, under equipment, or in any confined workspace, extra bulk translates to reduced downward sightlines and potential fit issues near face seals. The 7581P100L's single-piece design is more compact and is preferred by many spray painters precisely for this ergonomic reason.

Which One Should You Choose?

This decision hinges on three factors: oil-containing aerosols, particle load variability, and cost-per-shift priorities.

Choose N75001L + 7506N95 if: Your particles are non-oil (wood dust, drywall dust, non-oil powders); dust loads vary shift to shift so independent prefilter replacement saves money; you already stock N75001L cartridges for other OV work and want to add particulate protection when needed.

Choose 7581P100L if: You work with oil-based paints, two-part urethane finishes, or any environment where oil aerosols are present; you need a single lower-profile cartridge with zero assembly; your facility's safety program requires P100 for high-efficiency particulate tasks (silica, lead, isocyanates in spray paint); you prefer to eliminate assembly errors entirely.

For professional guidance on matching cartridge type to contaminant, see How to Choose a Respirator Cartridge and Best Respirator Cartridge for Solvents.

Best Applications by Job Site

N75001L + 7506N95 Setup — Where It Works Well

• Wood finishing with water-based stains: Dry overspray particles + solvent vapors. No oil aerosols present. Cheap prefilter swaps keep the cartridge running longer.
• Non-oil lacquer spraying: Nitrocellulose lacquers carry organic vapor hazards; overspray is a dry particle. N95 handles it; prefilter replacements are inexpensive.
• General solvent degreasing with incidental dust: Shop environments with occasional sanding and solvent wipe-down. Modular setup allows switching between pure OV work (no prefilter needed) and combined tasks.
• DIY and low-frequency spray work: Cost-sensitive users who do infrequent combined-hazard jobs benefit most from the lower cartridge price and cheap prefilter swaps.

7581P100L — Where It Works Well

• Automotive spray painting: Oil-based primer, enamel, urethane clear-coat. Oil aerosols in the booth demand P100's oil-proof certification. Mandatory in most professional body shops.
• Two-part urethane coatings (isocyanates): Isocyanate hazard requires OV protection; overspray contains both isocyanate vapor and particles. P100 + OV combination is the industry standard.
• High-production spray environments: Fast-paced work where stopping to swap a prefilter slows the line. Single-unit replacement on schedule is faster and less error-prone.
• Industrial coating and pipeline work: Mixed-contaminant spray environments with unknown aerosol composition benefit from P100's unconditional oil-proof rating.

When NOT to Use Each Option

Do NOT Use N75001L + 7506N95 When:

• Oil-based paint, oil aerosols, or oil mist is present. N95 is not rated for oil-containing environments.
• The N75001L is installed WITHOUT the prefilter and particles are present. The cartridge alone has no particulate protection.
• P100-level efficiency is required by your OSHA compliance program, SDS, or industrial hygienist recommendation.
• Exposure to isocyanates in spray painting — most safety programs require P100 for this.

Do NOT Use 7581P100L When:

• You need acid gas protection in addition to OV and P100. Consider the 7583P100L (OV + Acid Gas + P100) instead.
• Multi-contaminant gas protection is required. The 75SCP100L covers broader gas types with P100.
• Budget constraints make the per-cartridge cost of combination units prohibitive for low-frequency use — the modular setup may be more practical.

Compatibility: Honeywell North N-Series Respirators

Both the N75001L, 7506N95, and 7581P100L use the Honeywell North bayonet connection and are compatible with the full North N-Series half-mask and full-facepiece lineup:

• North 5500 Series half masks
• North 7700 Series half masks
• North 5400 Series full facepieces
• North 7600 Series full facepieces

Prefilters (7506N95) attach to the N75001L cartridge using a North prefilter retainer/cover — this retainer holds the prefilter firmly against the cartridge face and must be in place any time a prefilter is used. Do not use the N75001L with a prefilter and no retainer. Both cartridges are designed for Honeywell North half-mask respirators and Honeywell North full-face respirators.

Cost and Practicality

The modular setup (N75001L + 7506N95) typically has a lower up-front cost per cartridge pair, and because prefilters are sold separately and are inexpensive, ongoing maintenance cost is low when particle loads are high. If you go through prefilters quickly but your solvent exposure is moderate, you're only replacing the cheap part. The tradeoff: you need to stock two SKUs and remember to install the retainer and prefilter correctly every time.

The 7581P100L carries a higher per-unit cost but simplifies procurement to one SKU and eliminates assembly. In high-production environments where technician time is expensive, the convenience premium on the 7581P100L often pays for itself.

Replacement and Service-Life Considerations

7506N95 prefilter: Replace when breathing resistance increases noticeably — a clogged prefilter causes user discomfort and signals that the P-layer is loaded. With light dust, a prefilter may last a full shift or longer; in heavy spray environments, replace more frequently. Replace immediately if damaged or if fit is compromised.

N75001L cartridge: Replace when you detect solvent odor through the cartridge (OV breakthrough), or per your facility's change-schedule based on the cartridge's assigned protection factor and the contaminant concentration. NIOSH and OSHA recommend a written cartridge change schedule based on service-life calculations — do not rely on odor alone for all solvents (some have poor odor warning properties).

7581P100L: Replace the entire cartridge when you detect OV breakthrough by odor, when the P100 layer becomes visibly loaded, or per your change schedule. Since the P100 layer and OV carbon are integrated, the cartridge is replaced as a single unit at whichever end-of-life event occurs first.

Related Honeywell North Alternatives

• 7506R95 (R95 prefilter) — steps up oil resistance slightly vs 7506N95 (single-shift use in oil aerosols), still not oil-proof like P100
• 7580P100 (P100 filter, 2-pack) — standalone P100 filter for particulate-only work
• 75FFP100 (low-profile P100 filter) — flat-profile P100 with better downward sightline; particulate only
• 7583P100L (OV + Acid Gas + P100) — add acid gas protection to the OV+P100 combination
• N75003L (OV + Acid Gas cartridge) — OV plus acid gas without P100 (add prefilter for particles)
• 75SCP100L (Multi-contaminant + P100) — broadest gas protection with P100 in one cartridge

Frequently Asked Questions

Final Recommendation

For oil-mist environments, automotive spray painting, urethane coatings, and any job where an industrial hygienist or SDS specifies P100: choose the 7581P100L. It is technically superior in oil-aerosol conditions, lower-profile, and simpler to use correctly.

For dry-particle + solvent work (non-oil overspray, lacquer spraying, solvent cleaning with incidental dust): the N75001L + 7506N95 setup delivers full protection at lower ongoing cost, with the modularity advantage of independent prefilter replacement.

Never use the N75001L without a prefilter in a mixed vapor + particle environment, and never use only the 7506N95 prefilter without an OV cartridge in a solvent environment. Both errors leave you unprotected against one of two simultaneous hazards.

Return to the Honeywell North Cartridge Guide to compare the full North cartridge range side by side.
