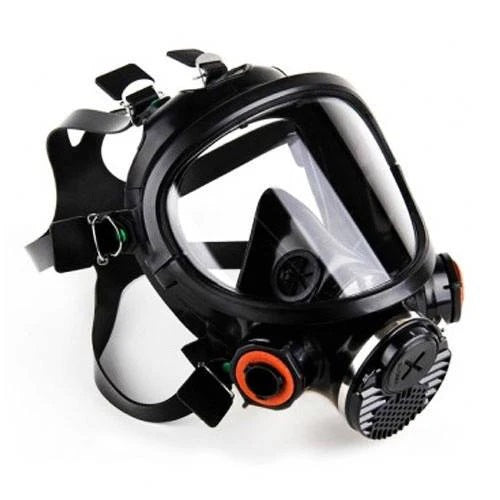

Best 3M Full Face Respirator
Best 3M Full Face Respirator: Complete Guide to the 3M 6800 and 6900 Full Facepiece, APF 50 Protection, and Compatible Cartridges
Published · Last updated
3M's full-face respirator line — the 6800 (medium) and 6900 (large) — provides APF 50 protection under OSHA 1910.134, making them appropriate for concentrations up to 50× the OSHA PEL. This guide covers the 6800 vs. 6900 comparison, compatible 3M cartridges and filters, fit testing requirements, and the specific applications where full-face protection is required or preferred over half-face alternatives.
Why Full-Face? APF 50 vs. APF 10
OSHA's Assigned Protection Factor table (1910.134 Table 1) specifies:
| Respirator Type | APF | Max Use Concentration |
|---|---|---|
| Half-face air-purifying | 10 | 10× OSHA PEL or IDLH, whichever lower |
| Full-face air-purifying | 50 | 50× OSHA PEL or IDLH, whichever lower |
| Half-face PAPR | 25 | 25× OSHA PEL |
| Full-face PAPR/SCBA | 50+ | 50× or higher |
Full-face respirators are required when contaminant concentrations exceed 10× PEL, when eye/face chemical exposure is a hazard, or when specific OSHA substance standards mandate APF 50 (asbestos Class I/II, some lead operations).
3M 6800 vs. 3M 6900: Size Comparison
| Model | Size | Fit Characteristics |
|---|---|---|
| 3M 6700 | Small | For smaller facial dimensions |
| 3M 6800 | Medium | Most common fit — fits majority of adults |
| 3M 6900 | Large | For larger facial profiles; more internal volume |
Fit testing is required to determine which size provides an adequate seal — do not assume medium fits all workers. The 6800 fits the majority of adults but the 6900 is necessary for workers with larger face dimensions, especially in the chin and jaw area. 3M also offers the 6500QL series for half-face with similar materials.
Compatible Cartridges for 3M 6800/6900
| Cartridge | Protection | Application |
|---|---|---|
| 3M 7093 | P100 particles | Asbestos, lead, silica, toxic dust |
| 3M 60921 | OV+P100 | Solvent spray painting, chemical processes |
| 3M 60928 | OV+AG+P100 | Mixed chemical environments |
| 3M 60927 | Mercury+OV+P100 | Mercury vapor environments |
| 3M 6001 | OV gas only | Solvent vapor, no particles |
| 3M 6004 | Ammonia/Methylamine | Refrigeration, cold storage |
The 6800/6900 uses the same 3M bayonet mount as the half-face 6000 series — all 3M bayonet cartridges are compatible. Full-face mounting provides the same chemical protection but with APF 50 due to the improved face seal of the full facepiece.
Lens Care and Anti-Fog for 3M 6800/6900
The polycarbonate lens is scratch-resistant but not scratch-proof. Key maintenance points:
- Clean with mild soap and water — never solvents or abrasives that will scratch the lens
- 3M offers lens covers (scratch-resistant protective films) that take the wear of work environments
- Anti-fog is addressed by proper fit and exhalation valve function — a leaking valve or improper fit causes fogging
- Store lens-down only on non-abrasive surfaces or hang by straps
- Replace immediately if the lens shows cracks or deep scratches — optical distortion creates a safety hazard separate from respiratory protection
Complete your respirator kitReusable respirators need replacement cartridges/filters and regular cleaning — grab them in the same Amazon order.
Cartridges & Filters →Cleaning Wipes →
Frequently Asked Questions
Q: Is the 3M 6800 the most popular full-face respirator?
A: The 3M 6800 (medium) is one of the most widely used industrial full-face respirators in the US. Its broad compatibility with the entire 3M 6000-series cartridge/filter lineup and proven field durability make it the de facto standard for many industries. The 3M 6900 (large) is used where the 6800 fails fit testing.
Q: Can I use the 3M 6800 for asbestos abatement?
A: Yes — the 3M 6800 with 7093 P100 filters provides APF 50, meeting OSHA 1910.1001 Class I and II asbestos operation requirements. Full-face respirators are required (not half-face) for the highest-exposure asbestos abatement tasks. Fit testing is mandatory before use.
Q: Does the 3M 6800 provide eye protection?
A: Yes — the full facepiece covers eyes and face, providing splash protection from liquid chemical hazards. However, the polycarbonate lens has limited impact resistance compared to dedicated safety glasses — it is chemical splash rated, not high-impact rated. For grinding or high-velocity particle hazards, additional eye protection may still be needed.
Q: Is the 3M 6800 compatible with hearing protection?
A: Wearing earmuffs over a full-face respirator creates fit issues with the respirator seal. For workers who need both hearing and respiratory protection: use earplugs (which don't interfere with the respirator seal) rather than earmuffs. The 3M 6800's head straps must be checked for continued seal integrity when used with other PPE.
Q: How often does the 3M 6800 facepiece need replacement?
A: The 3M 6800 facepiece has no fixed replacement interval — replace when: elastomeric face seal shows cracking or hardening, straps lose elasticity, lens is scratched to the point of distortion, or any structural component shows damage. With regular cleaning and proper storage, the facepiece can last many years.
Q: Can the 3M 6800 be used with a PAPR blower?
A: No — the 3M 6800 is a negative-pressure respirator (relies on the wearer's inhalation to draw air through filters). 3M PAPR systems (Jupiter, Versaflo) use separate facepieces designed for positive-pressure blower systems. These are different product families and are not interchangeable.
Q: What cartridges do I need for spray painting with the 3M 6800?
A: For solvent-based spray painting: 3M 60921 (OV+P100) cartridges. For water-based paints with minimal solvent: 3M 7093 P100 filters may suffice if solvent content is confirmed negligible. For isocyanate-containing paints (two-component urethanes): do not spray these on an air-purifying cartridge. NIOSH and coating manufacturers call for a supplied-air respirator, plus a full-body chemical protective suit, for 2K urethane spray work — isocyanates have poor warning properties and are respiratory sensitizers.
Q: Is the 3M 6800 NIOSH-approved?
A: The 3M 6800 facepiece itself does not carry a standalone NIOSH approval — NIOSH approval is granted to the facepiece+filter/cartridge combination. Approved 3M 6800 combinations (e.g., with 7093 P100) have TC approval numbers. The 3M 6800 facepiece is only functional with NIOSH-approved cartridges/filters.
Q: How do I clean the 3M 6800?
A: Clean with mild soap and warm water after each use. Rinse thoroughly to remove soap residue. Allow to air dry before storing. Clean lens with a soft cloth — no abrasives. Do not submerge the exhalation valve assembly in water. Store in a clean, sealed bag away from sunlight, heat, and chemicals.
Q: Does the 3M 6800 work for people with beards?
A: No tight-fitting respirator (half-face or full-face) provides an adequate face seal when facial hair exists between the sealing surface and skin. OSHA 1910.134 explicitly prohibits tight-fitting respirator use when facial hair interferes with the face seal. For bearded workers, loose-fitting PAPRs (hood or helmet type) are the appropriate alternative.
Q: Where can I buy the 3M 6800 full-face respirator?
A: The 3M 6800 (medium) and 6900 (large) are reviewed at WCSafety.com. Compatible 3M cartridges and filters are also available, including the 7093 P100 and 60921 OV+P100 combination.
Q: Is the 3M 6800 suitable for confined space work?
A: Air-purifying respirators including the 3M 6800 cannot be used in oxygen-deficient atmospheres (below 19.5% O₂) or IDLH environments. Confined spaces must be atmospheric-tested before entry with air-purifying respirators. If oxygen deficiency or IDLH concentrations are present or suspected, supplied-air (SCBA or SAR) is required.
Q: Does the 3M 6800 require a written respirator program?
A: Yes — all OSHA-required respirator use requires a written respiratory protection program per 1910.134(c), including: hazard assessment, respirator selection procedures, medical evaluation, fit testing, training, and maintenance/inspection procedures.
Q: What is the difference between the 3M 6800 and the 3M 6500 series?
A: The 3M 6800 is a full-face respirator (APF 50, covers eyes/face); the 3M 6500 series (6501QL, 6502QL, 6503QL) is a half-face respirator (APF 10) with a Quick Latch for easy donning/doffing. Both use 3M bayonet cartridges but serve different exposure level requirements.
Q: How many cartridges does the 3M 6800 use?
A: The 3M 6800 uses two cartridges simultaneously (one on each side of the facepiece), providing symmetrical inhalation resistance and balanced airflow. Always replace both cartridges at the same time — never replace just one.
Hierarchy of Controls: Engineering Over PPE
OSHA and NIOSH both emphasize that personal protective equipment is the last resort in the hierarchy of controls. The proper order of hazard control is:
- Elimination: Remove the hazard entirely from the workplace. The most effective and preferred approach when feasible.
- Substitution: Replace a hazardous material or process with a less hazardous one. Replacing a toxic solvent with a water-based alternative is a classic example.
- Engineering controls: Physical changes to the work environment that reduce or eliminate exposure — local exhaust ventilation, machine guarding, enclosures, noise barriers.
- Administrative controls: Work practice changes, scheduling (limiting exposure duration), training, and written procedures that reduce exposure without physical changes to the environment.
- Personal Protective Equipment (PPE): The final barrier — respirators, hard hats, safety glasses, gloves, and hearing protection. PPE does not reduce the hazard; it only protects the worker from exposure that engineering and administrative controls have not eliminated.
OSHA regulations typically require that engineering controls be implemented to the extent feasible before mandating PPE. An employer who relies solely on PPE without exploring engineering controls may face OSHA citations under the applicable standard or the General Duty Clause. PPE is essential where other controls are not feasible, but it is the last line of defense, not the first.
Workplace safety programs are most effective when they combine regulatory compliance with a culture of proactive hazard identification. Regular safety audits, incident near-miss reporting, and worker involvement in hazard identification create a feedback loop that continuously improves protection beyond minimum OSHA requirements. Employers who invest in comprehensive safety programs — including proper PPE selection, training, fit testing, and equipment maintenance — see measurable reductions in occupational illness and injury rates that justify the investment many times over through reduced workers compensation costs, lost productivity, and regulatory penalties. The cost of proper PPE and safety program administration is a fraction of the cost of a single serious occupational illness or fatality claim.
