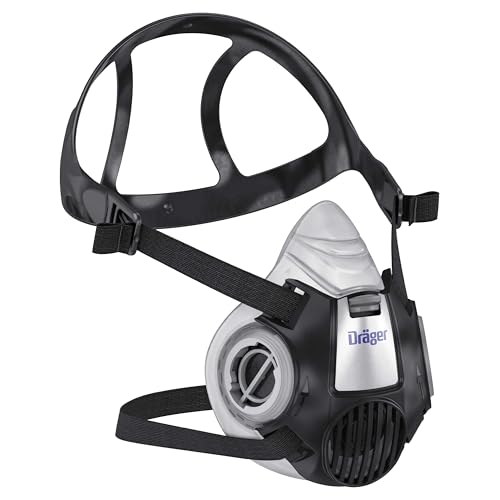

Dräger X-plore 3300 Half Mask Respirator (Size L) — Soft-TPE, Twin Bayonet

What the Dräger X-plore 3300 Half Mask Respirator Is

An economical twin-filter half mask built around comfort at low weight. The facepiece is Soft-TPE — Dräger specifies it as skin-friendly, lightweight and translucent grey — and the complete mask body comes in at roughly 95 grams, which is at the light end for a reusable half mask. Thermoplastic elastomer sits softer against the face than harder rubber compounds and resists the compression set that eventually stops an older mask sealing properly. Two lateral bayonet connectors split the airflow, lowering breathing resistance compared with drawing the same volume through one cartridge and balancing the weight either side of the face.

What it does not do on its own is protect you. The mask ships as a body only, and the filter you fit determines the hazard covered: the X-plore P100 for particulate alone, the OV/P100 combination for solvents with particulate, or the multi-gas/P100 for broader gas coverage. Sizes are separate part numbers — R55331 small, R55330 medium, R55332 large — so ordering the wrong size means ordering a different product code.

Where the 3300 Sits, and Where to Go Next

Dräger positions the 3300 as the economical option in the X-plore half mask line, below the 3500, and several distributors carry it under a limited-use label reflecting that tier. Read that as durability and service life rather than as a restriction on protection — the approvals are the approvals, and a NIOSH-approved mask is NIOSH-approved. But if your masks live hard and long, pricing the higher tier is worth the exercise.

Two upgrade paths matter. If the work needs eye protection sealed alongside respiratory protection, a full facepiece such as the X-plore 5500 solves both at once and raises the protection factor. And if someone cannot achieve a seal — facial structure, scarring, or a beard they will not remove — no half mask is correct for them at any price, and the answer is a loose-fitting powered system: Dräger's own X-plore 8500 PAPR kit with 8000-series filters keeps you in the same ecosystem. Our respirator program guide covers what has to be in place around any of it.

Pros & Cons

Specifications

Related Guides

Related Products

Frequently Asked Questions

What does the Soft-TPE facepiece buy you?

Comfort and weight. Dräger specifies Soft-TPE as skin-friendly, lightweight and translucent grey, and thermoplastic elastomer sits softer against the face than harder rubber compounds while resisting the compression set that eventually stops an older mask sealing. The translucency is a visual bonus rather than a performance claim — you can see the state of the material rather than guessing at it.

Is 95 grams actually light for a half mask?

Yes, noticeably. Around 95 grams for the complete mask body puts it at the light end of reusable half masks, and weight is one of those specifications people underrate at purchase and appreciate by the middle of a shift. A lighter mask pulls less on the harness, which means less re-tensioning and less temptation to push it down onto the chin between tasks.

It carries three different approvals — do they translate?

No, and that is worth understanding. The mask is CE certified to EN 140, meets the Australian standard AS/NZS 1716, and holds NIOSH approval under 42 CFR 84. Meeting all three means it satisfies each standard's own requirements independently — it does not mean the ratings convert between systems. For US workplace compliance the NIOSH approval is the one that governs; the others matter for multinational sites and export documentation.

What are the part numbers for the other sizes?

The X-plore 3300 comes in three: small is R55331, medium is R55330, and large — this listing — is R55332. They are separate part numbers rather than variants of one, so ordering the wrong size means ordering the wrong product code. If you are buying for a crew, collect actual sizes before ordering rather than defaulting everyone to medium.

Why do some distributors describe it as "limited use"?

The 3300 is positioned as Dräger's economical option in the X-plore half mask line, sitting below the 3500, and several distributors carry it under a limited-use label reflecting that positioning. Read it as a durability and service-life tier rather than as a restriction on what it protects against — the approvals are the approvals. If your masks live hard and long, the higher tier is worth pricing.

Which Dräger filters fit it?

The X-plore bayonet range, chosen by hazard. For particulate alone there is the X-plore P100 filter; for solvents with particulate the OV/P100 combination cartridge; and for broader gas coverage the multi-gas/P100 combination. The mask body is identical in each case — the filter is what determines your protection, so the selection decision is entirely about matching the cartridge to a measured exposure.

Can I fit 3M or Moldex filters on it?

No. The X-plore bayonet is Dräger's own connection, and the question is not whether something can be made to sit on the port. NIOSH approval covers the respirator and its filters as a tested assembly, so combining components across manufacturers voids the approval outright — even where the parts appear compatible. Stay within the X-plore range.

Why two filters rather than one?

Twin lateral filters split the airflow, which lowers breathing resistance compared with drawing the same volume through a single cartridge, and they balance the weight either side of the face rather than hanging it off the front. The trade is bulk at the cheeks, which can matter under a tight-fitting face shield or in confined work where you are turning your head against structure.

What if it will not seal on me?

Then a tight-fitting respirator is the wrong equipment for that person, and the answer is not a tighter harness. Facial structure, scarring and facial hair along the sealing surface all defeat a seal. Loose-fitting powered air-purifying respirators exist precisely for those cases — Dräger's own X-plore 8000 and 8500 PAPR systems are the same-family route — and a fit test is what determines which category someone belongs in.

How should a TPE mask be cleaned and stored?

Remove the filters first, clean the facepiece per Dräger's instructions, and let it dry fully before reassembly. Store it sealed in a clean bag away from the work area rather than hanging in the shop, where it collects the contamination you are trying to avoid breathing — and keep it out of direct sunlight, since UV ages elastomers over time even when the mask is not being worn.

What actually comes in the box?

The mask body and its harness — no filters. That is the single most common surprise with any twin-filter half mask, and it means a first order needs at least three line items: the correct size mask body, and a pair of filters matched to the hazard. Budget for the filters as a recurring cost rather than a one-off, since they are the consumable and the mask is not.

Does the mask body itself wear out?

Yes. Inspect before each use for hardening, cracking or distortion of the facepiece, perished harness straps, and damage to the valves and sealing edge. Elastomers stiffen with age, heat and UV, and a hardened sealing edge will fail a fit test long before it looks obviously damaged. Reusable is not permanent — retire the mask when the material stops behaving like new.
