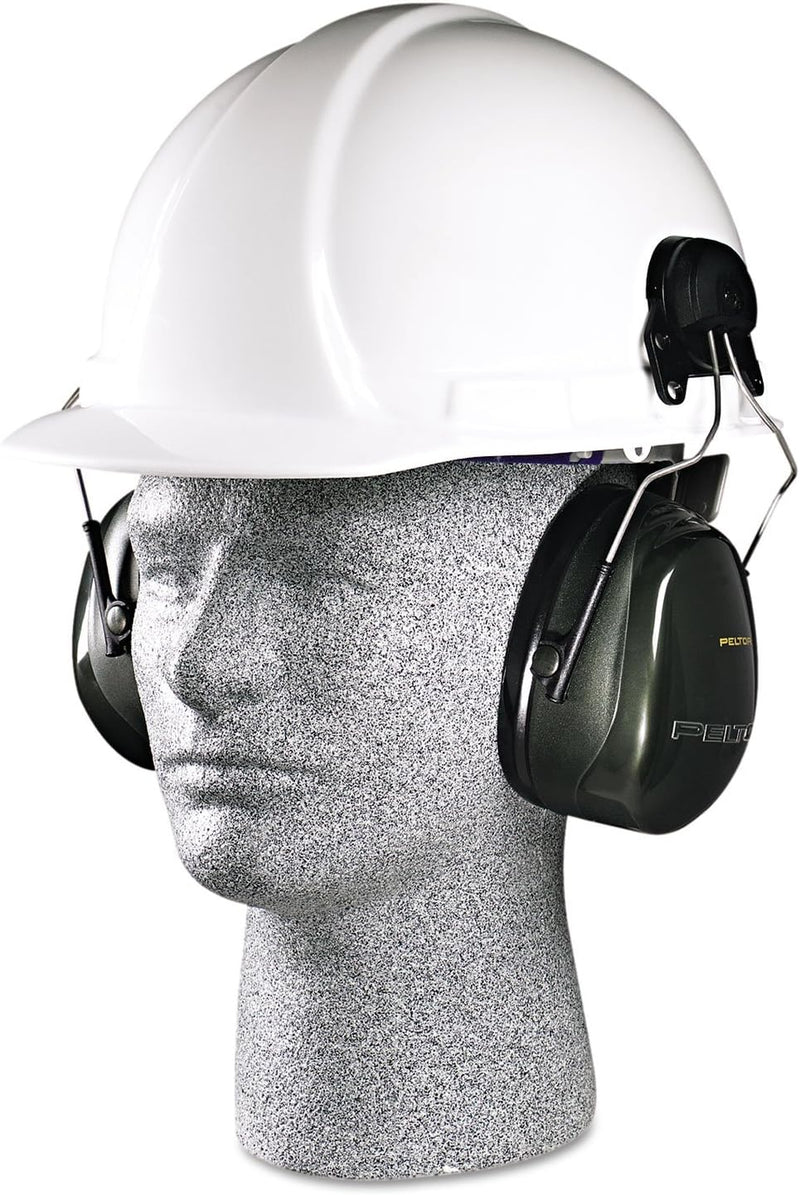

3M PELTOR Optime 101 H7P3E Earmuffs NRR 27 Cap-Mount

The 3M PELTOR Optime 101 H7P3E Earmuffs provide NRR 27 passive hearing protection with cap-mount attachment for 3M hard hats — delivering Optime 101's higher-attenuation passive cup performance in a cap-mount configuration for workers in combined hard hat and hearing protection programs who face louder noise exposures where the Optime 95's NRR 21 is insufficient and NRR 27 provides the additional 3 dB of OSHA-calculated attenuation needed for compliance in higher-intensity industrial noise environments. The H7P3E is the cap-mount version of the PELTOR Optime 101 line — the same NRR 27 passive cup construction as the OTH H7A and BTH H7B models, adapted for P3E slot attachment to compatible hard hat brims. NRR 27 provides OSHA-calculated attenuation of (27-7)/2 = 10 dB for A-weighted noise environments — appropriate for environments where the measured 8-hour TWA falls in the range up to approximately 100-104 dBA (where 10 dB reduction achieves the 90 dBA OSHA PEL or 85 dBA NIOSH REL). The Optime 101 cup's larger volume and denser acoustic foam deliver this higher attenuation compared to the entry-level Optime 95 cup, at marginal additional cup weight and size — the appropriate step up when noise measurements confirm the exposure range exceeds what NRR 21 can bring to compliance. Cap-mount integration keeps hearing protection physically attached to the hard hat for on-demand deployment: workers clip the H7P3E arms into the hard hat's P3E brim slots, fold cups to the stowed position when exiting noise zones, and fold cups down to the sealed hearing protection position upon noise zone entry. This attachment keeps NRR 27 protection available at all times the worker wears the hard hat, eliminating the carrying and storage requirements that make separate OTH earmuffs difficult to deploy reliably in programs with intermittent noise exposure patterns.

3M PELTOR Optime 101 H7P3E Earmuffs NRR 27 Cap-Mount — Key Features

• NRR 27 passive protection — 10 dB OSHA-calculated attenuation for higher-intensity industrial noise
• Cap-mount (P3E) attachment — integrates with 3M/Scott hard hat P3E brim slots
• Optime 101 cup construction — larger-volume cup for higher attenuation than Optime 95 in cap-mount format
• Fold-up storage — cups rotate to stowed position when not in noise zones
• Passive design — no batteries required for maintenance-free operation

Specifications

Optime 101 Cap-Mount: Higher-Attenuation Hearing Protection for Loud Industrial Hard Hat Programs

Industrial and construction environments with noise above the moderate range — heavy fabrication, stamping, press operations, pneumatic impact tools, heavy-duty grinding, and high-flow air operations — present a hearing protection challenge for cap-mount programs: the entry-level Optime 95 NRR 21 cap-mount (H6P3E) delivers 7 dB OSHA-calculated attenuation, which is appropriate for environments up to approximately 97 dBA, but environments measuring above this threshold require higher attenuation to achieve OSHA PEL compliance. The H7P3E addresses this gap with NRR 27 Optime 101 cup construction in the same P3E cap-mount format — providing 10 dB OSHA-calculated attenuation for environments up to approximately 100-104 dBA, the noise range of heavy industrial press operations, pneumatic chipper and hammer use, large-bore air tools, and high-intensity manufacturing processes. The Optime 101 cup achieves its higher attenuation through a larger cup volume that increases the air space between the cup shell and the ear, allowing lower-frequency noise energy to attenuate before reaching the ear canal; a denser acoustic foam lining that provides greater absorption across the relevant industrial noise frequency spectrum; and a firmer cushion seal that maintains consistent cup-to-head contact under higher ambient noise pressure. The P3E cap-mount format delivers these acoustic properties with the same integration and deployment convenience that makes cap-mount earmuffs the compliance standard in hard hat environments: workers always have NRR 27 protection available at the hard hat, fold-up when not needed, fold-down when entering noise areas — no separate earmuff to carry, store, or misplace. For industrial hard hat programs operating in the 97-104 dBA noise range, the H7P3E provides the appropriate step up from H6P3E without the higher cost and cup size of Optime 105 (NRR 30) that is more suited to environments above 100-104 dBA.

Compliance and Standards

• ANSI S3.19 — NRR 27 tested per standard measurement protocol
• OSHA 29 CFR 1910.95 — Occupational noise exposure standard compliance support

Real-World Benefits

NRR 27 provides compliant protection for hard hat environments where NRR 21 is insufficient — closing the protection gap for workers in louder industrial areas (97-104 dBA TWA) without requiring workers to switch from cap-mount to OTH earmuffs or manage separate hearing protection devices outside the hard hat system. Industrial hygienists who identify noise zones exceeding the H6P3E's compliance threshold find the H7P3E a direct upgrade path within the same cap-mount platform — workers retain the same fold-down deployment habit and hard hat integration; only the cup attenuation changes.

Cap-mount attachment maintains the compliance advantage of hard-hat-integrated hearing protection at NRR 27 — workers in louder noise zones who might otherwise resist carrying separate higher-rated OTH earmuffs in addition to their hard hat receive higher attenuation with no additional carrying burden, supporting better sustained compliance in high-noise areas that are also hard hat zones. Safety managers who have transitioned high-noise zones from H6P3E to H7P3E in the same cap-mount program format report no decline in compliance rates during the model change, as workers recognize the same deployment interface.

Applications and Use Cases

• Heavy industrial manufacturing — Optime 101 cap-mount for press, stamping, and impact operations — H7P3E for manufacturing workers in hard hat zones with stamping presses, pneumatic impact tools, and heavy fabrication equipment producing 97-104 dBA TWA exposures where NRR 27 provides OSHA PEL compliance and cap-mount integration supports program consistency
• Construction heavy equipment — cap-mount NRR 27 for hard hat programs with pneumatic and impact tools — H7P3E for construction workers using jackhammers, pneumatic chisels, and compaction equipment in hard hat environments where noise levels exceed the moderate range and require higher attenuation than NRR 21 provides
• Upgrading moderate-noise hard hat programs — step-up from H6P3E for newly measured higher-noise zones — H7P3E for programs that have identified higher-noise work areas through noise surveys and need to upgrade cap-mount protection from NRR 21 to NRR 27 while maintaining the same cap-mount platform and hard hat infrastructure

Related Products

For PELTOR Optime 95 H6P3E NRR 21 cap-mount for moderate noise, see 3M PELTOR Optime 95 H6P3E Cap-Mount. For PELTOR Optime 101 H7A NRR 27 over-the-head version, see 3M PELTOR Optime 101 H7A Earmuffs. For PELTOR Optime 101 H7B NRR 27 behind-the-head, see 3M PELTOR Optime 101 H7B Earmuffs. For PELTOR Optime 105 H10P3E NRR 30 cap-mount for highest noise, see 3M PELTOR Optime 105 H10P3E Cap-Mount. Browse the complete Hearing Protection collection.

Frequently Asked Questions

When should I choose the H7P3E (NRR 27) over the H6P3E (NRR 21) in a hard hat program?

The selection should be based on measured noise levels in each work area. Use H6P3E (NRR 21, 7 dB OSHA attenuation) for areas where the 8-hour TWA falls below approximately 97 dBA — NRR 21 is sufficient to bring exposure to the 90 dBA OSHA PEL threshold. Use H7P3E (NRR 27, 10 dB OSHA attenuation) for areas where the TWA falls in the 97-104 dBA range, where the additional 3 dB of calculated attenuation is needed to achieve PEL compliance. For environments above 104 dBA, Optime 105 (NRR 30) or dual protection (earmuffs over earplugs) provides the higher attenuation required. Always base protection level selection on actual noise measurements rather than assumptions — both under-protection (insufficient NRR) and over-protection (unnecessary isolation) have real operational consequences.

Which hard hats are compatible with the H7P3E P3E cap-mount?

The P3E cap-mount system is designed for hard hats with P3E/E-slot brim attachments — the slotted brim receivers used on 3M and Scott Safety hard hat models. Verify P3E slot compatibility in your hard hat's product documentation before specifying cap-mount earmuffs. Hard hats without these attachment slots cannot accept P3E cap-mount accessories. 3M publishes accessory compatibility tables for their hard hat lines that identify which cap-mount earmuff models are approved for each hard hat model. Hard hats from other manufacturers may require separate verification of P3E slot compatibility.

Does the Optime 101 cup weigh more than the Optime 95 when cap-mounted?

The Optime 101 cups are larger and slightly heavier than Optime 95 cups, reflecting the additional acoustic material and larger cup volume that delivers NRR 27 versus NRR 21. This marginal additional weight is distributed symmetrically on both sides of the hard hat in the cap-mount position and is generally not noticeable in sustained use. Workers who have previously worn Optime 95 cap-mount earmuffs may notice the slightly larger cup profile in tight work areas, but the acoustic seal and attenuation performance of the larger cup are the functional reason for the difference. For environments where the extra attenuation isn't needed, H6P3E is the right choice — don't specify Optime 101 solely on the assumption that more protection is always better if your noise measurements confirm NRR 21 is sufficient.
