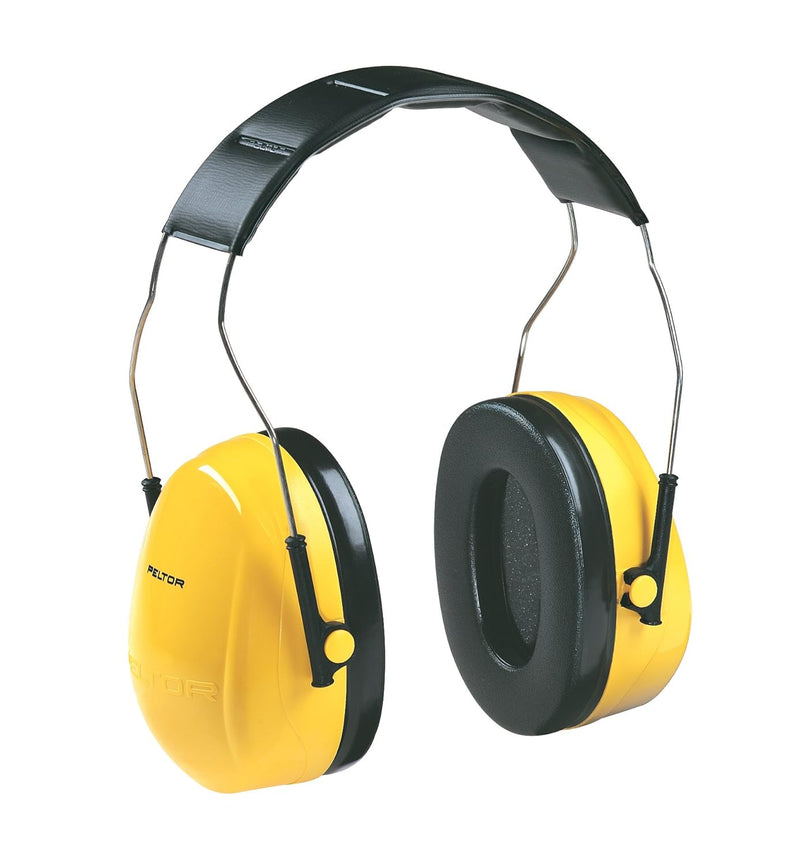

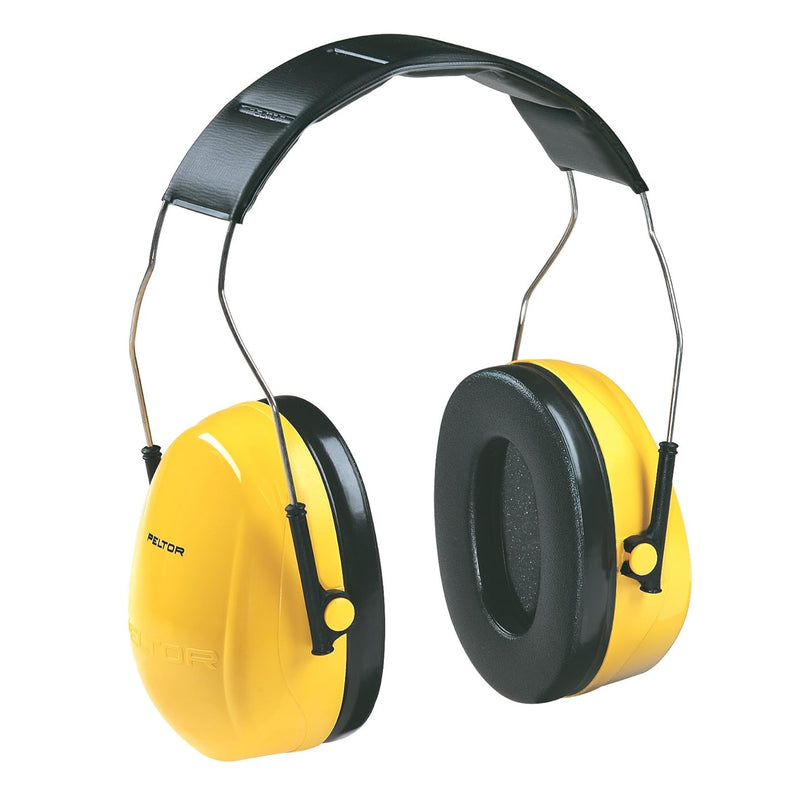

3M PELTOR Optime 98 H9A Earmuffs NRR 25 Over-the-Head

The 3M PELTOR Optime 98 H9A Earmuffs provide NRR 25 passive hearing protection with an over-the-head headband — delivering Optime 98's mid-range attenuation in the standard OTH configuration for industrial workers in environments where NRR 21 is insufficient but NRR 27 represents more protection than the measured noise level requires, providing the precisely calibrated protection level for mid-range industrial noise exposures in the 97-100 dBA range. The H9A is the over-the-head version of the PELTOR Optime 98 line — the same NRR 25 passive cup construction as the cap-mount H9P3E model, with the conventional over-the-head headband that applies maximum cup-seating force efficiency for consistent acoustic seal across diverse head shapes. NRR 25 provides OSHA-calculated attenuation of (25-7)/2 = 9 dB for A-weighted noise environments — positioned between the Optime 95's 7 dB and Optime 101's 10 dB, providing the exact attenuation increment needed for environments in the mid-range noise tier without the over-protection of specifying NRR 27 in areas where 9 dB achieves full compliance. The over-the-head headband provides the highest cup-seal efficiency of the three mounting configurations by applying headband tension as direct cup-seating force from above the ear — the geometry that most efficiently converts headband spring force into cup-to-head pressure for acoustic seal maintenance across the range of adult head shapes that appear in industrial workforces. For industrial programs without concurrent hard hat or helmet requirements, the H9A OTH provides the appropriate combination of right-sized NRR 25 protection with the most training-simple deployment format and most acoustically efficient seal geometry of the Optime 98 line.

3M PELTOR Optime 98 H9A Earmuffs NRR 25 Over-the-Head — Key Features

• NRR 25 passive protection — 9 dB OSHA-calculated attenuation for mid-range industrial noise
• Over-the-head headband — maximum cup-seal efficiency for consistent NRR 25 performance
• Optime 98 cup construction — mid-tier attenuation between Optime 95 NRR 21 and Optime 101 NRR 27
• Adjustable headband — accommodates full range of workforce head sizes
• Passive design — no batteries, maintenance-free operation

Specifications

Optime 98 Over-the-Head: Mid-Range Industrial Hearing Protection for Precise NRR Matching

Industrial noise control programs that take a precision approach to hearing protection specification — matching NRR to measured exposure level rather than defaulting to maximum available NRR — require a full range of protection levels to properly cover each noise zone in the facility. The gap between Optime 95 (NRR 21) and Optime 101 (NRR 27) corresponds to environments where measured 8-hour TWA exposures fall in the 97-100 dBA range: these exposures exceed the OSHA-calculated coverage of NRR 21 (which achieves compliance up to approximately 97 dBA) but fall below the primary design range of NRR 27. Specifying Optime 101 in these mid-range environments provides more attenuation than required, unnecessarily reducing speech intelligibility in environments where workers can safely communicate with NRR 25 protection without the additional 1 dB reduction that NRR 27 creates. The Optime 98 H9A's NRR 25 provides the precise match for this zone: 9 dB of OSHA-calculated attenuation that achieves compliance in the 97-100 dBA range while preserving the maximum communication capability that the noise level allows. Heavy grinding operations on medium-duty equipment, pneumatic tools in semi-enclosed environments, process fans and compressors at moderate load, and general industrial areas with multiple medium-intensity sources commonly produce TWA exposures in this mid-range — environments that appear in manufacturing plants, processing facilities, and construction sites alongside both quieter and louder zones. The H9A's OTH headband delivers Optime 98's NRR 25 attenuation with the same seal efficiency advantage as OTH models at other Optime levels: direct downward cup-seating force from the headband arc that maintains consistent cushion contact across the head shape variation of large industrial workforces.

Compliance and Standards

• ANSI S3.19 — NRR 25 tested per standard measurement protocol
• OSHA 29 CFR 1910.95 — Occupational noise exposure standard compliance support

Real-World Benefits

NRR 25 provides right-sized protection for mid-range noise zones, preserving more communication capability than NRR 27 while achieving compliance in environments where NRR 21 falls short — supporting industrial communication safety in environments where workers need to hear verbal instructions, equipment alarms, and warning signals while also being protected from hearing damage. NIOSH research on hearing protection programs consistently demonstrates that over-protection in moderate noise environments reduces worker compliance with wearing, as workers who feel isolated by excessive attenuation are more likely to remove protection during brief communication events — an outcome that right-sized NRR matching helps avoid.

OTH configuration provides the most acoustically consistent performance for NRR 25 protection — the headband geometry that delivers maximum cup-seating force ensures the Optime 98 cup achieves its rated attenuation reliably across the workforce population, without the positional technique dependence that BTH configurations introduce. Programs that conduct fit testing for hearing protection find OTH earmuffs achieve the highest rates of field attenuation factor (PAF) measurement at or near the nominal NRR compared to BTH and cap-mount configurations, supporting accurate protection planning for exposed workers.

Applications and Use Cases

• Mid-range manufacturing — Optime 98 OTH for medium-intensity production equipment — H9A for manufacturing floor workers in environments producing 97-100 dBA TWA exposures where NRR 25 provides right-sized compliance without over-attenuation from NRR 27
• Industrial grinding and air tool operations — NRR 25 OTH for medium-duty grinding environments — H9A for workers using medium-duty grinders, pneumatic tools, and air-powered equipment in environments measured in the mid-range noise tier above Optime 95's coverage capacity
• Precision NRR-zoned hearing programs — Optime 98 for the mid-tier zone alongside H6A and H7A — H9A for facilities that zone OTH earmuff NRR by measured exposure level, with H9A serving the 97-100 dBA tier between H6A (moderate) and H7A (louder) zones

Related Products

For PELTOR Optime 95 H6A NRR 21 OTH for moderate noise, see 3M PELTOR Optime 95 H6A Earmuffs. For PELTOR Optime 98 H9P3E NRR 25 cap-mount, see 3M PELTOR Optime 98 H9P3E Cap-Mount. For PELTOR Optime 101 H7A NRR 27 OTH for louder environments, see 3M PELTOR Optime 101 H7A Earmuffs. For PELTOR Hi-Viz H31A NRR 25 OTH with yellow cups, see 3M PELTOR Hi-Viz H31A Earmuffs. Browse the complete Hearing Protection collection.

Frequently Asked Questions

Is the H9A the right choice when I'm not sure if NRR 21 or NRR 27 is needed?

The right approach is to measure noise levels before selecting NRR — but if you have measurements that fall in the 97-100 dBA range, H9A (NRR 25) is appropriate. If measurements are below 97 dBA, H6A (NRR 21) is sufficient. If measurements are above 100 dBA, H7A (NRR 27) is required. Selecting NRR based on measurement rather than conservative over-specification has practical compliance benefits: workers are more likely to wear appropriately-rated protection consistently than over-attenuating protection that impairs communication. OSHA and NIOSH both recommend right-sizing protection to the exposure rather than maximizing attenuation regardless of need.

How does the Optime 98 H9A compare to PELTOR Hi-Viz H31A, both at NRR 25?

Both provide NRR 25 in an OTH configuration. The distinguishing feature is cup color: Optime 98 uses standard-colored cups, while Hi-Viz H31A uses yellow cups designed for visual compliance identification from a distance on the production floor or construction site. For programs where supervisors and safety officers need to see from across a work area whether workers are wearing hearing protection, the yellow Hi-Viz cups provide clear visual confirmation. For programs without this requirement, Optime 98 delivers the same NRR 25 performance at typically lower cost.
