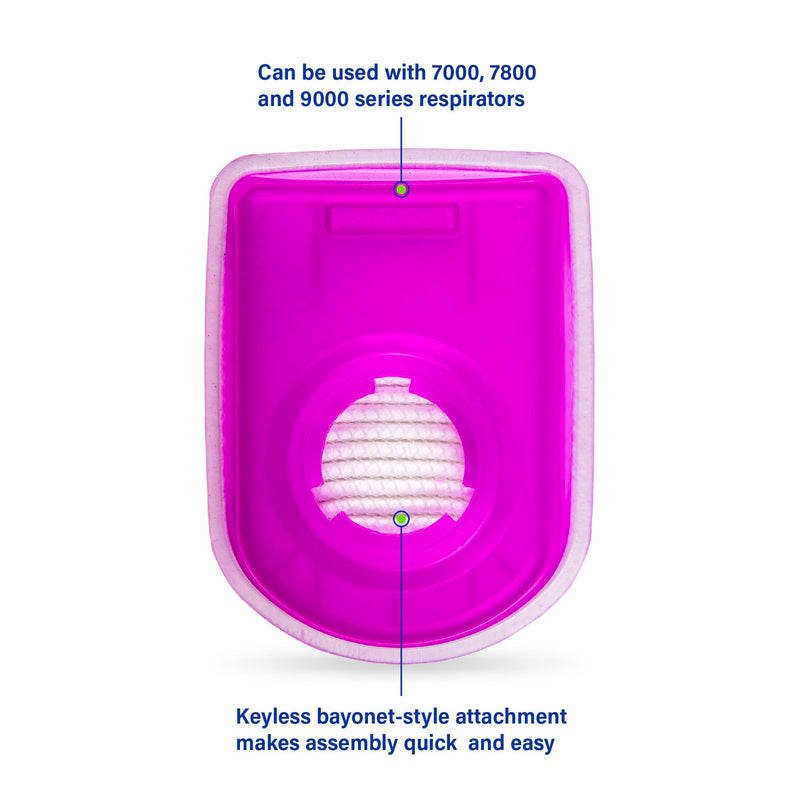

Moldex 7740+ P100 IonicAir Particulate Filter

Moldex 7740+ Overview

The Moldex 7740+ is a NIOSH-approved P100 IonicAir particulate filter that uses an ionic/electrostatic charge layer to enhance ultrafine particle capture on Moldex 7000, 7800, and 9000 series respirators. Sold as a pair at $21.19, it carries the same NIOSH P100 approval as the standard Moldex 7740 — filtering at least 99.97% of airborne particulates including oil-based aerosols — but the IonicAir technology adds an electrostatic charge to the filter media that significantly improves capture efficiency for particles below 100 nanometers in diameter. For most industrial particulate work (welding fumes, dust, mists) the standard 7740 is sufficient. The 7740+ is the right call when the hazard inventory includes laser fumes, engineered nanoparticles, semiconductor process aerosols, or 3D-printing ultrafine emissions where sub-micron particle capture is critical.

Affiliate disclosure: WC Safety earns a commission on qualifying Amazon purchases at no extra cost to you.

Where the Moldex 7740+ Fits in Respirator Selection

Respirator cartridge selection starts with the hazard class, not the brand or filter model. The 7740+ is a pure particulate filter — it removes airborne particles but provides zero protection against gases or vapors. Before selecting any cartridge, identify whether your hazard is particulate-only, gas/vapor-only, or a combination of both.

Within the particulate-only segment, the 7740+ occupies the premium tier alongside the standard 7740. Both are NIOSH P100, both fit the same Moldex respirator platforms, and both cost $21.19 per pair. The sole differentiator is the IonicAir electrostatic enhancement targeting ultrafine particles. For applications that don't involve nanoparticles or laser/plasma fumes, the standard Moldex 7740 is indistinguishable in practice.

Who Should Buy the Moldex 7740+?

What Does the Moldex 7740+ Protect Against?

The 7740+ is NIOSH-approved P100, the highest particulate filter class. P100 filters achieve at least 99.97% filtration efficiency against the most penetrating particle size (approximately 300 nm aerodynamic diameter) and are rated for use with oil-aerosol environments. The IonicAir electrostatic charge supplements this mechanical efficiency at the sub-100 nm range.

What the Moldex 7740+ Does NOT Protect Against

As a pure particulate filter, the 7740+ provides zero protection against any gas or vapor hazard. The following hazards require a rated gas cartridge — either standalone or as part of a combination cartridge — and the 7740+ must not be used as the sole protection for these exposures:

• Organic vapors and solvents (toluene, xylene, acetone, methylene chloride, isocyanates) — requires a rated OV cartridge such as the Moldex 7100 or combination like the Moldex 7367 OV/AG/P100
• Acid gases (hydrogen chloride, sulfur dioxide, chlorine, hydrogen fluoride) — requires an acid gas cartridge such as the Moldex 7200
• Ammonia and methylamine — requires the Moldex 7400 AM cartridge or the Moldex 7467 AM/P100 combo
• Mercury vapor — mercury is a gas-phase hazard; see our guide to respirator cartridges for mercury vapor
• Carbon monoxide, hydrogen sulfide, and other IDLH-concentration inorganic gases
• Radioactive particles at concentrations above OSHA permissible limits without engineering controls

Best Applications for the Moldex 7740+

Laser Cutting and Engraving Operations

CO₂, fiber, and diode laser systems ablate material at high energy density, producing a complex fume stream dominated by ultrafine carbonaceous particles in the 20–80 nm range alongside coarser condensation aerosols. The IonicAir electrostatic charge in the 7740+ addresses the ultrafine fraction that passes most efficiently through standard mechanical filter media. Operators maintaining or working near laser enclosures — including during filter cleaning and part removal — benefit from the additional ultrafine capture margin the 7740+ provides over the standard 7740 P100. If the laser is also cutting PVC or materials that release chlorinated compounds, add an acid gas cartridge; for that combined hazard the 7367 OV/AG/P100 combo is more appropriate.

Nanomaterial Research and Handling

Engineered nanomaterials — carbon nanotubes, graphene, silver nanoparticles, titanium dioxide, zinc oxide — present inhalation hazards that are not yet fully characterized under OSHA permissible exposure limits, but industrial hygiene bodies including NIOSH recommend P100 filtration as a precautionary minimum. The 7740+'s IonicAir charge layer targets the sub-100 nm particle range where engineered nanomaterials fall, making it the preferred Moldex filter for nano-lab and nanomaterial production environments. Pair with a compatible Moldex 7000 series half-mask or 9000 series full-face respirator depending on splash and eye-protection requirements.

Semiconductor Fabrication and Clean Room Maintenance

Semiconductor process environments generate ultrafine aerosols during chemical vapor deposition, plasma etching, and photolithography. Maintenance personnel who work outside standard clean room HVAC protection during equipment service are exposed to these process byproducts. The 7740+ is a natural fit for this category — its electrostatic enhancement addresses the ultrafine particle distribution characteristic of these processes. Because many semiconductor chemicals are also hazardous vapors, verify your specific process exposure assessment before relying on a particulate-only filter; combination cartridges may be required. The full Moldex cartridge line covers OV, AG, ammonia, and multi-gas combination options.

3D Printing and Additive Manufacturing at Scale

FFF/FDM 3D printing with engineering-grade materials (PETG, ABS, nylon, polycarbonate, carbon-fiber composites) generates both VOC and ultrafine particle emissions during the extrusion process. In high-throughput or poorly ventilated additive manufacturing environments, respiratory protection is appropriate. The 7740+ addresses the ultrafine particle fraction; if VOC emissions are above nuisance levels, a combination cartridge with a P100 element is required. Use the P100 filter class guide to determine whether the 7740+ alone satisfies your documented exposure assessment or whether a combination cartridge is necessary.

General High-Efficiency Particulate Applications

The 7740+ is appropriate wherever standard P100 protection is required and the incremental cost vs. the standard 7740 is not a factor — which at the same $21.19 price point means there is no incremental cost. Lead abatement, asbestos remediation, silica-generating operations, pharmaceutical powder handling, and hazardous material response all benefit from P100 protection. The 7740+ delivers that protection plus the IonicAir enhancement with no trade-off on price, breathing resistance, or service life. Browse the complete Moldex half-mask respirator collection and Moldex full-face respirator collection to select the correct facepiece platform for your protection factor requirements.

Moldex 7740+ Pros and Cons

Compatible Moldex Respirators

The Moldex 7740+ uses the Moldex proprietary bayonet mount and is compatible with all Moldex half-face and full-face respirator platforms that accept standard Moldex cartridges and filters. The 7740+ does not fit any respirator from another manufacturer — Moldex bayonet-mount hardware is not interchangeable with 3M, Honeywell North, MSA, Drager, or any other brand.

The Moldex 7740+ does NOT fit any non-Moldex respirator. Never attempt to adapt or force-fit Moldex cartridges onto other manufacturer platforms — doing so creates an undetected seal failure and will not provide rated protection.

Moldex 7740+ vs Other Moldex Cartridges

The table below compares the 7740+ against the full Moldex cartridge family available at WC Safety. All products are sold as pairs (or as noted) and mount to the same Moldex respirator platforms. Select the cartridge that matches your specific hazard class.

Moldex 7740+ vs Moldex 7740: Which P100 Should You Buy?

This is the key buying decision for Moldex P100 filter users. The Moldex 7740 and the 7740+ are identically priced ($21.19/pair), carry the same NIOSH P100 designation, and fit the same respirator platforms. The single differentiator is the IonicAir electrostatic charge layer in the 7740+.

Buy verdict: Since both filters cost $21.19, the 7740+ is the default recommendation when there is any possibility of ultrafine particle exposure or when the exact particle size distribution is unknown. The standard 7740 is equally appropriate and sufficient for documented coarse-to-fine industrial particulate applications (silica, lead, welding fumes, mold) where ultrafine capture enhancement does not change the risk profile.

Moldex 7740+ Quick Answers

What respirators does the Moldex 7740+ fit?

The Moldex 7740+ fits the Moldex 7000 series half-mask (7001/7002/7003), the Moldex 7800 series half-mask, and the Moldex 9000 series full-face respirator (9001/9002/9003). It does not fit any respirator from a different manufacturer.

What is the difference between the Moldex 7740 and the 7740+?

Both are NIOSH P100 particulate filters at the same $21.19 price. The 7740+ adds IonicAir electrostatic charge to the filter media, which improves capture efficiency for ultrafine particles below 100 nanometers in diameter — relevant for laser fumes, engineered nanoparticles, and semiconductor aerosols. For conventional industrial dust and welding fume, both filters perform equivalently.

Does the Moldex 7740+ protect against gases and vapors?

No. The 7740+ is a pure particulate filter and provides zero protection against organic vapors, acid gases, ammonia, mercury vapor, or any other gaseous contaminant. For gas or vapor hazards alongside particulates, use a Moldex combination cartridge such as the 7367 OV/AG/P100 or the 7667 Multi-Gas/P100 Smart.

How often should the Moldex 7740+ filters be replaced?

The 7740+ has no End-of-Service-Life Indicator (ESLI). Replacement must follow your employer's written change schedule per OSHA 29 CFR 1910.134. Common criteria include: filter loading causing increased breathing resistance, physical damage or contamination, end of shift in high-concentration environments, and any time the filter becomes wet or soiled. Consult your industrial hygienist for an application-specific change schedule.

Can the Moldex 7740+ be used for mold remediation?

Yes. P100 filtration is appropriate for mold remediation particulate hazards. However, verify whether mycotoxin vapors or other chemical releases from mold-contaminated materials are also present — if so, a combination cartridge with OV or AG protection is required alongside particulate filtration.

Is the Moldex 7740+ appropriate for N95 replacement in industrial settings?

Yes, and it exceeds N95 protection. N95 is a NIOSH Class 95 filter rated at ≥95% efficiency and is not rated for oil aerosols. The 7740+ is P100, rated at ≥99.97% efficiency and cleared for oil-aerosol environments. In any industrial setting where N95 is specified, a P100 such as the 7740+ meets or exceeds the requirement — provided it is used on a Moldex respirator platform with a proper fit test.

Does IonicAir electrostatic charge wear off over time?

Electrostatic charge in filter media can dissipate with extended exposure to high humidity and airborne oil loading. Moldex's guidance should be followed for use-life in high-humidity or oil-aerosol-intensive environments. For typical industrial use, the filter's NIOSH P100 mechanical efficiency remains the primary protection mechanism, with IonicAir providing an enhancement margin particularly at lower loading levels and earlier in the filter's service life.

Moldex 7740+ Specifications

Helpful Buying Guides

• P95 vs R95 vs P100 Filter Class Guide — Which NIOSH class does your job require?
• Respirator Cartridge ESLI Guide — Understanding End-of-Service-Life Indicators and change schedules
• Nuisance Relief vs. Rated Respirator Protection — Why the 7760 is not a combination cartridge
• Best 3M Respirator Cartridges — Cross-brand comparison for 3M platform users
• 3M vs Honeywell North Respirator Cartridges — Head-to-head brand comparison
• Best Respirator Cartridge for Mercury Vapor — Why a particulate filter alone is insufficient
• Best Honeywell North Cartridge for Welding Fumes — Alternative platform guide for welding operations

Moldex 7740+ Frequently Asked Questions

Will the Moldex 7740+ work on my 3M respirator?

No. Moldex uses a proprietary bayonet connection that is physically incompatible with 3M, Honeywell North, MSA, and all other respirator brands. The 7740+ mounts only on Moldex 7000, 7800, and 9000 series respirators. Attempting to force-fit a Moldex filter onto a non-Moldex facepiece creates an undetected seal failure and provides no rated protection.

How does the 7740+ IonicAir enhancement work in simple terms?

The filter media carries a permanent electrostatic charge applied during manufacturing. Airborne particles — particularly ultrafine particles below 100 nm — carry their own electrostatic charges. The oppositely charged filter media attracts and captures these particles through electrostatic attraction, supplementing the mechanical interception and impaction that standard filter fibers provide. The result is improved capture at the submicron particle sizes that pass most efficiently through purely mechanical filter arrangements.

Do I need both filters in the pair, or can I use just one?

Moldex half-face respirators (7000 and 7800 series) use two cartridge/filter ports, one on each side. You must install a 7740+ in each port — using only one creates an unfiltered air pathway on the uncovered side. The 9000 series full-face also uses two ports. One pair (both filters) equips one respirator.

Can the Moldex 7740+ be used in spray painting operations?

Only for the particulate (paint spray droplet) component. Spray painting also generates organic vapor from solvents in the paint, which the 7740+ does not protect against. For spray painting, you need a combination OV/AG/P100 cartridge such as the Moldex 7367 or, for isocyanate-containing paints, verify that your specific cartridge is rated for isocyanates in your concentration range.

Is the Moldex 7740+ reusable, and how do I clean it?

The 7740+ filter cartridge itself is not cleanable — filter media should not be washed, blown out with compressed air, or submerged. Cleaning attempts damage the filter media and destroy the IonicAir electrostatic charge. The facepiece (7000, 7800, or 9000 series) can be cleaned and sanitized per Moldex's guidance; filters should be discarded and replaced per your written change schedule. Store unused filters in their original sealed packaging away from high humidity and reactive chemicals.

What is the assigned protection factor for the Moldex 7740+ on a half-mask vs full-face?

The assigned protection factor (APF) is determined by the respirator type, not the filter class. On a half-mask respirator (7000 or 7800 series), the APF is 10 per OSHA 29 CFR 1910.134 Appendix B. On the 9000 series full-face respirator, the APF is 50. The P100 filter class does not increase the APF — it ensures full filter efficiency at the mechanical filtration level within the protection factor afforded by the facepiece seal.

Does the 7740+ filter need a separate prefilter?

No. The 7740+ is a complete standalone P100 filter — it does not require or accept a separate prefilter. Some older cartridge designs used a prefilter to extend service life in high-loading environments; the 7740+ integrates the full P100 media in a single unit. Replace the entire filter per your change schedule.

Can I use the Moldex 7740+ for asbestos abatement?

P100 filtration is required for asbestos abatement work per OSHA's asbestos standard (29 CFR 1926.1101 for construction). The 7740+ on a compatible Moldex respirator satisfies the filter class requirement. However, the full asbestos protection program also requires proper facepiece selection, fit testing, a written respiratory protection program, and medical evaluation — the filter is one element. Consult your industrial hygienist to confirm the full program requirements for your specific asbestos work classification.

What is the shelf life of unopened Moldex 7740+ filters?

Moldex does not publish a specific shelf life for the 7740+ in their standard documentation. General industry guidance for electret/charged-fiber filter cartridges is to use within the period specified on the packaging and to store in sealed packaging away from ozone, reactive chemicals, and high humidity, which can degrade the electrostatic charge. Check the expiration date stamped on the packaging and do not use filters past the manufacturer's stated date.

Is the Moldex 7740+ effective against COVID-19 or airborne viruses?

NIOSH P100 filtration meets the ≥99.97% efficiency standard, which exceeds N95 (≥95%) efficiency. P100 filters capture particle sizes consistent with aerosol droplet nuclei in the relevant size range. However, respiratory protection for infectious disease settings involves additional considerations beyond filter efficiency — including facepiece fit, donning/doffing procedures, and the specific infection control protocol in your facility. Consult your infection control officer or industrial hygienist before relying solely on a Moldex half-face respirator for any infectious disease control application.

How does the 7740+ compare to HEPA filtration?

HEPA (High Efficiency Particulate Air) is a filter class used in HVAC and air purification equipment, defined at ≥99.97% efficiency at 0.3 microns (300 nm) — the same performance standard as NIOSH P100. The terms describe equivalent filtration performance applied in different product categories: HEPA applies to equipment air filters, P100 applies to respirator-mounted filters. The 7740+ meets the P100 standard, which is the respiratory protection equivalent of HEPA performance.

Do I need to perform a fit test to use the Moldex 7740+?

Yes. OSHA 29 CFR 1910.134 requires quantitative or qualitative fit testing for all tight-fitting air-purifying respirators used in occupational settings. The 7740+ filter is installed on a tight-fitting half-face or full-face respirator — the respirator requires annual fit testing regardless of filter model. Fit testing validates the facepiece seal on the individual wearer; the filter class does not substitute for a seal test. Fit testing must be performed with the same facepiece model and size the worker will use on the job.
