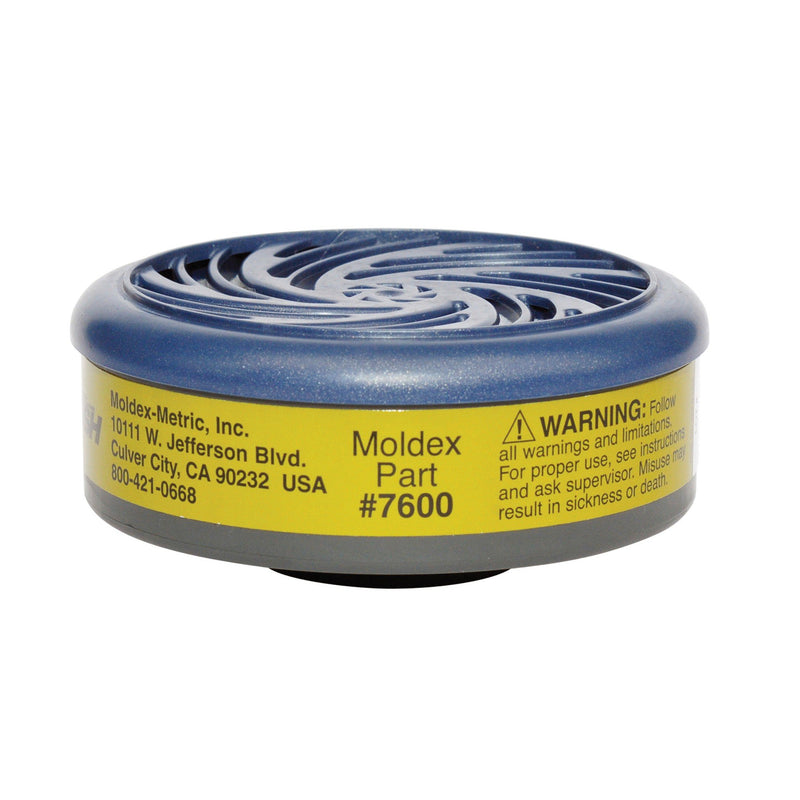

Moldex 7600 Multi-Gas/Vapor Smart Cartridges

Moldex 7600 Overview

The Moldex 7600 is a NIOSH-approved multi-gas/vapor Smart Cartridge pair that provides simultaneous protection against organic vapors, acid gases, formaldehyde, and other multi-class chemical hazards on Moldex 7000, 7800, and 9000 series respirators. Unlike standard cartridges that rely on a written change-schedule, the 7600 features Moldex's built-in color-change End-of-Service-Life Indicator (ESLI) — a visual dye strip that turns from yellow to dark blue as sorbent capacity is consumed, giving workers a direct, real-time signal to change cartridges before breakthrough occurs.

Sold as a pair (2 cartridges per bag) at $20.79, the 7600 is the go-to choice when a single cartridge type cannot cover the full hazard profile on the job. For workers who want a single cartridge instead of a pair, the Moldex 7607 single Smart Cartridge ($6.65) is the individual-purchase equivalent of the same cartridge.

Affiliate disclosure: WC Safety earns a commission on qualifying Amazon purchases at no extra cost to you.

Where the Moldex 7600 Fits in Respirator Selection

Respirator cartridge selection starts with your Safety Data Sheet (SDS) — if the hazard column lists two or more chemical classes (organic vapor plus acid gas, for instance), a single-class cartridge like the Moldex 7100 OV-only cartridge or the Moldex 7200 acid gas cartridge leaves you unprotected against the off-class hazard. The 7600 closes that gap with a single bayonet-mount cartridge that handles the full multi-gas exposure profile.

The built-in ESLI is critical for compliance with OSHA's respiratory protection standard (29 CFR 1910.134). Under that standard, employers must either implement a written change schedule based on objective information, or use a cartridge with an approved ESLI. Because the Moldex 7600 Smart Cartridge has a manufacturer-installed color-change ESLI, a written change schedule for OV/acid gas service-life is not required — the cartridge tells you directly when it needs replacement. See our complete guide to respirator cartridge ESLI for a full explanation of how color-change indicators work and when they satisfy OSHA requirements.

If your SDS also calls out particulates — silica, metal dust, mists — the 7600 alone is not sufficient. In that case, step up to the Moldex 7667 Multi-Gas + P100 combo cartridge, which stacks a P100 particulate filter on top of the same multi-gas sorbent. For a broader look at filter class selection, see our P95 vs R95 vs P100 filter class guide. If you are comparing Moldex against 3M or Honeywell for this protection class, our best 3M respirator cartridges guide and 3M vs Honeywell North cartridge comparison cover the head-to-head selection criteria.

Who Should Buy the Moldex 7600?

What Does the Moldex 7600 Protect Against?

The 7600 Smart Cartridge carries a NIOSH multi-gas/vapor approval covering the following chemical classes:

What the Moldex 7600 Does NOT Protect Against

The 7600 is an air-purifying cartridge. It does not supply oxygen and cannot be used when atmospheric oxygen is depleted or when contaminant concentrations reach IDLH levels. The following hazards fall outside its protection envelope:

• Ammonia and methylamine — these gases require a separate sorbent; use the Moldex 7400 ammonia/methylamine cartridge or Moldex 7467 AM + P100 combo
• Particulates, dusts, mists, fumes — the 7600 contains no particulate filter; pair with the Moldex 7667 Multi-Gas + P100 combo when particulates are also present
• Carbon monoxide (CO), nitrogen oxides (NOx) — these gases are not adsorbed by standard OV/AG sorbents
• Radioactive particles, asbestos, lead dust — require specialized P100 or HEPA filtration and additional regulatory controls
• Mercury vapor — requires a dedicated mercury-specific cartridge; see our guide to the best cartridge for mercury vapor
• Nuisance odors only — if no measurable vapor hazard exists, a rated cartridge is over-engineering; see our nuisance relief vs. rated protection guide

Best Applications for the Moldex 7600

Spray Painting and Coating Operations

Paints, primers, and industrial coatings release organic vapor solvents (toluene, xylene, MEK, acetone) alongside acid-gas components from catalysts and hardeners. The 7600's combined OV/AG sorbent handles both classes simultaneously, and the color-change ESLI is particularly valuable in spray booths where high vapor loads can consume cartridge capacity faster than time-based schedules predict. Pair with a Moldex half-mask respirator for standard spray applications or the Moldex 9000 full-face respirator when eye protection is also needed.

Chemical Processing and Laboratory Work

Mixing, transferring, or working near open containers of multi-chemical formulations in industrial labs or processing facilities often produces vapor mixtures that no single-class cartridge covers completely. The 7600's multi-gas approval and ESLI color change let lab workers respond to actual exposure conditions rather than guessing based on shift length or a fixed change interval.

Wastewater Treatment and Utility Work

Wastewater facilities generate hydrogen sulfide, chlorine gas, and volatile organic compounds simultaneously — a classic multi-gas exposure profile the 7600 is designed for. H2S is covered under the acid-gas component; chlorine and chlorine dioxide fall within the multi-gas vapor approval. Operators must still confirm that measured concentrations stay below IDLH thresholds where air-purifying equipment is permitted.

Funeral Service, Pathology, and Embalming

Formaldehyde is the dominant hazard in embalming and pathology environments, and the 7600's NIOSH multi-gas approval explicitly covers formaldehyde. The ESLI color indicator is especially valuable here because formaldehyde OSHA PEL (0.75 ppm) and action level (0.5 ppm) are low enough that traditional odor detection is unreliable as a change-schedule trigger.

Industrial Cleaning with Multi-Chemical Products

Degreasers, descalers, and industrial cleaners frequently combine solvent vapors with acid-gas components. The 7600 covers the combined exposure without requiring workers to carry two separate cartridge types or switch mid-task. Browse the full Moldex respirator cartridges and filters collection for the complete cartridge lineup if your hazard profile extends beyond the 7600's approval scope.

Moldex 7600 Pros and Cons

Compatible Moldex Respirators

The Moldex 7600 uses Moldex's proprietary bayonet-mount connection system. It is designed to fit all current Moldex half-mask and full-face respirator platforms. The 7600 does NOT fit any non-Moldex respirator. It is not compatible with 3M, Honeywell North, MSA, Survivair, or any other manufacturer's facepiece.

Need to purchase a facepiece? Shop the Moldex half-mask respirator collection or the Moldex full-face respirator collection.

Moldex 7600 vs Other Moldex Cartridges

The Moldex cartridge family uses the same bayonet mount across all models. Choosing the right cartridge depends on your specific gas classes and whether particulate filtration is required.

Moldex 7600 vs Moldex 7667: When to Add P100

The most common upgrade decision from the 7600 is to the Moldex 7667 Multi-Gas + P100 Smart combo cartridge. Both use the same multi-gas vapor sorbent and the same color-change ESLI — the only difference is that the 7667 adds a P100 particulate filter layer.

Buy verdict: If your SDS lists any particulate hazard alongside the chemical vapors, choose the 7667. If your exposure is vapor/gas only with no particulate component, the 7600 at $20.79 is the correct cartridge and the slightly lower price per use justifies it.

Moldex 7600 Quick Answers

Does the Moldex 7600 have an ESLI?

Yes. The Moldex 7600 is Moldex's "Smart Cartridge" — it has a built-in color-change End-of-Service-Life Indicator (ESLI). The dye strip shifts from yellow to dark blue as the sorbent approaches saturation, providing a direct visual cue that the cartridge needs replacement. Workers do not need a written change schedule for OV/acid gas service when using the 7600, because the ESLI satisfies OSHA 29 CFR 1910.134(d)(3)(iii)(B)(2) requirements for objective end-of-service determination.

What does the Moldex 7600 protect against?

The Moldex 7600 carries a NIOSH multi-gas/vapor approval covering organic vapors, acid gases (chlorine, hydrogen chloride, hydrogen fluoride, sulfur dioxide, hydrogen sulfide), formaldehyde, and chlorine dioxide. It does not protect against ammonia, methylamine, particulates, carbon monoxide, or nitrogen oxides.

What respirators does the Moldex 7600 fit?

The Moldex 7600 fits Moldex 7000 series half-mask respirators (7001, 7002, 7003), Moldex 7800 series half-masks, and Moldex 9000 series full-face respirators (9001, 9002, 9003). It uses a Moldex-proprietary bayonet mount and will not fit any respirator made by 3M, Honeywell, MSA, or any other manufacturer.

How many cartridges come in a pack of Moldex 7600?

The Moldex 7600 is sold as a pair — two cartridges per bag. One pair equips one respirator. For single-cartridge purchases, the Moldex 7607 is the identical cartridge sold individually at $6.65 per unit.

When should I replace Moldex 7600 cartridges?

Replace the Moldex 7600 when the color-change ESLI indicator strip shifts from yellow to dark blue, when you detect chemical odor or irritation through the respirator, or when cartridges have been removed from the sealed bag for more than the manufacturer's recommended maximum use period. Always follow your employer's written respiratory protection program for site-specific replacement requirements.

Is the Moldex 7600 the same as the Moldex 7607?

Yes — same cartridge, different pack size. The 7600 is the pair-pack (2 cartridges per bag, $20.79). The 7607 is the single-cartridge version ($6.65). Both use identical sorbent chemistry and the same color-change ESLI. The 7600 pair-pack is better value per cartridge for workers who replace both cartridges at the same time.

Can I use the Moldex 7600 for spray painting?

Yes, for vapor/gas-only spray painting environments. The 7600's organic vapor and acid gas coverage handles solvent-based paints, lacquers, and catalyzed coatings. If the paint also generates particulate mist or pigment dust, add P100 filtration by switching to the Moldex 7667 Multi-Gas + P100 combo cartridge instead.

Moldex 7600 Specifications

Helpful Buying Guides

• Respirator Cartridge ESLI Guide — How Color-Change Indicators Work and When They Satisfy OSHA Requirements
• P95 vs R95 vs P100 Filter Class Guide — Which Particulate Rating Do You Need?
• Nuisance Relief vs Rated Respirator Protection — When Does Your Exposure Require a NIOSH-Approved Cartridge?
• Best 3M Respirator Cartridges — Full Lineup Comparison by Hazard Class
• 3M vs Honeywell North Respirator Cartridges — Which Brand Fits Your Respirator and Hazard Profile?
• Best Respirator Cartridge for Mercury Vapor — Cartridge Selection for Dental, Lab, and Industrial Mercury Exposure
• Best Honeywell North Cartridge for Welding Fumes — Combo Cartridge vs Standalone P100 for Welders

Moldex 7600 Frequently Asked Questions

Is the Moldex 7600 a Smart Cartridge?

Yes. "Smart Cartridge" is Moldex's product designation for cartridges with a built-in color-change ESLI. The 7600 is a Moldex Smart Cartridge — its ESLI dye strip changes from yellow to dark blue when the sorbent is approaching end of service life, eliminating the need for a separately written cartridge change schedule for organic vapor and acid gas service.

What is the difference between the Moldex 7600 and the Moldex 7300?

Both the 7600 and the 7300 OV + AG cartridge protect against organic vapors and acid gases. The key differences: the 7600 has a built-in color-change ESLI; the 7300 does not. The 7600 also carries a multi-gas vapor approval that includes formaldehyde and additional gas classes beyond the 7300's OV + AG scope. The 7300 at $18.73 is slightly less expensive for pure OV/AG applications where ESLI is not required.

Do Moldex 7600 cartridges expire?

Yes. Moldex cartridges have a printed expiration date on the packaging. Unopened, factory-sealed cartridges should be stored in a cool, dry location away from contaminants. Once the seal is broken and a cartridge is put into service, the ESLI color change and any detectable odor or irritation are the primary end-of-life indicators. Do not use cartridges past the printed expiration date or after the ESLI has changed color.

Will the Moldex 7600 fit the Moldex 7002 respirator?

Yes. The Moldex 7002 is a medium-size Moldex 7000 series half-mask respirator, and the 7600 cartridge is fully compatible with the entire 7000 series platform (7001 small, 7002 medium, 7003 large). The bayonet mount is identical across all sizes in the series.

Can I use the Moldex 7600 for hydrogen sulfide (H2S)?

Yes, in concentrations below the H2S IDLH of 50 ppm where air-purifying respirators are permitted. H2S is covered under the acid gas component of the 7600's NIOSH multi-gas/vapor approval. Above 50 ppm (IDLH), supplied-air or SCBA is required — the 7600 cannot be used.

What does the color change on the Moldex 7600 ESLI mean?

The 7600 ESLI dye strip starts yellow when the cartridge is new and unused. As organic vapor and acid gas molecules are adsorbed by the sorbent bed, the dye reacts and the strip progressively shifts to dark blue. A fully blue or predominantly blue strip indicates the cartridge is at or near capacity and must be replaced before the next use. Partial color change indicates remaining capacity but warrants close monitoring.

Does the Moldex 7600 protect against chlorine gas?

Yes. Chlorine (Cl2) is covered under the acid gas component of the Moldex 7600's NIOSH multi-gas/vapor approval. Chlorine dioxide (ClO2) is also within the approval scope. Verify SDS concentration levels against the applicable IDLH (chlorine IDLH = 10 ppm) before using any air-purifying respirator in chlorine environments.

How do I know if the Moldex 7600 covers the chemicals on my SDS?

Cross-reference the chemical names on your SDS hazard section against the Moldex 7600 NIOSH approval scope: organic vapors, acid gases (Cl2, HCl, HF, SO2, H2S), formaldehyde, and chlorine dioxide. If your SDS lists ammonia, methylamine, CO, NOx, or particulates outside this list, the 7600 does not cover those hazards and a different cartridge or combination is required. When in doubt, consult your industrial hygienist or safety officer before relying on cartridge selection from a product page alone.

Is the Moldex 7600 OSHA-compliant?

The Moldex 7600 is NIOSH-approved, which is a prerequisite for OSHA compliance under 29 CFR 1910.134. However, cartridge selection alone does not make a program OSHA-compliant. Your employer's written respiratory protection program, fit-testing records, training documentation, medical evaluation, and cartridge change procedures must all satisfy 1910.134 requirements. The 7600's built-in ESLI supports compliance with the change-schedule requirements of 1910.134(d)(3)(iii).

Can I buy Moldex 7600 cartridges in bulk?

Yes. The 7600 is sold per pair (2 cartridges per bag) at $20.79. For bulk purchasing, multiple pairs can be added to cart or a B2B quote request can be submitted through WC Safety. For high-volume industrial procurement, contact WC Safety directly for pricing on case quantities.

What is the shelf life of an unopened Moldex 7600 cartridge?

Moldex publishes a shelf life for sealed, properly stored cartridges — check the expiration date printed on each individual bag. Typical shelf life for sealed chemical cartridges stored under recommended conditions (cool, dry, away from chemical exposure) is several years from manufacture date, but the printed date on the packaging is the authoritative reference for each specific lot.

Is the Moldex 7600 sold individually or only as a pair?

The Moldex 7600 is sold only as a pair (2 cartridges per bag). The single-cartridge equivalent is the Moldex 7607 ($6.65 per cartridge), which is the same cartridge sold individually for workers who need to replace one at a time or purchase in odd quantities.
