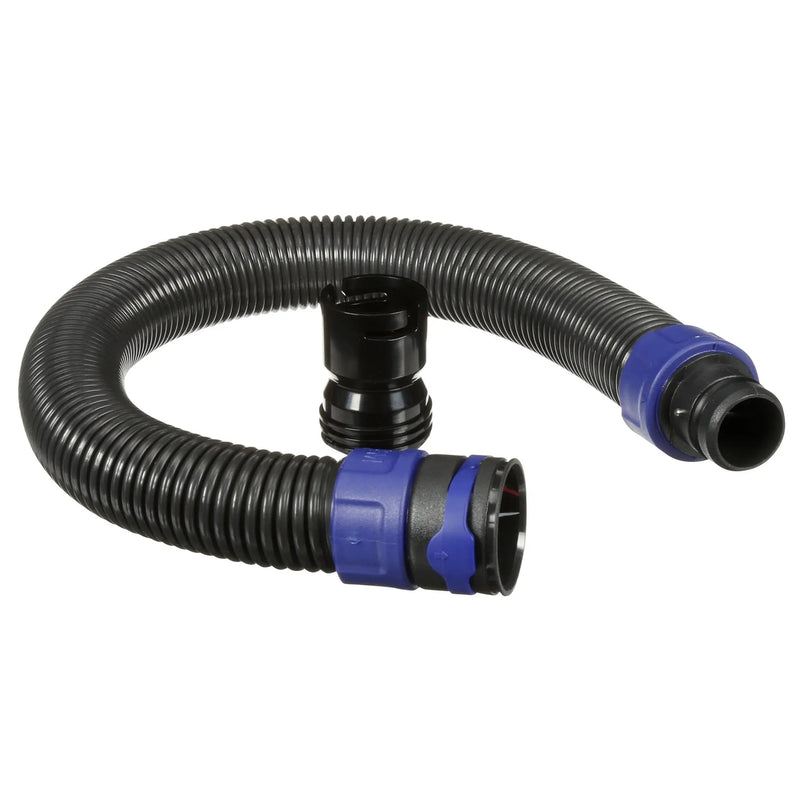

3M Versaflo BT-30 Breathing Tube — For Versaflo PAPR Helmet and Hood Assemblies

The 3M Versaflo BT-30 Breathing Tube is a replacement and spare component breathing tube for 3M Versaflo Powered Air Purifying Respirator (PAPR) systems — the flexible corrugated hose that connects the TR-series PAPR motor blower unit (worn on the belt) to the Versaflo head-top assembly (helmet, hood, or face shield), delivering the continuous flow of filtered air from the motor unit to the worker's breathing zone. The breathing tube is the physical interface between the power and filtration unit and the respiratory protection surface, and it must be properly connected, free of kinks or damage, and correctly matched to both the motor unit and head-top assembly to maintain the sealed airflow path that PAPR respiratory protection depends on. The BT-30 is the standard breathing tube in the Versaflo PAPR system, appropriate as a replacement for damaged or worn breathing tubes in existing PAPR programs and as a spare component in programs that maintain complete component sets for each motor unit in the program inventory.

3M Versaflo BT-30 Breathing Tube — Key Features

• Versaflo PAPR breathing tube — connects TR-series motor blower unit to Versaflo head-top assembly
• Standard BT-30 configuration — replacement and spare tube for existing Versaflo PAPR systems
• Flexible corrugated design — routes filtered airflow from belt-worn motor unit to head-top while accommodating worker movement
• OEM 3M component — genuine Versaflo part for compatibility and NIOSH certification maintenance
• Component lifecycle management — replacement for damaged, cracked, or worn breathing tubes in PAPR inventories

Specifications

Breathing Tube Function in the Versaflo PAPR System

The Versaflo PAPR system architecture separates the filtration and motor function from the respiratory protection surface: the TR-series motor blower unit, worn on the belt or chest carrier, draws ambient air through filter media and pressurizes the filtered air for delivery to the head-top. The breathing tube bridges the physical gap between the motor unit and the head-top, routing the pressurized filtered air from the motor unit output port, up the worker's torso, and into the inlet port of the helmet, hood, or face shield assembly. This separation of motor and head-top allows the head-top to be lightweight and comfortable while the battery, motor, and filter weight is distributed to the worker's waist and hips rather than the head and neck.

The breathing tube must maintain a sealed, unobstructed airflow path throughout the worker's range of motion. Industrial and healthcare workers bend, reach, and turn during tasks, and the breathing tube must flex and route without kinking or disconnecting as the worker moves. The corrugated flexible design of the BT-30 accommodates typical worker movements while maintaining the tube geometry that prevents airflow restriction. Over time and repeated use, breathing tube corrugations can develop cracks, the connection fittings can wear or deform, and the tube interior can accumulate contamination — any of these conditions warrants replacement to maintain the sealed PAPR system performance that NIOSH certification assumes.

Breathing Tube Maintenance and Replacement

PAPR breathing tubes are consumable components in programs where PAPR equipment sees regular daily use. 3M's recommended inspection and maintenance guidelines for Versaflo components include regular breathing tube inspection for: cracks or splits in the corrugated tube body (particularly at the corrugation ridges where flexing stress concentrates); deformation or damage at the motor unit and head-top connection fittings; blockage or contamination in the tube interior; and odors or residue indicating chemical contamination. A breathing tube with any of these conditions should be replaced before returning the PAPR system to service.

PAPR program administrators should maintain spare BT-30 breathing tubes in the program inventory alongside spare batteries, filters, and head-top assemblies. In the same way that a PAPR with a discharged battery cannot provide respiratory protection, a PAPR with a damaged breathing tube cannot maintain the positive-pressure airflow that the system depends on. The BT-30 spare inventory should be sufficient to immediately replace a failed breathing tube during a shift without sending a motor unit to an out-of-service status pending component procurement.

Decontamination and Reuse

Versaflo breathing tubes can be cleaned and decontaminated according to 3M's published cleaning procedures for Versaflo components. For healthcare applications where the PAPR may be used in infectious patient rooms, cleaning and decontamination procedures must meet the relevant infection control protocols of the facility in addition to 3M's component maintenance guidelines. Breathing tubes that have been used in high-risk infectious environments may be subject to disposal rather than cleaning protocols depending on facility infection control policy. Consult the 3M Versaflo component maintenance instructions and your facility's infection control or safety management program for the appropriate cleaning or disposal determination for breathing tubes in your specific deployment context.

Compliance and Certifications

• OEM 3M component — genuine Versaflo breathing tube maintains NIOSH certification of complete PAPR assembly
• OSHA 29 CFR 1910.134 — component maintenance and replacement supports written respiratory protection program requirements
• Versaflo system compatibility — BT-30 designed for connection interface compatibility with Versaflo TR-series motor units and head-top assemblies

Real-World Benefits

OEM replacement tube maintains NIOSH certification of the complete PAPR assembly. NIOSH approval covers the certified assembly of specific OEM components — motor unit, battery, filter, breathing tube, and head-top in approved combinations. Replacing a failed breathing tube with a non-OEM component may remove the system from NIOSH-certified status. The BT-30 OEM replacement tube maintains the certified assembly configuration that OSHA's respiratory protection standard requires for PAPR programs.

Spare tube inventory prevents system downtime from breathing tube failures during active shifts. A breathing tube that cracks, disconnects, or becomes contaminated mid-shift requires immediate removal from service. Facilities with BT-30 spare inventory can immediately swap the failed tube, return the motor unit to service, and route the failed tube to cleaning or disposal — maintaining continuous PAPR availability without waiting for replacement component procurement.

Proper tube inspection and replacement cadence maintains PAPR system performance throughout the component lifecycle. Breathing tubes that have developed hairline cracks in corrugation ridges may appear functional but allow ambient air ingress that degrades the positive-pressure protection level. Regular inspection and proactive replacement on manufacturer-recommended schedules maintains the PAPR system at its NIOSH-tested performance specification rather than at a degraded-but-undetected level.

Applications and Use Cases

• PAPR component inventory management — BT-30 spare stock for immediate replacement of failed breathing tubes in TR-300 and TR-600 PAPR programs
• Healthcare PAPR decontamination programs — replacement tubes for breathing tubes that have reached the end of their decontamination service life
• Industrial PAPR fleet maintenance — scheduled breathing tube replacement as part of PAPR component lifecycle management
• Initial PAPR program deployment — additional BT-30 tubes for programs requiring spare component sets for each motor unit in inventory

Frequently Asked Questions

How often should breathing tubes be replaced?

Replace the BT-30 breathing tube immediately upon discovery of any crack, split, loose connection fitting, or blockage, regardless of age. For preventive replacement, follow 3M's recommended maintenance schedule for Versaflo components, which is based on hours of use and observed wear rather than a fixed calendar interval. Programs with high daily-use frequency should inspect tubes daily before each use and replace at the first sign of corrugation cracking or fitting wear. Programs with lower use frequency should inspect before each use and replace annually at minimum or on the 3M recommended schedule, whichever is more frequent.

Can the BT-30 breathing tube be used with all Versaflo head-top assemblies?

Verify compatibility between the BT-30 and your specific head-top assembly in the 3M Versaflo component compatibility documentation. Versaflo head-top assemblies have breathing tube inlet ports designed for specific BT-series tube connection fittings. Not all breathing tube models have identical connection fittings, and using a breathing tube with an incompatible fitting may produce a loose or unsealed connection that compromises the positive-pressure airflow path. Confirm the correct BT model for your specific motor unit and head-top combination before procurement.
