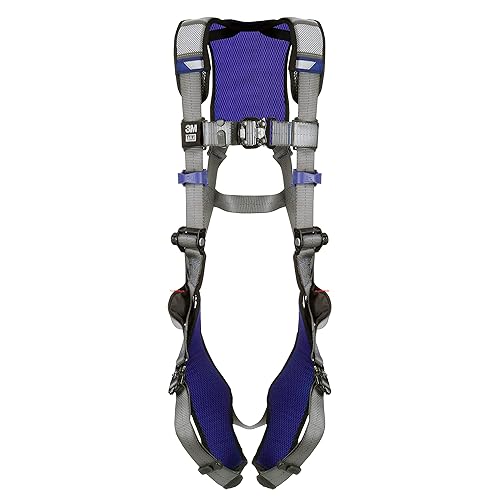

3M 1402022 DBI-SALA ExoFit X200 Comfort Vest Full Body Harness

The 3M 1402022 DBI-SALA ExoFit X200 Comfort Vest Full Body Harness is a mid-tier vest-style fall arrest harness that upgrades the X100 platform with two targeted engineering improvements: a stand-up aluminum dorsal D-ring and an anti-slide D-ring plate. These features address the two most common operational problems with standard dorsal D-rings in active elevated work — a D-ring that falls forward and requires reaching behind the shoulder to find, and a D-ring that shifts off-center under lateral load. Rated to 420 lb and compliant with ANSI/ASSP Z359.11, the 1402022 is the correct specification for workers who need fall arrest performance beyond the X100 entry tier and whose applications do not require positioning D-rings.

For B2B procurement teams specifying fall arrest harnesses for general industry, facilities management, and elevated maintenance operations, the 1402022 provides ExoFit comfort padding, stand-up D-ring efficiency, and 420 lb capacity at a mid-range price point — above the X100 entry tier, below the premium X300.

3M 1402022 DBI-SALA ExoFit X200 Comfort Vest — Key Features

• Stand-up aluminum dorsal D-ring — spring-loaded mechanism holds D-ring upright for immediate lanyard and SRL connection; eliminates over-shoulder search during transitions
• Anti-slide D-ring plate — reinforced backing prevents D-ring from migrating off-center under dynamic load or sustained tension
• ExoFit X200 comfort padding — shoulder and torso padding for reduced fatigue during full-shift elevated work
• Vest-style single D-ring — optimized for fall arrest applications; no positioning D-rings (vest design)
• Quick-connect buckles — leg and chest closures with self-confirming engagement
• Aluminum hardware — lightweight, corrosion-resistant throughout
• 420 lb weight capacity — combined worker, tools, and PPE
• ANSI/ASSP Z359.11 certified
• OSHA 29 CFR 1910.140 compliant

Specifications

Materials and Construction

The ExoFit X200 Comfort Vest 1402022 builds directly on the X100 Comfort Vest foundation, adding the stand-up dorsal D-ring and anti-slide plate that define the X200 platform. The stand-up D-ring uses a spring mechanism to return the aluminum ring to an upright, forward-facing position when not under load. For workers making repeated anchorage connections — connecting to a self-retracting lanyard at the beginning of an elevated task, or transitioning between anchor points — the stand-up feature means the D-ring is visible and accessible without manipulation. The alternative, a standard passive D-ring that rotates freely, requires the worker to reach over their shoulder and feel for the ring's orientation before making a connection.

The anti-slide D-ring plate is a structural backing component at the dorsal attachment point. Under lateral tension — as occurs when a worker leans against a surface, swings on a lanyard, or uses an SRL that creates an off-angle pull — a standard D-ring can migrate away from the spine centerline, shifting the arrest force distribution. The anti-slide plate constrains the D-ring to its designed position under working loads, maintaining the intended arrest geometry.

ExoFit X200 comfort padding at the shoulder straps and torso is a step up from the X100 tier's lighter padding. The X200 padding provides more sustained pressure relief for workers wearing the harness for extended periods — the difference between the X100 and X200 in terms of day-long wearability is meaningful for workers who keep the harness on for full elevated shifts rather than frequent don/doff cycles.

Compliance and Certifications

• ANSI/ASSP Z359.11 — Full Body Harnesses for Personal Fall Arrest Systems
• OSHA 29 CFR 1910.140 — General industry personal fall protection
• OSHA 29 CFR 1926.502(d) — Construction fall protection systems

Real-World Benefits

Connection efficiency in active elevated work. The stand-up D-ring removes the over-shoulder reach and orientation step from every anchorage connection. For workers on elevated platforms, scissor lifts, or aerial work platforms who connect and disconnect from anchors frequently, this is a consistent per-transition time saving and a reduction in the distracted, awkward movements that accompany reaching behind a shoulder for an unseen ring.

Maintained arrest geometry under active load. The anti-slide plate prevents D-ring migration during the lateral and dynamic loads common in active elevated work. This is particularly relevant for workers in mobile elevated work platform applications where the harness experiences asymmetric loading during boom extension and maneuvering, and for workers on elevated platforms who frequently lean or work in positions that create off-angle lanyard tension.

Full-shift wearability without positioning trade-offs. For general industry and facilities applications where fall arrest only is needed — no positioning D-rings required — the X200 Vest provides the best wearability in the X200 lineup at a lower cost than models with positioning D-ring configurations. Workers who wear the harness continuously for elevated maintenance shifts benefit from the X200 padding tier without paying for positioning hardware they don't need.

Applications and Use Cases

• Facilities maintenance at height — HVAC, electrical, and mechanical work on elevated platforms where fall arrest is required without positioning
• Aerial work platform and scissor lift use — fall arrest on boom lifts, scissor lifts, and personnel lifts
• General industry elevated work — manufacturing, warehousing, and process industry elevated maintenance
• Roofing and construction elevated work — fall arrest on construction sites for workers not requiring positioning D-rings
• Utilities and telecommunications — elevated work on structures where stand-up D-ring efficiency reduces transition time

Compare: 3M 1402022 ExoFit X200 Vest vs. Related Harnesses

vs. ExoFit X100 Comfort Vest 1401001 — The X100 Comfort Vest provides fall arrest with standard dorsal D-ring, X100 padding, and zinc-plated steel hardware at a lower cost. The X200 adds the stand-up D-ring, anti-slide plate, and aluminum hardware with improved X200 padding. Choose the X200 Vest when the stand-up D-ring provides operational value for your connection frequency and when improved comfort for full-shift wear justifies the cost difference.

vs. ExoFit X200 Construction Positioning 1402090 — The X200 Construction adds positioning D-rings for work positioning applications. The 1402022 Vest has a single dorsal D-ring only. If fall arrest only is required — no positioning — choose the Vest; if construction positioning compliance is needed, choose the X200 Construction.

Explore the complete Full Body Harnesses collection and Fall Protection for the full 3M ExoFit lineup.

Frequently Asked Questions

What is the stand-up D-ring feature on the ExoFit X200 Vest?

The stand-up D-ring is a spring-loaded aluminum dorsal D-ring that returns to an upright, accessible position when not under load. When a worker disconnects their lanyard or SRL, the spring mechanism returns the ring to an upright orientation — visible and accessible for immediate reconnection without reaching behind the shoulder to find a fallen ring. This reduces connection time and the distraction of managing a passive D-ring during anchorage transitions.

What is the anti-slide D-ring plate on the ExoFit X200?

The anti-slide D-ring plate is a reinforced structural backing at the dorsal attachment point that constrains the D-ring to the centerline of the back under load. Without it, a dorsal D-ring can migrate off-center under lateral tension or dynamic load, changing the arrest force distribution. The anti-slide plate maintains the D-ring in its designed position during active elevated work.

Does the ExoFit X200 Vest have work positioning D-rings?

No. The 1402022 is a vest-style fall arrest harness with a single dorsal D-ring. It does not include positioning-rated hip D-rings. Applications requiring work positioning must specify the ExoFit X200 Construction Positioning 1402090 or another harness with ANSI Z359.2-rated positioning D-rings.

Who should use the ExoFit X200 Vest instead of the X100 Vest?

Workers who make frequent anchorage connections during their elevated tasks benefit most from the stand-up D-ring, which reduces per-connection time and effort. Workers who wear the harness for extended full-shift periods benefit from the improved X200 padding tier. If neither condition applies — infrequent connections and short wear periods — the X100 Vest at a lower cost may be the appropriate specification.

What is the weight capacity of the ExoFit X200 Vest 1402022?

The 3M DBI-SALA ExoFit X200 Comfort Vest 1402022 has a 420 lb weight capacity including the combined weight of the worker plus all tools, equipment, and PPE worn or carried during use.

What ANSI standard does the ExoFit X200 meet?

The 1402022 meets ANSI/ASSP Z359.11 for full body harnesses and complies with OSHA 29 CFR 1910.140 for general industry and OSHA 1926.502(d) for construction fall protection applications.
