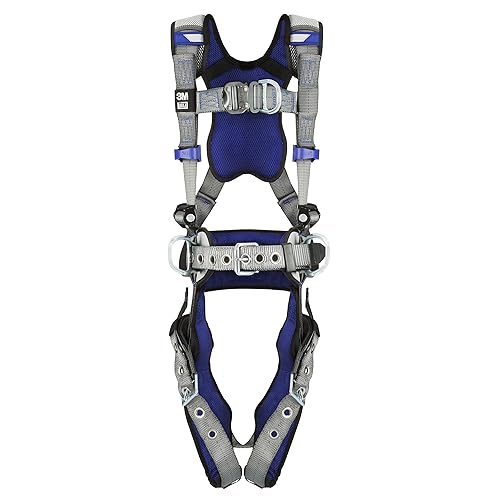

3M 1402090 DBI-SALA ExoFit X200 Construction Positioning Full Body Harness

The 3M 1402090 DBI-SALA ExoFit X200 Construction Positioning Full Body Harness is a mid-tier construction harness that combines ExoFit comfort padding with a stand-up aluminum dorsal D-ring, an anti-slide D-ring plate, and multiple positioning D-rings — engineering features that address the three most common fall protection performance failures in active construction work: a D-ring that falls forward during activity, a D-ring that slides off-center under load, and a harness that causes fatigue-related compliance drift over a full shift. The 1402090 is built for ironworkers, steel erectors, scaffolding crews, and construction workers who spend full shifts at height and require both fall arrest and work positioning from a single harness.

For B2B procurement teams specifying harnesses for construction trades with sustained elevated exposure, the 1402090 sits between the standard Protecta PRO cost tier and the premium ExoFit X300 — delivering the stand-up D-ring and anti-slide plate technology of the X200 platform with the positioning D-ring configuration required for construction applications.

3M 1402090 DBI-SALA ExoFit X200 Construction — Key Features

• Stand-up aluminum dorsal D-ring — spring-loaded design holds the D-ring upright for rapid SRL and lanyard connection; eliminates fumbling to find a fallen D-ring during anchorage transitions
• Anti-slide D-ring plate — reinforced backing plate prevents the dorsal D-ring from sliding off the centerline of the back under dynamic load or sustained tension
• Construction positioning D-rings — multiple positioning connection points for construction positioning lanyard attachment in steel erection, scaffold, and structural applications
• ExoFit X200 comfort padding — shoulder and torso padding engineered for reduced pressure-point fatigue in full-shift construction use
• Quick-connect leg buckles — eliminate tongue buckle double-back error mode; self-confirm engagement
• 420 lb weight capacity — combined worker, tools, and PPE
• ANSI/ASSP Z359.11 certified
• OSHA 29 CFR 1926.502(d) compliant

Specifications

Materials and Construction

The ExoFit X200 Construction 1402090 builds on the X200 platform's stand-up dorsal D-ring and anti-slide plate, adding the positioning D-ring configuration required for construction applications. The stand-up D-ring uses a spring mechanism to hold the aluminum D-ring in an upright position when not under load. When a worker removes their lanyard or SRL from the D-ring, the ring returns to the upright position — accessible and visible for immediate reattachment without the worker needing to reach over their shoulder and search for a fallen ring that has rotated toward the harness back.

The anti-slide D-ring plate is a reinforced backing structure at the dorsal attachment point that constrains the D-ring to the centerline of the back under dynamic load. Without an anti-slide plate, the dorsal D-ring can shift laterally under the tension generated by a swinging or active lanyard connection, creating an off-center pull geometry that affects the harness fit and arrest force distribution. The anti-slide plate maintains the D-ring in its intended position under working load.

X200 platform comfort padding at the shoulder straps and torso panel reduces pressure-point fatigue for workers who wear the harness through an extended shift. ExoFit padding is engineered for durability under construction-environment exposure — maintaining its structure through sweat, abrasion, and the physical demands of active construction work.

Compliance and Certifications

• ANSI/ASSP Z359.11 — Full Body Harnesses for Personal Fall Arrest Systems
• OSHA 29 CFR 1926.502(d) — Construction fall protection systems criteria
• OSHA 29 CFR 1910.140 — General industry personal fall protection systems
• ANSI Z359.2 — Positioning D-ring compliance for work positioning applications

Real-World Benefits for Construction Trades

Faster anchorage transitions without fumbling. The stand-up dorsal D-ring eliminates the time a worker spends searching for and orienting a fallen D-ring during each anchorage transition. In active construction work with frequent anchorage changes, this reduces per-transition time and the distraction of managing the connection point while moving through the work area. It also reduces the risk of a hasty or partial lanyard connection made because finding a fallen D-ring is taking too long under production pressure.

Maintained arrest force distribution under load. The anti-slide plate keeps the dorsal D-ring centered on the spine during dynamic and sustained tension. An off-center D-ring pull geometry changes the arrest force distribution across the harness webbing, potentially concentrating forces in ways the harness was not designed for. For workers on active rigging, steel erection, or scaffold work where the lanyard or SRL experiences lateral tension, the anti-slide plate maintains the intended force path.

Construction positioning in a single harness. The positioning D-ring configuration supports work positioning lanyard attachment for steel erection, scaffolding, and structural connection work where both fall arrest and lateral positioning are required. This eliminates the need for a separate positioning belt and the inventory, donning, and inspection overhead of managing two separate pieces of body-worn equipment per worker.

Applications and Use Cases

• Steel erection and ironwork — stand-up D-ring and positioning rings for structural connection work at height
• Scaffolding installation and use — fall arrest and positioning for scaffold erection and work on scaffold platforms
• Commercial construction elevated work — full-shift construction harness for workers at height across the shift
• Tower and communications work — stand-up D-ring and comfort padding for extended tower climbing and working
• General industry elevated maintenance — OSHA 1910.140 compliant for facility and industrial elevated work requiring positioning capability

Compare: 3M 1402090 ExoFit X200 Construction vs. Related Harnesses

vs. ExoFit X100 Construction Positioning — The X100 Construction uses the standard dorsal D-ring without the stand-up mechanism or anti-slide plate, and uses the X100 padding tier. The 1402090 adds the stand-up D-ring, anti-slide plate, and X200 padding. Choose the X200 Construction when anchorage transition frequency justifies the stand-up D-ring and when comfort over the X100 is a priority for full-shift wear.

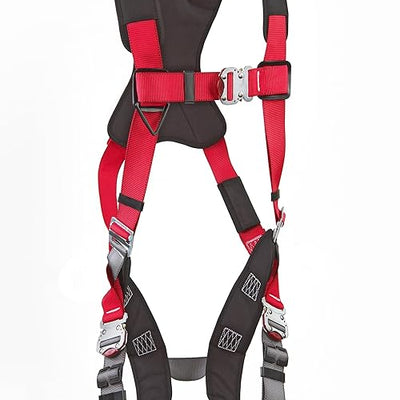

vs. Protecta PRO 1191260 — The PRO provides three-D-ring construction compliance at a lower cost without ExoFit comfort padding or the stand-up D-ring technology. Choose the PRO for standard construction procurement where cost-per-unit is the primary factor; choose the X200 Construction when the stand-up D-ring, anti-slide plate, and ExoFit padding justify the higher unit cost.

Browse the full Full Body Harnesses collection and Fall Protection for lanyards and connecting hardware to complete your system.

Frequently Asked Questions

How many D-rings does the ExoFit X200 Construction 1402090 have?

The 1402090 includes a stand-up aluminum dorsal D-ring for fall arrest and construction positioning D-rings for work positioning lanyard attachment. This configuration supports both fall arrest and work positioning compliance under ANSI Z359.11 and ANSI Z359.2 in a single harness.

When should I choose the X200 Construction over the X100 Construction?

Choose the X200 Construction when the stand-up dorsal D-ring provides operational value — specifically, when workers make frequent anchorage transitions where locating and orienting a fallen D-ring adds time and distraction to each transition. Also choose the X200 when the improved X200 comfort padding versus the X100 tier justifies the cost difference for workers wearing the harness for a full shift.

Does the ExoFit X200 Construction comply with OSHA construction fall protection?

Yes. The 3M 1402090 meets ANSI/ASSP Z359.11 and complies with OSHA 29 CFR 1926.502(d) for construction fall protection and OSHA 1910.140 for general industry personal fall protection.

What industries use the ExoFit X200 Construction harness?

The 1402090 is primarily specified for construction trades — structural steel erection, scaffolding, commercial construction, and tower/communications work. Its positioning D-ring configuration also makes it appropriate for general industry elevated maintenance applications requiring work positioning capability alongside fall arrest.

Can the ExoFit X200 Construction be used for general industry applications?

Yes. The 1402090 is OSHA 1910.140 compliant for general industry personal fall protection. Its positioning D-rings and ExoFit comfort make it a strong specification for facilities maintenance, manufacturing elevated work, and any general industry application where both fall arrest and positioning are required in a single harness.
