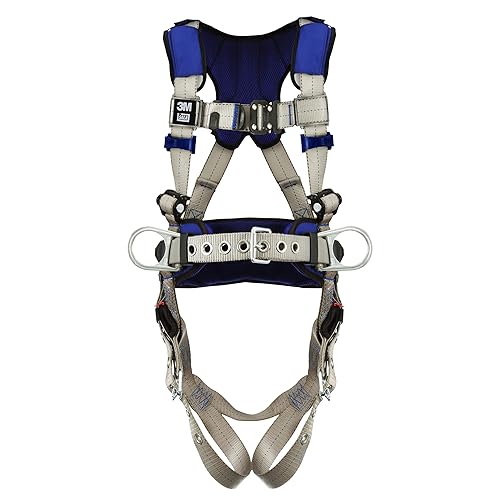

3M 1401111 DBI-SALA ExoFit X100 Construction Positioning Full Body Harness

The 3M 1401111 DBI-SALA ExoFit X100 Construction Positioning Full Body Harness is a three-D-ring construction harness that combines ExoFit comfort padding with a back dorsal D-ring for fall arrest and two hip-level D-rings for work positioning — the configuration required for construction workers on scaffolding, structural steel, and elevated platforms where both fall arrest and lateral positioning are required from a single harness. Built with steel hardware, 420 lb capacity, and compliance with ANSI Z359.11 and OSHA 1926.502(d), the 1401111 is the ExoFit entry-level specification for construction positioning applications — delivering ExoFit comfort with the D-ring configuration required by construction trade work.

For B2B procurement teams equipping construction crews who need both fall arrest and positioning, the 1401111 provides three-D-ring compliance with ExoFit comfort at the X100 price tier — the practical choice when positioning capability is required and the X200 stand-up D-ring upgrade is not yet justified by the application.

3M 1401111 DBI-SALA ExoFit X100 Construction Positioning — Key Features

• Three-D-ring configuration — back dorsal D-ring for fall arrest plus two hip-level D-rings for work positioning under ANSI Z359.2
• ExoFit X100 comfort padding — shoulder and torso padding for reduced fatigue in full-shift construction use
• Steel hardware throughout — construction-grade durability for scaffolding, structural steel, and site environments
• Quick-connect leg buckles — self-confirming engagement eliminates tongue buckle double-back error
• 420 lb weight capacity — combined worker, tools, and PPE weight
• ANSI/ASSP Z359.11 certified
• ANSI Z359.2 positioning D-ring compliance
• OSHA 29 CFR 1926.502(d) compliant

Specifications

Materials and Construction

The ExoFit X100 Construction Positioning 1401111 delivers the ExoFit comfort vest construction — padded shoulders and torso panel — in the three-D-ring configuration required for construction work positioning applications. The hip D-rings are positioned at the lateral torso level for positioning lanyard attachment during structural connection, scaffolding, and elevated construction tasks that require the worker to maintain a fixed lateral position while working. The hip D-rings meet ANSI Z359.2 work positioning requirements, allowing the harness to legally serve both fall arrest and positioning functions under the applicable standards.

Steel hardware is used throughout the 1401111 — at buckles, D-rings, and adjusters. Steel construction hardware is selected for resistance to the mechanical damage common on construction sites: dropped tools, abrasive contact with structural steel, concrete, and scaffold components, and the rough handling of a harness that is donned and doffed multiple times per shift in field conditions. Steel hardware is more resistant to these physical damage modes than aluminum, making it the appropriate material specification for active construction positioning applications.

Quick-connect leg buckle closures provide self-confirming engagement on the leg straps. The mechanism engages by pressing the connectors together until audible and tactile lock confirmation, without threading webbing through a frame. This eliminates the tongue buckle double-back step — the most frequently observed harness donning error on construction sites — and reduces the pre-task inspection burden for safety managers overseeing large crews.

Compliance and Certifications

• ANSI/ASSP Z359.11 — Full Body Harnesses for Personal Fall Arrest Systems
• ANSI Z359.2 — Minimum Requirements for a Comprehensive Managed Fall Protection Program (positioning D-ring compliance)
• OSHA 29 CFR 1926.502(d) — Construction fall protection systems criteria
• OSHA 29 CFR 1910.140 — General industry personal fall protection systems

Real-World Benefits for Construction Positioning Applications

Single harness for fall arrest and positioning. The three-D-ring configuration eliminates the need for a separate positioning belt in applications requiring both fall arrest and work positioning. Workers on scaffold platforms, structural steel connections, or elevated concrete formwork who need both capabilities can use a single harness — reducing PPE load, inventory management overhead, and the donning and inspection complexity of managing two separate body-worn fall protection devices.

ExoFit comfort in a construction configuration. The ExoFit X100 padding on the 1401111 provides comfort for workers who wear the harness through full construction shifts. Construction workers who alternate between fall arrest and positioning tasks throughout the day — the typical use pattern on steel erection and scaffold work — benefit from reduced shoulder and torso fatigue compared to unpadded alternatives. This is particularly relevant for trades where the harness is worn from the start to the end of the elevated work sequence without frequent doffing.

Steel hardware for site durability. Construction sites expose hardware to more physical abuse than general industry environments. Steel hardware at the D-rings and buckles withstands the mechanical contact with scaffold components, structural steel edges, and concrete surfaces that aluminum hardware is more susceptible to. For crews on structural steel or scaffold-heavy sites, the 1401111's steel hardware specification provides durability aligned with the application.

Applications and Use Cases

• Scaffolding erection and work — fall arrest and positioning for scaffold construction and elevated scaffold platform work
• Structural steel erection — three-D-ring configuration supports fall arrest during iron work and positioning during structural connections
• Concrete and formwork — fall arrest and positioning in elevated concrete construction applications
• Commercial construction elevated work — three-D-ring compliance for OSHA 1926-regulated construction sites requiring positioning
• General industry elevated maintenance — OSHA 1910.140 compliant for facilities elevated work where positioning is required

Compare: 3M 1401111 ExoFit X100 Construction vs. Related Harnesses

vs. ExoFit X200 Construction Positioning 1402090 — The X200 Construction adds a stand-up aluminum dorsal D-ring and anti-slide plate to the three-D-ring positioning configuration. Choose the X200 when workers make frequent anchorage transitions where the stand-up D-ring provides clear operational value, or when the X200 padding tier is needed for full-shift comfort. Choose the X100 Construction when standard dorsal D-ring performance is adequate and the cost difference between X100 and X200 is a meaningful procurement factor.

vs. Protecta PRO 1191260 — The Protecta PRO provides three-D-ring construction positioning compliance without ExoFit comfort padding at a lower cost. Both use quick-connect leg buckles. Choose the PRO when budget is the primary factor and comfort padding does not significantly affect compliance behavior for your crew; choose the X100 Construction when ExoFit padding provides a meaningful compliance benefit for workers with extended elevated exposure.

Browse the complete Full Body Harnesses collection and Fall Protection for lanyards, SRLs, and anchors to complete your system.

Frequently Asked Questions

What D-rings does the ExoFit X100 Construction 1401111 include?

The 1401111 includes three D-rings: one back dorsal D-ring for fall arrest and two hip-level D-rings for work positioning. The hip D-rings meet ANSI Z359.2 work positioning requirements, allowing the harness to serve both fall arrest and positioning functions in a single unit under the applicable ANSI and OSHA standards.

What is the difference between tongue buckle and quick-connect buckle leg straps?

Quick-connect buckles engage by pressing the connectors together until audible and tactile lock confirmation — no threading required. Tongue buckles require the webbing to be threaded through a frame and doubled back. The double-back step is the most commonly observed donning error on construction sites; an improperly doubled-back tongue buckle can appear engaged while being functionally unsecured. Quick-connect buckles mechanically prevent this error mode by design.

Does the ExoFit X100 Construction comply with OSHA construction fall protection?

Yes. The 3M 1401111 meets ANSI/ASSP Z359.11 and complies with OSHA 29 CFR 1926.502(d) for construction fall protection. The hip D-rings also comply with ANSI Z359.2 for work positioning applications under OSHA construction standards.

Why does the X100 Construction use steel hardware instead of aluminum?

Steel hardware is specified for the X100 Construction because construction environments expose hardware to more mechanical damage — impact from dropped tools, abrasive contact with structural steel and concrete, and rough handling during frequent don/doff cycles — than general industry environments where aluminum hardware is common. Steel hardware is more resistant to physical damage modes at construction sites.

What is the weight capacity of the ExoFit X100 Construction 1401111?

The 3M DBI-SALA ExoFit X100 Construction Positioning 1401111 has a 420 lb weight capacity. This includes the combined weight of the worker plus all tools, equipment, and PPE worn or carried during elevated work.

Can the ExoFit X100 Construction be used for climbing applications?

The 1401111 is a full body harness rated for fall arrest and work positioning under ANSI Z359.11 and Z359.2. For dedicated climbing applications — tower climbing, ladder climbing systems, or vertical lifeline systems — confirm that the specific climbing system's requirements are compatible with the harness configuration. The dorsal D-ring and hip D-ring configuration is suitable for many climbing fall protection system connections, but the specific connector and anchorage configuration must meet the requirements of the climbing system being used.
