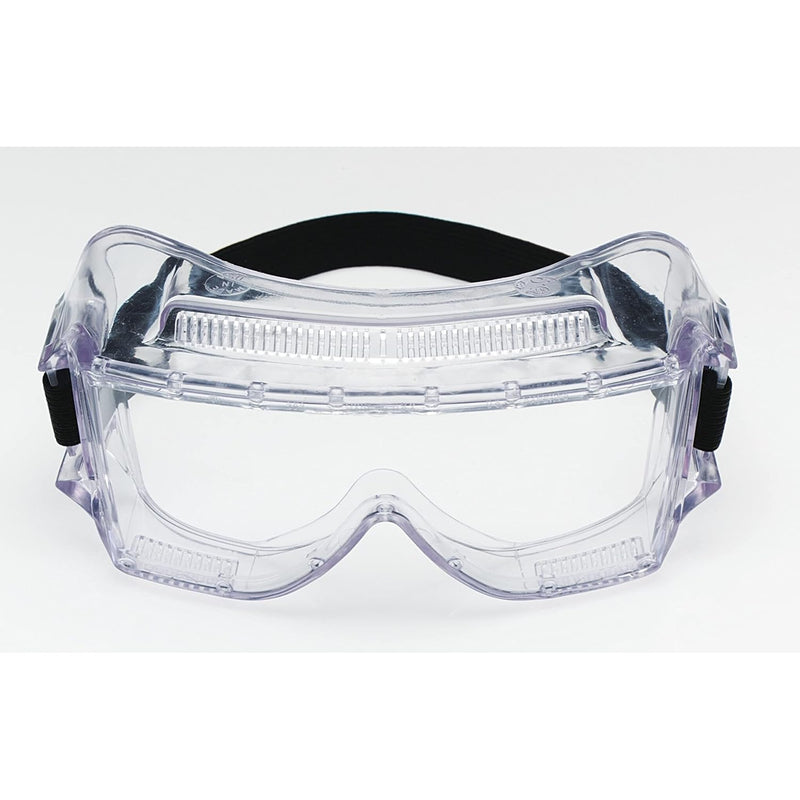

3M Centurion 452AF Impact Safety Goggle Clear Anti-Fog

The 3M Centurion 452AF Impact Safety Goggle provides ANSI/ISEA Z87.1-certified impact and maximum chemical splash eye protection with a non-vented sealed design and clear anti-fog lens — delivering the highest level of goggle-based barrier protection for concentrated chemical handling, acid splash environments, pressurized chemical systems, and industrial applications where the maximum face-seal protection of a completely sealed goggle is required over indirect-vent designs that maintain ventilation openings. The 452AF's non-vented sealed construction eliminates the ventilation openings present on indirect-vent models — creating a fully closed perimeter seal between the goggle and the face that provides no direct or indirect path for liquid, droplets, or particulates to enter the goggle cavity through the frame body. This sealed design is the basis for the 452AF's position as maximum-protection eye barrier equipment: when a chemical splash event occurs, the absence of any ventilation opening means the goggle's only entry path is through the face seal contact zone, and the Centurion's soft, conforming face seal material minimizes the gap risk at that zone through flexible frame contact. Non-vented goggles are specified in environments where the chemical hazard assessment identifies splash risks that indirect-vent designs should not be used for — concentrated acid handling with splash-splash risk (HCl, H₂SO₄, HNO₃, HF), caustic splash from sodium hydroxide and potassium hydroxide operations, pressurized chemical transfer and sampling, and emergency response operations where the chemical identity and concentration may not be fully controlled. The trade-off of sealed design over indirect-vent is reduced airflow, which increases fogging pressure in warm and physically demanding environments — the anti-fog coating on the 452AF addresses this directly, maintaining lens clarity through the fogging events that non-vented goggles are most susceptible to. The soft Centurion face seal provides comfort improvement over rigid non-vented goggle designs, contributing to the compliance benefit that comfort drives in sustained goggle use programs for hazardous chemical environments.

3M Centurion 452AF Impact Safety Goggle Clear Anti-Fog — Key Features

• ANSI/ISEA Z87.1 certified — impact and maximum chemical splash rated
• Non-vented sealed design — no ventilation openings for maximum chemical splash barrier
• Soft face seal — comfortable face contact for sustained hazardous chemical environment wear
• Clear anti-fog lens — maintained clarity despite no-airflow sealed design
• Concentrated chemical handling grade — appropriate for the most hazardous splash exposures

Specifications

Non-Vented Sealed Design: Maximum Chemical Barrier Protection

ANSI/ISEA Z87.1 distinguishes between goggle protection levels based on what can and cannot enter the goggle cavity through the frame design and ventilation system. Direct-vent goggles provide dust and impact protection but allow splash entry through vent openings. Indirect-vent goggles provide splash protection (D3) by routing ventilation through baffled channels that block direct droplet entry. Non-vented sealed goggles eliminate ventilation entirely — providing maximum barrier protection against splash, mist, fumes, and fine particulates that can navigate indirect vent channels. For the most hazardous chemical splash environments, the risk reduction benefit of the sealed design outweighs the comfort cost of reduced airflow. The specific chemical hazards that justify non-vented selection include: concentrated inorganic acids (hydrochloric, sulfuric, nitric, hydrofluoric) where even minor splash events create severe injury risk and maximum barrier is appropriate; concentrated caustics where splash causes rapid tissue damage; pressurized chemical systems where splash velocity is higher than typical gravity-driven spills; emergency response operations with unknown chemical identity; and environments where the regulatory or institutional requirement specifies maximum-protection eyewear for the specific chemical class. The Centurion 452AF's soft face seal material reduces the pressure-discomfort trade-off that non-vented goggles impose — the flexible face contact material conforms to the face contour with less rigid-edge pressure than hard-frame non-vented designs, maintaining more of the comfort benefit while preserving the sealed protection geometry. Anti-fog coating compensates for the reduced airflow by chemically treating the lens surface to resist condensation — critical for non-vented goggles because the normal anti-fog mechanism of airflow is unavailable.

Compliance and Certifications

• ANSI/ISEA Z87.1 — Impact and maximum splash rated (non-vented)
• OSHA 29 CFR 1910.133 — Eye and face protection requirements

Real-World Benefits

Non-vented sealed design provides maximum splash barrier for concentrated acid and caustic handling where indirect-vent goggles should not be the only eye protection against the most hazardous splash events. Chemical operators, laboratory chemists, and industrial chemical handlers working with concentrated corrosives at splash-risk exposure levels receive the maximum goggle barrier that eliminates the ventilation entry path that indirect-vent designs maintain — providing the appropriate protection tier for the hazard severity.

Soft Centurion face seal reduces the pressure discomfort of non-vented sealed goggle wear — supporting compliance in sustained use programs where worker comfort affects goggle use duration. Chemical plant operators and laboratory workers required to wear sealed goggles for extended periods during chemical operations maintain compliance more consistently with a soft-seal goggle than with rigid-frame sealed designs that create facial pressure that becomes increasingly uncomfortable over the work task duration.

Applications and Use Cases

• Concentrated acid and corrosive chemical handling — maximum splash protection required — Centurion 452AF for laboratory chemists, chemical process operators, and industrial chemical handlers working with concentrated HCl, H₂SO₄, HNO₃, HF, NaOH, and other highly corrosive chemicals where maximum goggle barrier protection is specified
• Chemical transfer and sampling — pressurized system splash risk — non-vented sealed goggles for chemical plant operators who transfer, sample, and connect chemical systems where pressurized splash at higher velocity than gravity-splash risk levels justifies maximum barrier protection
• Emergency response and chemical spill containment — unknown or high-hazard chemical environments — sealed goggles for safety personnel responding to chemical incidents where chemical identity and concentration may be unknown or hazardous at maximum protection levels

Related Products

For indirect-vent splash goggles with better airflow comfort, see 3M Centurion 454AF Safety Splash Goggle. For economy indirect-vent splash protection, see 3M 91252 Chemical Splash Impact Safety Goggle. For premium panoramic goggles for general use, see 3M GoggleGear 6000 Clear Scotchgard Goggles. Browse the complete Eye Protection collection.

Frequently Asked Questions

When should I specify non-vented goggles instead of indirect-vent for chemical work?

Use non-vented sealed goggles when the chemical hazard assessment identifies concentrated corrosive chemicals with severe injury potential at any splash exposure level (HF, concentrated H₂SO₄, concentrated HCl), when chemical systems are pressurized and splash velocity may exceed gravity-driven splash levels, when the chemical identity or concentration is unknown (emergency response), or when the SDS for specific chemicals recommends sealed goggle protection. Indirect-vent goggles are appropriate for dilute chemical handling, routine laboratory work with non-concentrated chemicals, and industrial cleaning agents where the splash hazard is lower severity and the comfort benefit of ventilation supports compliance. When in doubt, consult your SDS and safety professional for the appropriate eye protection selection for your specific chemical hazard profile.

Will the 452AF fog during physical chemical operations due to no ventilation?

The anti-fog coating on the 452AF is specifically important because sealed goggles have no airflow to reduce condensation. The AF coating provides chemical treatment of the lens surface that resists condensation formation — maintaining visual clarity through the fogging pressure that physical work and warm environments create. AF coating effectiveness depends on condition and age — replace when fogging begins to occur during operations that previously did not cloud the lens. For operations with very high fogging pressure (working in steam environments, highly humid chemical processing), anti-fogging inserts or lens ventilation accessories for the specific goggle model may provide additional fog management beyond the coating alone.

How does the 452AF face seal compare to standard safety goggle materials?

The Centurion series uses a softer, more flexible face seal material than standard rigid injection-molded goggle frames. This provides better face contour conformance and reduced pressure-point contact at the brow, cheekbone, and nasal bridge — the three areas where rigid goggle frames concentrate contact force. Soft face seal construction generally improves comfort during extended wear and provides more consistent sealing across diverse face shapes because the soft material deforms to fill minor face-contour variations that rigid frames cannot accommodate. This is particularly beneficial in non-vented goggles where the sealed design relies entirely on the face seal quality for its protection geometry.

Can the 452AF be used for grinding operations in the same chemical environment?

Yes — the ANSI Z87.1 impact certification covers the high-velocity flying particle impacts of grinding, machining, and fabrication operations. The sealed design also prevents the dust and grit from grinding operations from entering the goggle cavity — an advantage over open-frame safety glasses that allow particles to enter the eye area from the frame perimeter. For combination environments where both chemical splash from cleaning or process fluids and grinding impacts occur in the same workspace, the 452AF's impact and sealed-splash protection covers both hazard types from a single goggle specification.

Is there a face shield option that provides equivalent chemical splash protection to non-vented goggles?

Face shields provide impact and splash protection over a larger face area than goggles but do not create the full face seal of a goggle — chemical splash can enter from the shield edge gaps at the sides, top, and chin. For the highest chemical splash hazard levels, face shields are typically paired with chemical splash goggles rather than replacing them — the goggle provides the sealed eye protection and the face shield provides additional face coverage for chemicals that reach the face perimeter beyond the goggle seal zone. Consult your SDS and chemical hazard assessment to determine whether goggles alone, face shields alone, or a combined goggle-plus-face-shield is appropriate for the specific chemical and exposure level.
