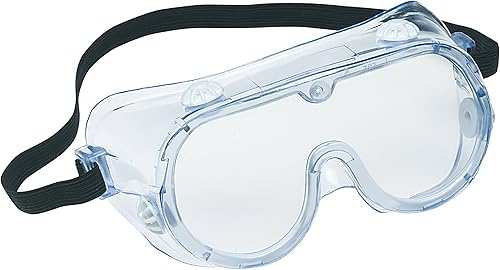

3M 91252 Chemical Splash Impact Safety Goggle Anti-Fog

The 3M Chemical Splash Impact Safety Goggle 91252 provides ANSI/ISEA Z87.1-certified chemical splash and impact eye protection with a clear anti-fog lens and indirect ventilation design — delivering certified enclosed goggle protection for laboratory, maintenance, light industrial, and chemical handling environments where the face-seal splash protection of an indirect-vent goggle is required over the open-frame design of safety glasses, at an economy price point that supports high-turnover or single-use goggle programs in visitor, contractor, and distributed PPE applications. The 91252 uses an indirect ventilation design — hooded or baffled vent openings that allow air circulation to reduce lens fogging and heat buildup while preventing direct liquid splash entry into the goggle cavity. This is the key design distinction between splash-rated (indirect vent or non-vented) and non-splash-rated (direct vent) goggles: direct vent designs allow direct airflow through the vents and cannot prevent splash droplets from entering through the same path, while indirect vent designs route air through baffled chambers that allow gas exchange without providing a line-of-sight path for liquid entry. The result is a goggle rated for both liquid splash protection (ANSI D3) and dust protection (ANSI D4) — appropriate for the range of chemical handling, laboratory, and maintenance operations where both splash from liquids and dust from dry materials are potential eye hazards. The economy construction of the 91252 makes it appropriate for shared-use programs, visitor eye protection, contractor supply, and applications where the per-unit cost of premium goggles is not justified — providing certified protection in a disposable-practical format without sacrificing the ANSI Z87.1 conformance required by site PPE standards. The clear anti-fog lens maintains adequate visual clarity through the moderate fogging events of typical industrial environments — cleaning operations, temperature variation, and physical activity that can cloud non-treated lenses and prompt premature goggle removal.

3M 91252 Chemical Splash Impact Safety Goggle Anti-Fog — Key Features

• ANSI/ISEA Z87.1 certified — impact, splash, and optical quality conformance
• Indirect vent design — chemical splash rated (D3) with airflow for comfort and fog reduction
• Clear anti-fog lens — maintained clarity in chemical and industrial environments
• Economy construction — appropriate for shared-use, visitor, and contractor programs
• Standard goggle form factor — elastic headband, conventional frame for broad compatibility

Specifications

Indirect Ventilation: The Technical Basis for Chemical Splash Rating

ANSI/ISEA Z87.1 assigns splash-related ratings — D3 for liquid splash, D4 for dust — to goggle designs that prevent direct entry of the rated hazard through the goggle perimeter and ventilation openings. Direct-vent goggles have open holes through the frame body that allow direct airflow and cooling, but these same openings provide a path for liquid droplets to enter the goggle cavity during splash events. Indirect-vent designs route ventilation through hooded or baffled channels that require air to change direction to pass through — a path that gases follow easily but that liquid droplets and particles cannot navigate, as they lack the momentum to change direction in the vent channel. The 91252's indirect vent design is the mechanical basis for its D3 splash rating — it provides air circulation to reduce fogging and heat buildup that would otherwise drive premature goggle removal, while maintaining the ventilation geometry that prevents liquid splash entry that direct-vent designs cannot achieve. For chemical handling, laboratory work, and industrial cleaning operations where liquid splash is an identified hazard, indirect-vent goggles provide the appropriate protection geometry: better comfort than completely sealed non-vented goggles, with splash protection that direct-vent designs cannot provide. Non-vented (sealed) goggles provide maximum splash protection for the most hazardous chemical splash exposures, trading off the comfort airflow that indirect-vent designs offer.

Compliance and Certifications

• ANSI/ISEA Z87.1 — D3 liquid splash and D4 dust rated
• OSHA 29 CFR 1910.133 — Eye and face protection requirements

Real-World Benefits

Indirect-vent design provides D3 chemical splash protection with airflow comfort — better for sustained wear than non-vented sealed goggles in environments without the most hazardous splash exposure levels. Laboratory workers, maintenance technicians, and chemical handlers who need splash-rated eye protection in conditions where maximum chemical immersion protection is not required benefit from the 91252's indirect-vent balance of splash protection and ventilation comfort.

Economy price point supports compliant goggle programs in high-turnover, visitor, and contractor contexts where premium goggle cost per unit is unjustified. Safety managers running visitor safety orientation programs, contractor PPE supply, and general-industry compliant goggle distribution can maintain ANSI Z87.1-certified splash protection at a cost that supports broad deployment without the program budget impact of premium goggle pricing.

Applications and Use Cases

• Laboratory chemical handling — splash protection for routine chemical work — 91252 for lab workers handling acids, bases, solvents, and chemical solutions where D3 splash protection is required and economy goggle cost supports lab-wide goggle distribution
• Industrial cleaning and maintenance — chemical splash from cleaning agents — indirect-vent splash goggles for maintenance workers using pressure washers, chemical cleaning solutions, and degreasers in equipment cleaning and facilities maintenance
• Visitor and contractor eye protection — compliant goggle supply — economy ANSI Z87.1 splash goggles for site visitor programs, contractor orientation, and temporary worker PPE that requires certified protection without premium per-unit cost

Related Products

For non-vented sealed goggles with maximum chemical protection, see 3M Centurion 452AF Non-Vented Impact Safety Goggle. For soft face seal indirect-vent goggles, see 3M Centurion 454AF Safety Splash Goggle. For premium wide-view goggles with Scotchgard coating, see 3M GoggleGear 6000 Clear Scotchgard Goggles. Browse the complete Eye Protection collection.

Frequently Asked Questions

What is the difference between indirect-vent and non-vented goggles for chemical splash protection?

Indirect-vent goggles allow some air circulation through baffled vents that prevent direct liquid entry — providing D3 splash protection with the comfort benefit of airflow that reduces fogging and heat. Non-vented (sealed) goggles have no ventilation openings, providing maximum barrier protection against chemical splash, mist, and vapor at the cost of reduced airflow and increased fogging potential. Indirect-vent is appropriate for most splash hazard environments and provides better sustained wear comfort; non-vented is appropriate for the most hazardous splash exposures — concentrated acid handling, chemical immersion risk, high-pressure spray — where maximum barrier protection outweighs the comfort trade-off of no ventilation.

Does the 91252 protect against chemical vapor and fumes as well as splash?

The 91252 provides D3 liquid splash protection from the goggle cavity seal, but does not filter or protect against chemical vapor and fumes. Chemical vapors can pass through the goggle frame-to-face interface and through ventilation openings — goggles do not replace respiratory protection for vapor and gas hazards. For combined eye and respiratory vapor protection, pair the 91252 with appropriate respirator selection for the specific chemical exposure. Consult your SDS (Safety Data Sheet) for the chemicals you handle to identify the required eye, face, and respiratory protection for the specific hazard levels in your operation.

How does the 91252 anti-fog coating compare to premium Scotchgard-coated goggles?

The 91252 uses a standard anti-fog coating appropriate for general industrial use. Premium goggles like the 3M GoggleGear 6000 SGAF models use Scotchgard anti-fog coating — 3M's proprietary hydrophobic treatment that provides longer-lasting anti-fog performance and resistance to cleaning that can degrade standard AF coatings faster. For sustained, all-day wear in environments with consistent fogging pressure, premium Scotchgard coating provides better long-term clarity retention. For visitor programs, shared-use contexts, and applications where goggle replacement is routine, standard AF coating is adequate and the per-unit cost difference favors the economy option.

Can the 91252 be worn over prescription glasses?

The 91252's standard goggle form factor accommodates over-glasses wear for most prescription frame sizes — verify fit with your specific frame by testing before committing to program-wide specification. The key check is whether the prescription frame allows the goggle frame to seal against the face perimeter without gaps that would compromise splash protection. Wider or thicker prescription frames may require a goggle with a larger interior cavity specifically designed for over-glasses (OTG) wear if splash seal quality at the perimeter is important for your specific chemical exposure level.

Is the 91252 suitable for grinding operations alongside chemical splash work?

The 91252's ANSI Z87.1 impact certification and enclosed goggle design provide protection against the flying particle impacts of grinding, drilling, and machining operations. The D3 splash and D4 dust ratings alongside impact certification make it appropriate for combination grinding and chemical splash environments. Verify the specific ANSI impact rating mark — Z87.1 for impact rating, which covers grinding and flying object protection — on the goggle frame, and ensure the goggle remains in good condition without lens damage that could compromise impact resistance. Replace any goggle that has received a high-energy impact regardless of visible damage, as the impact resistance may be compromised after a significant impact event.
