3M 5P71 P95 Pre Filter

3M 5P71 Overview

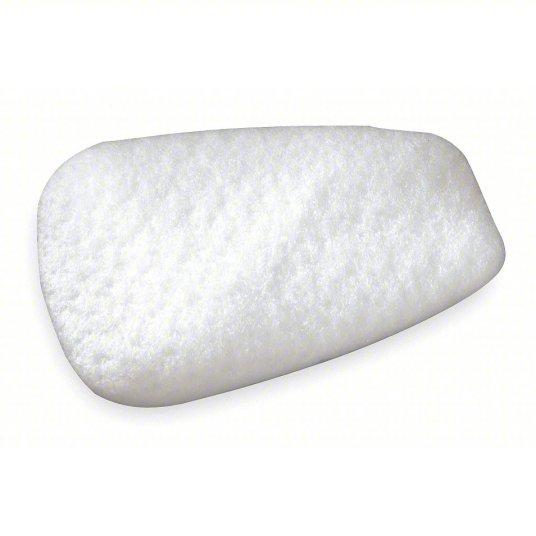

The 3M 5P71 is a NIOSH-approved P95 particulate prefilter that captures at least 95% of oil and non-oil aerosols and is sold as a pair for the 3M bayonet platform. Unlike a cartridge, it does not mount to the respirator on its own — it layers over a 3M 6000-series gas or vapor cartridge and is locked in place by the 3M 501 prefilter retainer. The classic job is spray painting: the cartridge underneath absorbs solvent vapor while the 5P71 traps oil-based paint overspray and mist before it loads the cartridge.

Because it is oil-proof, the 5P71 is the prefilter to reach for whenever the particulate is an oil aerosol rather than dry dust. It is a particulate prefilter only — it adds no gas or vapor protection by itself. To match the right cartridge and prefilter to your exposure, work through the how to choose a respirator cartridge guide and the 3M filter & cartridge guide, or browse the full range in the 3M respirator filters and cartridges collection.

Where the 3M 5P71 Fits in Respirator Selection

Identify your contaminant before buying. The 5P71 is a P95 particulate prefilter meant to be stacked on a cartridge — it is the right pick only when an oil mist sits on top of a gas or vapor hazard, not when you need gas protection alone.

• Oil mist over a vapor hazard (spray painting, oil-based coatings) → an organic-vapor cartridge such as the 3M 6001 with the 5P71 on top.
• Non-oil dust only → the cheaper 3M 5N11 N95 prefilter is sufficient. Compare classes in respirator filter types explained and P100 vs N95.
• Higher-hazard particulate (silica, lead, asbestos) → a sealed P100 such as the 3M 2091, not a P95 prefilter. See organic vapor vs P100.

Who Should Buy the 3M 5P71?

Buy the 5P71 if you run organic-vapor cartridges for spray painting or oil-based coating work and want an oil-proof prefilter that extends cartridge life by catching overspray and mist — and you already have, or will add, the 3M 501 retainer.

Choose a different part if:

• Your particulate is dry, non-oil dust → the cheaper 3M 5N11 N95 prefilter protects adequately for less.
• You want a single-part spray setup without stacking → the 3M 60921 (OV/P100) combines vapor and high-efficiency particulate in one cartridge.
• You need standalone P100 particulate protection → the sealed 3M 2091 mounts directly without a separate cartridge.
• You face both organic vapor and acid gas → the 3M 6003 (OV/AG) cartridge, with the 5P71 on top if oil mist is also present.

What Does the 3M 5P71 Protect Against?

What the 3M 5P71 Does NOT Protect Against

• Organic vapor (on its own)
• Acid gas
• Ammonia
• Formaldehyde
• Silica, lead & asbestos
• Carbon monoxide
• Oxygen deficiency
• IDLH conditions

Safety: The 3M 5P71 is a P95 particulate prefilter only. It does not provide gas or vapor protection by itself and must be installed over an appropriate cartridge using the 3M 501 retainer; no filter adds oxygen. Oxygen-deficient, unknown, and IDLH atmospheres require supplied air, SCBA, or another solution specified by a qualified safety professional. For high-hazard particulate such as silica or lead, step up to a P100 like the 3M 2091.

Best Applications for the 3M 5P71

Spray Painting & Oil-Based Coatings

This is the 5P71's signature job: pair it with an organic-vapor cartridge such as the 3M 6001 so the cartridge stops the solvent vapor while the oil-proof P95 prefilter catches paint overspray before it clogs the sorbent bed. For a single-cartridge alternative that skips the stack, compare the 3M 60921 (OV/P100).

Metalworking-Fluid & Machining Mist

Where machining coolant throws an oil aerosol, the 5P71 captures the mist at P95 efficiency as a prefilter over the matched cartridge. Browse related particulate options across the P100 respirator filters and N95 respirator filters collections to match the class to your exposure.

Extending Cartridge Life on Dusty Vapor Jobs

Adding the 5P71 over a vapor cartridge keeps particulate from loading the cartridge, which can extend its useful service before change-out. If the particulate is dry and non-oil, the lower-cost 3M 5N11 N95 prefilter does the same job for less.

3M 5P71 Pros & Cons

Compatible 3M Respirators

The 3M 5P71 mounts over a 3M bayonet cartridge using the 501 retainer, so it works on every 3M reusable half mask and full facepiece that accepts the standard bayonet system:

The 5P71 does not attach directly to a respirator — it requires a 3M bayonet cartridge and the 3M 501 retainer. It does not fit Honeywell North, Moldex, MSA, GVS, or 3M Secure Click respirators.

3M 5P71 vs Other 3M Filters and Cartridges

3M 5P71 vs 5N11

Both are 3M bayonet prefilters held by the 501 retainer, and the difference is the oil rating. The P95 5P71 is oil-proof, so it handles oil-based paint mist and coolant aerosol; the N95 5N11 is rated for non-oil particulate only and costs less. Buy the 5P71 when oil is in the mist. Buy the 5N11 when the particulate is dry, non-oil dust and you want to spend less.

3M 5P71 vs 60921

This is a parts decision, not a protection-level one. The 5P71 is a prefilter that must be stacked on a separate organic-vapor cartridge with the 501 retainer; the 3M 60921 builds organic-vapor relief and P100 particulate into one cartridge — no stacking, and a higher particulate class. Buy the 5P71 if you already run 6000-series OV cartridges and want to add oil-proof prefiltering. Buy the 60921 for a simpler, single-part spray setup.

3M 5P71 Quick Answers

What is the 3M 5P71?

The 3M 5P71 is a NIOSH-approved P95 particulate prefilter for the 3M bayonet platform, sold as a pair. It captures at least 95% of oil and non-oil aerosols and layers over a gas or vapor cartridge, held in place by the 3M 501 retainer.

Is the 3M 5P71 oil-proof?

Yes. The P95 rating means the 5P71 is oil-proof, so it can be used against oil-based aerosols such as paint overspray and metalworking-fluid mist, not just non-oil dust.

Does the 3M 5P71 work on its own?

No. The 5P71 is a prefilter, not a cartridge. It must be installed over a 3M bayonet cartridge and secured with the 3M 501 retainer; it provides no gas or vapor protection by itself.

Why use the 5P71 for spray painting?

In spray painting, an organic-vapor cartridge stops the solvent vapor while the oil-proof 5P71 traps the oil-based paint overspray, keeping the particulate from clogging the cartridge and extending its service life.

3M 5P71 Specifications

Helpful Buying Guides

• How to Choose a Respirator Cartridge
• 3M Filter & Cartridge Guide
• Respirator Filter Types Explained
• P100 vs N95
• Organic Vapor vs P100

3M 5P71 Frequently Asked Questions

What is the 3M 5P71 used for?

The 5P71 is used to add oil-proof P95 particulate protection over a 3M gas or vapor cartridge — most often for spray painting and oil-based coating work, where it captures paint overspray while the cartridge handles the solvent vapor.

Does the 3M 5P71 need the 501 retainer?

Yes. The 5P71 is held over the cartridge by the 3M 501 prefilter retainer. Without the 501 it cannot be mounted, so buy the retainer alongside the prefilter if you don't already have one.

What does P95 mean on the 3M 5P71?

P95 means the prefilter is oil-proof and captures at least 95% of airborne particulates, including oil aerosols. The "P" rating is what lets it be used against oil-based paint mist, unlike an N-rated prefilter.

Can the 3M 5P71 be used by itself?

No. It is a prefilter, not a standalone cartridge, and provides no gas or vapor protection on its own. It must be installed over an appropriate 3M bayonet cartridge with the 501 retainer.

What is the difference between the 5P71 and the 5N11?

Both are 3M bayonet prefilters secured by the 501 retainer. The 5P71 is P95 and oil-proof; the 5N11 is N95 and rated for non-oil particulate only. Choose the 5P71 when oil mist is present and the 5N11 for dry, non-oil dust.

Is the 3M 5P71 good for spray painting?

Yes — it is the classic prefilter for spray painting. Run it over an organic-vapor cartridge such as the 3M 6001 so the cartridge absorbs solvent vapor and the 5P71 traps the oil-based overspray.

Does the 3M 5P71 protect against silica or lead?

No. For silica, lead, or asbestos you should use a P100 filter such as the 3M 2091, not a P95 prefilter. The 5P71 is intended for oil mists layered on a vapor hazard, not high-hazard particulate.

How many 3M 5P71 prefilters come in a pack?

The 5P71 is sold and used as a pair, one prefilter for each cartridge on a dual-cartridge respirator. Always install matching prefilters on both sides.

Does the 3M 5P71 extend cartridge life?

Yes. By capturing particulate before it reaches the sorbent media, the 5P71 keeps the cartridge from loading with overspray or mist, which can extend the cartridge's useful service before change-out.

What respirators does the 3M 5P71 fit?

It fits any 3M bayonet half mask or full facepiece — the 6000, 6500, and 7500 half masks and the 6000, 7800S, and Ultimate FX FF-400 full facepieces — when mounted over a cartridge with the 501 retainer. It does not fit Honeywell North, Moldex, MSA, GVS, or 3M Secure Click.

Should I buy the 5P71 or the 60921 for painting?

Buy the 5P71 if you already run 6000-series organic-vapor cartridges and want oil-proof prefiltering on top. Buy the 60921 (OV/P100) if you want a single combination cartridge with no stacked prefilter and retainer.

When should I replace the 3M 5P71?

Replace the prefilter when it is damaged, soiled, or wet, when breathing becomes difficult, or according to your employer's respiratory protection program. The cartridge underneath follows its own change-out schedule.

Is the 3M 5P71 reusable?

The prefilter can be used across a work period until it becomes loaded, damaged, or hard to breathe through. Because it captures oil mist, it can load faster in heavy overspray, so inspect it regularly and change it per your program.
