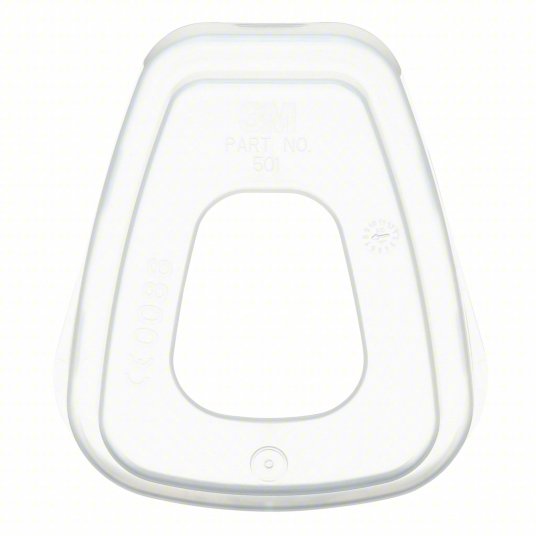

3M 501 Filter Retainer Cap — Holds 5N11 / 5P71 Pad Pre-Filters on Bayonet Cartridges

As an Amazon Associate, WC Safety earns from qualifying purchases. This does not affect the price you pay.

What the 3M 501 Filter Retainer Does

It is a retainer cap — a plastic holder that secures a 3M pad-style pre-filter, the 5N11 (N95) or 5P71 (P95), onto a 3M bayonet gas cartridge or a 5000 Series respirator. The pad lays over the cartridge and the 501 snaps down to hold it. That lets you stack a particulate pre-filter over a gas cartridge — the cartridge handles the gas, the pad handles dust and mist, and the 501 holds them together. It provides no protection on its own; it is the small part that makes the combination possible, and it is the 3M counterpart of the North N750036 retainer.

The single most useful thing to know about the 501 is what does not use it. It is only for the soft pad filters. The hard 2000 Series filters — the 2091 P100, the 2097 and the 2071 P95 — are self-contained and bayonet straight onto the mask; they never take a 501. Buying a 501 for a 2091 is the most common mix-up, and it does nothing. Our cartridge selection guide works through the assembly.

Retainer for Pads, Direct-Mount for Hard Filters

The confusion the 501 causes is worth clearing up plainly, because it drives a lot of wrong orders. 3M's bayonet particulate filters come in two forms. The hard filters — the 2091, 2097 and 2071 — are rigid, self-contained discs that clip straight onto the bayonet; they carry their own mounting and need nothing extra. The pad filters — the 5N11 and 5P71 — are thin, flexible pads with no mounting of their own, so they must be held by a retainer. That retainer is the 501, snapping over the pad on a cartridge or respirator to capture and seal it.

So the rule is simple: if you run pads, you need the 501; if you run hard filters, you do not. A 501 with a 2091 is a part that does nothing, and a 5N11 without a retainer is a pad that cannot attach. The pads exist because they are cheap and let you add a layer of particulate protection over a gas cartridge; the 501 is what turns that pad into a usable filter. For mounting a pad directly on a facepiece without a gas cartridge, 3M's 603 adapter is the alternative route, with the 6N01 kit bundling the parts. Match the retainer to the pad, and see our filter comparison for choosing between pad and hard filters.

Pros & Cons

Specifications

Related Guides

Related Products

Frequently Asked Questions

What does the 3M 501 do?

It is a retainer cap that holds a pad-style pre-filter — the 5N11 (N95) or 5P71 (P95) — in place on top of a 3M bayonet gas cartridge or a 5000 Series respirator. The pad lays over the cartridge and the 501 snaps down to hold it. That lets you add particulate pre-filtering over a gas cartridge, so the cartridge is protected from dust and lasts longer, and you gain particulate protection alongside the gas.

Does the 501 filter anything itself?

No — it is a plastic holder, not a filter. It has no filtration rating of its own; your protection comes from the pad pre-filter and the cartridge it secures. On its own the 501 is an empty cap. You use it as part of an assembly: a 3M facepiece, a gas cartridge for your hazard, a 5N11 or 5P71 pad for particulate, and the 501 holding the pad in place.

Which filters need the 501, and which do not?

The 501 is only for the pad-style pre-filters — the 5N11 and 5P71 — which are thin, floppy pads that cannot attach on their own and need a retainer. The hard 2000 Series filters, such as the 2091 P100, the 2097 and the 2071 P95, are self-contained and bayonet straight onto the facepiece or cartridge; they do not use the 501 at all. So do not buy a 501 for a 2091 — that is the most common mix-up. Retainer for pads, direct-mount for hard filters.

So I should never pair a 501 with a 2091?

Correct. The 2091 is a hard, self-contained P100 filter that clips directly onto the bayonet, so a 501 does nothing for it and does not fit its mounting. The 501 belongs with the pad filters — the 5N11 and 5P71. If you are running hard 2000 Series filters, you never need a 501; if you are running the 5N11 or 5P71 pads, you do. Matching the retainer to the pad, and skipping it for hard filters, is the whole point.

Can I use the 5N11 or 5P71 without a retainer?

No. The 5N11 and 5P71 are pad-style pre-filters — they are not standalone and must be held by a retainer to attach and seal properly. The usual way is the 501 on a cartridge or 5000 Series respirator; 3M also offers the 603 filter adapter to mount these pads on a bayonet facepiece, and the 6N01 kit bundles the parts. Whichever route, a bare pad without its retainer is not a usable filter — confirm the retainer or adapter for your setup.

Which respirators and cartridges does it work with?

The 3M bayonet system: it snaps onto 3M 6000 Series gas cartridges and 5000 Series respirators, and works with the 603 filter adapter. It does not fit the Secure Click HF-800/FF-800 platform or other brands, which use their own retainers — the North equivalent of this part is the N750036. Keep to the 3M bayonet range for a 3M bayonet mask, since NIOSH approval covers the assembly as tested.

Why add a pad pre-filter over a gas cartridge?

Two reasons. First, protection: a gas cartridge does nothing for particulate, so if your work has both a gas and a dust or mist hazard, the 5N11 or 5P71 pad covers the particulate the cartridge cannot. Second, cartridge life: the pad catches particulate before it clogs the cartridge, so the cartridge breathes freely and lasts longer. The 501 is the inexpensive part that makes that stacked, dual-hazard setup possible.

Is the 501 reusable?

Yes — the retainer is a durable part you reuse. You replace the pad pre-filter it holds as that loads up, not the retainer, unless the 501 cracks or stops clipping securely. Inspect it when you change pads: a cracked cap or one that no longer seats can let a pad shift or leak, so replace the retainer if it is damaged. Most changes are to the cheap pad, not the 501.

What is the difference between the 5N11 and 5P71 pads it holds?

Both are pad pre-filters held by the 501; the class differs. The 5N11 is N95 — 95% of non-oil particulate, not oil-resistant. The 5P71 is P95 — 95% and oil-resistant, so it tolerates oil mists the 5N11 cannot. Choose the pad by your particulate: 5N11 for non-oil dust, 5P71 where oil is present. The 501 holds either one the same way.

How do I assemble it correctly?

Fit the gas cartridge to the facepiece bayonet, lay the 5N11 or 5P71 pad flat over the cartridge inlet, then press the 501 retainer over the pad until it snaps into place. Check that the pad is flat and fully captured and the cap is seated before use — a pad that is rucked or a cap that is not clipped can let unfiltered particulate bypass. Do the same on both cartridges of a twin-cartridge mask.

When should I replace the 501?

Replace it if the plastic cracks, if it no longer clips firmly, or if it is distorted so the pad does not sit flat and sealed. The 501 is reusable and long-lived, so most changes are to the pad it holds — but a damaged retainer can compromise the pad's seat, so inspect it at every pad change and swap it out if it is not holding securely. It is inexpensive enough that there is no reason to run a cracked one.

Does the assembly still need a fit test?

Yes. Adding a pad and 501 does not change that a tight-fitting respirator needs a fit test on the specific facepiece, before first use and annually, plus a user seal check each time you don it. The retainer and pad add particulate protection; the seal is still what makes any of it count, so a clean-shaven seal along the facepiece is required. The 501 is a component within a respirator program, not a shortcut around it.
