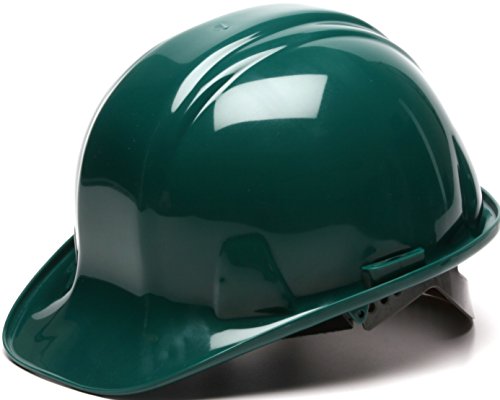

Pyramex SL Series Hard Hat — 4-Point Snap Lock, HDPE Shell
The Pyramex SL Series (HP14010–HP14060) is an entry-level, lightweight hard hat built on a high-density polyethylene (HDPE) shell with a 4-point snap lock suspension. HDPE is the traditional hard hat shell material — proven in construction safety equipment for decades, rated by ANSI Z89.1, and substantially lighter than polycarbonate or ABS alternatives. The SL Series is tested and marked for reverse donning, making it suitable for workers who need to orient the helmet backward for tasks where the brim obstructs overhead work or vision. Browse all options in our hard hats collection.
Vendor: Pyramex | SKUs: HP14010 (White) · HP14020 (Red) · HP14030 (Yellow) · HP14035 (Green) · HP14040 (Orange) · HP14060 (Blue)
Buy on Amazon: Pyramex SL Series Hard Hat ↗
Specifications
| Standard | ANSI/ISEA Z89.1 — Type 1 (confirm class on shell label) |
| Shell material | HDPE (High-Density Polyethylene) |
| Suspension | 4-point snap lock — pin/slot attachment, no-tool removal |
| Brim style | Cap style — front brim only |
| Reverse donning | Tested and marked — ANSI Z89.1 compliant in reverse orientation |
| Profile | Low profile — lower center of gravity |
| Weight | Ultra-light — HDPE is lighter than ABS/PC alternatives |
Key Features
HDPE Shell: High-density polyethylene is the traditional material for hard hat shells — it has been used in ANSI-rated helmets for over 50 years. HDPE is UV-resistant, chemical-resistant, and lighter than ABS or ABS/PC composites. It does not absorb moisture. The trade-off versus ABS/PC is slightly lower impact energy absorption at elevated temperatures — for high-heat environments, consider the ABS shell in the Pyramex Ridgeline Cap Style or the XR7 with ABS/PC.
4-Point Snap Lock Suspension: The snap lock system uses a pin-and-slot mechanism that allows the suspension to detach from the shell for replacement or cleaning without tools. 4-point designs are simpler and lighter than 6-point ratchet systems — appropriate when fit precision is less critical than weight or cost. For ratchet adjustment that sizes without removal, see the 6-point systems in the Ridgeline Cap Style or Ridgeline XR7.
Reverse Donning: The shell is tested and marked for reverse orientation per ANSI Z89.1. Workers can wear the SL Series brim-backward when the brim obstructs a task — welders, concrete workers, and ironworkers commonly use this orientation to allow face shields and goggles to fit correctly. The ANSI rating applies in both forward and reverse orientation.
Shell Material Comparison: HDPE vs ABS vs ABS/PC
| Property | HDPE (SL Series) | ABS (Cap Style) | ABS/PC (XR7) |
|---|---|---|---|
| Weight | Lightest | Medium | Medium |
| Heat resistance | Good | Good | Superior |
| Impact strength | ANSI compliant | ANSI compliant | ANSI + EN 397 |
| Cost | Lowest | Mid | Highest |
Frequently Asked Questions
Yes. HDPE has been used in ANSI Z89.1-rated hard hat shells since hard hat standards were first established. It meets ANSI impact, penetration, and dielectric test requirements. It is lighter than ABS and resistant to most common chemicals found on construction sites. The primary reason ABS/PC composites have gained popularity is superior performance at elevated temperatures and higher impact energy absorption — but for standard construction and general industry applications, HDPE remains fully compliant and cost-effective.
ANSI Z89.1 allows hard hats to be worn in reverse orientation (brim toward the back) only if the manufacturer specifically tests the helmet in reverse and marks it to indicate compliance. Wearing a non-marked helmet in reverse invalidates the ANSI rating. The SL Series is tested and marked — meaning workers can legally wear it brim-backward and maintain OSHA compliance. This is distinct from adjusting the suspension to reverse orientation (which some helmets allow for reverse suspension fit while brim faces forward).
Snap lock suspension uses a pin-and-slot mechanism that snaps into fixed size positions — it's lighter and simpler, but requires partial disassembly to adjust size. Ratchet suspension uses a continuous adjustment knob for precise sizing without tool use or helmet removal. Ratchet is preferred when workers frequently switch helmets or need one-handed adjustment; snap lock is preferred when cost and weight are priorities and size rarely changes. Compare to the 6-point ratchet in the Pyramex Ridgeline Cap Style.
OSHA 29 CFR 1910.135 requires head protection to meet ANSI Z89.1. The SL Series meets ANSI Z89.1 — confirm the specific class (E or G) on the shell interior marking to ensure it matches your application's electrical hazard level. Conduct a job hazard analysis per 29 CFR 1910.132 before selecting PPE.
Replace the shell every 2–5 years from first use, and the suspension annually or when worn. HDPE is UV-resistant, but prolonged outdoor exposure still degrades the material over time — inspect for surface chalking, brittleness, or discoloration quarterly on helmets stored outdoors. Replace immediately after any significant impact.
Avoid solvent-based paints — they attack HDPE and can degrade the shell's structural integrity, voiding the ANSI rating. Water-based paints are generally safer but should be confirmed with Pyramex before application. Pressure-sensitive adhesive stickers are typically acceptable on the shell exterior, provided they do not cover inspection markings or ventilation openings and are not removed in a way that damages the shell.
The 4-point snap lock suspension adjusts to standard head sizes from approximately 6.5 to 8 (20–25 inches circumference) in discrete snap positions. For workers at the extremes of this range or needing a more precise fit, the ratchet suspension in the Ridgeline Cap Style may provide better comfort.
The SL Series has standard accessory slots compatible with most face shield bracket attachments and hard-hat-mount earmuffs. Verify specific accessory compatibility with Pyramex — third-party accessories designed for a different mount standard may not secure properly and should not be assumed compatible without testing.
