Forensics 4 Gas Wall-Mount Monitor review: continuous area protection

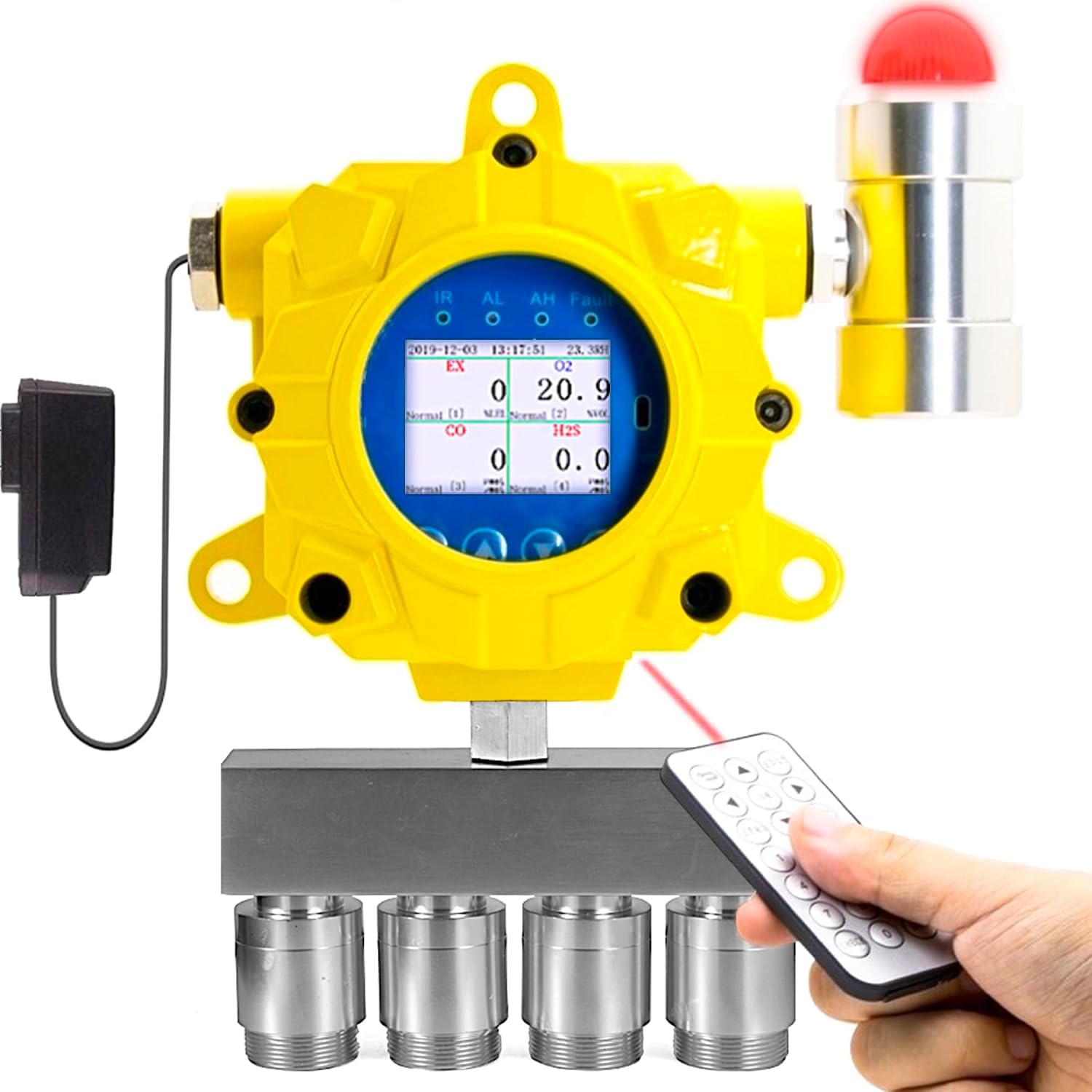

The Forensics 4 Gas Wall-Mount Monitor is a fixed, always-on instrument that continuously watches CO, H2S, O2 and EX (LEL) in a room or process area, with a relay output to drive external alarms or ventilation. It is part of our Fixed Gas Detection Systems range.

Why this fixed monitor scores where it does

• Continuous, always-on monitoring of CO, H2S, O2 and EX (LEL)
• Relay output to drive alarms, fans or shutdowns
• USA NIST-traceable calibration
• Industrial enclosure for permanent installation
• Adjustable sound and light alarms
• Protects a space rather than a single worker

Fixed monitoring answers a different question from anything you wear

A personal monitor answers “is the air where this worker is standing safe right now?” A fixed four-gas transmitter answers “has this room developed a problem?” — and it can answer that at three in the morning with the building empty, before anybody opens the door.

That is the case for fixed detection in a nutshell. Plant rooms, pump houses, compressor rooms, digester galleries and process bays can accumulate a hazardous atmosphere between visits, and the worst outcome in all of them is a worker walking into a space that went bad hours ago. A wall-mounted monitor with local alarms is what turns that door into a decision point rather than a gamble.

It does not replace what people wear. Workers still need personal monitors in the breathing zone, because a fixed sensor reads one point in a room and a person moves through many. And it does not clear a confined space: pre-entry testing under 29 CFR 1910.146 has to sample the space from outside, which needs a portable sample-draw instrument such as the Forensics 4 Gas Monitor with Pump.

The hard part: four gases, four densities, one mounting height

Here is the problem nobody warns first-time buyers about. A four-gas transmitter is a single box on a single wall at a single height — but the four gases it watches do not behave the same way in a room.

• Hydrogen sulfide is heavier than air and collects low: sumps, pits, floor level, the bottom of a stairwell.
• Methane and most light combustibles collect high, under the ceiling. Heavier hydrocarbons such as propane do the opposite and pool at floor level.
• Carbon monoxide is close to air in density and mixes, so it belongs in the breathing zone.
• Oxygen deficiency can form as a layer anywhere, depending on what is displacing it.

No single height is optimal for all four. Which is why fixed-system design is a real engineering task rather than a matter of picking a wall: you site the unit for the gas that is most likely and most dangerous in that room, you account for where the sources are and how the ventilation moves air, and in a large or awkward space you accept that one transmitter is not enough. A long gallery with one monitor at one end has a blind half, and a monitor mounted in a fan discharge reads diluted air and under-reports the room it is supposed to protect.

If the dominant risk is a single gas, a single-gas fixed unit sited correctly will often protect better than a four-gas unit sited as a compromise.

The relay output is what makes it a control, not just an alarm

The feature that separates a fixed transmitter from an expensive noise-maker is the relay output. Rather than only sounding locally, it can switch something: start an exhaust fan, energise a horn and strobe outside the door, signal a building management system, or in some designs initiate an equipment shutdown.

That capability changes what the monitor is for. Ventilation can run on demand rather than continuously, which is how enclosed plant spaces are economically kept safe. A remote beacon can warn people before they open the door rather than after they are inside. And a signal to a BMS means the event is recorded and escalated even if nobody is on site.

Two consequences for budgeting. First, this is a system purchase, not a device purchase — count wiring, the fan or beacon it drives, and commissioning. Second, in a classified hazardous location the wiring method itself is regulated, and that has to match the area classification rather than being decided on site. Where the space is a compressor room or a fuel-gas gallery, involve whoever owns the electrical classification before you buy.

Commissioning: an installed monitor is not yet a working one

Fixed instruments fail silently. A wearable that stops working gets noticed the next time somebody bumps it; a wall-mounted unit can sit showing a calm green display for a year while its cells are dead, because a sensor reading zero and a sensor reading nothing look identical from across the room.

So commissioning is not paperwork. Prove three things before you call the installation complete: that each channel responds to test gas at the sensor, in place, not on a bench; that the relay actually starts the fan or beacon it is wired to; and that the setpoints are the ones the design called for rather than the factory defaults.

Then diarise the calibration interval and the sensor replacement window at installation rather than discovering them at an inspection. Electrochemical cells drift and expire, and the environment a plant-room sensor lives in — heat, humidity, dust, process residue — is harder on them than an office would be. The NIST-traceable calibration this unit ships with is a statement about the day it left the factory, not a standing guarantee.

Fixed four-gas, transportable area monitor, or wearables?

Three formats solve overlapping problems and the choice is usually decided by how permanent the hazard is.

Fixed transmitter — the hazard lives in a specific room permanently. Compressor rooms, pump houses, digester galleries, battery rooms, process bays. It is wired, powered and always watching, and it can drive ventilation. This is that product.

Transportable area monitor — the hazard is real but the location changes. A turnaround, a hot-work permit area, a temporary excavation, a job that lasts three weeks. Battery powered, moved between sites, no wiring.

Personal monitors — always, in addition, for anyone who works in the space. Neither of the other two protects a specific worker, and neither travels with them into the corner of the room the transmitter cannot see. Start at fixed gas detection systems for the permanent tier and personal gas detectors for the worn tier.

VIEW FORENSICS 4 GAS WALL-MOUNT MONITOR →CHECK PRICE ON AMAZON →

Specifications

Strengths and installation realities

Fixed multi-gas options compared

For workers, a portable Forensics 4 Gas Meter or wearable monitor is the counterpart; for fixed combustible-only coverage, see the EX/LEL wall-mount. Browse Fixed Gas Detection Systems and Area Gas Monitors, and the best 4-gas guide for portable picks.

Fixed vs portable four-gas on Amazon →Forensics 4 Gas Wall-MountForensics 4 Gas + Pump (pre-entry)BW GasAlertMicroClip XL (worn)

The rooms this belongs in

Buy it to permanently protect a plant room, pump house or process bay where a hazard can build continuously and you want relay-driven alarms or ventilation. Skip it if you need a worn personal monitor (use a personal monitor) or portable pre-entry testing (a pump model). For portable picks, see our best 4-gas monitor guide and 4-gas vs single-gas guide.

What installers and plant teams report

The Forensics 4 Gas Wall-Mount Monitor is a newer listing with limited public review history, so our assessment leans on the manufacturer’s specifications, certifications and brand track record. Forensics Detectors is a US brand known for NIST-calibrated instruments; buyers choose the wall-mount model to give a room or process area permanent four-gas coverage with relay-driven response.

Enclosure, sensors and terminals

Forensics 4 Gas Wall-Mount Monitor in depth

The Forensics 4 Gas Wall-Mount Monitor is a fixed, always-on instrument that continuously watches CO, H2S, O2 and EX (LEL) combustibles in a room or process area. A relay output lets it drive external alarms, fans or shutdowns, and it ships USA NIST-traceable in an industrial enclosure. Unlike a personal monitor, it protects a space rather than a worker — the right tool for plant rooms, pump houses and process bays where a hazard can build continuously.

Explore the gas-detector range

• All gas detectors — the full hub, or shop by gas type
• Portable and Personal & Wearable monitors
• Fixed gas detection systems and gas leak detectors
• Buyer’s guides: best 4-gas monitor, best personal gas detector and best gas leak detector

Frequently asked questions

General questions about ratings, OSHA limits and fit are answered in the best 4-gas guide guide.

What follows are the questions buyers actually ask before committing to this class of instrument.

What does a fixed gas monitor do that a personal monitor cannot?

It watches a room continuously whether or not anyone is present, including overnight with the building empty, and it can act - driving a fan or a beacon before anyone opens the door. A personal monitor answers whether the air around one worker is safe right now; a fixed one answers whether the room has developed a problem.

Where should a fixed four-gas monitor be mounted?

There is no single right height, and that is the hard part of the purchase. Hydrogen sulfide is heavier than air and collects low; methane collects high while propane pools low; carbon monoxide mixes and belongs in the breathing zone. Site it for the gas that is most likely and most dangerous in that specific room, and accept that a large space needs more than one unit.

What is the relay output on a fixed gas monitor used for?

Switching something rather than only sounding: starting an exhaust fan, energising a horn and strobe outside the door, signalling a building management system, or in some designs initiating an equipment shutdown. That is what makes the monitor a control input rather than just an alarm.

Does a fixed monitor mean workers no longer need personal monitors?

No. A fixed sensor reads one point in a room; a worker moves through many, including the corner the transmitter cannot see. The two are complementary, and any site with a fixed monitor and people working in the space needs both.

Can a fixed wall-mount monitor be used to clear a confined space for entry?

No. Pre-entry testing under OSHA 29 CFR 1910.146 has to sample the space from outside before anyone goes in, which needs a portable sample-draw instrument with a pump and probe. A fixed unit provides area coverage, not clearance.

What has to be proven before a fixed gas monitor counts as commissioned?

Three things: that each channel responds to test gas at the sensor in place rather than on a bench, that the relay actually starts the device it is wired to, and that the setpoints are the ones the design called for rather than factory defaults. Fixed instruments fail silently, so an installed-and-never-proven monitor is a compliance artefact rather than a safety control.

Buyer questions about the Forensics wall-mount monitor

Is the Forensics 4 Gas Wall-Mount Monitor worth it?

To protect a room or process area continuously, yes — it watches four gases always-on and can drive alarms or ventilation through its relay output.

What gases does the Forensics wall-mount monitor watch?

CO, H2S, O2 and EX (LEL) combustibles, continuously at a fixed location.

Is the Forensics wall-mount monitor portable?

No — it is a fixed wall-mount unit for permanent installation; for portable coverage use a handheld monitor.

Does a fixed gas monitor need wiring and mains power?

Yes — it is a fixed installation requiring mains power; plan wiring to match the area classification.

Does a fixed monitor replace personal gas monitors?

No — it protects a space, not a worker; workers still need a personal monitor in the breathing zone.

Does the Forensics wall-mount monitor ship calibrated?

It ships USA NIST-traceable; verify and calibrate on the manufacturer's schedule.

Where are fixed four-gas monitors typically installed?

Plant rooms, pump houses, compressor rooms and process bays where a hazardous atmosphere can build.

Can a fixed monitor cover a confined space for entry?

It provides area coverage; pre-entry testing of a sealed space still needs a portable pump monitor.

Fixed wall-mount or transportable area monitor - which do you need?

It is permanently wall-mounted; transportable area monitors can be moved between sites. See our area range.
