Hard Hat Programs Have a Protection Gap at 97–100 dBA — The H9P3E Is Built for It

Most industrial facilities run hearing protection programs built around two reference points: NRR 21 for moderate noise and NRR 27 for heavy industrial environments. What gets underspecified is the middle — environments where 8-hour TWA exposures land in the 97–100 dBA range, above what NRR 21 can reliably cover, yet below the primary design range of NRR 27. The 3M PELTOR Optime 98 H9P3E closes that gap, delivering NRR 25 passive protection in a hard hat–mounted cap-mount configuration built specifically for combined hard hat and hearing protection programs.

3M PELTOR Optime 98 H9P3E Hard Hat Earmuffs NRR 25 Review (2026)

The 3M PELTOR Optime 98 H9P3E (SKU: H9P3E, $30.10) is the cap-mount variant of the PELTOR Optime 98 line — a purpose-built hard hat–integrated earmuff rated NRR 25 under ANSI S3.19. It attaches to compatible hard hats via P3E brim slots, keeping NRR 25 passive hearing protection at the hard hat for on-demand deployment in noise zones without requiring workers to carry separate over-the-head earmuffs.

The Optime 98 sits between two well-known series in the PELTOR lineup: the Optime 95 (NRR 21, 7 dB OSHA-calculated attenuation) and the Optime 101 (NRR 27, 10 dB OSHA-calculated attenuation). Under OSHA 29 CFR 1910.95, the de-rating formula applied by safety programs — (NRR − 7) ÷ 2 — yields 9 dB effective attenuation for NRR 25 earmuffs, making the H9P3E the right specification for mid-range noise environments that exceed what Optime 95 covers but don't require the full attenuation of NRR 27.

This review covers verified specs from the WC Safety product page and 3M PELTOR product documentation. No attenuation claims beyond the labeled NRR 25 are made. All OSHA compliance calculations use the standard (NRR − 7) ÷ 2 de-rating formula per OSHA 29 CFR 1910.95 Appendix B.

Who the H9P3E Is For

The H9P3E is purpose-built for workers in combined hard hat and hearing protection programs where measured 8-hour TWA noise exposures fall in the 97–100 dBA range. Industrial environments that fit this profile include medium-duty press lines, air-powered impact tooling in enclosures, processing equipment at elevated load cycles, and grinding operations in partially enclosed bays.

It is the right specification for safety managers who run precision NRR matching — assigning the minimum adequate NRR by zone rather than defaulting to the highest available NRR across all areas. Workers in these programs benefit from the fold-up cap-mount design: protection is integrated with the hard hat, reducing the compliance burden of remembering separate PPE pieces and keeping NRR 25 available instantly at noise zone entry.

The H9P3E is not the right choice for programs without hard hat requirements, environments above 100 dBA TWA, or workers who need electronic communication capability integrated into their hearing protection. For broader guidance on hearing protection program design, see the OSHA Hearing Conservation Program Guide.

Where the H9P3E Performs Well

Fills the NRR 21–NRR 27 Compliance Gap

Under OSHA 29 CFR 1910.95, the de-rated attenuation for NRR 25 earmuffs is (25 − 7) ÷ 2 = 9 dB. The Optime 95 at NRR 21 yields 7 dB; the Optime 101 at NRR 27 yields 10 dB. For environments where the 8-hour TWA is in the 97–100 dBA range, 7 dB attenuation may be insufficient to achieve the OSHA PEL of 90 dBA (or the NIOSH REL of 85 dBA), while 10 dB over-attenuates and unnecessarily reduces speech intelligibility. The H9P3E's NRR 25 provides exactly the 9 dB increment required for this exposure band — eliminating the gap between the two adjacent Optime models without over-specifying. For a full explanation of NRR selection methodology, see the NRR Hearing Protection Guide.

Hard Hat Integration via P3E Brim Slots

The P3E cap-mount attachment clips the H9P3E's arm brackets directly into the brim slots present on most 3M hard hats designed for cap-mount accessories. Once installed, the earmuff cups fold up against the sides of the hard hat when outside noise zones and fold down to the hearing position upon noise zone entry. This keeps NRR 25 protection accessible at the hard hat without requiring workers to retrieve, carry, or locate separate earmuffs — a meaningful compliance advantage in environments where workers move between noise and non-noise zones frequently throughout a shift. Browse compatible hard hat PPE in the PPE collection.

Passive Design — No Batteries, No Electronics Failure

The H9P3E is a fully passive earmuff. Attenuation is provided by the physical cup construction and cushion seal — no batteries, no electronics, no firmware. In industrial environments where electronic PPE may be inappropriate (arc flash zones, certain chemical environments), battery charging is impractical, or maintenance resources are limited, the passive design eliminates failure modes and maintenance overhead. Cushion replacement is the only ongoing maintenance task.

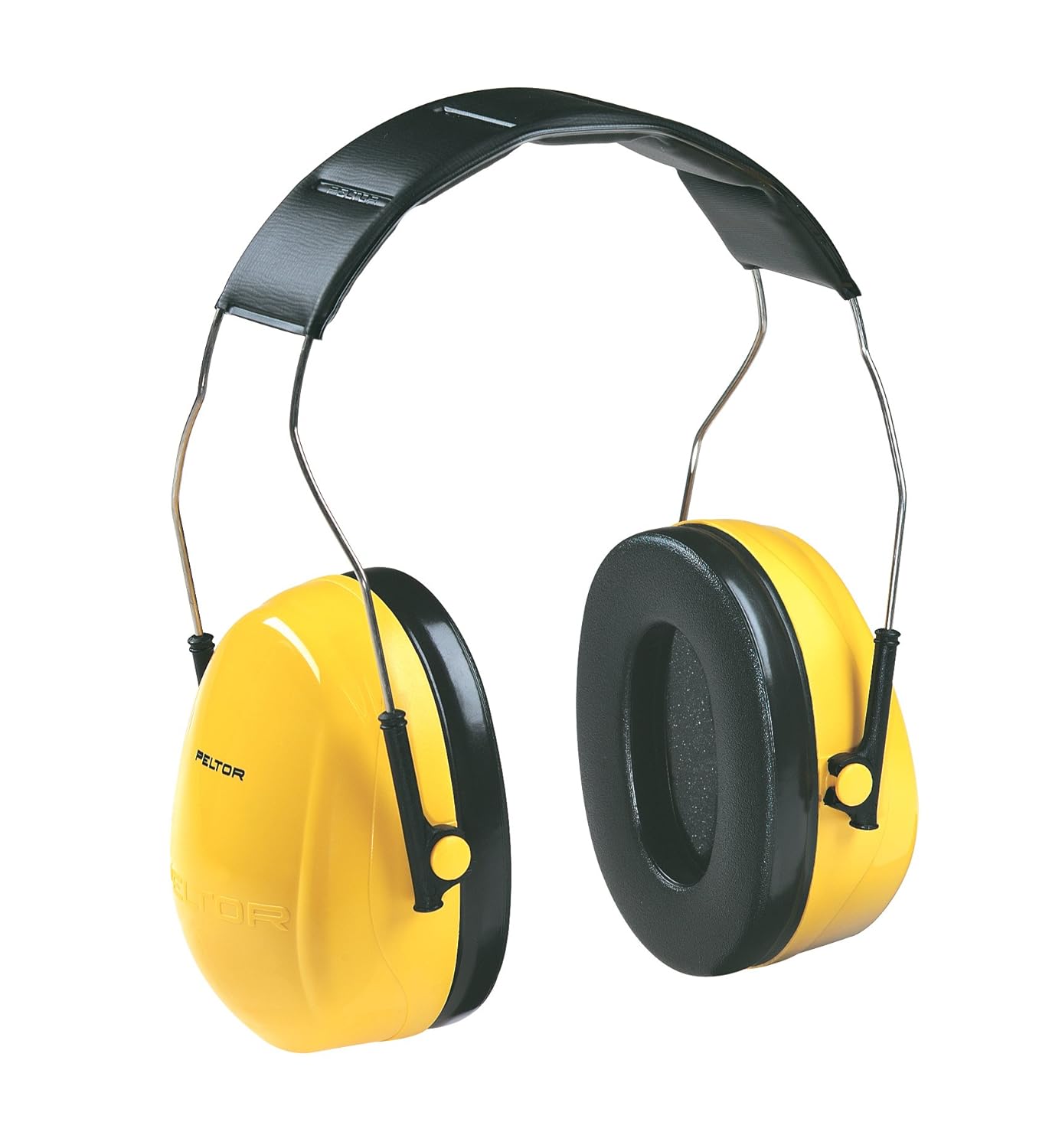

Same Cup Construction as H9A Over-the-Head

The H9P3E uses the same Optime 98 passive cup assembly as the over-the-head H9A variant. Both models carry NRR 25 under ANSI S3.19. Workers in programs with both hard hat areas and non-hard-hat areas can standardize on Optime 98 cup performance across both mount configurations — simplifying training and ensuring consistent NRR expectations across the workforce regardless of which variant a worker is assigned.

Fold-Up Stow — Practical in Multi-Zone Facilities

When cups are stowed in the up position on the hard hat, workers exiting noise zones are not required to remove, carry, or store the earmuffs separately. This practical convenience matters in facilities where workers cross noise zone boundaries multiple times per shift — reducing the temptation to leave hearing protection at a workstation and enter a new noise zone unprotected. The fold-up design directly supports compliance in multi-zone environments.

Where the H9P3E Falls Short

Hard Hat Required — Not a Standalone Earmuff

The H9P3E cannot be used independently of a compatible hard hat. The P3E brim slot attachment is the only mounting mechanism; there is no over-the-head headband or behind-the-head band option for this SKU. Programs that include any work areas where hard hats are not worn must issue a separate over-the-head variant (H9A) or a different earmuff entirely for those zones. Workers who lose or damage their hard hat mid-shift lose access to their hearing protection until the hard hat is replaced.

Cap-Mount Geometry Reduces Maximum Seal Force

Over-the-head headbands apply cup-seating force from directly above, converting headband spring tension efficiently into cup-to-head pressure from the optimal angle. Cap-mount brackets apply force from the side — the mechanical geometry is less efficient at converting bracket spring tension into cup-seal pressure. While the H9P3E is rated NRR 25 under ANSI S3.19 test conditions, workers with head shapes that are more challenging to seal consistently may achieve more reliable NRR performance with the over-the-head H9A. This is a geometric limitation of all cap-mount earmuffs, not specific to 3M.

Single NRR — Wrong Specification Above 100 dBA TWA

NRR 25 provides 9 dB OSHA-calculated attenuation. For environments where the 8-hour TWA exceeds 100 dBA, 9 dB may be insufficient to achieve the OSHA PEL of 90 dBA. At TWA exposures of 102 dBA, for example, 9 dB attenuation leaves residual exposure at 93 dBA — above the 90 dBA PEL. Programs with higher-exposure zones should specify the Optime 101 (NRR 27, H7P3E cap-mount, $32.50) or dual-protection (earmuff over earplug). Verify exposure levels with a dosimeter before specifying NRR 25 in any zone.

No Electronic Communication or Level-Dependent Function

The H9P3E is a passive earmuff — it provides uniform attenuation across all input levels and has no capability for electronic communication, Bluetooth, radio integration, or level-dependent (sound restoration) hearing. Programs where workers need two-way communication, machine alarm awareness, or supervision signals in noise zones must either use a different earmuff platform with integrated communication or accept the communication limitation of passive attenuation. The H9P3E is not a communication-capable product.

Cap-Mount Earmuffs: H9P3E vs. Alternatives

Optime 98 Series: Which Variant to Choose

Compatible Accessories and Replacement Parts

The H9P3E uses standard PELTOR replacement hygiene kits — the same cushion and foam insert replacements used across compatible PELTOR cap-mount earmuffs. Replacement cushions maintain the cup-to-head acoustic seal; degraded cushions reduce effective attenuation below the rated NRR 25. 3M recommends inspecting cushions periodically for cracks, hardening, or deformation and replacing when seal quality is compromised.

Compatible hard hats must have P3E brim slots — the standard PELTOR attachment point used across 3M hard hat platforms. Verify your hard hat model accepts P3E slot accessories before ordering the H9P3E. If your program uses hard hats without P3E slots, the over-the-head H9A is the correct Optime 98 variant.

For additional hearing protection options compatible with hard hat programs, see the full Hearing Protection collection at WC Safety, or explore the PPE collection for multi-hazard hard hat program components.

NRR, OSHA 29 CFR 1910.95, and ANSI S3.19 — What the Numbers Mean

The Noise Reduction Rating (NRR) is the single attenuation number on every hearing protector sold in the United States. It is measured in a laboratory under ANSI S3.19 test conditions using human subjects. The NRR number represents the statistical midpoint of attenuation data collected under controlled, optimally fitted test conditions — not the attenuation a typical industrial worker will achieve during a shift.

OSHA's practical guidance under 29 CFR 1910.95 Appendix B recommends de-rating the NRR by applying the formula (NRR − 7) ÷ 2 when the hearing protector is used in an A-weighted noise environment (the standard for industrial noise monitoring). For the H9P3E at NRR 25: (25 − 7) ÷ 2 = 9 dB effective attenuation. This number is what safety managers should use when determining whether a specific earmuff achieves compliance at a measured TWA exposure level.

For an 8-hour TWA of 99 dBA: 99 − 9 = 90 dBA residual exposure, exactly at the OSHA PEL. For TWA of 97 dBA: 97 − 9 = 88 dBA — within OSHA compliance and approaching the NIOSH REL of 85 dBA. For TWA of 102 dBA: 102 − 9 = 93 dBA — above the OSHA PEL, requiring a higher-NRR protector or dual protection. Measure before specifying.

For a complete explanation of how to use NRR in a hearing conservation program, see the NRR Hearing Protection Guide and the OSHA Hearing Conservation Program Guide. For a broader look at industrial hearing protection options, see Best Hearing Protection for Industrial Workers and Best Earplugs for Work.

Total Cost of Ownership

The H9P3E is priced at $30.10 per unit from WC Safety. Primary ongoing cost is cushion replacement. Cushion frequency depends on use intensity, environmental exposure (sweat, dust, chemical vapors), and how well workers maintain the equipment — typical industrial programs replace cushions every 6–12 months per the manufacturer's maintenance guidance.

Compared to annual earplug spend in high-turnover programs, a single $30.10 H9P3E amortized over 2–3 years of cushion-maintained service represents competitive TCO — particularly in programs where hard hat integration reduces the per-incident cost of lost or misplaced hearing protection. Workers who lose a standalone earmuff must be issued a replacement; workers whose H9P3E is attached to their hard hat do not lose the earmuff independently of the hard hat.

For programs evaluating earplug vs. earmuff TCO in detail, see the Reusable vs. Disposable Earplugs guide, which covers program-level cost comparison methodology applicable to earmuff programs as well. For earplug options in the same NRR tier, see the Ear Plugs collection.

Final Verdict

The 3M PELTOR Optime 98 H9P3E is a precise tool for a specific problem: NRR 25 passive hearing protection in hard hat programs with mid-range industrial noise. It is correctly specified for 97–100 dBA TWA environments where NRR 21 is insufficient and NRR 27 over-attenuates. The P3E cap-mount design integrates protection with the hard hat, reducing compliance friction in multi-zone facilities. Passive construction means zero battery maintenance and long service life with periodic cushion replacement.

Specify it correctly — verify your TWA measurements before selecting NRR 25 — and the H9P3E is a solid mid-tier choice for hard hat programs. At $30.10, it is the right price point for a purpose-built industrial cap-mount earmuff that fills a real compliance gap in hearing conservation programs. For the full range of hearing protection options across NRR levels, see the Hearing Protection collection and the Best Hearing Protection for Industrial Workers guide.

Frequently Asked Questions

What does NRR 25 mean for the H9P3E?

NRR 25 is the Noise Reduction Rating assigned to the H9P3E under ANSI S3.19. Under the OSHA 29 CFR 1910.95 de-rating formula — (NRR − 7) ÷ 2 — NRR 25 yields 9 dB effective attenuation in A-weighted industrial noise environments. That means the H9P3E reduces an 8-hour TWA exposure by 9 dB when worn correctly and consistently. See the NRR Hearing Protection Guide for full methodology.

Does NRR 25 achieve OSHA compliance for my environment?

It depends on your measured TWA. Apply the OSHA formula: (25 − 7) ÷ 2 = 9 dB. Subtract 9 dB from your measured 8-hour TWA. If the result is at or below 90 dBA (the OSHA PEL), the H9P3E achieves compliance. For TWAs up to 99 dBA, the H9P3E achieves the OSHA PEL. For TWAs above 99 dBA, the residual exposure exceeds 90 dBA and a higher-NRR protector is needed. For NIOSH REL compliance (85 dBA), the H9P3E achieves compliance for TWAs up to 94 dBA.

What hard hats are compatible with the H9P3E?

The H9P3E attaches via P3E brim slots — the standard 3M/PELTOR cap-mount attachment point. Compatible hard hats include most 3M hard hat models equipped with P3E slot provisions. Verify your hard hat's compatibility with P3E accessories before ordering. Hard hats without P3E slots cannot accept the H9P3E.

H9P3E vs. H9A: which should I choose?

Both the H9P3E (cap-mount, $30.10) and the H9A (over-the-head, $37.29) carry NRR 25 with the same Optime 98 passive cup construction. Choose the H9P3E if your workers wear P3E-compatible hard hats and you want hearing protection integrated with the hard hat. Choose the H9A if no hard hat is worn, or if you need the higher cup-seal efficiency of the over-the-head headband geometry.

Why not just use Optime 101 NRR 27 instead?

Optime 101 (NRR 27, 10 dB OSHA-calculated attenuation) provides 1 dB more effective attenuation than the H9P3E. For environments where the 8-hour TWA is in the 97–100 dBA range, that additional 1 dB is unnecessary for OSHA PEL compliance, and the extra attenuation reduces speech intelligibility and awareness of equipment alarms in environments where workers can safely communicate with 9 dB protection. Precision NRR matching — using the minimum NRR that achieves compliance — is the better practice for mid-range noise environments.

Earmuff vs. earplug for hard hat programs — which is better?

Both achieve compliance when properly specified. Cap-mount earmuffs like the H9P3E integrate with the hard hat for on-demand deployment, are easier to inspect for proper wear, and don't require handling during donning and doffing. Earplugs provide higher maximum NRR options and perform better in very hot environments where earmuff cushion sweat-out is a problem. See the Reusable vs. Disposable Earplugs guide for detailed comparison. For top earplug picks, see Best Earplugs for Work.

When should I use dual hearing protection (earmuff + earplug)?

Dual protection is indicated when the 8-hour TWA exceeds what a single protector's de-rated NRR can cover — typically for TWA exposures above 100–105 dBA where a single earmuff cannot achieve the OSHA PEL. NIOSH guidance also recommends considering dual protection at TWAs above 100 dBA even when a single protector achieves mathematical compliance, as attenuation variability in actual wear conditions is higher than laboratory NRR values suggest. See the OSHA Hearing Conservation Program Guide for dual protection criteria.

How often should I replace H9P3E cushions?

Cushion replacement frequency depends on use intensity, environmental conditions, and individual care. Inspect cushions regularly for hardening, cracking, deformation, or loss of resilience — any of these reduces the acoustic seal and lowers effective attenuation below the rated NRR 25. Replace when seal quality is compromised. Most industrial programs plan cushion replacement on a 6–12 month cycle for heavy daily use.

Is the H9P3E ANSI S3.19 certified?

Yes. NRR 25 is assigned under ANSI S3.19, the U.S. standard for laboratory measurement of hearing protector attenuation. All hearing protectors sold in the U.S. must carry an NRR measured under ANSI S3.19 and are regulated by the EPA under 40 CFR Part 211. The H9P3E meets these requirements.

Does the H9P3E work in hot industrial environments?

Earmuffs generate more heat at the ear than earplugs due to the foam/liquid cushion contact area. In sustained high-heat or high-sweat environments, cushion sweat-out accelerates degradation and can reduce acoustic seal quality. In those conditions, earplugs are often more practical. See the Best Foam Earplugs for Manufacturing guide for high-heat environment alternatives. General earplug options are also available in the Ear Plugs collection.

Do I need a full hearing conservation program if I issue H9P3E?

Under OSHA 29 CFR 1910.95, employers must implement a hearing conservation program — including annual audiograms, noise monitoring, training, and recordkeeping — when worker 8-hour TWA exposures reach or exceed 85 dBA (the action level). Issuing hearing protection alone does not satisfy the full OSHA hearing conservation program requirement. The OSHA Hearing Conservation Program Guide outlines all required program elements.

How does the H9P3E compare to Moldex cap-mount earmuffs?

Moldex offers cap-mount earmuffs at comparable NRR levels. Selection between 3M PELTOR and Moldex for a cap-mount program typically depends on which hard hat platform is already deployed — P3E slots are the 3M/PELTOR standard, and Moldex cap-mount systems use different attachment points. Verify hard hat compatibility before switching between brands. For Moldex earplug alternatives, see Best Moldex Earplugs.

Where can I find other hearing protection options?

Browse the full Hearing Protection collection at WC Safety for earmuffs across NRR levels and mount configurations, and the Ear Plugs collection for earplug alternatives. For buyer's guides, see Best Hearing Protection for Industrial Workers.

Should I use foam earplugs instead of earmuffs for NRR 25 environments?

Foam earplugs can achieve NRR 25+ at lower cost per unit, but earmuffs are generally easier to inspect for compliance, easier to don/doff repeatedly across noise zone boundaries, and integrate with hard hat programs. For programs where workers cross noise boundaries frequently per shift, the H9P3E's hard hat integration is a practical compliance advantage. See the Best Foam Earplugs for Manufacturing guide for earplug NRR options.

Does WC Safety offer volume pricing for the H9P3E?

WC Safety serves industrial buyers and safety programs. For volume orders or B2B pricing on the H9P3E, contact WC Safety directly through the site's contact form. Single-unit pricing is $30.10 via the WC Safety product page. The full PPE collection is available for bulk program sourcing.

How does the H9P3E compare to the 3M PELTOR X4A over-the-head earmuff?

The 3M PELTOR X4A (NRR 27, over-the-head) is not a cap-mount earmuff and cannot be integrated with a hard hat via P3E slots. For hard hat integration at NRR 27 in a cap-mount format, the Optime 101 H7P3E ($32.50) is the correct cap-mount alternative. If your TWA is in the 97–100 dBA range and a cap-mount is required, the H9P3E (NRR 25) is the more precisely specified choice. See the Best Hearing Protection for Industrial Workers guide for NRR selection by noise zone.

Where can I learn more about NRR selection?

The NRR Hearing Protection Guide at WC Safety covers the ANSI S3.19 rating system, OSHA de-rating methodology, and how to select the correct NRR for a measured exposure level. It also covers dual protection scenarios and the difference between NRR as tested vs. NRR as worn. The companion OSHA Hearing Conservation Program Guide covers program implementation requirements.

Reviewed by Steven Eaton, WC Safety — Industrial PPE Specialist with 10+ years advising EHS and safety professionals on hearing conservation program compliance and PPE selection. WC Safety Editorial Team. Reviewed by: WC Safety Editorial.

Review Methodology

This review is based on: (1) verified product specifications from the WC Safety product listing for the 3M PELTOR Optime 98 H9P3E; (2) ANSI S3.19 NRR 25 rating as labeled on the product; (3) OSHA 29 CFR 1910.95 Appendix B de-rating methodology for hearing protector adequacy calculations; and (4) 3M PELTOR series product documentation for Optime 98 cup construction and cap-mount attachment specifications. No attenuation performance claims beyond the labeled NRR 25 are asserted. All OSHA compliance calculations use (NRR − 7) ÷ 2 as specified in 29 CFR 1910.95 Appendix B. Competitor pricing sourced from WC Safety store data as of June 2026. Series sibling pricing verified against WC Safety Shopify store at time of publication.
