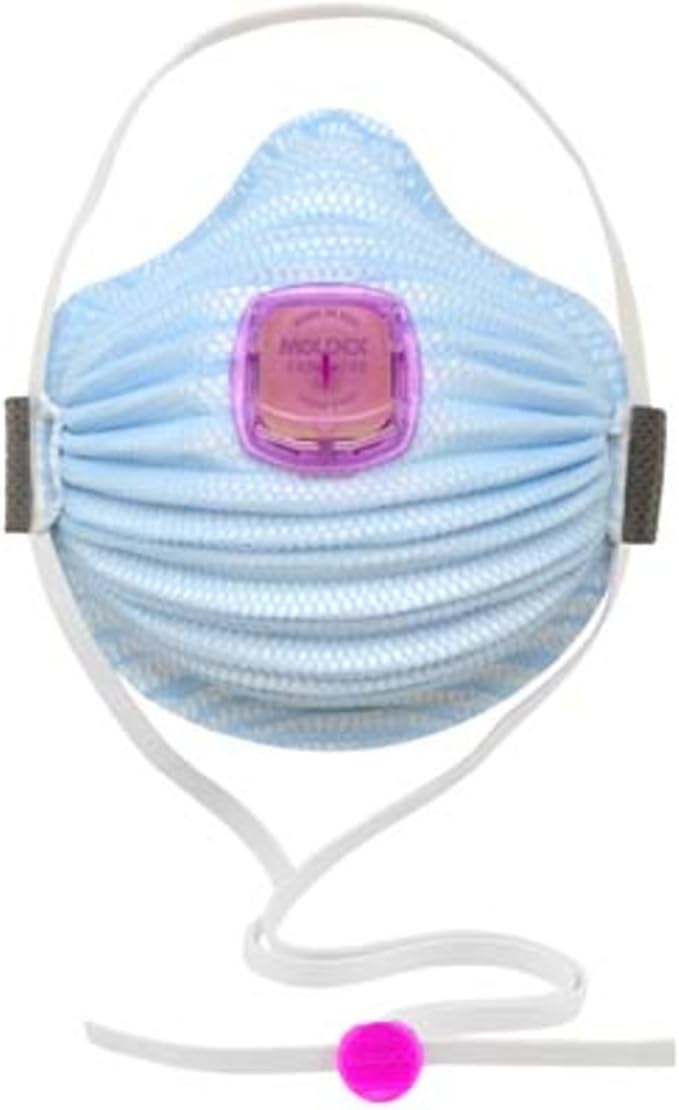

Moldex 4400P100 AirWave P100 Respirator — SmartStrap + Valve

The Moldex 4400P100 AirWave Disposable Respirator is a NIOSH-approved P100 disposable particulate respirator featuring the AirWave curved filter panel design, integrated Ventex exhalation valve, and SmartStrap dual-position suspension — providing 99.97% oil-proof particulate filtration in a low-profile cup-style respirator packaged 5 per box for operations where maximum NIOSH-rated filtration efficiency and reduced breathing resistance are required alongside the convenience of a disposable format. The P100 rating delivers the highest filtration efficiency available in NIOSH-certified disposable respirators — 99.97% minimum efficiency against oil-based and non-oil-based aerosols, without the time-limited use restriction of the R95 rating, appropriate for high-hazard particulate applications including lead dust abatement, silica-generating operations, pharmaceutical manufacturing, isocyanate spray operations, and environments requiring maximum protection factors in a disposable format. The AirWave curved filter panels increase effective filter surface area over flat-panel cup designs, reducing pressure drop and breathing resistance at equivalent filtration efficiency — workers in the 4400P100 breathe more easily under work conditions than flat-filter P100 disposables at the same protection level.

Moldex 4400P100 AirWave Respirator — Key Features

• NIOSH P100 — 99.97% minimum filtration efficiency, oil-proof rating for oil-based and non-oil-based aerosols
• AirWave curved filter panels — increased filter surface area for reduced breathing resistance
• Ventex exhalation valve — one-way valve reduces facepiece heat and humidity during physical work
• SmartStrap dual-position suspension — clip system holds respirator at chest position when not worn without strap removal
• 5/box — standard procurement unit for P100 disposable programs
• NIOSH Approved

Specifications

P100 Filtration: Maximum NIOSH Efficiency for High-Hazard Operations

The NIOSH P100 rating represents the highest filtration tier available in disposable respirators: 99.97% minimum efficiency against all airborne particulates including oil-based aerosols, with no time-limited use restriction for oil-based contaminants. Where the R95 rating restricts respirator service life to 8 hours in oil-based aerosol environments, the P-prefix (oil-proof) designation indicates the filter maintains rated efficiency in sustained oil aerosol exposure and can continue service until resistance increases substantially, the respirator is contaminated, or it is physically damaged. For operations where the highest filtration efficiency is required — lead abatement, silica-generating grinding and cutting, pharmaceutical and fine chemical manufacturing, isocyanate spray coating, and arsenic-containing dust — P100 provides the protection factor margin that R95 and N95 cannot achieve.

The 4400P100 P100 rating achieves 99.97% efficiency — more than five times the 99% removal rate of a standard N99 respirator and roughly 47 times the residual penetration of an N95. In operations where industrial hygiene assessments determine that residual particulate penetration requires minimization to the practical maximum, P100 delivers that minimum in a disposable format without the maintenance requirements of elastomeric P100 half-face or full-face respirators. For facilities where the operational preference is disposable respirators without filter changeout, the 4400P100 provides P100 protection in a format compatible with daily or shift-end replacement programs.

AirWave Curved Filter Design and Breathing Resistance

Standard cup-style disposable respirators use flat or slightly curved filter media panels. The Moldex AirWave design uses more deeply curved, domed filter panels that increase the effective filter surface area presented to the airstream while maintaining the same overall facepiece dimensions. Increased filter surface area for the same airflow results in lower velocity air movement through any given segment of filter media, which reduces the pressure differential across the filter — the breathing resistance the wearer experiences on each inhale. For workers in physically demanding operations who are already generating elevated respiratory demand, reduced inhale resistance improves comfort and reduces the diaphragm work required to draw breath through the filter during sustained physical exertion. At equivalent filtration efficiency, the AirWave geometry reduces the work of breathing compared to flat-panel P100 filter constructions.

SmartStrap Dual-Position Suspension

The SmartStrap suspension system addresses a practical limitation of disposable respirator use in operations where workers move between protected and unprotected areas, or where brief tasks require respirator removal without full doffing. Standard disposable respirator suspension requires workers to remove the respirator entirely when entering areas where respiratory protection is not required, then fully don it again for subsequent re-entry — in operations with frequent transitions, this creates PPE management overhead and increases the likelihood that workers delay or skip redonning. The SmartStrap clip system allows the wearer to unclip the facepiece from the face and rest it in a forward-facing position at chest level, with the straps remaining around the neck and head. Workers in transition areas can quickly reclip the facepiece for re-entry protection without full donning from scratch. The SmartStrap convenience reduces the friction associated with frequent respirator transitions in facilities with multiple adjacent work zones.

Compliance and Certifications

• NIOSH — P100 approved (42 CFR Part 84)
• OSHA 29 CFR 1910.134 — respiratory protection standard applies for mandatory use applications

Real-World Benefits

P100 99.97% filtration provides maximum NIOSH-rated protection for high-hazard particulate operations. Workers in lead abatement, silica-generating operations, pharmaceutical manufacturing, and isocyanate spray work receive the highest NIOSH-rated disposable filtration efficiency in the 4400P100, delivering maximum particulate protection without the cartridge maintenance of elastomeric respirators.

AirWave curved filter panels reduce breathing resistance for workers in demanding physical operations. Maintenance workers, construction tradespeople, and manufacturing personnel in physically active roles experience reduced inhale resistance with the AirWave design, supporting comfortable continuous use through demanding physical tasks where standard flat-panel P100 disposables create higher breathing effort.

SmartStrap dual-position suspension reduces respirator transition time in multi-zone operations. Workers who regularly move between zones requiring respiratory protection and areas where protection is not worn can suspend the 4400P100 at chest level between zones without full removal and re-donning, reducing compliance friction in facilities with frequent zone transitions.

Applications and Use Cases

• Lead dust and lead paint abatement — P100 oil-proof filtration for renovation, demolition, and remediation work involving lead-containing materials requiring maximum filtration efficiency
• Crystalline silica — grinding, cutting, drilling — P100 for operations generating silica dust from concrete, masonry, and stone processing where maximum filtration is required
• Isocyanate spray coating and pharmaceutical manufacturing — highest-efficiency disposable filtration for high-toxicity particulate applications where P100 protection factors are indicated
• High oil-content aerosol environments — oil-proof P100 for sustained oil mist exposure where R95 time-limited rating is insufficient for extended shift operations

Related Products

For R95 oil-resistant filtration with valve, see Moldex 2740R95 HandyStrap R95 Particulate Respirator. For R95 with nuisance OV, see Moldex 2840R95 HandyStrap R95 — Nuisance OV + Valve. For R95 with nuisance acid gas, see Moldex 2940R95 HandyStrap R95 — Acid Gas + Valve. Browse the complete Respiratory Protection collection.

Frequently Asked Questions

When should I specify P100 instead of R95 or N95?

Specify P100 when the operation involves high-toxicity particulates (lead, silica, asbestos, isocyanates, pharmaceutical compounds) that require maximum filtration efficiency, when oil-based aerosols are present and the 8-hour R95 use restriction is inadequate for your shift structure, or when industrial hygiene assessment indicates that N95 or R95 protection factors are insufficient for the specific airborne concentration and hazard. P100 at 99.97% efficiency provides approximately 3 times the filtration efficiency of R95/N95 at 95% and represents the maximum NIOSH-rated protection available in a disposable respirator format.

Does P100 protect against gases and vapors as well as particulates?

No. P100 is a particulate filter rating only — it provides 99.97% filtration of airborne particles but does not adsorb or chemically capture gases or vapors. For environments with both particulate and chemical vapor hazards, an elastomeric half-face or full-face respirator with combination P100 + OV/AG cartridges is required. The 4400P100 is a particulate-only disposable respirator appropriate for applications where the primary hazard is airborne particles without concurrent hazardous vapor exposure.

Can the 4400P100 be used for multiple shifts?

P100-rated respirators can theoretically be reused until breathing resistance increases substantially, the respirator becomes contaminated inside, or it is physically damaged — there is no NIOSH-mandated single-shift disposal requirement for P100 without oil-based aerosols. However, for high-hazard applications like lead abatement, facility hygiene protocols and contamination risk typically favor single-use disposal to prevent cross-contamination. Follow your written respiratory protection program for specific replacement frequency guidance based on your operations and contaminants.
