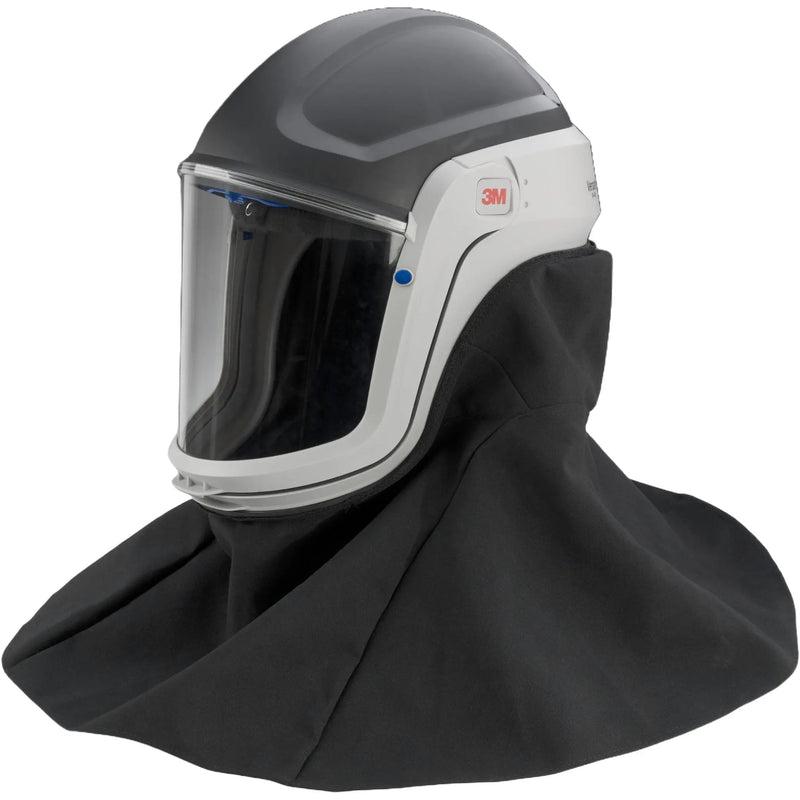

3M Versaflo M-407 PAPR Helmet Assembly — Industrial Head-Top for TR-300 and TR-600

The 3M Versaflo M-407 PAPR Helmet Assembly is an M-400 series industrial head-top assembly for use with 3M Versaflo TR-300 and TR-600 Powered Air Purifying Respirator motor blower units — providing a rigid helmet with integrated visor and face protection that receives the continuous-flow filtered air delivered by the PAPR motor unit to create a comfortable, positive-pressure respiratory protection environment for workers in industrial manufacturing, chemical, and multi-hazard environments. The M-400 series helmet design combines the head impact protection of a hardhat-style rigid shell with an integrated optically clear visor that protects the face from grinding sparks, chemical splash, and airborne debris while maintaining the open-face visibility required for precision manufacturing, inspection, and maintenance tasks. The PAPR integration delivers a continuous stream of filtered air from the motor blower unit — worn on the belt via a breathing tube — into the helmet interior, providing respiratory protection without the sealed-face contact of tight-fitting half-mask or full-face respirators and the comfort advantages of positive-pressure continuous airflow over negative-pressure respirator design.

3M Versaflo M-407 PAPR Helmet Assembly — Key Features

• M-400 series rigid helmet — hardhat-style shell with integrated visor for impact, spark, and splash protection
• Compatible with TR-300 and TR-600 — connects to Versaflo PAPR motor units via breathing tube for continuous-flow respiratory protection
• Integrated face and chin protection — visor covers face and chin; no separate face shield required
• Positive-pressure PAPR design — continuous filtered airflow without tight-fitting face seal requirement
• Industrial multi-hazard coverage — respiratory, impact, and face protection in a single head-top assembly

Specifications

M-400 Series Helmet: Integrated Multi-Hazard Protection

The M-400 series helmet assembly addresses a common industrial PPE layering problem: workers in environments with simultaneous air quality, impact, and face hazards must typically wear multiple independent protective devices — a half-mask or full-face respirator under or with a face shield, or a helmet with a separate face shield attachment — creating fit-compatibility challenges, comfort issues, and compliance gaps where the combination of protective devices is uncomfortable enough to motivate removal. The M-407 helmet assembly eliminates this layering problem by integrating respiratory protection (PAPR via Versaflo motor unit), head impact protection (rigid helmet shell), and face protection (integrated visor) into a single coordinated assembly that workers put on as a unit and remove as a unit.

The integrated design means that respiratory protection is inherently coupled with face and head protection — workers wearing the M-407 assembly are protected against all three hazard types simultaneously without the possibility of the partial PPE use that occurs when workers wear a respirator but not a face shield, or wear a face shield over an inadequately-sealed half-mask. Industrial safety programs that have moved to M-400 series PAPR assemblies from separate-component approaches consistently report improved full-hazard compliance because the single-system approach reduces the PPE-donning steps that create compliance gaps at zone-entry transitions.

PAPR Integration: Comfort Advantages for Multi-Hour Industrial Tasks

The M-407 helmet receives continuous filtered air from the connected Versaflo TR-series motor blower unit, creating a positive-pressure environment within the helmet interior that delivers respiratory protection without the tight facial seal of conventional respirators. Workers performing multi-hour grinding, chemical handling, painting, or particulate-generating manufacturing tasks in the M-407 do not experience the breathing resistance, facial pressure, or heat accumulation that accumulates during extended half-mask or full-face respirator use, because the motor unit provides the air movement and the positive pressure prevents ambient air intrusion without requiring a seal against the face.

The practical significance for industrial operations is measurable in shift-length respiratory protection compliance. Workers in tight-fitting respirators have strong physiological incentives to remove the respirator after two to four hours of continuous use — breathing resistance fatigue, heat and moisture buildup, and facial pressure become uncomfortable enough to motivate removal during tasks where the hazard exposure is lower for brief periods. The M-407 PAPR assembly maintains comfort throughout the shift without these compliance-degrading effects, supporting respiratory protection use for the full duration of hazardous tasks rather than just the initial period.

Application Range: Industrial Manufacturing and Chemical Processing

The M-407 helmet assembly is appropriate for the wide range of industrial applications where workers face combined respiratory, head, and face hazards. Grinding operations produce sparks, debris, and metal particulate requiring impact-rated face protection and particulate respiratory protection simultaneously — the M-407 provides both. Chemical processing tasks that require splash protection alongside vapor or particulate respiratory protection are similarly served. Pharmaceutical and specialty chemical manufacturing environments where multiple PPE requirements apply to the same worker position benefit from the single-assembly approach that eliminates the compatibility and compliance issues of combined-system PPE layering.

Compliance and Certifications

• NIOSH approved — M-407 head-top assembly NIOSH certified for use with compatible Versaflo TR-series motor units
• OSHA 29 CFR 1910.134 — supports respiratory protection program requirements for PAPR systems
• ANSI/ISEA Z89.1 — industrial head protection compliance (helmet component)

Real-World Benefits

Integrated helmet and PAPR assembly eliminates multi-system PPE compatibility issues. Workers who must wear a respirator, hard hat, and face shield independently face compatibility issues — hard hat brim interfering with face shield position, face shield interfering with respirator seal, and donning sequence that creates compliance gaps. The M-407 integrates all three into one assembly, eliminating the compatibility problem and simplifying the donning sequence to a single step.

Positive-pressure PAPR design accommodates workers who cannot be fit-tested for tight-fitting respirators. Workers with beards, facial hair, or facial structures that prevent successful respirator fit testing cannot use the negative-pressure half-mask or full-face respirators that are the standard respiratory protection choice for most industrial applications. The M-407 PAPR assembly provides equivalent or higher protection level without the fit-test requirement, extending compliant respiratory protection to the full workforce regardless of fit-testing eligibility.

Extended-wear comfort supports full-shift protection compliance in long-duration tasks. Multi-hour grinding, painting, and chemical handling tasks are precisely where respiratory protection compliance degrades most acutely with tight-fitting designs. The M-407's positive-pressure airflow maintains comfort through full production shifts, keeping workers protected throughout the task rather than just during the initial period before heat and pressure accumulation motivates removal.

Applications and Use Cases

• Grinding and metalworking operations — integrated spark/debris face protection with PAPR respiratory protection for metalworking environments
• Chemical processing and handling — splash face protection combined with vapor or particulate PAPR protection
• Industrial spray coating and painting — full-face and respiratory protection for overspray and solvent vapor environments
• Workers unable to pass respirator fit testing — PAPR head-top for workers with beards or facial structures preventing tight-fitting respirator seal

Frequently Asked Questions

Does the M-407 work with both TR-300 and TR-600 motor units?

The M-400 series helmet assemblies are designed to be compatible with multiple Versaflo TR-series motor units. Verify specific compatibility between the M-407 and your TR-series motor unit in the 3M Versaflo compatibility guide before assembly. Not all head-top and motor unit combinations have identical connection interfaces or airflow compatibility — 3M provides a component compatibility matrix that identifies approved head-top and motor unit pairings for NIOSH-approved complete assemblies.

What is the difference between the M-405 and M-407?

The M-405 and M-407 are both members of the M-400 series Versaflo helmet assembly lineup, with different configurations or features within the M-400 series design framework. Differences may include visor style, suspension system, or included accessories. Review the 3M product specifications for both models to confirm which configuration is appropriate for your application. The M-405 is also available in the WC Safety catalog for applications where its configuration is preferred.
