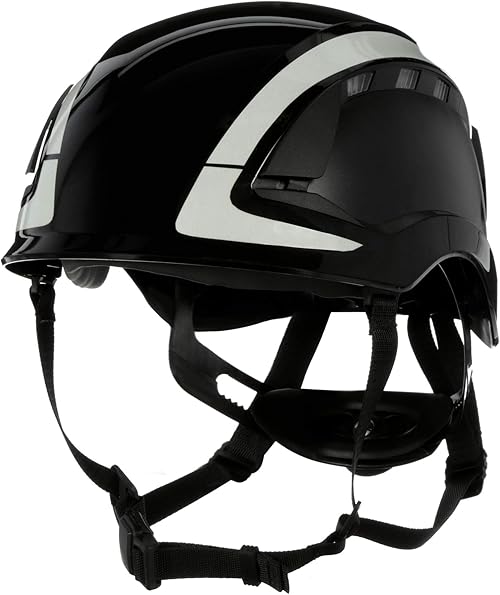

3M SecureFit X5012VX-ANSI Black Vented Scotchlite Safety Helmet

The 3M SecureFit X5012VX-ANSI Black Vented Safety Helmet provides ANSI/ISEA Z89.1 Type I Class E certified head protection with 6-point pressure diffusion suspension, vented shell construction, and Scotchlite retroreflective material on the brim — delivering 3M's premium self-adjusting suspension technology in a high-visibility hard hat configuration that combines the comfort and fit consistency of pressure diffusion adjustment with the thermal venting benefit of a vented shell and the visibility enhancement of Scotchlite reflective brim trim for workers in outdoor, road work, and utility environments where both worker comfort in high-temperature conditions and visibility to traffic and equipment operators are safety requirements alongside head impact protection. The X5012VX-ANSI positions at the top of the SecureFit X5000 series configuration range: the VX designation indicates the combination of Vented shell (V) and Scotchlite reflective (X) features that make this model appropriate for the highest-demand outdoor safety environment specification — where the heat management of vented shell construction, the retroreflective visibility enhancement of Scotchlite trim, and the comfort and fit of pressure diffusion suspension combine in a single helmet. The 6-point pressure diffusion suspension applies the same self-adjusting fit principle as SecureFit safety glasses: the suspension's six contact points distribute retention force across the head crown without requiring manual ratchet or pin-lock adjustment, conforming to the individual wearer's head shape automatically when the helmet is placed on the head. This adjustment-free fit removes the primary source of hard hat comfort complaints in field programs — workers whose head size falls between ratchet positions get consistent pressure points from poorly-fitted conventional adjustments, while SecureFit's pressure diffusion continuously adapts to distribute force evenly. Black shell color serves sites where standard yellow and orange create visibility conflicts with existing signage or where a professional appearance distinct from standard safety colors is specified. The vented shell promotes airflow over the head crown to reduce heat buildup in outdoor sun exposure during physically active outdoor work.

3M SecureFit X5012VX-ANSI Black Vented Scotchlite Safety Helmet — Key Features

• ANSI/ISEA Z89.1 Type I Class E certified — electrical and impact protection for construction and utility
• 6-point pressure diffusion suspension — self-adjusting fit for diverse head sizes
• Vented shell — airflow for heat management in outdoor direct-sun environments
• Scotchlite retroreflective brim — enhanced visibility to traffic and equipment operators
• Black shell — professional appearance distinct from standard safety colors

Specifications

X5000 Series Pressure Diffusion: Self-Adjusting Head Protection

Hard hat suspension systems determine how the helmet distributes impact energy and how the helmet fits across the range of worker head sizes in a diverse workforce. Traditional ratchet and pin-lock systems provide adjustability but require deliberate adjustment — workers must turn the ratchet wheel or configure pin positions to size the suspension for their head, a step that workers frequently skip, perform incorrectly, or leave at a previous user's setting when helmets are shared or redistributed. The consequence is hard hats that fit poorly — too loose (allows helmet movement, reduces impact energy absorption, creates the compliance motivation to remove the helmet "just for a moment"), or too tight (creates pressure headaches that accumulate through the shift and motivate removal). SecureFit X5000's pressure diffusion suspension eliminates the manual adjustment step by using a flexible suspension that spreads evenly across the head crown's contact points, conforming to the individual head shape and distributing retention force through the suspension's six contact zones without requiring the worker to select a size setting. Every worker who puts on an X5012VX-ANSI gets appropriate, consistent fit — the suspension adapts automatically to head size variation from smaller to larger within the helmet's fit range. For safety programs managing hard hat supply for diverse crews, visitor protection programs, and worksites where hats may be shared between workers of different head sizes, SecureFit's automatic fit provides consistent wearing comfort and protection performance without the individual fitting administration that conventional hard hats require for comfortable compliance.

Compliance and Certifications

• ANSI/ISEA Z89.1 — Type I (top impact) Class E (electrical 20,000V) certified
• OSHA 29 CFR 1910.135 — Head protection requirements

Real-World Benefits

Pressure diffusion suspension provides self-adjusting fit for all workers — eliminating the fit-adjustment step and the comfort complaints that poorly-adjusted conventional suspensions create across diverse crew head sizes. Site safety managers who have tracked hard hat removal incidents find ill-fitting helmets are the most common stated reason — pressure diffusion removes the fit variable from helmet removal motivation by ensuring every wearer gets appropriate, comfortable fit without adjustment.

Vented shell and Scotchlite brim combination addresses the two primary outdoor safety environment requirements simultaneously — thermal management in direct sun environments reduces heat-related fatigue, and retroreflective brim maintains worker visibility to traffic and equipment operators after dark and in low-light conditions. Road work and utility crews in outdoor environments benefit from both features within the same helmet specification, eliminating the need for separate high-visibility accessories to meet visibility requirements alongside head protection.

Applications and Use Cases

• Road construction and utility — vented Scotchlite reflective for traffic-adjacent outdoor work — X5012VX-ANSI for road construction crews, utility line workers, and infrastructure workers performing outdoor work near traffic where Scotchlite visibility enhances detection by vehicle operators and vented shell manages heat during physically active direct-sun work
• Construction supervision — black helmet professional appearance with self-adjusting fit — black SecureFit for site supervisors, safety managers, and construction professionals where black shell distinguishes supervisory personnel from craft workers in standard safety colors
• Outdoor field crews — high-comfort self-adjusting hard hat for diverse head size field programs — pressure diffusion hard hat for field crews where diverse head sizes and shared-use programs benefit from automatic fit consistency without adjustment overhead

Related Products

For SecureFit X5012-ANSI non-vented black hard hat, see 3M SecureFit X5012-ANSI Black Safety Helmet Non-Vented. For SecureFit X5003-ANSI blue hard hat with pressure diffusion, see 3M SecureFit X5003-ANSI Blue Safety Helmet. For H-701R white cap-style hard hat, see 3M H-701R White Cap Style Hard Hat ANSI Z89.1. Browse the complete Hard Hats collection.

Frequently Asked Questions

What does ANSI/ISEA Z89.1 Type I Class E mean for hard hat protection?

ANSI/ISEA Z89.1 classifies hard hats by impact protection type and electrical protection class. Type I means the hard hat is tested and rated for top-of-head impact protection (vertical force) — appropriate for falling object hazards from overhead. Class E (Electrical) means the hat's shell and suspension are tested to withstand 20,000 volts of electrical exposure without conducting dangerous current to the wearer — required for electrical utility, power distribution, and other work near high-voltage equipment. Class E is the highest electrical protection class in Z89.1. The X5012VX-ANSI's Type I Class E certification makes it appropriate for electrical utility work environments where both falling object and high-voltage exposure are potential hazards.

Does venting reduce the ANSI protection performance of the X5012VX-ANSI?

Vented hard hats achieve ANSI Z89.1 certification including electrical protection by designing the vents to maintain the required electrical and impact performance alongside the ventilation opening. The vent openings in the X5012VX-ANSI are designed to maintain Class E electrical insulation — the electrical performance is tested and certified with the vents in place, not in a non-vented configuration. Workers and safety managers who have avoided vented hard hats due to assumed electrical protection compromise can specify the X5012VX-ANSI with confidence that the Class E certification applies to the vented configuration as tested and marked.

Does Scotchlite retroreflective brim substitute for a Class 2 or Class 3 hi-vis vest?

Scotchlite retroreflective brim trim enhances the hard hat's visibility in low-light conditions by reflecting vehicle headlights and artificial lighting back toward the source. However, it does not substitute for ANSI/ISEA 107 Class 2 or Class 3 high-visibility safety apparel requirements. ANSI 107 hi-vis requirements specify minimum quantities of fluorescent background material and retroreflective striping on the garment (vest, jacket) in specific configurations that provide 360-degree conspicuity — a helmet brim reflective treatment does not meet these area and distribution requirements. Workers in environments where ANSI 107 hi-vis compliance is required still need compliant hi-vis vests or garments alongside the Scotchlite-trimmed helmet.
