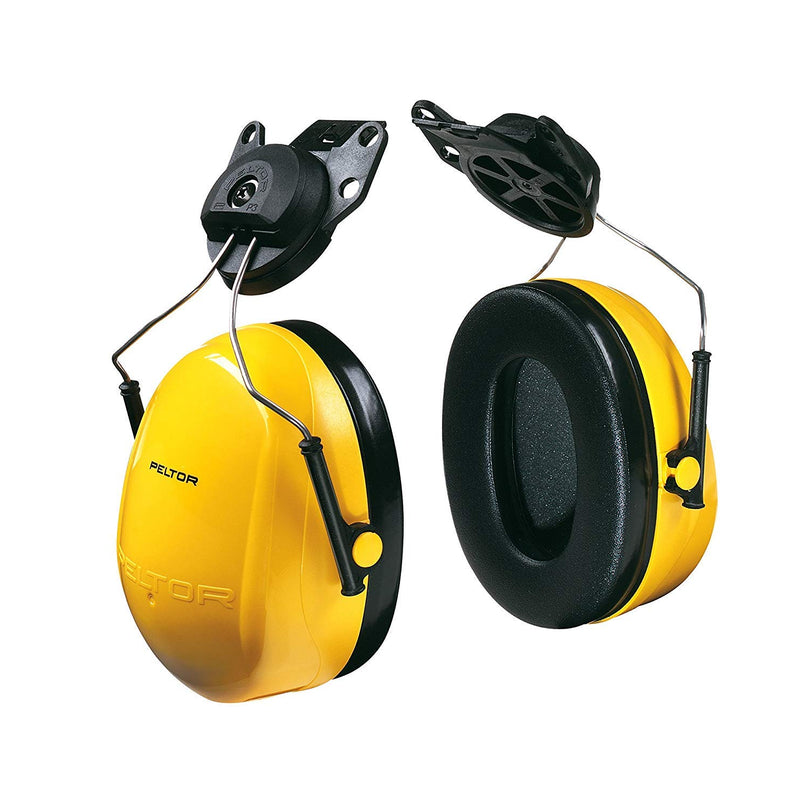

3M PELTOR Optime 98 H9P3E Earmuffs NRR 25 Cap-Mount

The 3M PELTOR Optime 98 H9P3E Earmuffs provide NRR 25 passive hearing protection with cap-mount attachment for 3M hard hats — delivering Optime 98's mid-range passive cup performance in a cap-mount configuration that integrates with hard hat P3E brim slots for workers in combined hard hat and hearing protection programs where noise exposures require more than NRR 21's protection but don't reach the higher noise levels that Optime 101 NRR 27 is designed for. The H9P3E is the cap-mount version of the PELTOR Optime 98 line — the same NRR 25 passive cup construction as the OTH H9A model, adapted for P3E slot attachment to compatible hard hat brims. NRR 25 provides OSHA-calculated attenuation of (25-7)/2 = 9 dB for A-weighted noise environments — 2 dB more than Optime 95 NRR 21's 7 dB and 1 dB less than Optime 101 NRR 27's 10 dB, positioning the Optime 98 as the intermediate step for environments where 7 dB is insufficient but the full 10 dB of NRR 27 is more than the measured noise level requires. The Optime 98 series fills the protection gap between Optime 95 and Optime 101: environments with 8-hour TWA exposures in the 97-100 dBA range fall above Optime 95's coverage capacity (where NRR 21 achieves the OSHA PEL only at ~97 dBA) but below Optime 101's primary design range, making NRR 25 the precisely appropriate specification for these mid-tier noise environments. The cap-mount configuration integrates hearing protection with the hard hat for on-demand deployment: workers clip the earmuff arms onto hard hat P3E brim slots, fold cups to the stored position when outside noise areas, and fold cups down to the hearing protection position upon noise zone entry — keeping NRR 25 protection available at the hard hat without the separate carrying requirement of OTH models.

3M PELTOR Optime 98 H9P3E Earmuffs NRR 25 Cap-Mount — Key Features

• NRR 25 passive protection — 9 dB OSHA-calculated attenuation for mid-range industrial noise
• Cap-mount (P3E) attachment — integrates with 3M/Scott hard hat P3E brim slots
• Optime 98 cup construction — mid-tier attenuation between Optime 95 and Optime 101
• Fold-up storage — cups rotate to stowed position on hard hat when not needed
• Passive design — no batteries required

Specifications

Optime 98 Cap-Mount: Mid-Range Protection for Hard Hat Programs Between Moderate and Louder Noise

Industrial noise programs that measure worker exposures by work area often identify zones that fall in the gap between what Optime 95 and Optime 101 are designed for. Environments with measured 8-hour TWA exposures in the 97-100 dBA range — moderately heavy grinding, medium-duty presses, air-powered impact tools in enclosures, processing equipment at elevated load — exceed the reliable coverage capacity of NRR 21 but don't reach the 100-104 dBA range where NRR 27 provides its primary compliance benefit. Specifying Optime 101 (NRR 27) for these environments over-protects: the additional attenuation beyond NRR 25 is unnecessary for compliance and reduces speech intelligibility and communication quality in environments where verbal signals, equipment alarms, and supervisor instructions remain operationally important. The H9P3E's NRR 25 provides the precise protection level for this mid-range: 9 dB OSHA-calculated attenuation that achieves PEL compliance in the 97-100 dBA zone while preserving more communication capability than a 10 dB NRR 27 device in the same environment. The cap-mount format delivers this right-sized protection with the same hard hat integration advantages as the H6P3E and H7P3E: workers always have their hearing protection available at the hard hat, fold-down deployment requires no separate carrying or searching for earmuffs, and compliance in intermittent noise zones improves because hearing protection is never left at a fixed workstation location when the worker moves. For industrial hard hat programs with a mix of moderate, mid-range, and louder noise zones, the H9P3E completes the cap-mount NRR spectrum alongside H6P3E (NRR 21) and H7P3E (NRR 27), allowing safety managers to specify the appropriate protection level for each zone while maintaining consistent cap-mount integration across the entire program.

Compliance and Standards

• ANSI S3.19 — NRR 25 tested per standard measurement protocol
• OSHA 29 CFR 1910.95 — Occupational noise exposure standard compliance support

Real-World Benefits

NRR 25 fills the protection gap between Optime 95 and Optime 101 for cap-mount programs — providing the right-sized attenuation for hard hat areas with mid-range noise exposures (97-100 dBA) where NRR 21 falls short and NRR 27 over-protects, allowing programs to match protection level to measured exposure rather than specifying maximum available NRR. Industrial hygienists who zone hearing protection programs by measured exposure and offer workers the appropriate NRR for their specific area find better compliance and fewer communication-related incidents compared to programs that uniformly specify maximum NRR regardless of actual exposure level.

Cap-mount integration maintains the compliance advantage of hard-hat-attached hearing protection at NRR 25 — workers in mid-range noise zones who might otherwise skip wearing separate earmuffs due to the carrying burden find the fold-down cup deployment requires no additional thought or equipment management, supporting sustained wearing rates through the shift. Safety coordinators who have monitored hearing protection compliance by mount type in hard hat environments consistently find cap-mount programs achieve higher sustained wearing rates than programs relying on separate OTH earmuffs in intermittent noise environments.

Applications and Use Cases

• Mid-range industrial manufacturing — Optime 98 cap-mount for hard hat zones at 97-100 dBA — H9P3E for manufacturing workers in hard hat programs with medium-duty equipment producing exposures in the range where NRR 21 is insufficient and NRR 25 provides right-sized protection for compliance without over-attenuation
• Construction with medium-intensity tools — NRR 25 cap-mount for jack hammer and compactor use — H9P3E for construction workers in hard hat programs with pneumatic tools and equipment producing mid-range noise exposures where the step-up from Optime 95 is needed for compliance
• Multi-zone hard hat programs — Optime 98 for the mid-range tier in zoned NRR programs — H9P3E alongside H6P3E and H7P3E for facilities that zone cap-mount protection by measured noise level, with H9P3E serving the middle tier between moderate and louder zones

Related Products

For PELTOR Optime 95 H6P3E NRR 21 cap-mount for moderate noise, see 3M PELTOR Optime 95 H6P3E Cap-Mount. For PELTOR Optime 98 H9A NRR 25 over-the-head version, see 3M PELTOR Optime 98 H9A Earmuffs. For PELTOR Optime 101 H7P3E NRR 27 cap-mount for louder environments, see 3M PELTOR Optime 101 H7P3E Cap-Mount. Browse the complete Hearing Protection collection.

Frequently Asked Questions

How does Optime 98 NRR 25 differ from Hi-Viz H31 NRR 25?

Both the Optime 98 (H9 series) and PELTOR Hi-Viz (H31 series) provide NRR 25 attenuation. The key difference is the cup color: Optime 98 cups are the standard PELTOR dark color, while Hi-Viz cups are yellow for visual compliance identification from a distance. For programs where supervisors and safety officers need to visually confirm hearing protection compliance across the floor, the Hi-Viz yellow cups provide compliance visibility that Optime 98 cups don't. For programs where visual identification is not a priority, Optime 98 provides the same NRR 25 protection at typically lower cost. Both use P3E cap-mount attachment for hard hat programs.

Which hard hats are compatible with the H9P3E?

The H9P3E uses the P3E cap-mount system compatible with hard hats that have P3E/E-slot brim attachments — the slotted brim receivers found on most 3M and Scott Safety hard hat models. Verify P3E compatibility in your hard hat's documentation before specifying cap-mount earmuffs. Hard hats without P3E slots cannot accept cap-mount earmuffs without adapter accessories. 3M's accessory compatibility tables document which cap-mount models are approved for each hard hat model.
