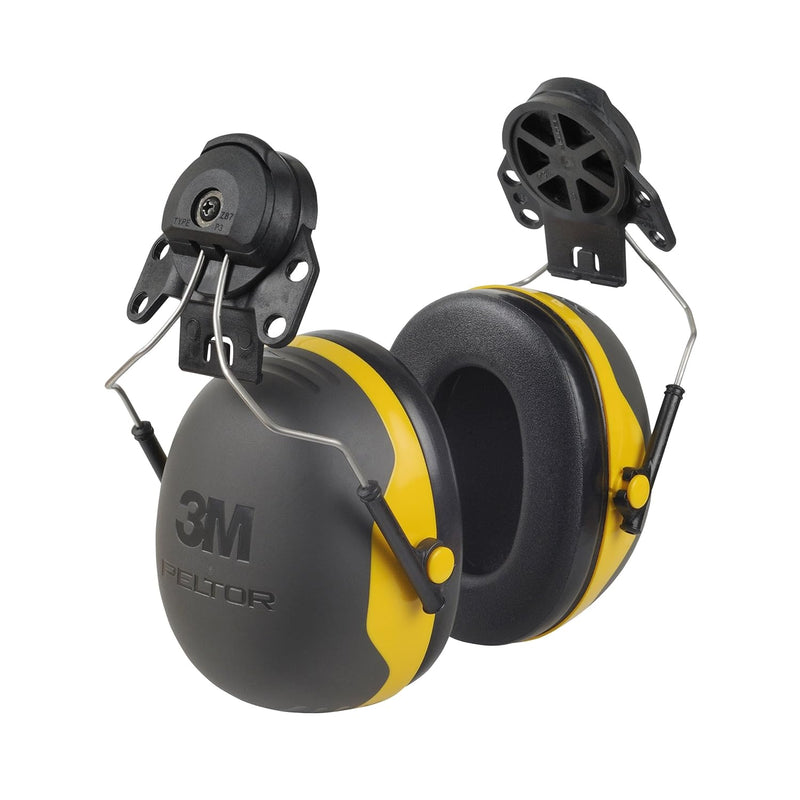

3M PELTOR X2P3E Cap-Mount Earmuffs NRR 24

The 3M PELTOR X2P3E Cap-Mount Earmuffs provide NRR 24 passive hearing protection with P3E cap-mount attachment for 3M hard hats — delivering X-Series low-profile NRR 24 cup attenuation in a standard P3E cap-mount configuration for workers in combined hard hat and hearing protection programs who need moderate-high noise protection with the X-Series' reduced cup profile. The X2P3E is the standard cap-mount version of the PELTOR X2 line — using the P3E brim slot attachment system found on most 3M and Scott Safety hard hats, delivering NRR 24 through the X-Series' contoured low-profile cup design. NRR 24 provides OSHA-calculated attenuation of (24-7)/2 = 8.5 dB for A-weighted noise environments — positioned between the entry-level X1 (NRR 22, 7.5 dB) and the X4 (NRR 27, 10 dB), addressing the moderate-high noise range where 8.5 dB achieves OSHA PEL compliance for environments with measured 8-hour TWA exposures in the range above NRR 22 capacity but below the threshold requiring NRR 27. The X-Series low-profile cup design reduces the lateral projection of the earmuff cup from the side of the head compared to conventional cylindrical cup designs, providing a smaller physical footprint at the ear that reduces cup-to-equipment contact events in close-quarters industrial and construction environments. The cap-mount format integrates this low-profile NRR 24 protection with the hard hat for on-demand deployment: cups fold to the stored position on the hard hat brim when the worker is outside noise areas, and fold down to the sealed hearing protection position at noise zone entry — keeping protection available at all times the worker wears the hard hat without separate carrying.

3M PELTOR X2P3E Cap-Mount Earmuffs NRR 24 — Key Features

• NRR 24 passive protection — 8.5 dB OSHA-calculated attenuation for moderate-high industrial noise
• Low-profile X-Series cup design — reduced lateral projection for close-clearance work environments
• Cap-mount (P3E) attachment — integrates with 3M/Scott hard hat P3E brim slots
• Fold-up storage — cups stow on hard hat when not in noise areas
• Passive design — no batteries required

Specifications

X2P3E Cap-Mount: NRR 24 Low-Profile Hearing Protection for Hard Hat Programs with Close-Clearance Environments

Hard hat programs in manufacturing, construction, and industrial operations that include close-clearance work environments face a specific earmuff selection consideration: whether the cup profile of the selected cap-mount model creates interference with the equipment and environment where workers operate. Conventional cylindrical cap-mount cups project 2-3 inches from the side of the head — a projection that creates interference at equipment guards, overhead fixtures, cabinet interior walls, access panel edges, and machine enclosure surfaces that workers maneuver within during their normal work activities. The X2P3E addresses this with the X-Series' low-profile cup: the same NRR 24 attenuation delivered through a contoured cup design that reduces lateral projection compared to conventional cap-mount cups at similar NRR levels. For hard hat programs where workers operate in both standard open areas and close-clearance environments within the same shift — maintenance technicians who service equipment both in accessible areas and in equipment access spaces, construction workers who alternate between open site work and confined structure work — the X2P3E's low-profile cup provides the clearance advantage in tight spaces without requiring a different earmuff model for different task types. The P3E cap-mount integration maintains the compliance convenience of hard-hat-attached hearing protection: NRR 24 cups always available at the hard hat, fold-down deployment requiring no separate search or carrying, consistent wearing rates in intermittent noise programs. For hard hat programs in the moderate-high noise tier where NRR 22 is insufficient but NRR 27 over-protects, the X2P3E delivers the right protection level in the low-profile format that close-clearance environments require.

Compliance and Standards

• ANSI S3.19 — NRR 24 tested per standard measurement protocol
• OSHA 29 CFR 1910.95 — Occupational noise exposure standard compliance support

Real-World Benefits

Low-profile X-Series cup combined with cap-mount integration addresses two hard hat hearing protection challenges simultaneously — reduced cup projection minimizes equipment contact interference in close-clearance environments, and hard hat attachment ensures NRR 24 protection is available for immediate deployment throughout the shift without separate carrying. Safety managers who specify X2P3E for hard hat programs in environments with both close-clearance work areas and standard areas find the low-profile cup eliminates the cup-contact complaints that conventional cap-mount models generate in equipment access situations.

NRR 24 provides the precise protection level for moderate-high noise environments where NRR 22 is insufficient and NRR 27 is more than compliance requires — right-sizing protection to the measured exposure maintains communication capability in environments where verbal interaction, equipment alarms, and safety signals remain important while achieving OSHA compliance.

Applications and Use Cases

• Manufacturing with close-clearance machine access — X2P3E cap-mount for hard hat environments with equipment proximity — X2P3E for manufacturing workers in hard hat programs who operate and maintain equipment in close-clearance environments and need NRR 24 protection with a low-profile cup that reduces machine interference
• Construction in confined and tight structures — low-profile NRR 24 for hard hat programs with space constraints — X2P3E for construction workers who alternate between open-site work and confined structural work within hard hat programs where moderate-high noise requires NRR 24
• Hard hat programs stepping up from NRR 22 — X2P3E for areas measured above X1P3E's compliance range — X2P3E for programs that have used X1P3E (NRR 22) in lower-noise zones and need the same X-Series platform at NRR 24 for measured higher-noise areas

Related Products

For PELTOR X2P5E NRR 24 electrically insulated cap-mount version, see 3M PELTOR X2P5E Cap-Mount. For PELTOR X1P3E NRR 22 cap-mount entry level, see 3M PELTOR X1P3E Cap-Mount. For PELTOR X2A NRR 24 over-the-head version, see 3M PELTOR X2A Earmuffs. Browse the complete Hearing Protection collection.

Frequently Asked Questions

What is the difference between X2P3E and X2P5E?

Both provide NRR 24 in the same X-Series low-profile cup design with cap-mount attachment. The difference is in the attachment hardware: X2P3E uses standard P3E hardware appropriate for most industrial hard hat programs, while X2P5E uses electrically insulated P5E hardware required for Class E hard hat electrical PPE programs where non-insulated metal attachment components would compromise electrical insulation compliance. Unless your program has specific electrical insulation requirements for accessories, X2P3E is the standard specification and typically offers a lower cost point than the insulated X2P5E.

How does the X2P3E compare to the Optime 98 H9P3E at similar NRR levels?

X2P3E (NRR 24) and Optime 98 H9P3E (NRR 25) provide similar but not identical attenuation — a 0.5 dB difference in OSHA-calculated attenuation that is not practically significant for protection level selection. The meaningful difference is cup design: X-Series provides a low-profile contoured cup that reduces lateral projection for close-clearance environments; Optime 98 provides a conventional cylindrical cup. Choose X2P3E when cup profile interference is a concern in your environment; choose H9P3E when cup profile is not a factor and you want the standard Optime series design.
