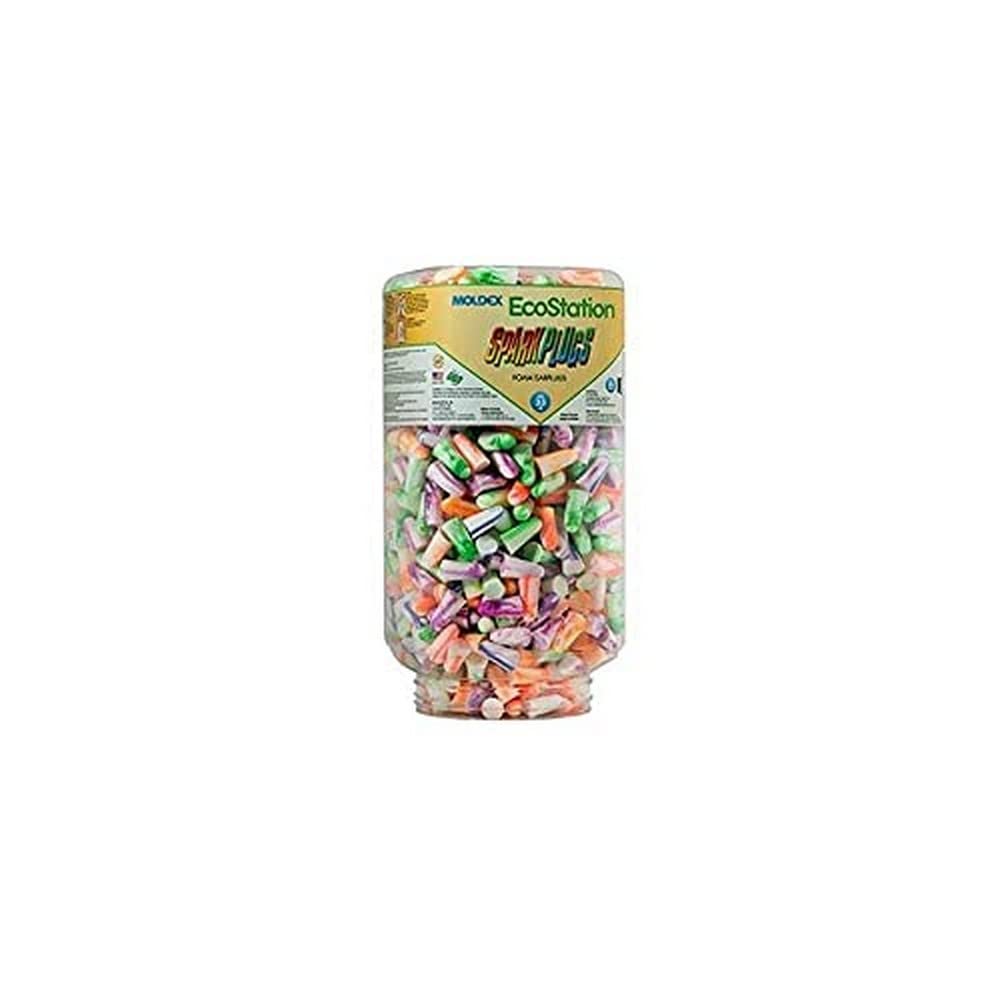

Moldex 6704 SparkPlugs EcoStation Refill: 500-Pair Replacement Pack for the 6703 Dispenser

Moldex 6704 SparkPlugs EcoStation Refill: NRR 33 Fast-Insert Earplugs for Workers Who Remove and Reinsert All Shift

Not every worker wears earplugs continuously from clock-in to clock-out. Machine operators, construction workers, and tradespeople routinely move between noisy and quiet zones, remove plugs to communicate, and then reinsert before returning to noise exposure. For those workers, insertion speed is not a minor convenience — it is a compliance variable. The faster and easier a plug goes in, the more likely it gets reinserted promptly rather than left out. The Moldex 6704 SparkPlugs EcoStation Refill addresses this directly with a tapered cylindrical design that inserts faster than any bell-shaped plug and requires minimal rolling technique to achieve a proper seal.

Each 6704 refill contains 500 pairs of SparkPlugs NRR 33 earplugs, packaged in 10 pocket-pack sleeves of 50 pairs each, for use with the Moldex EcoStation wall-mount dispenser system.

SparkPlugs Foam Geometry: Why Tapered Cylinders Insert Faster

SparkPlugs use a tapered cylindrical body with a flanged base. The taper means the leading end of the plug is narrower than the body, allowing it to enter the ear canal immediately after only a light roll-down rather than the full-compression roll required for bell-shaped or smooth bullet-shaped plugs. The flanged base serves as a natural stop point — it prevents over-insertion and makes it easy to grip the plug for removal without digging into the ear canal.

In informal insertion timing studies conducted in industrial training programs, SparkPlugs consistently insert in 10–15 seconds versus 20–30 seconds for plugs requiring a deeper roll-down technique. Over the course of a shift with 15–20 removal/reinsertion cycles, the time difference is negligible — but the ease difference is not. Workers who find the insertion process frustrating will delay reinsertion or skip it entirely in shorter quiet periods. SparkPlugs remove that friction.

The foam itself is a medium-density polyurethane — softer than classical cylindrical plugs but firmer than the ultra-soft Softies bell design. It provides enough body for a quick, confident insertion while still conforming to canal variations. For workers who want the absolute softest foam, the Moldex 6702 Softies remains the right choice; for workers prioritizing speed of use, SparkPlugs win.

Industries and Work Environments Best Suited for SparkPlugs

Construction sites: Framing, concrete work, and equipment operation expose workers to intermittent noise from power tools, compressors, and heavy equipment. Workers communicate between tasks and re-enter noise zones throughout the day. SparkPlugs' fast insertion supports compliance in these stop-start noise environments.

Machine operators in manufacturing: Press operators, CNC machinists, and assembly line workers who service their own machines regularly remove hearing protection to listen for equipment sounds. SparkPlugs allow quick reinsertion when returning to production without the fumbling that comes with plugs requiring more preparation.

Warehouse and logistics: Forklift operators and dock workers move between open warehouse floors (high noise from forklifts, pallet jacks, and loading equipment) and quieter staging areas. The EcoStation dispenser at entry/exit points of noise zones, stocked with SparkPlugs, enables easy grab-and-go compliance at transition points.

Utility and maintenance workers: Electricians, HVAC technicians, and maintenance crews working around loud equipment (fans, compressors, pumps) on intermittent basis benefit from having a fast-insert option in their tool pouches, paired with dispenser stations at equipment rooms.

NRR 33 Performance and OSHA Compliance Context

SparkPlugs carry NRR 33 dB, tested per ANSI S3.19. This is the maximum NRR available for disposable foam earplugs. Under OSHA's noise reduction calculation method, effective real-world attenuation is approximately 13 dB ((33 – 7) / 2). Under NIOSH's 50% derating recommendation, effective attenuation is approximately 16.5 dB.

For a worker exposed to 95 dB(A) TWA — common in construction and manufacturing — the OSHA-derated SparkPlugs bring effective exposure to approximately 82 dB, well below the 85 dB action level under 29 CFR 1910.95. This makes SparkPlugs a fully compliant primary protector for the vast majority of industrial noise environments.

Environments above 105 dB(A) may require dual protection. For those scenarios, pair earplugs with earmuffs from the safety earmuffs collection. Our breakdown of NIOSH vs. OSHA roles provides further context on how these two agencies approach hearing conservation differently.

EcoStation Dispenser Placement Strategy for SparkPlugs

Because SparkPlugs are optimized for frequent removal and reinsertion, dispenser placement strategy matters more for this plug style than for plugs worn continuously. Recommended placement:

• Zone boundary entry points: At the entrance to every area where noise exceeds 85 dB(A), so workers can grab a pair or reinsert before entering.
• Machine operator stations: One dispenser within arm's reach of each primary machine station, so operators can reinsert immediately after servicing without walking to a supply point.
• Break room exits: Workers who remove plugs during breaks often forget to reinsert — a dispenser at the break room exit reinforces reinsertion before returning to noise zones.

For large facilities with 50+ workers, the Moldex 6534 SparkPlugs EcoStation XL Refill (750 pairs) reduces restocking frequency and cost-per-pair compared to the standard 500-pair 6704.

SparkPlugs vs. Other EcoStation Foam Styles: Choosing the Right Plug

The EcoStation 500-pair refill lineup covers five earplug styles, all NRR 33. The right choice depends on your workforce's specific needs:

• SparkPlugs (6704): Best for frequent removal/reinsertion, fast-moving workers, construction trades
• Softies (6702): Best for comfort-sensitive workers, first-time foam earplug users, sensitive ear canals
• Pura-Fit (6706): Best for workers with narrow canals, smooth-foam preference, precision environments
• Meteors (6708): Best for dexterity-limited workers, gloved hands, cold/humid environments
• Zebras (6710): Best for compliance visibility, food processing, color-coded safety programs

Many facilities stock two styles: a comfort-first plug (Softies or Pura-Fit) at most dispenser stations, and SparkPlugs at high-traffic zone boundary points where speed of insertion is the priority.

Corded SparkPlugs Options for Environments Where Lost Plugs Are a Hazard

For food processing, pharmaceutical, and cleanroom environments where a dropped earplug entering the product stream is an audit or safety issue, Moldex offers SparkPlugs in corded PlugStation formats. The Moldex 6880 SparkPlugs Corded PlugStation provides SparkPlugs on 22-inch cords worn around the neck when not in ears — same fast-insert design, with retention. For the highest-security food environments with metal detection requirements, the Moldex 6881 SparkPlugs Metal-Detectable Corded PlugStation uses metal-detectable plugs and cords for HACCP compliance.

Hearing Conservation Program Integration: Training SparkPlugs Insertion

OSHA 29 CFR 1910.95(k) requires annual training for workers in the hearing conservation program. Training should include demonstration of correct insertion for the specific earplug model in use. For SparkPlugs, the training points are:

1. Roll the plug lightly between thumb and forefinger — you need less compression than a bell-shaped plug because the tapered tip enters the canal easily.
2. Pull the ear up and back with the opposite hand to straighten the canal.
3. Insert the tapered tip into the canal and allow the flanged base to seat naturally. Do not push past the flange.
4. Hold for 20 seconds while foam expands. The plug should feel secure but not painful.
5. Verify seal with the cup-hands-over-ears test.

Workers familiar with other foam styles sometimes under-compress SparkPlugs (since the taper helps with initial entry). Emphasize that the foam still needs some compression to fully expand into the canal walls.

Where to Buy Moldex 6704 SparkPlugs Refill

Available at WC Safety for facility and bulk pricing, and on Amazon via affiliate link Check Price on Amazon →. Order by the case for best per-pair cost on high-volume programs.
