Honeywell North N75003L + 7506N95 vs 7583P100L

Honeywell North N75003L + 7506N95 vs 7583P100L: Which Setup Wins for Acid Gas + OV + Particulate?

WC Safety Editorial Team — Updated June 2026.

You're working with solvents or acid-generating processes — etching, fiberglass laminating, chemical handling, or welding-adjacent tasks with resin fumes and acid gas byproducts — and you need protection against organic vapor, acid gas, AND particulates. That three-way hazard profile is where buyers get tripped up, because the most common Honeywell North cartridge, the N75003L, covers only two of those three threats on its own. To close the gap you either pair it with a prefilter or you step up to an integrated combination cartridge. This article breaks down exactly that choice: the N75003L organic vapor + acid gas cartridge paired with a 7506N95 prefilter versus the 7583P100L integrated OV + acid gas + P100 combination cartridge. Before you read further, bookmark the Honeywell North Cartridge Guide — it covers the full lineup so you can see where both of these options sit.

Honeywell North N75003L vs 7583P100L: Side by Side

Best Choice at a Glance

• Best for maximum particulate protection (oil-aerosol, silica, lead, regulated hazards): 7583P100L — OV + Acid Gas + P100 Integrated Cartridge
• Best for light non-oily dust with OV + acid gas in oil-free environments, and prefilter changeout flexibility: N75003L + 7506N95 Prefilter

Side-by-Side Comparison

What Each Option Protects Against

N75003L: Organic Vapor + Acid Gas Cartridge (Gas Protection Only)

The Honeywell North N75003L is a NIOSH-approved organic vapor and acid gas cartridge. Its activated carbon sorbent media captures organic vapor molecules (solvents, aromatic hydrocarbons, many VOCs) and its secondary sorbent layer targets acid gases including hydrogen chloride (HCl), sulfur dioxide (SO₂), chlorine (Cl₂), and hydrogen fluoride (HF) at the concentrations addressed by NIOSH TC-23C approvals.

Critical limitation: the N75003L cartridge has zero particulate filtration on its own. It contains no fibrous filter media. Dust, fumes, mists, and aerosols pass straight through unless you clip a prefilter onto it using a North prefilter retainer. If you are using an N75003L without a prefilter in any environment with airborne particles — fiberglass dust, acid mist, resin particulate — you are not protected against those particles.

7506N95: N95 Particulate Prefilter (Particulate Only)

The 7506N95 prefilter is a NIOSH N95-class particulate filter that clips over the N75003L using a North prefilter retainer/cover. It filters at least 95% of non-oily airborne particles (dust, fumes, mists) at the test flow rate. The N in N95 means NOT oil-resistant. In environments with oil-based mists — metalworking coolant spray, lubricant aerosols, certain spray coatings — N95 efficiency degrades over time. The 7506N95 does not provide any gas or vapor protection. It is a particulate prefilter only.

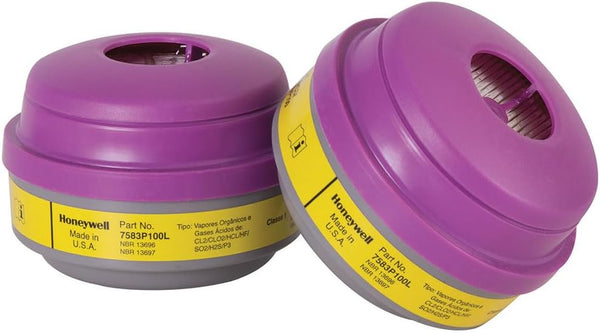

7583P100L: OV + Acid Gas + P100 Integrated Combination Cartridge

The 7583P100L combines all three protection layers in a single cartridge unit: organic vapor sorbent, acid gas sorbent, and a P100 particulate layer. The P100 designation means 99.97% efficiency against ALL aerosols including oil-based. There is no separate prefilter to attach, lose, or forget. Because the P100 media is integral to the cartridge, the particulate protection is guaranteed present every time the cartridge is installed. The trade-off: when the prefilter would normally be clogged and changed out, with the 7583P100L you replace the entire cartridge.

Refer to the best respirator cartridge for acid gas guide for a broader view of acid-gas cartridge options across the Honeywell North line.

Key Differences

1. Particulate Class: N95 vs P100

This is the most consequential difference. N95 stops 95% of non-oily particles. P100 stops 99.97% of all particles including oil aerosols. That gap — from 95% to 99.97% — matters most in regulated-substance environments (silica, lead, hexavalent chromium, asbestos) where OSHA requires the highest available protection. For routine fiberglass dust or light acid mist in an oil-free workspace, 95% may be sufficient when airborne concentrations are well below permissible exposure limits. But if concentrations are elevated, unknown, or the substance has a very low OSHA PEL, the 99.97% P100 offers a meaningful additional safety margin.

2. Oil Resistance

The letter N in N95 explicitly means not oil-resistant. If your process involves oil mist alongside organic vapor or acid gas — cutting oil spray, mist lubricants, certain spray coatings — the 7506N95 prefilter will degrade faster and may fall below its rated efficiency before the end of the shift. The P100 layer in the 7583P100L is oil-proof. This is not a minor distinction; for any oil-aerosol environment the N95 prefilter is the wrong choice and the 7583P100L is the correct one.

3. Setup Integrity Risk

A two-part setup (N75003L + prefilter) introduces the possibility of human error: forgetting to attach the prefilter, attaching it incorrectly, or running with a clogged prefilter because replacement stock ran out. The 7583P100L eliminates this failure mode — the P100 layer is always there and cannot be detached in the field.

4. Prefilter Replacement Economy

The flip side of setup integrity is cost flexibility. When the N75003L's prefilter clogs from heavy dust loading, you replace only the inexpensive prefilter — the cartridge body, which carries the expensive sorbent, is discarded only when the gas/vapor capacity is exhausted. With the 7583P100L, when the P100 layer approaches end of life or when the cartridge has been on a change-out schedule for gas capacity, you replace the whole unit. In high-dust, low-gas environments, the prefilter-swap economy of the two-part setup can represent meaningful cost savings over time.

5. Profile and Fit

The N75003L + prefilter + retainer stack is physically larger and heavier than the 7583P100L cartridge alone. In confined spaces or tasks requiring close-range visibility, the lower-profile single-cartridge design of the 7583P100L may be an ergonomic advantage.

Which One Should You Choose?

Start with your hazard assessment and SDS sheets. The deciding factors are:

• Oil aerosols present? → 7583P100L (N95 is not oil-resistant)
• Regulated substances at elevated concentrations (silica, lead, Cr(VI))? → 7583P100L (P100 margin)
• Particulate loading is light, contaminants are non-oily, concentrations are manageable? → N75003L + 7506N95 is a valid and economical choice
• Concerned about setup consistency across workers? → 7583P100L eliminates the "forgot to clip the prefilter" risk
• High dust, moderate gas, and you want to swap prefilters independently? → N75003L + 7506N95 reduces cartridge waste

When in doubt, choose the 7583P100L. Upgrading from N95 to P100 is never a compliance problem; downgrading when P100 is required is. Read more at How to Choose a Respirator Cartridge.

Best Applications by Job Site

N75003L + 7506N95: Strongest Use Cases

• Fiberglass laminating (resin + acid catalyst, non-oily dust): Styrene vapor, acid hardener fumes, and glass fiber particulate — all non-oily — make this a natural fit. Prefilter swaps are practical when fiberglass loading is heavy.
• Chemical handling in dry warehouse environments: HCl drum transfers, acid solution mixing in low-aerosol settings where mist generation is controlled.
• Etching and PCB fabrication (light aerosol, acid vapor): Ferric chloride or acid etch vapors with minimal mist and no oil aerosols.
• Resin pouring (non-oil, light dust): Epoxy or vinyl ester work with particulate from sanding dried resin — non-oily, manageable concentrations.

7583P100L: Strongest Use Cases

• Metal etching with coolant mist: Acid vapors plus oil-based coolant aerosol — the N95 would degrade; P100 handles it.
• Spray coatings with acid-cure hardeners: Isocyanate/acid catalyst spray painting generates both OV and acid gas alongside paint particulate; P100 is required for the spray mist.
• Hazardous waste handling (mixed unknown aerosols): When you cannot rule out oil aerosols, P100 is the only defensible choice.
• Semiconductor fab, high-purity acid processes: HF and HCl at elevated concentrations alongside process aerosols; P100 + acid gas is the correct specification.
• Welding-adjacent tasks with flux and acid gas: Flux fume contains particulate, OV, and sometimes HCl or HF depending on flux chemistry; 7583P100L covers the full profile.

When NOT to Use Each Option

Do NOT use N75003L + 7506N95 when:

• Oil aerosols are present (coolants, lubricant spray, certain coatings) — the N95 prefilter is not rated for oil environments.
• Particulate concentrations approach or exceed OSHA permissible limits for regulated substances (silica dust, lead fume, Cr(VI)) — the 5% pass-through on an N95 may not provide adequate protection factor.
• The N75003L is installed WITHOUT the 7506N95 prefilter — in that configuration, you have no particulate protection at all.
• Workers cannot reliably attach and inspect the prefilter-retainer assembly — use the 7583P100L instead.

Do NOT use 7583P100L when:

• Your sole hazard is particulate with no gas or vapor — the 7583P100L costs significantly more and its gas sorbent capacity will go unused. Use the 7580P100 instead.
• Only organic vapor is present with no acid gas and no oil aerosols — the less expensive 7581P100L (OV + P100 only) may be sufficient and reduces chemical sorbent cost.

Compatibility: Honeywell North N-Series Respirators

Both options use the Honeywell North bayonet cartridge connection. The N75003L, 7506N95 prefilter, and 7583P100L are all compatible with:

• Honeywell North 5500 Series half masks
• Honeywell North 7700 Series half masks — including the 770030 half mask
• Honeywell North 5400 Series full facepieces
• Honeywell North 7600 Series full facepieces

For the two-part setup, the 7506N95 prefilter clips over the N75003L cartridge body using a North prefilter retainer/cover (sold separately — keep a supply on hand). The 7583P100L installs directly into the same bayonet mounts with no retainer needed. Browse all compatible filters and cartridges at the Honeywell North respirator filters and cartridges collection.

Cost and Practicality

The N75003L + 7506N95 setup separates gas-capacity cost from particulate-filter cost. In dusty environments where the prefilter clogs faster than the gas sorbent exhausts, you replace only the inexpensive prefilter disc, extending the life of the more expensive cartridge body. This makes the two-part approach economical when particulate loading is high relative to gas/vapor exposure duration.

The 7583P100L is a single-purchase replacement, which simplifies inventory and eliminates the retainer/prefilter SKU. In low-dust, higher-gas environments, the 7583P100L may even be more cost-effective because the entire unit is replaced on the gas-capacity change-out schedule regardless of particulate loading — eliminating the need to track two separate schedules.

Evaluate both total cost per shift (cartridge + prefilter spend divided by use frequency) and the cost of a compliance error when making your final call.

Replacement and Service Life

OSHA 29 CFR 1910.134(d)(3)(iii) requires a written cartridge change-out schedule for all gas and vapor cartridges. The schedule must be based on contaminant identity, concentration, temperature, humidity, and breathing rate. There is no approved end-of-service-life indicator (ESLI) for OV or acid gas cartridges — replace on schedule, not on smell alone (though breakthrough odor always triggers immediate replacement).

• N75003L: Replace per your written schedule for OV/acid gas capacity. Replace the 7506N95 prefilter when breathing resistance increases noticeably or after heavy dust exposure — typically more frequently than the cartridge itself in high-dust environments.
• 7583P100L: Replace the entire cartridge per the OV/acid gas change-out schedule. The P100 layer is the same in both scenarios. There is no separate prefilter to track.
• Neither filter/cartridge should be shared between workers. Label cartridges with the installation date.

Related Alternatives in the Honeywell North Line

Depending on your exact hazard profile, these related North options may also apply:

• N75002L — Acid Gas only cartridge: When OV is not a hazard and you need acid gas plus particulate via prefilter (compare with the 7582P100L integrated option).
• 7582P100L — Acid Gas + P100: The integrated equivalent of N75002L + prefilter for acid-gas-only environments requiring oil-proof P100.
• 75SCP100L — Multi-Contaminant + P100: Broadest combined coverage — OV, acid gas, and additional contaminants, with P100. For complex mixed-hazard environments.
• 7506R95 — R95 Prefilter: An upgrade over the 7506N95 for environments with minor, time-limited oil aerosol exposure (single-shift rating). Not oil-proof. Still less robust than P100 for oil environments.

Frequently Asked Questions

Final Recommendation

For work involving organic vapor, acid gas, AND particulate — etching, chemical handling, fiberglass/resin with acid byproducts, catalyzed coatings — the 7583P100L is the safer, simpler, and more reliable default. Its integrated P100 layer means 99.97% oil-proof particulate protection is always present, always at the correct efficiency class, and cannot be left off by accident. The N75003L + 7506N95 setup is a legitimate and practical choice in strictly non-oily, light-particulate environments where prefilter swap frequency justifies the two-part approach. The key discipline: never run an N75003L without its prefilter, never use it in oil-aerosol environments, and never mistake the N95 prefilter for gas/vapor protection. Use the Honeywell North Cartridge Guide to review the full lineup and confirm your selection against your SDS.
