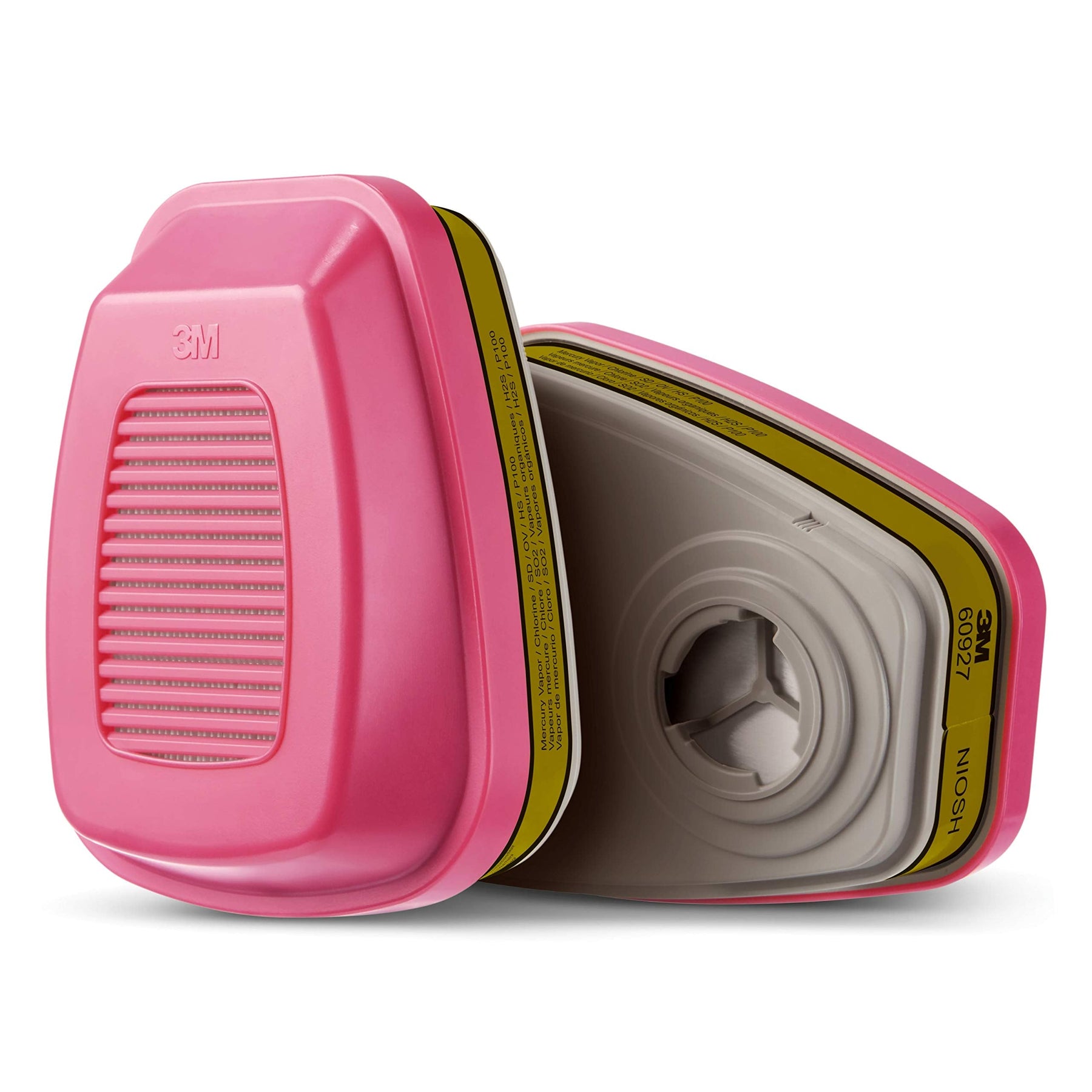

3M 60927 Mercury Vapor+P100 Cartridge Review: The Only 3M Cartridge for Mercury Vapor Environments
3M 60927 Mercury Vapor + P100 Combination Cartridge Review: NIOSH-Approved Mercury Vapor Protection with P100 Particle Filtration for Industrial Respirators
The 3M 60927 is a specialized combination cartridge providing NIOSH-certified mercury vapor and organic vapor protection paired with P100 particle filtration — the only 3M combination cartridge with mercury vapor coverage. This review covers NIOSH certification, the regulatory context for mercury vapor exposure, 3M bayonet compatibility, service life considerations, and when this cartridge is required versus other 3M gas cartridges.
What Mercury Vapor Protection Requires: NIOSH 42 CFR Part 84 Context
Mercury vapor (Hg) is a neurological toxin with an OSHA PEL of 0.1 mg/m³ (ceiling, 8-hour) and a NIOSH REL of 0.05 mg/m³. Mercury exposure occurs in:
- Fluorescent lamp manufacturing and recycling
- Thermometer and scientific instrument manufacturing
- Dental amalgam preparation and removal
- Chlor-alkali production
- Mining and smelting operations where mercury is a byproduct
- Laboratory environments with mercury-containing equipment
Standard organic vapor cartridges (3M 6001, 6003) are NOT rated for mercury vapor — their activated carbon media does not provide reliable mercury protection. The 3M 60927 uses specialized sorbent media formulated for mercury vapor breakthrough testing per NIOSH 42 CFR Part 84. When mercury vapor is the hazard, only a mercury-rated cartridge provides compliant protection.
3M 60927 NIOSH Certification Details
| Parameter | Value |
|---|---|
| NIOSH Approval | OV/HgP100 — Organic Vapor, Mercury Vapor, P100 Particles |
| Filter efficiency | P100: ≥99.97% against 0.3 µm test aerosol |
| Mercury vapor | NIOSH-tested per 42 CFR Part 84 criteria |
| Mount type | 3M Bayonet (twist-on) |
| Sold as | Pair (cartridges must be replaced in pairs) |
| ESLI | No — change schedule required |
The P100 filter element is co-rated for any oil-present aerosol environment, making the 60927 appropriate for mercury vapor operations where oil mist may also be present (a P rating, not N or R).
Compatibility with 3M Respirators
3M Bayonet Mount System: Compatibility Guide
All 3M cartridges and filters reviewed here use the 3M bayonet (twist-on) mount — compatible with:
- 3M 6000 Series half-face respirators: 6100 (S), 6200 (M), 6300 (L)
- 3M 6500 Series half-face: 6501QL, 6502QL, 6503QL (Quick Latch)
- 3M 7500 Series half-face: 7501, 7502, 7503
- 3M 6800/6900 Series full-face: 6800 (M), 6900 (L), with appropriate adapter
Incompatibility warning: 3M bayonet mount cartridges are NOT interchangeable with Honeywell North bayonet cartridges. The thread pattern differs. Do not attempt cross-brand use — improper fit defeats the respirator seal. View all NIOSH-certified respirators at WCSafety.com.
Mercury Cartridge Service Life and Change Schedule
Mercury vapor cartridges have limited service life that is heavily environment-dependent. OSHA 1910.134 requires a written change schedule. For mercury vapor:
- 3M publishes a mercury cartridge service life calculator — use measured workplace mercury concentration, temperature, and humidity as inputs
- At low concentrations (<0.05 mg/m³) and normal humidity (50%), service life may extend to a full shift
- At higher concentrations or elevated humidity, service life shortens significantly
- There is no ESLI on the 60927 — rely on calculated service life, not odor detection (mercury vapor has a faint odor near IDLH but is not a reliable warning property)
Because mercury vapor IDLH is relatively low (10 mg/m³) and the odor threshold is poor, calculated change schedules are essential — breakthrough detected by smell occurs dangerously close to harmful levels.
Assigned Protection Factors: Half-Face vs. Full-Face Respirator
The cartridge/filter provides the chemical protection; the facepiece determines the fit factor and therefore the assigned protection factor (APF) under OSHA 1910.134:
| Respirator Type | OSHA APF | Maximum Use Concentration |
|---|---|---|
| Half-face air-purifying | 10 | 10× IDLH/PEL (whichever lower) |
| Full-face air-purifying | 50 | 50× IDLH/PEL |
| Powered air-purifying (PAPR) hood | 25 | 25× IDLH/PEL |
| PAPR tight-fitting | 50 | 50× IDLH/PEL |
The 3M 6001, 6002, 6003, 6004 cartridges can only be used on respirators up to and including the half-face rating (APF 10). The same gas-type cartridges mounted on 3M 6800/6900 full-face respirators provide APF 50. Selection of half-face vs. full-face depends on contaminant concentration relative to IDLH/PEL.
OSHA 1910.134 Cartridge Change Schedule Requirements
OSHA 29 CFR 1910.134(d)(3)(iii) prohibits the use of an air-purifying cartridge beyond its service life. Employers must implement a cartridge change schedule based on objective information or data to ensure cartridges are changed before breakthrough occurs. Methods:
- ESLI (End-of-Service-Life Indicator): Some cartridges include a color-change indicator that signals approaching breakthrough. 3M color-change OV cartridges (including 60921, 60923) feature ESLI. The cartridges in this review do not all include ESLI — verify your specific model.
- Published cartridge service life tables: OSHA provides a "Respirator Cartridge/Canister Service Life" guidance document. For organic vapor cartridges, service life depends on concentration, humidity, temperature, and work rate.
- Change before each shift: When objective data is unavailable, OSHA accepts a conservative approach of changing cartridges before each shift. For high-concentration environments, pre-shift change is often the only safe protocol.
- Odor/taste/irritation: Breakthrough detected by the wearer is NOT a reliable change schedule — OSHA explicitly states that sensory detection indicates the cartridge has already failed. Odor breakthrough means exposure has occurred.
Always document cartridge change schedules as part of your written respirator program required under OSHA 1910.134(c)(1).
Frequently Asked Questions
Q: Can I use the 3M 60927 in a dental office for amalgam work?
A: Yes — the 60927 provides mercury vapor protection appropriate for amalgam handling. However, dental aerosol exposure also includes biological hazards — the P100 filtration handles particulates but does not address splatter or biological aerosols. Consult your dental safety program requirements for additional PPE needs beyond the respirator.
Q: Is mercury vapor an IDLH hazard at typical workplace concentrations?
A: NIOSH IDLH for mercury vapor is 10 mg/m³. At IDLH concentrations, air-purifying respirators are not permitted — only supplied-air respirators (SCBA or SAR) can be used. The 60927 is appropriate for concentrations at or below APF × PEL/REL limits. At mercury levels approaching or exceeding IDLH, switch to supplied-air protection.
Q: Why are mercury cartridges sold in pairs?
A: All 3M half-face respirators use two cartridges simultaneously (one on each side) for balanced breathing resistance and symmetrical protection. Replacing one cartridge and not the other results in mismatched service life — always replace both simultaneously. Full-face respirators use a single cartridge or canister at the center.
Q: Does the 60927 protect against elemental mercury liquid splashes?
A: No — the 60927 is a vapor-phase cartridge designed for mercury vapor (Hg°). Liquid mercury splashes require liquid-resistant face protection (chemical splash goggles, face shield) in addition to respiratory protection. The P100 filter handles mercury-containing particles or aerosols, not bulk liquid contact.
Q: What is the difference between the 3M 60927 and 3M 60926?
A: The 3M 60926 is the OV/HgP100 in a multi-pack configuration; the 60927 is the standard retail/industrial pack. Both provide identical NIOSH certification and protection. The 60921 is an OV/P100 without mercury vapor coverage — confirm the exact model when ordering for mercury environments.
Q: Can the 60927 be used for organic vapor as well?
A: Yes — the 60927 carries OV/HgP100 certification, providing organic vapor protection in addition to mercury vapor. It is suitable for mixed environments where both solvent vapors and mercury vapor are present. The OV rating covers common industrial solvents per NIOSH 42 CFR Part 84.
Q: What respirator is recommended for mercury vapor work at APF 50?
A: For operations requiring APF 50, use the 3M 6800/6900 full-face respirator with the 60927 cartridge (or equivalent mercury/P100 canister). Full-face provides APF 50 versus the half-face APF 10, allowing work at concentrations up to 5 mg/m³ (50 × 0.1 mg/m³ PEL).
Q: Where do I buy the 3M 60927?
A: The 3M 60927 is available at WCSafety.com. All respirator cartridges are verified for current NIOSH certification status before listing.
Q: How should I dispose of used mercury cartridges?
A: Used mercury cartridges contain adsorbed mercury and may require disposal as hazardous waste under EPA regulations, depending on concentration. Do not dispose in municipal trash without checking local hazardous waste requirements. Many mercury lamp recycling programs also accept mercury-saturated sorbent materials. Follow your workplace hazardous waste disposal procedures.
Q: Is the 60927 available with an ESLI?
A: No — the 60927 does not include an ESLI. Unlike 3M color-change OV cartridges, the mercury/P100 combination does not have an industry-standard ESLI for mercury. Employers must establish change schedules based on 3M service life data and workplace measurements.
Q: Can the 3M 60927 be used with a powered air purifying respirator (PAPR)?
A: The 60927 cartridge is designed for 3M bayonet half-face and full-face respirators, not PAPRs. 3M PAPR systems (Jupiter, Versaflo) use separate canister formats. For mercury vapor PAPR applications, consult 3M for the appropriate PAPR canister with mercury coverage.
Q: What if I cannot smell mercury but my change schedule says replace?
A: Follow the change schedule — do not rely on odor. Mercury vapor has a poor odor threshold relative to its health effects. Some workers cannot detect mercury odor at concentrations that cause neurological harm. Adhere strictly to calculated service life and never rely on sensory detection as your only indicator.
Q: Does temperature affect mercury cartridge service life?
A: Yes — higher temperatures increase mercury vapor pressure and may also reduce sorbent capacity. 3M service life calculators account for temperature. In warm environments (>70°F), service life may be shorter than at standard 25°C test conditions. Always use actual workplace temperature in service life calculations.
Q: What is the breathing resistance of the 60927 compared to a 6001 OV cartridge?
A: The 60927 adds a P100 filter element to the OV/mercury sorbent, which increases breathing resistance vs. a gas-only cartridge like the 6001. Workers who find the added resistance uncomfortable in hot or physically demanding work should discuss with their safety officer whether a PAPR with mercury-rated canister is a feasible alternative.
Q: Is medical evaluation required before using the 60927?
A: Yes — OSHA 1910.134(e) requires medical evaluation before any tight-fitting air-purifying respirator use. The medical questionnaire is required before initial fit testing and before the employee first uses the respirator. This applies to all 3M half-face and full-face respirators.
