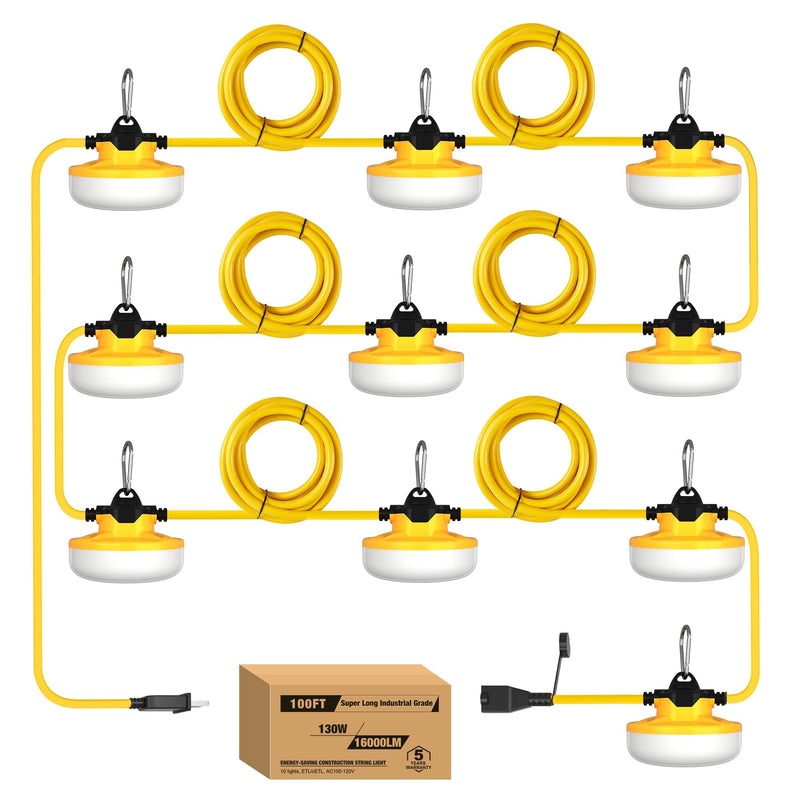

YXL 130W Construction String Lights — 100 ft, 16,000 Lumens, 5000K, IP65

As an Amazon Associate, WC Safety earns from qualifying purchases. This does not affect the price you pay.

What the YXL 130W Construction String Lights Do

Temporary jobsite lighting has a specific job that a single bright fixture does badly: covering distance evenly. A tripod work light puts a great deal of light on one zone and leaves hard shadows everywhere else. A 100-foot string with ten bulbs spread along it lights a corridor, a bay, a scaffold level, or a walkway at a consistent level end to end, which is what you want for circulation, general area work, and anywhere people are moving rather than standing — ideally in hi-vis if the area still reads as low-light.

The specifications behind that are straightforward: 130 watts producing 16,000 lumens at 5000K daylight, IP65 against dust and water jets, IK07 impact resistance, 18AWG wire on a three-prong plug, ETL listed, and rated for 50,000-plus hours. Included carabiners handle the hanging, and the run is linkable up to four sets total — 400 feet and 64,000 lumens — which is a hard manufacturer limit rather than a rough guide. The rest of our jobsite lighting covers the task-light and headlamp side.

Where a String Beats a Fixture — and Where It Doesn't

Strings win on distance and evenness. Corridors, long interior bays, scaffold runs, crawl spaces, and walkways all benefit from distributed light, and a low crawl space is a good example of somewhere a tripod simply cannot go. Fixtures win on intensity at a point: if a crew is working one panel, one weld, or one bench, concentrated light at that spot beats a general wash. Most sites that light properly run both, using strings for circulation and area coverage and moving a tripod to whatever the task of the day is.

Strings lose outright in two places. The first is any classified hazardous location, where the answer is intrinsically safe equipment and nothing else. The second is task lighting that has to move with the worker — for that, a hard hat headlamp or a rechargeable headlamp keeps the beam pointed where the person is actually looking, which no fixed installation can do.

Pros & Cons

Specifications

Related Guides

Related Products

Frequently Asked Questions

How much light does one 100 ft run actually give?

16,000 lumens from 10 bulbs across the 100-foot run, drawing 130 watts — about 123 lumens per watt. Spread over 100 feet that is a genuinely usable working level for framing, finishing, or walkway lighting, rather than the pooled hotspots you get from a single fixture. Colour temperature is 5000K daylight, which keeps colours reading true instead of the yellow cast of older temporary lighting.

What does the IP65 rating actually cover?

IP65 means dust-tight and protected against low-pressure water jets from any direction. In practice that covers rain, wind-blown dust, and hose-down conditions. What it does not cover is immersion — IP65 is not a submersible rating, so these should not be run in standing water or anywhere they could end up underwater.

Can I use these in a flammable or explosive atmosphere?

No. These are general-duty temporary lights with no hazardous-location rating. Anywhere flammable vapour, gas, or combustible dust may be present — fuel handling, solvent work, certain tank and vault entries — requires equipment specifically approved for that classification. Intrinsically safe lighting exists precisely for those environments and is not interchangeable with jobsite string lighting.

How many sets can I link together?

Up to four sets total, meaning the one you have plus three more, for a combined 64,000 lumens over 400 feet. That limit is not a suggestion — daisy-chaining beyond what the wire and connectors are rated to carry is how temporary lighting runs turn into an electrical hazard. If you need more coverage than four sets, run a second circuit rather than extending the chain.

Does this satisfy OSHA lighting requirements?

The fixture is a tool for meeting them, not a certification of compliance. OSHA sets minimum illumination levels for construction areas, and whether you meet them depends on how much light reaches the work surface in your particular layout — a 100-foot run lighting an open bay performs very differently from the same run in a partitioned interior. Measure at the work surface if the area is marginal.

What are the temporary wiring rules I should know about?

Temporary lighting on a construction site is its own regulatory category, separate from permanent installation. Lamps must be protected from accidental contact and breakage, runs must not be supported by the cord in ways they were not designed for, and temporary power on construction sites requires ground-fault circuit interrupter protection or an assured equipment grounding conductor program. Check your site's electrical plan before stringing a run.

Does this set include protective cages?

Not this configuration — YXL sells a separately listed caged version. If your site requires guarding on temporary lamps, verify the guarding on whatever you buy rather than assuming it is included, because the caged and uncaged versions look similar in listings and carry different part numbers.

How tough are the bulbs?

They carry an IK07 impact rating and are wired with 18AWG cable, which is the relevant durability spec for equipment that gets coiled, dropped, and dragged. Rated life is over 50,000 hours. That said, impact ratings describe resistance to defined test energies, not immunity — a run that gets caught by a lift or a load will still fail.

How do you hang them?

Carabiners are included, so the run clips to existing structure, scaffold, or overhead members without additional hardware. Plan the route before you start climbing: a run planned from the ground takes one trip up, while an improvised one takes several, and every extra trip at height is extra exposure. Keep a hard hat on for the overhead work.

Are they suitable for crawl spaces and confined work?

They work well in low, tight spaces where a tripod light cannot fit and where a single fixture would throw hard shadows — a distributed string lights the whole length evenly. If the space is a permit-required confined space, though, the lighting is the least of the planning: entry procedures, atmospheric testing, and attendant requirements govern that work regardless of how well lit it is.

How does a string compare to a tripod work light?

Different jobs. A tripod puts a large amount of light on one area from one point, which suits a single work zone but casts strong shadows and leaves the rest of the space dark. A string distributes light along a path, which suits walkways, corridors, long bays, and general area lighting. Sites that run both tend to use strings for circulation and area coverage and tripods for the specific task at hand.

Is ETL listing the same as UL?

Both are marks from nationally recognized testing laboratories, and both indicate the product was tested to the applicable safety standard. ETL is Intertek's mark; UL is Underwriters Laboratories'. For purposes of using listed equipment, an ETL-listed product carries the same standing as a UL-listed one — what matters is that the mark is from a recognized lab, not which lab it is.
