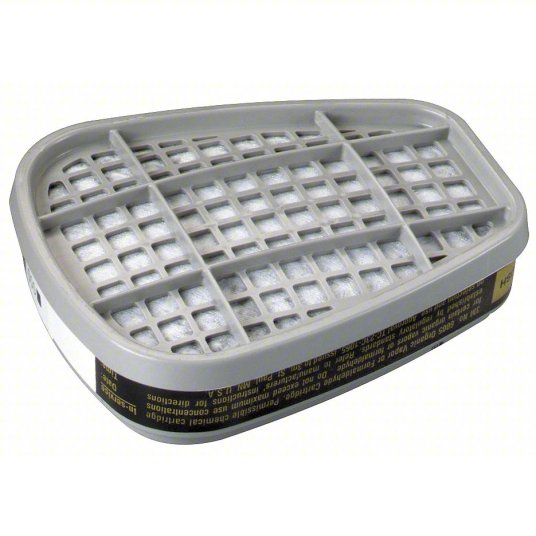

3M 6005 Formaldehyde Cartridge Review — The Standard for Lab and Mortuary Work

3M 6005 Formaldehyde/OV Respirator Cartridge Review: Vapor-Only Formaldehyde Protection with Lower Breathing Resistance

Not every formaldehyde environment generates particulate matter. In clean laboratories, controlled pathology workflows with exhausted grossing stations, and embalming operations in well-ventilated preparation rooms, the predominant exposure is vapor-phase formaldehyde — not mist or aerosol. For these applications, the 3M 6005 Formaldehyde/OV Respirator Cartridge delivers OSHA 1910.1048-compliant formaldehyde protection with lower breathing resistance than combination cartridges that include a P100 filter layer.

The distinction between the 6005 and the 3M 60925 (which adds P100 particulate protection) is not trivial — it's the difference between appropriate protection and over-protection that adds unnecessary breathing resistance, or under-protection that misses particulate hazards. This review helps you determine which scenario applies to your formaldehyde work.

The 6005's Specific Chemistry: Why Generic OV Cartridges Are Inadequate for Formaldehyde

This is the same technical issue addressed in the 60925 review, but it's worth restating here because it's the core reason the 6005 exists as a separate product: standard activated carbon OV cartridges (like the 60921) provide inadequate protection against formaldehyde at concentrations near the OSHA PEL.

Formaldehyde (HCHO) is a small, polar aldehyde molecule with a high vapor pressure and low molecular weight. These properties result in poor physical adsorption to standard activated carbon. The 6005 uses chemically impregnated activated carbon — a reactive sorbent that forms a chemical bond with formaldehyde molecules rather than relying on reversible physical adsorption. This dramatically improves formaldehyde capacity at low concentrations relative to standard OV carbon.

OSHA explicitly recognized this chemistry distinction in its formaldehyde standard (29 CFR 1910.1048(h)(2)), which requires that cartridges used for formaldehyde protection be "approved for use against formaldehyde." Generic OV cartridges, even with high-quality activated carbon, do not meet this requirement for formaldehyde-specific protection.

When to Choose 6005 Over 60925

The choice between the 6005 (vapor-only) and the 60925 (formaldehyde/OV/acid gas/P100) comes down to one question: is there particulate matter in the air alongside the formaldehyde vapor?

When in doubt, default to the 60925 — the additional P100 protection adds modest breathing resistance but closes any uncertainty about particulate exposure. The 6005 is the specific choice when you've confirmed through hazard assessment that the exposure is vapor-only and the lower breathing resistance provides meaningful comfort or compliance benefit.

Primary Application: Pathology and Histology Laboratories

Histotechnicians working with formalin — the standard tissue fixative used in virtually every clinical and research pathology laboratory — represent the core 6005 use case. A properly engineered grossing station with an exhausted work surface and local exhaust ventilation (LEV) captures the majority of formalin vapor at the source. Air monitoring in well-designed labs often shows formaldehyde concentrations between 0.1 and 0.5 ppm at the worker's breathing zone — near but potentially above the action level.

For histotechs working with engineering controls in place who need supplemental respiratory protection to reach compliance below the PEL, the 6005's lower breathing resistance makes it preferable to the 60925 for long-shift wear comfort. A histotech processing specimens for an 8-hour shift benefits from the reduced inspiratory effort of the 6005 when the hazard assessment confirms the engineering controls are managing particulate.

NIOSH health hazard evaluations (HHEs) of histology departments consistently identify ventilation deficiency as the primary formaldehyde control failure. Respiratory protection including the 6005 is the last line of defense in the hierarchy of controls — not a substitute for adequate LEV. But when LEV is in place and supplemental protection is needed, the 6005 is appropriate.

Funeral Industry Applications

Embalming fluid contains formaldehyde at 2–5% concentration in working solutions (higher in concentrated index solutions). Embalmers are one of the most consistently formaldehyde-exposed occupational groups. OSHA inspections of funeral homes frequently find formaldehyde exposures above the action level in preparation rooms with inadequate ventilation.

For embalmers who have implemented adequate engineering controls (local exhaust over the preparation table, general ventilation meeting air change requirements, formaldehyde-reducing embalming formulations) but still need respiratory protection for residual exposure, the 6005 provides OSHA 1910.1048-compliant formaldehyde protection. For higher-volume embalming operations, or facilities where engineering controls are inadequate, the 60925 (with P100 for aerosol from embalming fluid) is the more conservative and generally recommended choice.

Adding P100 Protection When Needed: The Modular Approach

One approach available to 3M half-mask users is using the 6005 in combination with an externally mounted P100 pre-filter. The 3M 5N11 N95 or 3M 2091 P100 filter can be mounted on the outside of certain 3M cartridge configurations using a filter retainer. This modular approach lets you use the 6005's formaldehyde chemistry with P100 particulate protection added externally when particulate enters the hazard profile.

However, for most users, simply using the 60925 in any situation where particulate might be present is simpler and more reliable than managing the modular configuration. The 6005 shines in genuinely vapor-only environments where simplicity and lower breathing resistance are priorities.

OSHA 1910.1048 Compliance Requirements for the 6005

Using the 6005 in a formaldehyde program requires the same compliance infrastructure as any other cartridge under 1910.1048 and the general respiratory protection standard:

• Medical evaluation: Required before the worker uses any respirator (29 CFR 1910.134(e)).
• Fit testing: Required for tight-fitting facepieces including half-masks. Must be repeated annually and when facepiece or weight changes occur (29 CFR 1910.134(f)).
• Written change schedule: Required for the formaldehyde sorbent component. Develop based on 3M's service life data and your measured formaldehyde concentrations from air monitoring.
• Training: Workers must be trained annually on proper use, limitations, and maintenance of the 6005 and the associated facepiece (29 CFR 1910.1048(n)).

For guidance on NIOSH certification and the regulatory framework, see the NIOSH standards guide. For respirator selection, browse the half mask respirators collection and 3M respirator cartridges and filters collection. The 3M filter cartridge guide provides the complete selection decision tree.
