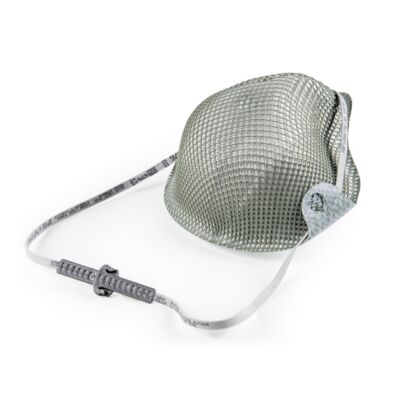

Moldex 2601N95 HandyStrap Low Profile Review — Small-Size Unvalved N95
Moldex 2601N95 HandyStrap Low Profile Review: Small-Size Unvalved N95 for Face Shield and Hard Hat Programs
Manufacturer: Moldex-Metric  | SKU / Part Number: 2601N95  | Series: Moldex Low Profile HandyStrap N95
The respirator selection process for workers who simultaneously wear hard hats, face shields, and require source-control-eligible respiratory protection is surprisingly narrow. Most standard-projection cup respirators contact the lower edge of a face shield, creating either a gap in protection or an uncomfortable pressure point that pushes the shield upward. The Moldex Low Profile HandyStrap line — of which the 2601N95 is the Small-size variant — was engineered to solve exactly this problem. A shallower cup dome reduces forward projection so the shield sits cleanly without lifting or tilting, while the HandyStrap single-strap geometry routes the elastic behind the head rather than over the crown, keeping the headband clear of hard hat suspension systems.
This review covers who the 2601N95 is built for, how it compares to other Moldex small-size N95 options, and whether the Low Profile HandyStrap design justifies choosing it over standard cup geometries.
Product Specifications
| Feature | Detail |
|---|---|
| Model | Moldex 2601N95 HandyStrap Low Profile |
| Size | Small |
| NIOSH Rating | N95 — ≥95% filter efficiency, not oil-resistant |
| NIOSH Approval | TC-84A-0007 |
| Facepiece Style | Cup, Low Profile (reduced forward projection) |
| Headstrap | HandyStrap single-strap system |
| Exhalation Valve | None (unvalved — source-control eligible) |
| Nose Clip | Attached foam-lined M-nose clip |
| Quantity per Box | 20 |
| Country of Origin | USA |
| Companion Models | 2607N95 (Medium/Large Standard), 2602N95 (Small Valved) |
The HandyStrap Design: What It Is and Why It Matters
Standard N95 cup respirators use two elastic headbands — one crossing the crown of the head, one behind the neck. This configuration interferes directly with hard hat suspension webbing, pushing the hat forward or preventing proper seating of the headband in the suspension slots. The HandyStrap replaces this with a single elastic strap that routes horizontally across the back of the head at approximately ear level, entirely below the hard hat suspension, eliminating the conflict.
The practical result: workers can don and doff the 2601N95 without removing their hard hat. This is a meaningful compliance benefit on construction sites, manufacturing floors, and utilities maintenance operations where hard hat removal is either prohibited or operationally disruptive.
Low Profile Cup: Face Shield Compatibility
Standard N95 cup respirators project 2–3 inches forward from the face. This forward projection causes the lower edge of a face shield to contact the cup, tilting the shield upward and creating a gap at the chin — exactly where grinding sparks, chemical splash, and grinding swarf travel. The Low Profile dome reduces this projection by approximately 30%, allowing most standard face shields to seat flush against the forehead without contacting the cup.
This is verified through fit testing: workers who have previously passed fit tests on standard cups but failed to achieve comfortable, non-distorted shield positioning during combined PPE use will typically pass both tests when switching to a Low Profile geometry.
NIOSH Compliance and OSHA 29 CFR 1910.134
The 2601N95 carries NIOSH TC-84A-0007 approval, confirming it meets 42 CFR Part 84 N95 efficiency and resistance standards. Under OSHA 29 CFR 1910.134, any employer requiring workers to wear respirators must maintain a written Respiratory Protection Program including:
- Hazard assessment and respirator selection based on APF (N95 = APF 10)
- Medical evaluation before initial use of any tight-fitting respirator
- Annual fit testing — qualitative (QLFT) protocols are acceptable for N95 half-face respirators
- Training on proper donning, doffing, seal check, and care
Workers with facial hair intersecting the sealing surface cannot use the 2601N95 or any tight-fitting respirator. The HandyStrap design does not change this OSHA requirement — only the headband routing is modified, not the facepiece seal.
Who the 2601N95 Is For
- Small-face workers in hard hat environments who need N95 protection without constant hat removal
- Workers combining respirators and face shields — grinding, chipping, chemical splash environments where both forms of protection are simultaneously required
- Source-control programs — unvalved N95s can reduce exhalation contamination (valved respirators are not source-control eligible under CDC/OSHA guidance)
- Confined spaces and tight quarters where the reduced cup profile causes less physical interference
2601N95 vs. 2602N95: Unvalved vs. Valved
| Feature | 2601N95 (Unvalved) | 2602N95 (Valved) |
|---|---|---|
| Size | Small | Small |
| Exhalation Valve | None | Yes — Moldex Cool Flow |
| Source Control | Yes | No |
| Heat/Humidity | Higher (no valve) | Lower (valve exhaust) |
| Best For | Healthcare, clean rooms, protocols requiring source control | High-exertion outdoor work, hot environments |
If source-control eligibility is not required, the Moldex 2940 R95 valved respirator offers oil-resistant filter media and a Cool Flow valve for significantly more comfortable extended wear in warm conditions.
Fit Testing Considerations for Small-Size N95
Small-size N95s are not a universal solution for workers who fail fits on medium respirators. The 2601N95 fits workers with smaller face breadth and shorter face length — roughly the bottom 20th percentile of the working adult population. Workers should be fit tested on both Small and Medium options when near the size boundary. The Moldex 2307N95 offers a different cup geometry in a similar size that may provide an alternate fit for workers who do not seal on the 2601.
Pros and Cons
Pros
• Single HandyStrap strap — hard hat compatible
• Low Profile dome — clear face shield positioning
• Unvalved — source-control eligible
• NIOSH TC-84A-0007 certified
• Made in USA
• Foam nose liner for comfort
• Single HandyStrap strap — hard hat compatible
• Low Profile dome — clear face shield positioning
• Unvalved — source-control eligible
• NIOSH TC-84A-0007 certified
• Made in USA
• Foam nose liner for comfort
Cons
• Single strap — less sealing stability than dual-strap for some face shapes
• No exhalation valve — warmer in sustained high-exertion use
• Small size limits the addressable worker population
• Higher per-unit cost than standard dual-strap N95s
• Single strap — less sealing stability than dual-strap for some face shapes
• No exhalation valve — warmer in sustained high-exertion use
• Small size limits the addressable worker population
• Higher per-unit cost than standard dual-strap N95s
Frequently Asked Questions — Moldex 2601N95
Q: What does HandyStrap mean on the Moldex 2601N95?
A: HandyStrap refers to Moldex's single horizontal elastic strap system that routes behind the head at ear level rather than using two straps (one over the crown, one behind the neck). This allows the respirator to be worn simultaneously with a hard hat without removing it.
Q: What is the NIOSH approval number for the Moldex 2601N95?
A: The Moldex 2601N95 carries NIOSH approval TC-84A-0007 under 42 CFR Part 84. This certification confirms it meets the N95 standard: ≥95% filter efficiency against non-oil aerosols and particle penetration ≤5%.
Q: Is the Moldex 2601N95 source-control eligible?
A: Yes. Because the 2601N95 has no exhalation valve, all exhaled air passes through the filter media before exiting. This makes it source-control eligible under CDC and OSHA guidance. Valved respirators like the 2602N95 are not source-control eligible.
Q: What is Low Profile on the 2601N95?
A: Low Profile describes the reduced-projection cup geometry — the dome extends less forward from the face than a standard N95 cup. This allows face shields to seat flush against the forehead without contacting the respirator cup, which is critical when face shield + respirator combinations are required simultaneously.
Q: Does the Moldex 2601N95 require fit testing under OSHA?
A: Yes. Any tight-fitting respirator used in an OSHA-regulated workplace requires fit testing. OSHA 29 CFR 1910.134 requires fit testing before initial use and annually thereafter. Both qualitative (QLFT) and quantitative (QNFT) protocols are acceptable for N95 half-face respirators.
Q: Can I wear the Moldex 2601N95 with safety glasses?
A: Yes. The reduced cup profile and lower face position of the 2601N95 typically allow standard safety glasses to be worn without breaking the facial seal. Workers should perform a seal check after donning with glasses to verify no leakage exists at the nose bridge or cheek seal area.
Q: How does the 2601N95 differ from the Moldex 2607N95?
A: The 2607N95 is the standard (Medium/Large) HandyStrap Low Profile model. The 2601N95 is the Small-size version of the same design, intended for workers with smaller facial dimensions who cannot achieve a seal on the 2607. Cup geometry and strap design are identical; only size differs.
Q: Can someone with a beard wear the Moldex 2601N95?
A: No. OSHA 29 CFR 1910.134 prohibits tight-fitting respirators for any worker with facial hair that contacts the sealing surface. The 2601N95 is a tight-fitting respirator and requires a clean-shaved face in the sealing area.
Q: What particle sizes does the N95 filter handle?
A: NIOSH N95 certification requires ≥95% filter efficiency against sodium chloride or dioctyl phthalate (DOP) aerosols with a mass median aerodynamic diameter (MMAD) of approximately 0.3 microns — the most penetrating particle size for electrostatic filters. Efficiency is higher at both larger and smaller particle sizes.
Q: Is the Moldex 2601N95 made in the USA?
A: Yes. Moldex manufactures all its N95 respirators in the United States at its Culver City, California facility. This is relevant for government procurement requirements and Buy American provisions that specify domestically manufactured NIOSH-approved respirators.
Q: What applications is the Moldex 2601N95 designed for?
A: The 2601N95 is designed for industrial environments where workers simultaneously use hard hats and face shields — construction, utilities, manufacturing, mining, and chemical processing. It also suits source-control programs in healthcare and food processing settings where its unvalved design is required.
Q: How many respirators come in a box of Moldex 2601N95?
A: Each box of Moldex 2601N95 contains 20 respirators. Bulk pricing is available for industrial programs requiring multiple boxes for distribution programs or safety stock.
Q: Does the single HandyStrap provide as good a seal as dual-strap N95s?
A: When fit tested and properly sealed, yes — the seal effectiveness depends on facepiece-to-face conformance, not strap count. However, some workers find that the single-strap geometry is less stable during rapid head movement compared to dual-strap designs. Workers should fit test both options and choose based on actual measured fit factor.
Q: What is the N95's assigned protection factor under OSHA?
A: Under OSHA 29 CFR 1910.134 Table 1, filtering facepiece respirators (including N95 disposables) have an Assigned Protection Factor of 10. This means they are approved for use in atmospheres where airborne hazard concentrations are at or below 10× the permissible exposure limit.
Q: Where can I buy the Moldex 2601N95?
A: The Moldex 2601N95 is available at WC Safety and on Amazon Check Price on Amazon →. WC Safety carries the full Moldex N95 and R95 line for industrial safety programs.
