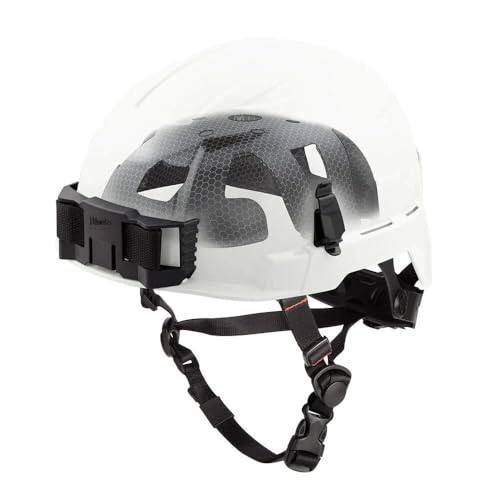

Milwaukee BOLT Safety Helmet, IMPACT ARMOR Liner, Type 2 Class E, White

The Milwaukee BOLT Safety Helmet with IMPACT ARMOR Liner is a Type 2, Class E head protection platform that combines ANSI Z89.1 lateral-impact certification with an integrated RHEON-technology liner engineered to attenuate oblique impact energy — the impact vector responsible for the majority of traumatic brain injuries in construction falls. Rated Class E (20,000 volts) in a non-vented full brim configuration, the BOLT IMPACT ARMOR is Milwaukee's top-tier head protection specification, positioned for electrical contractors, utility linemen, and industrial workers who require the highest available dielectric rating alongside lateral-impact certification. For the complete range of safety helmets, see the full collection.

Construction and Design

The IMPACT ARMOR liner is constructed using RHEON technology — a non-Newtonian material that stiffens under the rapid loading conditions of an impact event while remaining flexible during normal wear. This behavior addresses oblique impacts, where the head strikes a surface at an angle: standard foam liners compress linearly but may not efficiently arrest rotational and lateral energy components, whereas the RHEON material responds to multi-directional loading. The BOLT System provides standardized attachment points for Milwaukee-compatible accessories including face shields, eye visors, and hearing protection components, enabling rapid PPE configuration changes without adapter tools. The padded suspension distributes crown load for extended shift comfort, the adjustable chin strap maintains helmet positioning during dynamic work, and the ratchet adjustment calibrates to head circumference at the rear. All accessories — suspension pads, brow pads, chin strap — are machine-washable, supporting hygiene compliance in multi-user programs. The shell is manufactured in the United States.

Compliance and Ratings

The Milwaukee BOLT IMPACT ARMOR is certified to ANSI/ISEA Z89.1 Type 2, Class E. Type 2 (also written Type II) designates testing for both top-of-head and lateral impact attenuation — the full lateral-impact test requirement that Type 1 hard hats are not subjected to. Class E — Electrical — is the highest dielectric rating under Z89.1, qualifying the helmet for use near exposed electrical conductors up to 20,000 volts phase-to-ground. The non-vented shell maintains the continuous dielectric barrier required for Class E certification; this helmet is not a vented product. For workers who need vented comfort with Type 2 certification, the non-electrical Class C Milwaukee Bolt Vented Safety Helmet is available in the safety helmets collection. The RHEON liner provides enhanced oblique impact attenuation beyond the baseline ANSI Type 2 requirements; it is not a replacement for a certified climbing helmet where EN 12492 or UIAA 106 applies.

Performance Assessment

The RHEON liner's primary performance advantage over standard foam-lined Type 2 helmets is oblique impact attenuation — a factor increasingly recognized in construction head injury research as critical to reducing traumatic brain injury severity. Standard ANSI Z89.1 Type 2 testing applies a vertical drop protocol; oblique impacts at angles of 45–60 degrees produce rotational acceleration that vertical testing does not assess. The RHEON material's non-Newtonian response provides a meaningful margin of protection in fall and struck-by scenarios beyond the test standard minimum. The Class E rating with non-vented shell is the correct specification for electrical contractors who cannot accept ventilation openings in dielectric head protection. The BOLT accessory system is Milwaukee's current PPE platform standard; compatible face shields, ear protection brackets, and headlamps integrate without aftermarket adapters. Machine-washable components support multi-shift shared-use programs without hygiene degradation between users. Availability on Amazon was not confirmed at time of import — verify current pricing and stock before promoting.

Strengths

• RHEON technology liner provides oblique impact attenuation beyond ANSI Type 2 baseline requirements
• Class E dielectric rating — 20,000 V phase-to-ground, the highest available under ANSI Z89.1
• Type 2 lateral-impact certification for side and top protection in one platform
• BOLT System accessory compatibility — face shields, visors, and hearing protection integrate without tools
• Machine-washable suspension pads and accessories — supports shared-use hygiene programs
• Made in USA — domestic manufacturing documentation available

Limitations

• Non-vented shell — no airflow; may be uncomfortable in sustained high-heat outdoor environments
• Amazon availability unconfirmed at time of import — verify stock and current pricing before ordering
• Premium pricing tier — standard Type 2 Class E alternatives are available at lower cost from the safety helmets collection

Recommended Use Cases

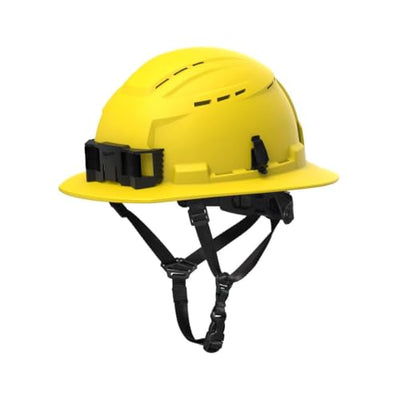

The Milwaukee BOLT IMPACT ARMOR is suited for electrical contractors performing high-voltage work requiring Class E dielectric protection with the added injury-risk reduction of RHEON oblique impact attenuation. It is also appropriate for utility linemen, telecommunications tower workers, and industrial maintenance personnel who require maximum dielectric rating and are deploying Milwaukee's BOLT accessory ecosystem across their PPE program. For non-electrical environments where ventilation is a priority, the Class C Milwaukee Bolt Vented Safety Helmet provides the same BOLT accessory compatibility in a vented configuration. Workers requiring only top-impact protection without the Type 2 lateral certification premium should evaluate Class E hard hats from the hard hats collection.

Verdict

The Milwaukee BOLT Safety Helmet with IMPACT ARMOR Liner represents the top specification in Milwaukee's head protection lineup — Class E electrical rating, Type 2 lateral-impact certification, RHEON oblique impact liner, and BOLT accessory system integration from a domestically manufactured platform. It is the correct specification for electrical contractors and utility workers who require Class E protection with enhanced oblique impact attenuation. Buyers who work in non-electrical environments or require ventilation should evaluate alternative Milwaukee Bolt configurations or other Type 2 options from the safety helmets collection.
