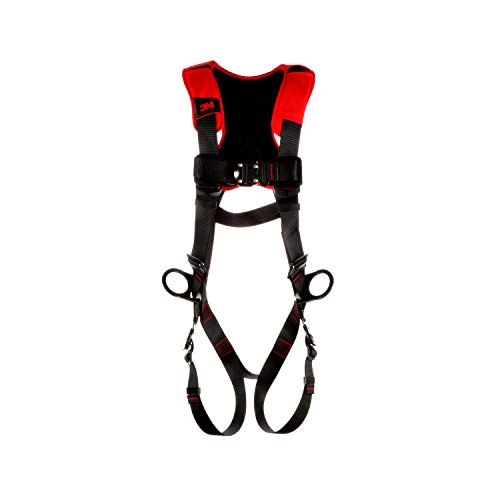

3M Protecta 1161401 Full Body Harness, Medium/Large

3M Protecta 1161401 Full Body Harness, Medium/Large

The 3M Protecta 1161401 Protecta full body harness is a straightforward, reliable, ANSI/ASSE Z359.11-compliant fall arrest harness for general industry, construction, maintenance, and warehousing. The Back D-ring with positioning loops provides the primary fall arrest connection point, and the Mating buckle leg straps allow efficient donning. The 420-lb capacity accommodates a broad range of workers and typical tool loads, and the Medium/Large sizing ensures a secure fit across a wide range of body types. This harness meets all requirements of OSHA 29 CFR 1926.502 for personal fall arrest systems.

Vendor: 3M Protecta | Part Number: 1161401 | ASIN: B07G9QVKMC | Parent ASIN: B07G9QVKMC | Size: Medium/Large
Buy 3M Protecta 1161401 on Amazon ↗

Technical Specifications

OSHA 29 CFR 1926.502 and ANSI Z359.11 Compliance

Full body harnesses used in personal fall arrest systems must comply with OSHA 29 CFR 1926.502(d) and meet the design and performance requirements of ANSI/ASSE Z359.11. The 3M Protecta 1161401 is certified to both standards. Key OSHA requirements for harness selection and use include:

• Free-fall distance limit: OSHA limits free fall to a maximum of 6 feet when using a personal fall arrest system (29 CFR 1926.502(d)(16)(ii)). The deceleration distance must be limited to 3.5 feet, and the total fall distance must not allow the worker to contact a lower level.
• Anchor strength: The anchor point for a harness must support a minimum of 5,000 lb per worker attached, or be engineered by a qualified person with a safety factor of at least 2 (OSHA 29 CFR 1926.502(d)(15)).
• Harness inspection: Harnesses must be inspected before each use (OSHA 29 CFR 1926.502(d)(21)). Inspections must check all webbing, stitching, D-rings, buckles, and connectors for damage, wear, corrosion, or deformation.
• Post-fall retirement: A harness that has arrested a fall must be immediately removed from service and destroyed or tagged out — it must never be reused (ANSI Z359.11 Section 4.2).
• Suspension trauma rescue plan: OSHA requires employers to provide a prompt rescue plan for workers who experience a fall and are left suspended in their harness, as prolonged suspension can cause fatal suspension trauma (harness-induced pathology) within minutes.

Industry Applications

The 3M Protecta 1161401 Protecta is designed for general industry, construction, maintenance, and warehousing. Full body harnesses of this type are required whenever workers are exposed to fall hazards of 6 feet or more in construction (OSHA 29 CFR 1926.502) or 4 feet in general industry (29 CFR 1910.23). Specific applications where this harness is commonly specified include:

• Scaffolding and elevated platforms — OSHA requires fall protection at 10 feet on scaffolding; a full body harness is required when using a personal fall arrest system.
• Leading edge and unprotected floor openings — Areas where guardrails or safety nets are not feasible require a harness-based personal fall arrest system.
• Roof work and steep-slope roofing — Residential and commercial roofing exceeding 6:12 pitch require personal fall arrest systems including this harness type.
• Elevated work platforms (aerial lifts) — OSHA 29 CFR 1926.453 requires workers in aerial work platforms to wear a full body harness attached to the basket anchor point.
• Steel erection — OSHA's Steel Erection Standard (29 CFR 1926 Subpart R) requires fall protection when workers are exposed to falls greater than two stories or 30 feet, using certified full body harnesses.

Harness Inspection, Care, and Retirement Criteria

Per ANSI/ASSE Z359.11 and OSHA 29 CFR 1926.502(d)(21), full body harnesses must be inspected before every use. The following inspection criteria apply to the 3M Protecta 1161401:

• Webbing: Check all webbing for cuts, abrasion, burns, chemical damage, UV degradation, or fraying. Webbing that is soft, stiff, discolored, or shows any structural damage must be retired.
• Stitching: Inspect all load-bearing stitching, particularly at D-ring attachment points and adjustment loops. Broken or missing stitches are grounds for immediate retirement.
• Hardware: Inspect all D-rings, buckles, snaps, and keepers for corrosion, deformation, cracks, sharp edges, and proper function. All buckles must latch positively and fully.
• Labels: The manufacturer's label must be legible and attached. If the label is missing or illegible, the harness must be retired.
• Impact indicator: If this model has a built-in impact/fall indicator, check its status before each use. A deployed indicator signals the harness has arrested a fall and must be permanently retired.
• Service life: Follow the manufacturer's recommended service life. Most manufacturers recommend a maximum of 5–10 years from the date of manufacture, regardless of use frequency. Check the label for the manufacture date.

Store harnesses away from direct sunlight, chemicals, heat sources, and sharp edges. Hang harnesses on wide pegs or harness hooks — never coil them tightly or store them compressed under weight.

Frequently Asked Questions — Full Body Harnesses

Q: What ANSI and OSHA standards govern full body harnesses?
Full body harnesses used in personal fall arrest systems must meet ANSI/ASSE Z359.11 (Design, Performance, and Testing Requirements for Full Body Harnesses) and comply with OSHA 29 CFR 1926.502(d) for construction or 29 CFR 1910.140 for general industry. The 3M Protecta 1161401 meets both standards and is rated for use as part of a complete personal fall arrest system.

Q: What is the weight capacity of this harness?
The 3M Protecta 1161401 has a working load capacity of 420 lb. This capacity includes the worker's body weight plus all tools, equipment, and materials worn or carried at the time of the fall. Workers whose combined weight with gear exceeds this rating must select a harness with a higher capacity rating.

Q: Can I reuse this harness after it has arrested a fall?
No. Per ANSI/ASSE Z359.11 Section 4.2 and the manufacturer's instructions, any full body harness that has arrested a fall must be immediately removed from service and destroyed or permanently tagged out of service. The forces generated during fall arrest can permanently deform webbing, stitching, and hardware in ways that are not always visible but that render the harness incapable of reliably arresting a second fall.

Q: What is a dorsal D-ring and why must it be in the center of my back?
The dorsal D-ring is the fall arrest attachment point located at the back of the harness between the shoulder blades. ANSI Z359.11 and OSHA 29 CFR 1926.502 require the primary fall arrest connection to be made at the dorsal D-ring. This positioning ensures that arresting forces are distributed across the chest, shoulders, thighs, and pelvis of the full body harness — not concentrated at any single point. A side or front D-ring must not be used as the primary fall arrest connection unless explicitly rated for that use.

Q: How do I properly don (put on) a full body harness?
(1) Hold the harness by the back D-ring and shake it to straighten all straps. (2) Slip the shoulder straps on like a jacket. (3) Connect and tighten the chest strap at mid-sternum. (4) Connect both leg straps and tighten until snug — you should be able to slide two fingers underneath. (5) Tighten the shoulder straps so the back D-ring is centered between the shoulder blades. (6) Secure all excess webbing in keepers. Perform a buddy check before working at height.

Q: What is the difference between a fall arrest harness and a body belt?
A full body harness distributes fall arrest forces across the chest, shoulders, thighs, and pelvis — five-point distribution designed to prevent injury during an arrest. A body belt concentrates forces at the waist, which can cause severe internal injuries during a fall arrest event. OSHA prohibits body belts from being used as the sole means of fall arrest in construction (29 CFR 1926.502(d)(1)) and general industry (29 CFR 1910.140). Body belts are only permitted for positioning and travel restraint, not fall arrest.

Q: What is suspension trauma and how do I prevent it?
Suspension trauma (harness-induced pathology) occurs when a worker is left suspended in a harness after a fall arrest event. The leg straps compress blood vessels in the legs, restricting blood return to the heart. This can cause loss of consciousness within minutes and death within 30 minutes. Prevention requires: (1) a written rescue plan before work at height begins, (2) equipment or procedures to allow the suspended worker to stand or reposition while awaiting rescue, and (3) emergency medical response planning. Many premium harnesses include suspension trauma safety straps for exactly this purpose.

Q: What lanyard or self-retracting lifeline should I pair with this harness?
The lanyard or SRL must be ANSI Z359-certified and compatible with the harness D-ring. For most applications: use a 6-ft shock-absorbing lanyard when a fixed anchor is within reach, or a self-retracting lifeline (SRL) when freedom of movement is required. Always calculate total fall distance — including free fall, deceleration distance, and harness stretch — to confirm you will not contact a lower level before arrest. See our Lanyards & Lifelines and Self-Retracting Lifelines collections for compatible connectors.

Q: Can this harness be used in arc flash environments?
Standard construction and general-industry harnesses with metal hardware are not rated for arc flash environments. If working in an NFPA 70E arc flash hazard area, select an arc-flash-rated harness with non-conductive hardware and webbing. MSA Safety Workman Arc Flash and similar specifically-rated models are designed for this purpose. Always verify the arc flash rating against the incident energy level calculated for your work zone before use.

Q: How long is a full body harness rated for service?
Most manufacturers recommend retirement after 5–10 years from the date of manufacture regardless of condition, with many specifying a maximum of 5 years from the date of first use. Always check the manufacturer's label for the manufacture date and consult the product manual for the specific service life of this model. Harnesses exposed to chemicals, UV, heat, or mechanical damage may need to be retired before reaching the maximum service life. Perform a documented inspection before every use throughout the harness service life.

Q: Do I need OSHA training to use a fall protection harness?
Yes. OSHA 29 CFR 1926.503 requires that workers who use personal fall arrest systems be trained by a qualified person on fall hazard recognition, proper harness selection, donning, inspection, and the limitations of the fall protection equipment they use. Training must be documented and repeated when conditions change or when the employer observes inadequate use. Retraining is required when deficiencies in knowledge or use are detected.

Q: What is the maximum free-fall distance when using this harness?
OSHA 29 CFR 1926.502(d)(16)(ii) limits free fall to 6 feet when using a personal fall arrest system. The total fall clearance must account for: (1) the length of the lanyard or SRL deployment during free fall, (2) the deceleration distance (maximum 3.5 feet for energy-absorbing lanyards), (3) the height of the worker, and (4) a safety margin of 2 feet. Always calculate total fall clearance before selecting your anchor point and connector.

Q: How do I store a full body harness when not in use?
Store harnesses in a clean, dry area away from direct sunlight, UV exposure, heat sources above 150°F, chemicals, and sharp objects. Hang harnesses on wide pegs, harness hooks, or lay them flat — do not coil tightly or store compressed under weight. Inspect for any moisture, mildew, or contaminants before storage. Use a bag or case to protect the harness during transport to prevent abrasion from other equipment.

Q: What documentation is required for OSHA fall protection compliance?
OSHA requires: (1) written fall protection plan identifying fall hazards and the protective measures for each (29 CFR 1926.502(k)), (2) documented training records for every worker who uses fall protection equipment (29 CFR 1926.503), (3) inspection records — many safety directors require pre-use inspection logs for each harness, (4) equipment records including the harness serial number, manufacture date, date placed in service, and inspection history, and (5) a documented rescue procedure for suspended workers.

Q: Are there compatibility restrictions when combining harness and lanyard components?
Yes. ANSI Z359 requires that all components of a personal fall arrest system (harness, connector, lanyard or SRL, and anchor) be used together in a system that has been evaluated for compatibility. Never mix components from different manufacturers without verification that the combined system meets ANSI Z359.1 system requirements. In particular, verify that snap hooks and carabiners are compatible with the D-ring size and are rated for the load they will bear. Gate strength must match the connector's major axis rating.

Q: What is the difference between fall arrest, fall restraint, and positioning?
Fall arrest (OSHA 29 CFR 1926.502(d)) stops a fall after it has begun — requires a full body harness with a shock-absorbing connector and a 5,000-lb anchor. Fall restraint (travel restraint) prevents the worker from reaching the fall hazard in the first place — the lanyard is short enough that the worker cannot reach the edge. Work positioning (29 CFR 1926.502(e)) supports the worker in a specific location at height — D-side rings and positioning lanyards are used but must always be backed up by a separate fall arrest system.

Q: Can I use this harness for rope access or confined space rescue?
Standard fall arrest harnesses are not certified for rope access (ANSI Z359.15) or confined space rescue (ANSI Z359.4) unless the manufacturer specifically rates the model for those applications. For rope access, suspension, or rescue operations, select a harness with front and back sternal D-rings, hip D-rings, and a rating that meets the specific ANSI standard for that application. Check the product label and manufacturer documentation before using any harness for a purpose beyond its certified application.
