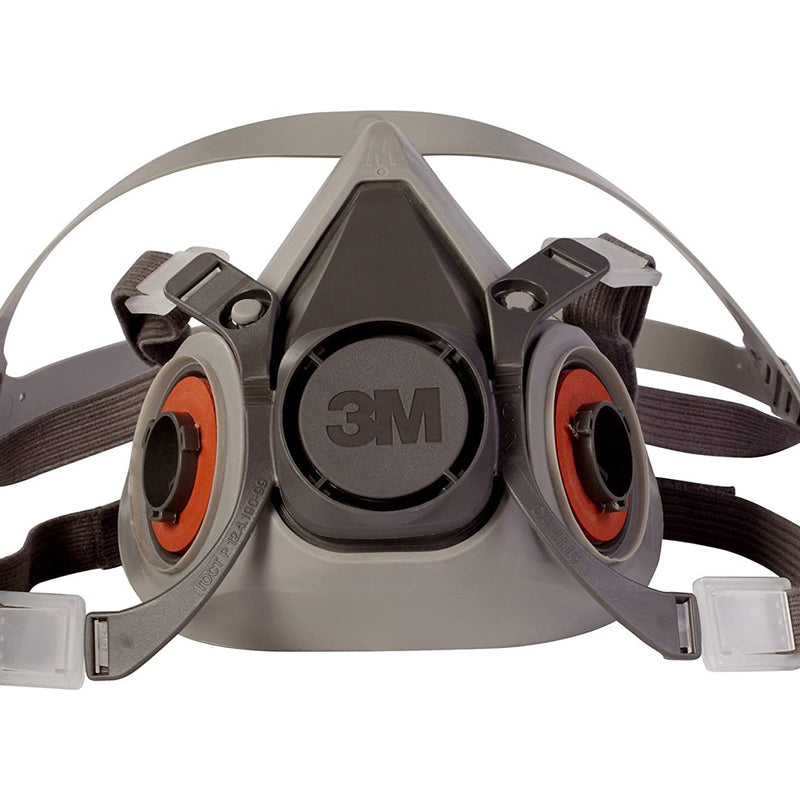

3M 6200 Half Mask Respirator (Medium) – Reusable Facepiece for Dust, Paint & Chemical Protection

The 3M 6200 Half Mask Respirator is one of the most widely used reusable half-face respirators in North America — trusted by safety managers and workers across construction, manufacturing, painting, chemical processing, and utilities for its combination of reliable NIOSH-approved protection, lightweight comfort, and broad cartridge compatibility. The 3M 6200 is the medium-size model in the 3M 6000 Series, designed for adults with a medium face size. When properly fitted and used with approved 3M filters or cartridges, it helps provide respiratory protection for airborne concentrations up to 10 times the OSHA Permissible Exposure Limit (PEL). Cartridges and filters are sold separately.

3M 6200 Key Features

• Lightweight thermoplastic elastomer (TPE) facepiece — comfortable for extended wear
• Low-profile design minimizes interference with field of view and face gear
• Bayonet-style cartridge connection — secure, tool-free cartridge swap
• Cradle head harness with adjustable straps for a personalized fit
• Compatible with 3M 2000, 5000, 6000, and 7000 Series filters and cartridges
• Can be used with 3M Powered Air (TR-600, TR-800) and Supplied Air Systems
• NIOSH approved — meets OSHA 29 CFR 1910.134 requirements

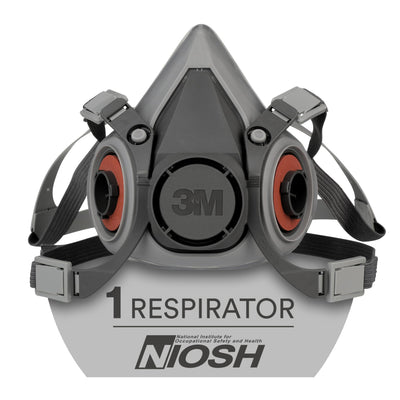

• Available in three sizes: 6100 Small, 6200 Medium, 6300 Large
• Replaceable spare parts available to extend service life

Facepiece Design and Comfort

The 3M 6200 facepiece is constructed from a soft thermoplastic elastomer (TPE) — a material chosen for its combination of flexibility, durability, and comfort against the skin during long shifts. The elastomeric face seal conforms to a wide range of face shapes and sizes, creating a consistent seal that maintains protection integrity throughout the workday. The cradle head harness distributes pressure evenly across the head rather than concentrating it on ear straps or a single band, reducing pressure points during extended wear.

The low-profile design is a key practical feature — the respirator sits close to the face without cartridges protruding significantly into the work zone, preserving peripheral vision and reducing the risk of snagging on equipment, pipes, or confined-space obstacles. This makes the 6200 particularly well-suited for close-detail work, machinery operation, and confined space entry where bulky equipment creates hazards.

Bayonet Cartridge System — What Fits the 3M 6200

The 3M 6200 uses a bayonet-style connection that is compatible with a wide range of 3M filters and cartridges. Select the right cartridge for your specific hazard:

• 3M 6001 Organic Vapor Cartridge — painting, solvents, adhesives, chemical processing
• 3M 6002 Acid Gas Cartridge — chlorine, hydrogen chloride, sulfur dioxide
• 3M 6003 Organic Vapor / Acid Gas Cartridge — combined OV and acid gas protection
• 3M 2091 P100 Filter — particulates including asbestos, mold, lead dust (use with 501 retainer)
• 3M 2097 P100 / Organic Vapor Filter — particulates plus nuisance OV relief
• 3M 60921 P100 / OV / Acid Gas Cartridge — combination protection for complex hazard environments
• 3M 5P71 P95 Pre-Filter — adds particulate filtration to gas/vapor cartridges (use with 501 retainer cap)

Always verify that your selected cartridge or filter is NIOSH-approved for the specific contaminant and concentration present in your work environment. Consult your site safety officer or industrial hygienist if unsure.

Industries and Applications

• Painting and spray finishing — auto body, industrial coating, furniture
• Construction and demolition — concrete dust, silica, asbestos abatement
• Woodworking and carpentry — fine dust, finishing chemicals
• Chemical handling and lab work — organic vapors, acid gases
• Manufacturing and assembly — welding fumes (with appropriate cartridge), machining
• Utilities and oil and gas — hydrogen sulfide, organic vapors, particulates
• Janitorial and remediation — mold remediation, cleaning chemical vapors
• Agriculture — pesticide application, grain dust

3M 6200 vs 3M 7502 — Which Should You Choose?

The 3M 6200 and 3M 7502 are the two most commonly compared half-mask respirators and both are available at WC Safety. Here's how they differ:

Choose the 3M 6200 if you need reliable, NIOSH-approved protection at a lower price point for general industrial tasks, or if you're equipping a team and cost-per-unit matters. Choose the 3M 7502 if workers wear the respirator for full shifts, work in warm environments, or prioritize maximum comfort — the silicone face seal and Cool Flow valve make a meaningful difference over hours of continuous use.

Fit Testing and OSHA Requirements

OSHA 29 CFR 1910.134 requires that all workers who use a tight-fitting respirator like the 3M 6200 undergo fit testing before use and annually thereafter. Fit testing confirms that the specific respirator model and size creates an adequate seal with the individual worker's face. A respirator that doesn't fit correctly cannot provide the intended level of protection regardless of cartridge quality. The 3M 6200 is available in three sizes — 6100 Small, 6200 Medium, 6300 Large — to accommodate a wide range of face sizes. If medium does not pass fit testing, try small or large before switching to a different model.

Maintenance and Service Life

The 3M 6200 facepiece is reusable and can last for years with proper care. After each use, remove cartridges and filters, wipe the facepiece interior with a clean damp cloth or approved respirator cleaning wipe, and allow to dry completely before storage. Do not use solvents or bleach — these can degrade the elastomeric material. Store in a clean, sealed bag away from dust, sunlight, and chemical vapors that could contaminate the facepiece or degrade the material between uses. Inspect the facepiece before each use for cracks, tears, distortion of the face seal, or damage to straps and buckles. Replace the facepiece if any damage is found — a damaged seal cannot be trusted to provide adequate protection. Cartridges and filters must be replaced according to OSHA's cartridge change schedule requirements — never use a cartridge past its service life.

Specifications

• Model: 3M 6200 / 07025
• Series: 3M 6000
• Size: Medium
• Facepiece material: Thermoplastic elastomer (TPE)
• Connection type: Bayonet
• Head harness: Cradle with adjustable straps
• Cartridges included: No — sold separately
• NIOSH approved: Yes
• Compatible filters: 3M 2000, 5000, 7000 Series
• Compatible cartridges: 3M 6000 Series
• Compatible PAPR/SAR systems: TR-600, TR-800, Dual Airline
• Also available: 6100 Small, 6300 Large

Frequently Asked Questions

What cartridges and filters are compatible with the 3M 6200?

The 3M 6200 uses a bayonet connection compatible with all 3M 6000 Series cartridges (6001, 6002, 6003, and combination models) and 3M 2000, 5000, and 7000 Series filters. Common pairings include the 6001 OV cartridge for painting and solvent work, the 2091 P100 filter for particulates, and the 2097 P100/OV filter for environments with both particulate and organic vapor hazards. Use the 501 filter retainer cap when attaching pancake-style filters to the 6200 facepiece.

Is the 3M 6200 NIOSH approved?

Yes. The 3M 6200 facepiece is NIOSH approved when used with compatible 3M approved filters and cartridges. The combination of facepiece and cartridge must both be NIOSH approved for the protection to be valid. The 3M 6200 meets OSHA 29 CFR 1910.134 requirements for tight-fitting half-mask respirators used in general industry.

What is the difference between the 3M 6200 and the 3M 7502?

Both are medium half-mask respirators with bayonet cartridge connections. The primary differences are facepiece material (TPE on the 6200 vs. silicone on the 7502), the 7502's Cool Flow exhalation valve for improved comfort in warm conditions, and the 7502's drop-down head harness. The 6200 is lower cost and suitable for general use; the 7502 is preferred for extended wear and hot environments.

Can the 3M 6200 be used for painting?

Yes — pair it with 3M 6001 Organic Vapor cartridges for solvent-based paints, lacquers, and primers. For spray painting environments with both paint mist and vapors, use a combination cartridge such as the 3M 60921 (P100/OV/Acid Gas) or add a P95 pre-filter to your OV cartridge using the 3M 501 retainer cap. Always ensure the cartridge rating matches the specific solvents in your paint products.

Can the 3M 6200 be used for welding?

The 3M 6200 can be used for welding fume protection when fitted with an appropriate particulate filter such as the 3M 2091 P100. However, standard half-mask respirators do not protect against welding arc radiation or heat — they should not be used as the only protection during arc welding operations. For welding environments with both fume and OV hazards, use a P100/OV combination cartridge like the 3M 2097.

Does the 3M 6200 require fit testing?

Yes. OSHA 29 CFR 1910.134 requires fit testing for all tight-fitting respirators including the 3M 6200 before initial use and annually thereafter. The 6200 is available in small (6100), medium (6200), and large (6300) to accommodate different face sizes. If the medium does not pass a quantitative or qualitative fit test, try the small or large before concluding the 6000 Series is not suitable.

How long do the cartridges last on a 3M 6200?

Cartridge service life depends on the contaminant type, concentration, temperature, humidity, and breathing rate — there is no universal replacement schedule. OSHA requires employers to implement a cartridge change schedule based on objective data or use an end-of-service-life indicator (ESLI). For organic vapor cartridges, a common conservative approach is end-of-shift replacement in moderate-exposure environments. P100 particulate filters should be replaced when breathing resistance increases noticeably or when the filter is physically damaged or wet.

What sizes does the 3M 6200 come in?

The 3M 6000 Series is available in three sizes: 3M 6100 (Small), 3M 6200 (Medium), and 3M 6300 (Large). All three sizes use the same bayonet cartridge connection and are compatible with the same filters and cartridges. Size selection should be confirmed through fit testing — do not assume medium is correct based on general head size alone.
