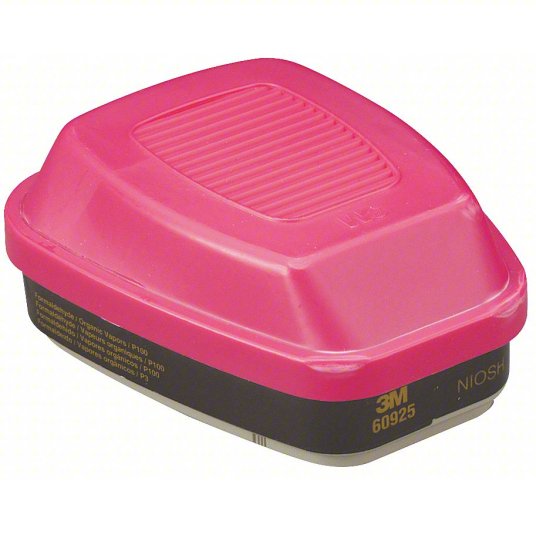

3M 60925 P100/OV/Formaldehyde/Acid Gas Respirator Cartridge Review: Specialized Protection for Formaldehyde-Intensive Environments
Formaldehyde is one of the most regulated chemical hazards in occupational settings — and for good reason. It is a Group 1 human carcinogen (IARC classification), a potent respiratory sensitizer, and acutely irritating at concentrations well below its OSHA PEL. The 3M 60925 P100/OV/Formaldehyde/Acid Gas Respirator Cartridge is the specific tool for environments where formaldehyde exposure — alongside organic vapors, acid gases, and particulate matter — requires comprehensive respiratory protection under OSHA's formaldehyde standard (29 CFR 1910.1048).
Unlike general-purpose OV cartridges, the 60925 incorporates dedicated formaldehyde-specific sorbent chemistry that captures formaldehyde at the low concentrations where standard activated carbon performs inadequately. This makes it the cartridge of choice for histology labs, healthcare settings, funeral homes, textile manufacturing, and any composite or resin work where formaldehyde is generated.
NIOSH Approvals: Formaldehyde/OV/Acid Gas/P100 combination
Protects Against: Formaldehyde, organic vapors, acid gases (Cl2, HCl, SO2), P100 particulate (99.97%)
OSHA Formaldehyde PEL: 0.75 ppm TWA, 2 ppm STEL
OSHA Action Level: 0.5 ppm TWA
IDLH (Formaldehyde): 20 ppm
Compatible Respirators: 3M 6000-series, 3M 7000-series half-masks
Sold As: 1 pair
Why Formaldehyde Requires a Dedicated Cartridge
Standard activated carbon organic vapor cartridges (like the 60921) have poor adsorption capacity for formaldehyde at low concentrations. Formaldehyde is a small, polar aldehyde molecule (HCHO) that does not adsorb efficiently to standard activated carbon through physical adsorption alone. The result: a 60921 OV/P100 cartridge in a formaldehyde environment may allow formaldehyde to break through at concentrations well below the labeled "OV" protection level, while still effectively capturing benzene, toluene, and other larger organic molecules.
The 60925 addresses this by incorporating a dedicated formaldehyde-reactive sorbent — typically a chemically impregnated carbon that reacts with formaldehyde molecules and permanently binds them rather than relying on physical adsorption alone. This chemistry is specifically tuned for formaldehyde's molecular properties and provides meaningful protection at concentrations near the OSHA action level (0.5 ppm).
OSHA recognized this technical distinction by creating a separate standard for formaldehyde (29 CFR 1910.1048) that explicitly requires formaldehyde-specific respiratory protection when engineering controls are insufficient to maintain exposures below the action level. Using a generic OV cartridge in a formaldehyde environment is specifically non-compliant under this standard.
Target Industries and Applications
Histology and Pathology Laboratories
Formalin (aqueous formaldehyde solution, typically 10% neutral buffered formalin) is the universal tissue fixative in histopathology. Histotechnicians spend entire shifts working with formalin — grossing specimens, processing tissue cassettes, and operating automated tissue processors that have formaldehyde in their waste streams. Air concentrations in poorly ventilated grossing rooms can reach 2–5 ppm, well above the OSHA action level of 0.5 ppm.
Hospital-based pathology departments are required to comply with OSHA 1910.1048, which requires air monitoring, engineering controls (exhausted grossing stations), and respiratory protection where engineering controls fail to achieve the action level. The 60925 is the appropriate cartridge for histotechnicians when air monitoring shows exposures between 0.5 ppm and the PEL, or as supplemental protection during high-exposure tasks.
Funeral Industry (Embalming)
Embalming fluid contains formaldehyde as the primary preservation chemical, typically at 2–5% concentration in working solutions. Embalmers are consistently among the most heavily formaldehyde-exposed occupational groups. NIOSH studies have documented TWA exposures of 0.7–2.0 ppm during embalming procedures in typical funeral home preparation rooms.
The 60925, worn with a properly fitted 3M 6000 or 7000 series half-mask, provides the OSHA-required protection for embalming tasks. For long procedures or high-volume embalming operations, full-face respirators from the full-face respirators collection may be preferred to add eye protection and higher assigned protection factor.
Composite and Resin Manufacturing
Phenol-formaldehyde resins, urea-formaldehyde resins, and melamine-formaldehyde resins are used extensively in wood composite products (particleboard, MDF, plywood), textiles, and molded plastics. Manufacturing processes that cure or heat these resins generate formaldehyde off-gassing. Workers in MDF manufacturing, pressed wood production, and composite panel processing face significant formaldehyde exposures during hot-pressing and finishing operations.
The 60925's acid gas component also addresses the formic acid (a formaldehyde oxidation product) and other acid gas species generated during resin curing. This multi-layer protection makes the 60925 particularly valuable in resin manufacturing where the hazard profile includes formaldehyde, formic acid, and other curing-related emissions.
Healthcare Settings (Sterilization)
Beyond pathology, formaldehyde appears in healthcare settings in high-level disinfection and sterilization processes — including formaldehyde-based sterilization cabinets used in some endoscope reprocessing workflows, and fumigation of certain biological safety cabinets. Workers performing these procedures or entering spaces where formaldehyde was used for fumigation (before adequate ventilation) need 60925 protection.
Textile Manufacturing
Wrinkle-resistant cotton fabrics are treated with formaldehyde-based resins. Textile operations involving finishing and curing of treated fabrics generate formaldehyde vapor, particularly in the drying and curing ovens. Formaldehyde levels in textile finishing operations have been measured at 0.5–2.5 ppm in NIOSH health hazard evaluations of affected facilities.
OSHA 1910.1048: What Compliance Actually Requires
OSHA's formaldehyde standard is unusually comprehensive for a single-substance standard. Key requirements affecting respirator selection:
- Action level (0.5 ppm TWA): Triggers air monitoring, medical surveillance, and hazard communication requirements. Respirators required if engineering controls can't maintain below action level.
- PEL (0.75 ppm TWA): Requires respiratory protection when engineering controls fail to achieve this level.
- STEL (2 ppm): Short-term exposure limit — requires action during high-exposure tasks.
- Cartridge requirement: OSHA 1910.1048(h)(2) explicitly states that cartridges must be approved for formaldehyde. Generic OV cartridges are not compliant for formaldehyde-specific respiratory protection requirements.
- Change schedule: Written change schedules required, based on cartridge manufacturer's guidance and actual exposure levels measured by air monitoring.
For detailed guidance on NIOSH certifications and respirator standards, see the NIOSH standards guide. For cartridge selection across the 3M line, see the 3M filter cartridge guide.
60925 vs. 3M 6005 Formaldehyde Cartridge (Without P100)
The 3M 6005 is the formaldehyde cartridge without P100 particulate protection. The decision between 6005 and 60925 is straightforward:
- Use 60925 if: Particulate matter is also present — formalin aerosol mist during specimen handling, resin dust during MDF manufacturing, or any mixed vapor/particulate environment.
- Use 6005 if: The exposure is purely vapor-phase formaldehyde with no particulate component — clean laboratory environments with exhausted workstations where only vapor protection is needed. The 6005 offers slightly lower breathing resistance than the 60925.
In most practical histology and embalming applications, some formaldehyde aerosol mist is present during specimen handling and embalming procedures — making the 60925 the safer default choice for these applications.
Browse the full 3M respirator cartridges and filters collection and the half mask respirators collection for the complete lineup.
Frequently Asked Questions
Why can't I use a standard OV cartridge for formaldehyde protection?Standard activated carbon OV cartridges have poor adsorption capacity for formaldehyde due to its small molecular size and polarity. Formaldehyde can break through standard OV cartridges at concentrations near or below the OSHA PEL. Additionally, OSHA 1910.1048(h)(2) specifically requires formaldehyde-approved cartridges — a generic OV cartridge is not compliant for formaldehyde respiratory protection regardless of its general performance.
Standard activated carbon OV cartridges have poor adsorption capacity for formaldehyde due to its small molecular size and polarity. Formaldehyde can break through standard OV cartridges at concentrations near or below the OSHA PEL. Additionally, OSHA 1910.1048(h)(2) specifically requires formaldehyde-approved cartridges — a generic OV cartridge is not compliant for formaldehyde respiratory protection regardless of its general performance.
What is the OSHA PEL for formaldehyde?OSHA's formaldehyde PEL is 0.75 ppm as an 8-hour TWA, with a STEL of 2 ppm for 15-minute short-term exposure. The action level, which triggers monitoring and medical surveillance requirements, is 0.5 ppm TWA. Formaldehyde is also classified as a potential occupational carcinogen by OSHA, giving the standard additional regulatory weight.
OSHA's formaldehyde PEL is 0.75 ppm as an 8-hour TWA, with a STEL of 2 ppm for 15-minute short-term exposure. The action level, which triggers monitoring and medical surveillance requirements, is 0.5 ppm TWA. Formaldehyde is also classified as a potential occupational carcinogen by OSHA, giving the standard additional regulatory weight.
What does the acid gas component in the 60925 protect against?The acid gas layer in the 60925 provides protection against chlorine (Cl2), hydrogen chloride (HCl), sulfur dioxide (SO2), and related acid gases. In formaldehyde environments, the primary benefit of the acid gas component is protection against formic acid (HCOOH) — the primary oxidation product of formaldehyde — and any other acid species present in the work environment.
The acid gas layer in the 60925 provides protection against chlorine (Cl2), hydrogen chloride (HCl), sulfur dioxide (SO2), and related acid gases. In formaldehyde environments, the primary benefit of the acid gas component is protection against formic acid (HCOOH) — the primary oxidation product of formaldehyde — and any other acid species present in the work environment.
Is the 60925 required for all pathology department workers, or only some?OSHA 1910.1048 requires individual air monitoring to determine each worker's exposure level. Workers whose exposure exceeds the action level (0.5 ppm TWA) require specific protective measures including engineering controls. Respiratory protection with a formaldehyde-approved cartridge like the 60925 is required when engineering controls alone cannot achieve compliance. Grossing room histotechnicians are at highest risk; workers with indirect or occasional exposure may not require respiratory protection if their monitored exposure is below the action level.
OSHA 1910.1048 requires individual air monitoring to determine each worker's exposure level. Workers whose exposure exceeds the action level (0.5 ppm TWA) require specific protective measures including engineering controls. Respiratory protection with a formaldehyde-approved cartridge like the 60925 is required when engineering controls alone cannot achieve compliance. Grossing room histotechnicians are at highest risk; workers with indirect or occasional exposure may not require respiratory protection if their monitored exposure is below the action level.
Can embalmers use the 3M 60925 for all embalming procedures?The 60925 with a properly fitted half-mask (APF 10) is appropriate for formaldehyde concentrations up to 7.5 ppm (10 × PEL). Standard embalming procedures typically generate concentrations of 0.7–2.0 ppm — well within the half-mask + 60925 range. For high-volume embalming operations or inadequately ventilated preparation rooms with concentrations approaching or exceeding 7.5 ppm, a full-face respirator (APF 50) is required.
The 60925 with a properly fitted half-mask (APF 10) is appropriate for formaldehyde concentrations up to 7.5 ppm (10 × PEL). Standard embalming procedures typically generate concentrations of 0.7–2.0 ppm — well within the half-mask + 60925 range. For high-volume embalming operations or inadequately ventilated preparation rooms with concentrations approaching or exceeding 7.5 ppm, a full-face respirator (APF 50) is required.
Does the 60925 protect against all formaldehyde concentrations?The 60925 with a half-mask provides protection up to 10× the OSHA PEL (7.5 ppm for formaldehyde). The IDLH for formaldehyde is 20 ppm. For concentrations between 7.5 ppm and 20 ppm, a higher-APF device (full-face APR, APF 50) is required. Above the IDLH (20 ppm), supplied-air respirators or SCBA are required — air-purifying respirators of any type are not appropriate.
The 60925 with a half-mask provides protection up to 10× the OSHA PEL (7.5 ppm for formaldehyde). The IDLH for formaldehyde is 20 ppm. For concentrations between 7.5 ppm and 20 ppm, a higher-APF device (full-face APR, APF 50) is required. Above the IDLH (20 ppm), supplied-air respirators or SCBA are required — air-purifying respirators of any type are not appropriate.
How often should 60925 cartridges be changed in a histology lab?Change schedules must be developed based on air monitoring data and 3M's service life information for the 60925. In practice, most histology programs change cartridges at the beginning of each shift when formaldehyde work is performed, or more frequently if exposures are unusually high. Document the change schedule in your written respiratory protection program. For specific service life calculations, consult 3M's respirator application engineering resources.
Change schedules must be developed based on air monitoring data and 3M's service life information for the 60925. In practice, most histology programs change cartridges at the beginning of each shift when formaldehyde work is performed, or more frequently if exposures are unusually high. Document the change schedule in your written respiratory protection program. For specific service life calculations, consult 3M's respirator application engineering resources.
Is the 3M 60925 appropriate for MDF and particleboard cutting and routing?Yes. MDF and particleboard cutting releases both formaldehyde vapor (from the UF or PF resin binder) and fine wood dust (P100 particulate hazard). The 60925's combined formaldehyde/OV/P100 protection addresses both primary inhalation hazards from this operation. For operations generating very high dust concentrations, ensure the P100 filter loading doesn't prematurely increase breathing resistance — inspect cartridges regularly and replace when breathing resistance increases.
Yes. MDF and particleboard cutting releases both formaldehyde vapor (from the UF or PF resin binder) and fine wood dust (P100 particulate hazard). The 60925's combined formaldehyde/OV/P100 protection addresses both primary inhalation hazards from this operation. For operations generating very high dust concentrations, ensure the P100 filter loading doesn't prematurely increase breathing resistance — inspect cartridges regularly and replace when breathing resistance increases.
What is the difference between the 60925 and the 3M 6005 formaldehyde cartridge?The primary difference is P100 particulate protection. The 6005 provides formaldehyde/OV/acid gas protection WITHOUT P100 filtration. The 60925 adds P100 (99.97%) particulate filtration. Use the 60925 when formaldehyde aerosol mist or other particulates are present alongside formaldehyde vapor; use the 6005 when only vapor-phase formaldehyde is present in a clean environment without particulate.
The primary difference is P100 particulate protection. The 6005 provides formaldehyde/OV/acid gas protection WITHOUT P100 filtration. The 60925 adds P100 (99.97%) particulate filtration. Use the 60925 when formaldehyde aerosol mist or other particulates are present alongside formaldehyde vapor; use the 6005 when only vapor-phase formaldehyde is present in a clean environment without particulate.
Does the 3M 60925 protect against glutaraldehyde used in healthcare sterilization?Glutaraldehyde (Cidex) is a different aldehyde than formaldehyde but with similar OSHA requirements. The 60925 is not specifically NIOSH-approved for glutaraldehyde. For glutaraldehyde environments, consult 3M's chemical compatibility guidance or the 3M filter cartridge guide. A combination OV cartridge may provide some protection against glutaraldehyde, but verify with 3M technical resources for the specific concentration and use case.
Glutaraldehyde (Cidex) is a different aldehyde than formaldehyde but with similar OSHA requirements. The 60925 is not specifically NIOSH-approved for glutaraldehyde. For glutaraldehyde environments, consult 3M's chemical compatibility guidance or the 3M filter cartridge guide. A combination OV cartridge may provide some protection against glutaraldehyde, but verify with 3M technical resources for the specific concentration and use case.
Can I use the 60925 with a full-face respirator for higher protection?The 60925 is designed for 3M half-mask bayonet mounts. For full-face applications in formaldehyde environments requiring APF 50, see 3M's full-face compatible formaldehyde cartridges in the full-face respirators collection and the 3M full-face respirator guide.
The 60925 is designed for 3M half-mask bayonet mounts. For full-face applications in formaldehyde environments requiring APF 50, see 3M's full-face compatible formaldehyde cartridges in the full-face respirators collection and the 3M full-face respirator guide.
What does IARC Group 1 carcinogen classification mean for formaldehyde?IARC Group 1 means there is sufficient evidence to classify formaldehyde as a human carcinogen — it causes cancer in humans, not just in animal models. Specifically, formaldehyde is causally linked to nasopharyngeal cancer and leukemia in epidemiological studies of formaldehyde-exposed workers. This classification underpins OSHA's stringent formaldehyde standard and the requirement for specific, validated formaldehyde cartridges like the 60925 rather than general OV protection.
IARC Group 1 means there is sufficient evidence to classify formaldehyde as a human carcinogen — it causes cancer in humans, not just in animal models. Specifically, formaldehyde is causally linked to nasopharyngeal cancer and leukemia in epidemiological studies of formaldehyde-exposed workers. This classification underpins OSHA's stringent formaldehyde standard and the requirement for specific, validated formaldehyde cartridges like the 60925 rather than general OV protection.
Are there Honeywell North equivalents to the 3M 60925?Honeywell North offers formaldehyde-specific cartridges for their respirator platform. Browse the Honeywell North respirator cartridges collection and see the Honeywell North cartridge guide for equivalent options. Always match cartridges to your specific facepiece — Honeywell and 3M cartridges are not cross-compatible.
Honeywell North offers formaldehyde-specific cartridges for their respirator platform. Browse the Honeywell North respirator cartridges collection and see the Honeywell North cartridge guide for equivalent options. Always match cartridges to your specific facepiece — Honeywell and 3M cartridges are not cross-compatible.
Does the 60925 need special storage between uses?Yes — store the 60925 in a sealed zip-lock bag or airtight container when not in use. The formaldehyde-reactive sorbent and OV carbon will continue to adsorb ambient chemicals (including ambient formaldehyde and trace organics in the air) even when not being worn. Exposure to ambient air during storage depletes cartridge capacity, shortening effective service life. Always store in the original sealed packaging or equivalent airtight container.
Yes — store the 60925 in a sealed zip-lock bag or airtight container when not in use. The formaldehyde-reactive sorbent and OV carbon will continue to adsorb ambient chemicals (including ambient formaldehyde and trace organics in the air) even when not being worn. Exposure to ambient air during storage depletes cartridge capacity, shortening effective service life. Always store in the original sealed packaging or equivalent airtight container.
Where can I buy the 3M 60925 cartridge?The 3M 60925 cartridges are available through WCSafety in the 3M respirator cartridges and filters collection. For histology labs, hospital systems, funeral home chains, and manufacturing operations needing volume quantities, contact WCSafety for institutional pricing.
The 3M 60925 cartridges are available through WCSafety in the 3M respirator cartridges and filters collection. For histology labs, hospital systems, funeral home chains, and manufacturing operations needing volume quantities, contact WCSafety for institutional pricing.
