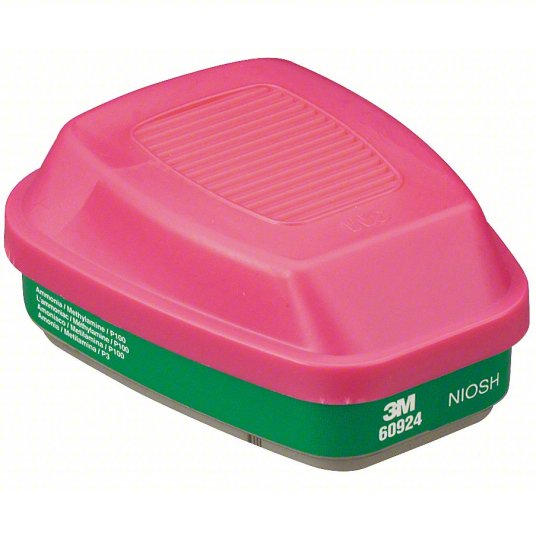

3M 60924 OV/P100/Ammonia/Methylamine Respirator Cartridge Review: Specialized Protection for Ammonia and Organic Vapor Environments
Ammonia is one of the most underestimated respiratory hazards in industrial settings. Its sharp, immediately detectable odor creates a false sense of safety — workers believe they'll smell a dangerous concentration before they're harmed. NIOSH data contradicts this: olfactory fatigue sets in quickly at moderate ammonia concentrations, and sustained exposures above OSHA's 50 ppm ceiling limit cause serious respiratory damage before the smell alarm shuts off. The 3M 60924 OV/P100/Ammonia/Methylamine Respirator Cartridge is the specific tool for environments where ammonia, methylamine, or both are present alongside organic vapors and particulate hazards.
This is not a general-purpose cartridge — it is a specialty solution for a specific chemical hazard profile. Understanding when it's required versus when a simpler cartridge will do is the essential competency for safety managers in ammonia-process industries.
NIOSH Approvals: OV (TC-19C), P100 (TC-84A), Ammonia (TC-23C specific), Methylamine
Protects Against: Organic vapors, Ammonia gas, Methylamine, P100 particulate (99.97%)
Compatible Respirators: 3M 6000-series, 3M 7000-series half-masks
Sold As: 1 pair
OSHA PEL (Ammonia): 50 ppm TWA (general industry)
NIOSH REL (Ammonia): 25 ppm TWA, 35 ppm 10-min STEL
IDLH (Ammonia): 300 ppm
The Ammonia Hazard: Why Standard OV Cartridges Fail
This is the core technical issue that makes the 60924 irreplaceable in its target environments: ammonia is NOT an organic vapor. It is an inorganic gas with fundamentally different chemistry from the organic solvents that activated carbon cartridges (like the 60921 OV/P100) are designed to capture.
Activated carbon — the primary sorbent in standard OV cartridges — adsorbs organic vapor molecules through van der Waals forces and physical surface area. Ammonia is a small inorganic molecule (NH3) that does not adsorb effectively to standard activated carbon at typical industrial concentrations. A worker wearing a 60921 OV/P100 cartridge in an ammonia environment has zero protection against the ammonia — the cartridge allows it to pass through freely.
The 60924 adds a specific ammonia-reactive sorbent layer — typically a phosphoric acid-impregnated media — that chemically reacts with ammonia to neutralize it before it reaches the wearer. This is why the 60924 is the only mainstream combination cartridge that simultaneously protects against ammonia AND organic vapors: it incorporates both the carbon sorbent for OV and the reactive sorbent for ammonia.
Methylamine: The Ammonia Derivative
Methylamine (CH3NH2) is an ammonia derivative — essentially ammonia with one hydrogen replaced by a methyl group. It shares ammonia's toxic inhalation profile (OSHA PEL: 10 ppm TWA) but adds organic character. The 60924 is NIOSH-approved for both ammonia and methylamine, making it appropriate for environments where methylamine synthesis, handling, or use occurs alongside broader organic chemistry.
Methylamine is used in synthesis of pharmaceuticals, pesticides (including carbamates), surfactants, and specialty chemicals. Facilities involved in these production processes, or handling methylamine directly as a feedstock, require the 60924 for respiratory protection during chemical handling tasks.
Target Industries and Applications
Poultry Processing
Ammonia refrigeration is the dominant refrigeration technology for large food processing plants, including poultry facilities. Ammonia refrigerant leaks — common in aging piping systems — can generate exposures from trace levels to emergency-response levels within minutes. Routine maintenance on ammonia refrigeration systems, including valve replacement, heat exchanger inspection, and leak survey work, exposes maintenance personnel to ammonia at levels that require respiratory protection.
OSHA's Process Safety Management (PSM) standard (29 CFR 1910.119) applies to facilities with ammonia quantities above 10,000 pounds. The 60924 is appropriate for maintenance tasks at ammonia concentrations below the IDLH (300 ppm). For emergency response and leak control above 25–50 ppm, supplied-air systems and higher-APF devices are required.
Fertilizer Plants and Anhydrous Ammonia Handling
Agricultural ammonia (anhydrous ammonia for direct soil injection, aqueous ammonia for fertilizer production) is handled in massive quantities across the agricultural supply chain. Tank farm maintenance, loading rack operations, and transfer hose connections regularly expose workers to ammonia vapors. The 60924 provides the ammonia protection these workers need alongside any organic vapor exposures from other chemicals handled at the same facility.
Refrigeration System Maintenance
Industrial refrigeration — ice rinks, cold storage warehouses, breweries, food distribution centers — predominantly uses anhydrous ammonia as refrigerant. Refrigeration technicians performing maintenance, charge/recharge operations, or emergency leak response work in the hazard zone need ammonia-specific protection. The 60924 is the appropriate half-mask cartridge for planned maintenance at controlled, monitored concentrations.
Wastewater Treatment
Wastewater treatment plants generate ammonia as a natural product of nitrogen-containing organic decomposition. Workers in sludge handling areas, digester operations, and pump station maintenance face ammonia exposures that can spike significantly. The presence of hydrogen sulfide (H2S) at many wastewater plants adds complexity — if H2S is also present, evaluate whether a multi-contaminant cartridge covering both ammonia and H2S is required, or if the 60924 alone addresses the priority hazards.
Pharmaceutical and Chemical Manufacturing
Methylamine and dimethylamine are common synthetic precursors in pharmaceutical chemistry. Facilities producing active pharmaceutical ingredients (APIs) that use these amines as starting materials or reagents require the 60924's methylamine-specific protection during handling, reactor charging, and waste stream management.
The 60924 vs. Other Cartridges: Decision Matrix
| Hazard Profile | Recommended Cartridge | Reason |
|---|---|---|
| OV only | 60921 | No ammonia present |
| OV + acid gas | 60922 | Acid gases present, no ammonia |
| Ammonia only (no OV) | 3M 6006 or specific ammonia cartridge | No OV component needed |
| Ammonia + OV | 60924 (this product) | Both ammonia and OV present |
| Ammonia + OV + particulate | 60924 (this product) | Full three-way protection |
| Formaldehyde + OV | 60925 | Formaldehyde requires dedicated sorbent |
OSHA Compliance: Ammonia Exposure Standards
OSHA's permissible exposure limit (PEL) for ammonia is 50 ppm TWA under 29 CFR 1910.1000, Table Z-1. The ACGIH TLV is more stringent at 25 ppm TWA and 35 ppm STEL. NIOSH REL is 25 ppm TWA and 35 ppm 10-minute ceiling. The IDLH (Immediately Dangerous to Life or Health) is 300 ppm.
The 60924 with a 3M 6000 or 7000 series half-mask provides an assigned protection factor (APF) of 10. Under OSHA's respiratory protection standard (29 CFR 1910.134), this means the combination is appropriate for environments up to 10× the OSHA PEL — or up to 500 ppm ammonia. Above 300 ppm (IDLH), a supplied-air respirator or SCBA is required regardless of cartridge rating.
For environments with ammonia concentrations between 50 ppm (PEL) and 300 ppm (IDLH), the 60924 with half-mask may be appropriate pending a written respiratory protection program evaluation by a qualified industrial hygienist. Always verify with monitoring data — relying on odor perception for ammonia concentration assessment is unreliable due to rapid olfactory fatigue.
For guidance on NIOSH certifications and respirator selection, see the NIOSH standards guide. For the full respirator product lineup, browse half mask respirators, full face respirators, and 3M respirator cartridges and filters.
Frequently Asked Questions
Does a standard OV/P100 cartridge protect against ammonia?No. Standard activated carbon organic vapor cartridges (like the 3M 60921) do not protect against ammonia. Ammonia is an inorganic gas that requires reactive sorbent chemistry (not activated carbon) for effective removal. Using a 60921 in an ammonia environment provides zero ammonia protection. The 60924 is specifically required for ammonia environments.
No. Standard activated carbon organic vapor cartridges (like the 3M 60921) do not protect against ammonia. Ammonia is an inorganic gas that requires reactive sorbent chemistry (not activated carbon) for effective removal. Using a 60921 in an ammonia environment provides zero ammonia protection. The 60924 is specifically required for ammonia environments.
What is the OSHA PEL for ammonia and how does the 60924 compare?OSHA's PEL for ammonia is 50 ppm TWA. The 60924 with a half-mask (APF 10) provides protection up to 10× the PEL, or 500 ppm. However, the IDLH for ammonia is 300 ppm — concentrations above the IDLH require supplied-air or SCBA regardless of cartridge rating. For routine maintenance at monitored concentrations below 300 ppm, the 60924 half-mask combination is appropriate.
OSHA's PEL for ammonia is 50 ppm TWA. The 60924 with a half-mask (APF 10) provides protection up to 10× the PEL, or 500 ppm. However, the IDLH for ammonia is 300 ppm — concentrations above the IDLH require supplied-air or SCBA regardless of cartridge rating. For routine maintenance at monitored concentrations below 300 ppm, the 60924 half-mask combination is appropriate.
Can the 3M 60924 be used for anhydrous ammonia refrigeration work?Yes, for planned maintenance tasks at monitored ammonia concentrations below the IDLH (300 ppm). For emergency response to uncontrolled ammonia releases, the concentration is unknown and may exceed IDLH — requiring supplied-air or SCBA. Industrial hygiene best practice for ammonia refrigeration work includes continuous air monitoring during maintenance, with pre-established concentration thresholds that trigger evacuation or upgrade to supplied-air.
Yes, for planned maintenance tasks at monitored ammonia concentrations below the IDLH (300 ppm). For emergency response to uncontrolled ammonia releases, the concentration is unknown and may exceed IDLH — requiring supplied-air or SCBA. Industrial hygiene best practice for ammonia refrigeration work includes continuous air monitoring during maintenance, with pre-established concentration thresholds that trigger evacuation or upgrade to supplied-air.
Is the 60924 the only cartridge that protects against both ammonia and organic vapors?The 60924 is one of the very few mainstream NIOSH-certified combination cartridges providing simultaneous ammonia AND organic vapor AND P100 protection. This combination addresses a real protection gap — environments with both ammonia and solvent vapors would otherwise require either two separate cartridges (not possible in a single half-mask) or a compromise with inadequate protection for one hazard. The 60924's triple chemistry makes it uniquely suited for these environments.
The 60924 is one of the very few mainstream NIOSH-certified combination cartridges providing simultaneous ammonia AND organic vapor AND P100 protection. This combination addresses a real protection gap — environments with both ammonia and solvent vapors would otherwise require either two separate cartridges (not possible in a single half-mask) or a compromise with inadequate protection for one hazard. The 60924's triple chemistry makes it uniquely suited for these environments.
Does the 60924 protect against methylamine, and why does this matter?Yes — the 60924 carries NIOSH approval for methylamine protection alongside ammonia. Methylamine (CH3NH2) is used in pharmaceutical, agrochemical, and specialty chemical synthesis. The OSHA PEL for methylamine is 10 ppm TWA. For facilities handling methylamine or producing methylamine-derived compounds, the 60924's combined ammonia+methylamine+OV+P100 protection covers the primary inhalation hazards in a single cartridge.
Yes — the 60924 carries NIOSH approval for methylamine protection alongside ammonia. Methylamine (CH3NH2) is used in pharmaceutical, agrochemical, and specialty chemical synthesis. The OSHA PEL for methylamine is 10 ppm TWA. For facilities handling methylamine or producing methylamine-derived compounds, the 60924's combined ammonia+methylamine+OV+P100 protection covers the primary inhalation hazards in a single cartridge.
What is olfactory fatigue, and why does it make ammonia especially dangerous?Olfactory fatigue (also called olfactory adaptation) is the temporary loss of smell sensitivity following prolonged or intense odor exposure. The olfactory nerve receptors for ammonia become desensitized within minutes to hours of exposure, meaning workers stop smelling ammonia even at concentrations that remain hazardous. This is why sensory warning ("I can still smell it, so I must be safe") fails as a safety indicator for ammonia. Continuous air monitoring and documented change schedules for the 60924 cartridge are the only reliable approach.
Olfactory fatigue (also called olfactory adaptation) is the temporary loss of smell sensitivity following prolonged or intense odor exposure. The olfactory nerve receptors for ammonia become desensitized within minutes to hours of exposure, meaning workers stop smelling ammonia even at concentrations that remain hazardous. This is why sensory warning ("I can still smell it, so I must be safe") fails as a safety indicator for ammonia. Continuous air monitoring and documented change schedules for the 60924 cartridge are the only reliable approach.
How long does the 3M 60924 cartridge last in an ammonia environment?Service life depends on ammonia concentration, temperature, humidity, and breathing rate. 3M provides service life calculators for OV components. The ammonia sorbent capacity is separate from the OV sorbent — in environments with primarily ammonia exposure, the ammonia-specific sorbent typically exhausts before the OV carbon bed. Develop a change schedule based on typical exposure concentration and duration, and follow it strictly — don't rely on breakthrough detection given ammonia's olfactory fatigue issue.
Service life depends on ammonia concentration, temperature, humidity, and breathing rate. 3M provides service life calculators for OV components. The ammonia sorbent capacity is separate from the OV sorbent — in environments with primarily ammonia exposure, the ammonia-specific sorbent typically exhausts before the OV carbon bed. Develop a change schedule based on typical exposure concentration and duration, and follow it strictly — don't rely on breakthrough detection given ammonia's olfactory fatigue issue.
Can I use the 60924 for agricultural ammonia soil injection operations?Yes — anhydrous ammonia soil injection exposes applicator operators and nearby workers to ammonia vapors from the injection zone, hose connections, and tank venting. The 60924 with a properly fitted half-mask provides appropriate protection for personnel working in or near the application zone during standard operations. For tank car unloading or close-proximity work with potential for higher concentrations, verify exposure levels with monitoring data.
Yes — anhydrous ammonia soil injection exposes applicator operators and nearby workers to ammonia vapors from the injection zone, hose connections, and tank venting. The 60924 with a properly fitted half-mask provides appropriate protection for personnel working in or near the application zone during standard operations. For tank car unloading or close-proximity work with potential for higher concentrations, verify exposure levels with monitoring data.
Is the 60924 available for full-face respirator applications?The 60924 is designed for 3M half-mask bayonet mounts. For full-face applications (which provide APF 50 vs. APF 10 for half-masks), 3M offers compatible cartridges for their full-face respirator series. See the full-face respirators collection and the 3M full-face respirator guide for high-APF options for ammonia environments.
The 60924 is designed for 3M half-mask bayonet mounts. For full-face applications (which provide APF 50 vs. APF 10 for half-masks), 3M offers compatible cartridges for their full-face respirator series. See the full-face respirators collection and the 3M full-face respirator guide for high-APF options for ammonia environments.
Does the 60924 need to be replaced if I can smell ammonia while wearing it?Yes — if ammonia odor is detected while wearing the 60924, the ammonia sorbent may be approaching or at exhaustion. Exit the area, replace the cartridges, and do not re-enter until fresh cartridges are installed. Review your change schedule to determine if it needs to be shortened for the actual exposure level encountered. Do not continue to work assuming the odor is just "a little bit" — ammonia's OSHA PEL is 50 ppm, and detectable odor may already represent an overexposure event.
Yes — if ammonia odor is detected while wearing the 60924, the ammonia sorbent may be approaching or at exhaustion. Exit the area, replace the cartridges, and do not re-enter until fresh cartridges are installed. Review your change schedule to determine if it needs to be shortened for the actual exposure level encountered. Do not continue to work assuming the odor is just "a little bit" — ammonia's OSHA PEL is 50 ppm, and detectable odor may already represent an overexposure event.
What Honeywell North cartridges are equivalent to the 3M 60924?Honeywell North offers ammonia-combination cartridges for their respirator platform. Browse the Honeywell North respirator cartridges collection and review the Honeywell North cartridge guide for equivalent options. Always verify cross-brand compatibility — Honeywell and 3M cartridges are NOT interchangeable between facepiece platforms.
Honeywell North offers ammonia-combination cartridges for their respirator platform. Browse the Honeywell North respirator cartridges collection and review the Honeywell North cartridge guide for equivalent options. Always verify cross-brand compatibility — Honeywell and 3M cartridges are NOT interchangeable between facepiece platforms.
Does the 60924 protect against ammonium hydroxide (aqueous ammonia)?Ammonium hydroxide in solution generates ammonia vapor above the liquid surface. The 60924 protects against the ammonia vapor released from ammonium hydroxide solutions. The P100 component also protects against aerosol mist from the solution. This makes the 60924 appropriate for workers handling concentrated ammonium hydroxide solutions in laboratories, cleaning operations, or manufacturing processes.
Ammonium hydroxide in solution generates ammonia vapor above the liquid surface. The 60924 protects against the ammonia vapor released from ammonium hydroxide solutions. The P100 component also protects against aerosol mist from the solution. This makes the 60924 appropriate for workers handling concentrated ammonium hydroxide solutions in laboratories, cleaning operations, or manufacturing processes.
What is the maximum use concentration for the 60924 with a half-mask?With an APF of 10 for half-mask APRs: maximum use concentration = 10 × OSHA PEL. For ammonia (PEL 50 ppm): maximum 500 ppm. However, the IDLH for ammonia (300 ppm) is lower than this calculation, so the practical maximum use concentration for ammonia is 300 ppm — above IDLH, supplied-air is required. For organic vapors, the calculation depends on the specific chemical's PEL.
With an APF of 10 for half-mask APRs: maximum use concentration = 10 × OSHA PEL. For ammonia (PEL 50 ppm): maximum 500 ppm. However, the IDLH for ammonia (300 ppm) is lower than this calculation, so the practical maximum use concentration for ammonia is 300 ppm — above IDLH, supplied-air is required. For organic vapors, the calculation depends on the specific chemical's PEL.
Should workers handling fertilizer grade ammonia use the 60924?Yes — fertilizer grade ammonia (anhydrous ammonia applied as agricultural fertilizer) is pure anhydrous NH3 under pressure. Exposure during handling, transfer, and application creates ammonia vapor hazards that the 60924 specifically addresses. Workers who also handle organic chemicals (fuel, lubricants, pesticides) at the same facility benefit from the 60924's combined OV+ammonia+P100 protection versus needing separate cartridges for different tasks.
Yes — fertilizer grade ammonia (anhydrous ammonia applied as agricultural fertilizer) is pure anhydrous NH3 under pressure. Exposure during handling, transfer, and application creates ammonia vapor hazards that the 60924 specifically addresses. Workers who also handle organic chemicals (fuel, lubricants, pesticides) at the same facility benefit from the 60924's combined OV+ammonia+P100 protection versus needing separate cartridges for different tasks.
Can I use the 60924 for brewery operations?Yes — many breweries use ammonia refrigeration for cold storage. Maintenance workers in ammonia refrigeration areas of breweries need ammonia-specific protection. Fermentation areas may also have organic vapors (alcohols, esters). The 60924's OV+ammonia+P100 coverage addresses both the refrigeration-area ammonia hazard and the fermentation/packaging area solvent/vapor exposure in a single cartridge.
Yes — many breweries use ammonia refrigeration for cold storage. Maintenance workers in ammonia refrigeration areas of breweries need ammonia-specific protection. Fermentation areas may also have organic vapors (alcohols, esters). The 60924's OV+ammonia+P100 coverage addresses both the refrigeration-area ammonia hazard and the fermentation/packaging area solvent/vapor exposure in a single cartridge.
