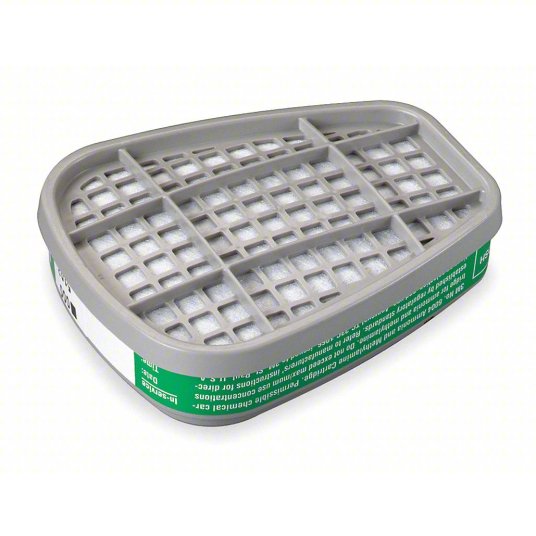

3M 6004 Ammonia/Methylamine Respirator Cartridge Review: Pure Vapor Protection for Ammonia Environments Without the P100 Layer
When your ammonia work happens in a clean-air environment — a sealed refrigeration equipment room, a controlled lab setting, or an outdoor application where the only hazard is the gas itself — you don't need the added breathing resistance of a P100 particulate filter. The 3M 6004 Ammonia/Methylamine Respirator Cartridge delivers NIOSH-approved ammonia and methylamine vapor protection in a vapor-only format, offering lower inhalation resistance than the combined 3M 60924 OV/P100/Ammonia cartridge for applications where particulate hazards have been eliminated.
This review covers the 6004's specific chemistry and protection profile, how it differs from the 60924, the industries and tasks where vapor-only ammonia protection is appropriate, when to add P100 protection via a separate filter, and critical OSHA compliance considerations for ammonia respiratory protection under 29 CFR 1910.134.
NIOSH Approvals: Ammonia + Methylamine vapor protection
Protects Against: Ammonia gas (NH3), methylamine (CH3NH2) vapor
Does NOT Protect Against: Organic vapors (no OV sorbent), P100 particulate (no filter), acid gases, CO
OSHA PEL (Ammonia): 50 ppm TWA
NIOSH REL (Ammonia): 25 ppm TWA, 35 ppm 10-min STEL
IDLH (Ammonia): 300 ppm
Compatible Respirators: 3M 6000-series, 3M 7000-series half-masks
Sold As: 1 pair
Best For: Pure ammonia vapor environments without particulate or OV
Why Ammonia Requires Dedicated Cartridge Chemistry
The technical reason ammonia (NH3) requires dedicated sorbent chemistry is the same as discussed in the 60924 review: ammonia is an inorganic gas that does not adsorb effectively to standard activated carbon at the concentrations typical of industrial exposures. Standard OV cartridges and standard acid gas cartridges both fail to protect against ammonia.
The 6004's sorbent is a specifically engineered reactive media — typically phosphoric acid-impregnated material — that chemically neutralizes ammonia molecules through an acid-base reaction: NH3 + H3PO4 → (NH4)3PO4. This reaction permanently captures ammonia and removes it from the breathing air stream. The same chemistry applies to methylamine (CH3NH2), which undergoes an analogous neutralization reaction with the acid-impregnated sorbent.
Unlike the 60924, the 6004 contains ONLY the ammonia/methylamine sorbent — no organic vapor carbon bed, and no P100 particulate filter. This makes it lighter, lower breathing resistance, and appropriate only for environments where ammonia and methylamine are the sole inhalation hazards.
6004 vs. 60924: Choosing the Right Ammonia Cartridge
The decision between the 6004 and the 60924 is one of hazard profile assessment:
| Scenario | Correct Cartridge |
|---|---|
| Pure ammonia vapor, no organic solvents, no particulate | 3M 6004 (this product) |
| Ammonia + organic solvents present | 3M 60924 |
| Ammonia + particulate (ammonia mist, chemical dusts) | 3M 60924, OR 6004 + 2091 P100 filter (see below) |
| Ammonia + OV + particulate | 3M 60924 |
| Methylamine vapor only | 3M 6004 (this product) |
If your hazard assessment confirms the exposure is ammonia or methylamine vapor only — no organic solvents, no dusts, no mists — the 6004 is the appropriate, lowest-resistance option. If there is any doubt about the complete hazard profile, the 60924 is the safer default.
Adding P100 Protection to the 6004: The Modular Approach
Some industrial ammonia environments are primarily vapor hazards but with intermittent particulate exposure — for example, refrigeration maintenance in a cold storage facility where ice crystal, frost, or metallic debris from maintenance activities creates a particulate component alongside the ammonia vapor during certain tasks.
For these mixed environments, one approach is to use the 6004 cartridge with an externally mounted P100 filter such as the 3M 2091 P100 filter attached to the outside of the cartridge using the appropriate 3M filter retainer/adapter. This provides the 6004's ammonia/methylamine protection plus P100 particulate filtration without the OV carbon of the 60924 (which may not be needed in the specific environment).
Verify compatibility of the 6004 + 2091 combination with your specific facepiece model using 3M's compatibility chart. The 3M filter cartridge guide covers modular configurations.
Target Industries and Applications for the 6004
Refrigeration Equipment Maintenance — Equipment Rooms
Industrial ammonia refrigeration systems include compressor rooms, machine rooms, and equipment areas where ammonia gas is present in a controlled environment. In properly managed equipment rooms with continuous ammonia detection systems, the work environment is clean air except for the ammonia vapor. Refrigeration technicians performing valve replacements, pressure testing, and system work in these controlled environments are the primary 6004 users. No solvents, no significant particulate — pure ammonia vapor protection is what's needed.
Compare this to tasks at the evaporator coils in product-storage areas (where frost, ice particles, and food dust may be present) or at loading racks (where vehicle exhaust, dust, and other contaminants coexist with ammonia). Those mixed environments favor the 60924.
Laboratory Ammonia Handling
Research and analytical laboratories using ammonium hydroxide (aqueous ammonia) or anhydrous ammonia as reagents typically operate in clean environments — fume hoods, ventilated chemical storage cabinets, clean room conditions. Workers opening or transferring ammonia-containing reagents in these environments face a pure vapor hazard without significant particulate. The 6004's lower breathing resistance is preferable for lab workers who may wear the respirator for extended analytical sessions.
Fertilizer Distribution and Application (Specific Tasks)
While large-scale anhydrous ammonia injection involves the full mixture of ammonia vapor, ammonia aerosol, and agricultural dust that favors the 60924, some specific fertilizer distribution tasks are clean. Quality control sampling, analytical measurement, and controlled transfer operations in a fertilizer production lab — where the worker is working with ammonia solutions in a controlled, clean environment — may genuinely need only the 6004's vapor-specific protection.
Wastewater Treatment — Monitoring and Sampling Tasks
Wastewater treatment operators performing ammonia monitoring (sampling from covered channels or digesters, collecting samples from ammonia stripping towers) in environments where the exposure is primarily ammonia vapor from the sample/source with minimal aerosol or other contamination may find the 6004 appropriate. Contrast with tasks in sludge-handling areas where organic aerosol and particulate are concurrent hazards, requiring the 60924.
Methylamine in Pharmaceutical Manufacturing
Pharmaceutical facilities using methylamine as a synthesis reagent in controlled reactor and transfer operations — where the exposure profile is methylamine vapor only during specific handling steps, in clean manufacturing environments without concurrent organic solvent use — represent a specific 6004 niche. The 6004's methylamine NIOSH approval addresses this hazard in its pure vapor form without the OV sorbent of the 60924 (which may not be needed for pure methylamine applications without concurrent solvents).
OSHA Compliance Framework for Ammonia Respiratory Protection
OSHA's ammonia PEL is 50 ppm TWA under 29 CFR 1910.1000, Table Z-1. NIOSH recommends a more protective 25 ppm TWA REL and 35 ppm STEL. The 6004 with a half-mask (APF 10) provides protection up to 500 ppm by calculation — but the IDLH (300 ppm) limits practical use to below 300 ppm for air-purifying respirators.
Key requirements for the 6004 in a compliant respiratory protection program:
- Written respiratory protection program (WRPP) identifying ammonia/methylamine as the hazard and the 6004 as the selected cartridge — 29 CFR 1910.134(c)
- Hazard assessment documentation confirming vapor-only exposure (no particulate) to justify the 6004 rather than the 60924
- Written change schedule for the 6004's sorbent — required under 29 CFR 1910.134(d)(3)(iii)
- Air monitoring data to establish that concentrations are below the IDLH (300 ppm) before APR use is authorized
- Medical evaluation and fit testing for the facepiece — 29 CFR 1910.134(e) and (f)
For the broader NIOSH certification and regulatory context, see the NIOSH standards guide. For respirator selection, browse half mask respirators and 3M respirator cartridges and filters. The best half face respirator guide covers facepiece selection for ammonia environments.
Olfactory Fatigue Warning: Why Change Schedules Are Non-Negotiable
As emphasized in the 60924 review, ammonia causes rapid olfactory fatigue — the olfactory nerve receptors for ammonia become desensitized within minutes to hours of exposure, causing workers to stop detecting the odor even at sustained hazardous concentrations. This makes "change when I smell it" a dangerously inadequate change indicator for the 6004.
Develop and document a change schedule based on 3M's service life data for the 6004's ammonia sorbent, your measured ammonia concentrations from air monitoring, and the duration of daily exposure. A conservative fixed-interval schedule (for example, "change at the start of each shift where ammonia work is performed") is generally the most defensible approach for programs without detailed industrial hygiene monitoring data.
For respirator maintenance and care guidance, see how to properly clean a respirator.
Frequently Asked Questions
What is the difference between the 3M 6004 and the 3M 60924?The 3M 6004 provides ammonia and methylamine vapor protection only — no organic vapor (OV) sorbent and no P100 particulate filtration. The 3M 60924 adds both OV protection and P100 particulate filtration to the same ammonia/methylamine base. Use the 6004 when your hazard assessment confirms only ammonia/methylamine vapor is present. Use the 60924 when organic solvents or particulate matter are also present.
The 3M 6004 provides ammonia and methylamine vapor protection only — no organic vapor (OV) sorbent and no P100 particulate filtration. The 3M 60924 adds both OV protection and P100 particulate filtration to the same ammonia/methylamine base. Use the 6004 when your hazard assessment confirms only ammonia/methylamine vapor is present. Use the 60924 when organic solvents or particulate matter are also present.
Does the 3M 6004 protect against organic vapors (solvents)?No. The 6004 contains only ammonia/methylamine-specific sorbent chemistry — it has no activated carbon OV bed. If organic vapors are present in your environment alongside ammonia, the 6004 provides zero OV protection. Switch to the 60924, which provides both ammonia AND OV protection in a single cartridge.
No. The 6004 contains only ammonia/methylamine-specific sorbent chemistry — it has no activated carbon OV bed. If organic vapors are present in your environment alongside ammonia, the 6004 provides zero OV protection. Switch to the 60924, which provides both ammonia AND OV protection in a single cartridge.
Can I add a P100 filter to the 3M 6004?Yes, in some configurations. The 3M 2091 P100 filter can be mounted externally on certain 3M cartridge setups using a compatible filter retainer/adapter. This adds P100 particulate protection to the 6004's ammonia chemistry without the OV sorbent of the 60924. Verify compatibility with your specific facepiece model using 3M's configuration guide. For simplicity, many users choose the 60924 when both ammonia protection and P100 are needed.
Yes, in some configurations. The 3M 2091 P100 filter can be mounted externally on certain 3M cartridge setups using a compatible filter retainer/adapter. This adds P100 particulate protection to the 6004's ammonia chemistry without the OV sorbent of the 60924. Verify compatibility with your specific facepiece model using 3M's configuration guide. For simplicity, many users choose the 60924 when both ammonia protection and P100 are needed.
What is the maximum use concentration for the 6004 with a half-mask?APF of 10 for half-mask APRs × OSHA PEL of 50 ppm = 500 ppm maximum use concentration by calculation. However, the ammonia IDLH is 300 ppm, which is the practical limit for any air-purifying respirator. At concentrations at or above 300 ppm (IDLH), a supplied-air respirator or SCBA is required — the 6004 half-mask combination is not appropriate above the IDLH regardless of cartridge rating.
APF of 10 for half-mask APRs × OSHA PEL of 50 ppm = 500 ppm maximum use concentration by calculation. However, the ammonia IDLH is 300 ppm, which is the practical limit for any air-purifying respirator. At concentrations at or above 300 ppm (IDLH), a supplied-air respirator or SCBA is required — the 6004 half-mask combination is not appropriate above the IDLH regardless of cartridge rating.
Does the 6004 protect against ammonium compounds (not free ammonia)?The 6004 protects against ammonia gas (NH3). Ammonium compounds in solution (ammonium nitrate, ammonium sulfate, ammonium hydroxide) release ammonia gas above their surfaces, and that gas is what the 6004 captures. Solid ammonium compounds in non-volatile form do not generate significant ammonia vapor and don't require a 6004 for the ammonia hazard — though dusts from these compounds may require P100 protection independently.
The 6004 protects against ammonia gas (NH3). Ammonium compounds in solution (ammonium nitrate, ammonium sulfate, ammonium hydroxide) release ammonia gas above their surfaces, and that gas is what the 6004 captures. Solid ammonium compounds in non-volatile form do not generate significant ammonia vapor and don't require a 6004 for the ammonia hazard — though dusts from these compounds may require P100 protection independently.
How does the 6004's breathing resistance compare to the 60924?The 6004 has lower breathing resistance (lower inhalation resistance) than the 60924 because it lacks the P100 filter layer that the 60924 includes. For workers performing physically demanding work in ammonia environments (refrigeration equipment maintenance, outdoor fertilizer operations) where the P100 is not needed, the 6004's lower breathing resistance reduces respiratory fatigue and improves comfort and compliance over a full shift.
The 6004 has lower breathing resistance (lower inhalation resistance) than the 60924 because it lacks the P100 filter layer that the 60924 includes. For workers performing physically demanding work in ammonia environments (refrigeration equipment maintenance, outdoor fertilizer operations) where the P100 is not needed, the 6004's lower breathing resistance reduces respiratory fatigue and improves comfort and compliance over a full shift.
Is the 6004 appropriate for emergency ammonia leak response?Only for minor, confirmed low-level leaks with monitored concentrations below the IDLH (300 ppm). For emergency response to uncontrolled ammonia releases where the concentration is unknown or may be at or above the IDLH, supplied-air respirators or SCBA are required. Air-purifying respirators including the 6004 are NOT appropriate for emergency response scenarios with unknown or IDLH-level ammonia concentrations. OSHA's emergency response standard (29 CFR 1910.120) requires SCBA for entry into areas where the atmosphere is IDLH or potentially IDLH.
Only for minor, confirmed low-level leaks with monitored concentrations below the IDLH (300 ppm). For emergency response to uncontrolled ammonia releases where the concentration is unknown or may be at or above the IDLH, supplied-air respirators or SCBA are required. Air-purifying respirators including the 6004 are NOT appropriate for emergency response scenarios with unknown or IDLH-level ammonia concentrations. OSHA's emergency response standard (29 CFR 1910.120) requires SCBA for entry into areas where the atmosphere is IDLH or potentially IDLH.
Can the 6004 be used for aquaria or pond ammonia management?For commercial aquaculture operations, fish hatcheries, and large aquarium systems where ammonia off-gassing from water and waste can create significant ammonia vapor concentrations, the 6004 is technically appropriate as respiratory protection. However, ensure the actual exposure levels are measured — many aquaculture environments have ammonia below the OSHA action level, in which case engineering controls (ventilation) may eliminate the need for respiratory protection entirely.
For commercial aquaculture operations, fish hatcheries, and large aquarium systems where ammonia off-gassing from water and waste can create significant ammonia vapor concentrations, the 6004 is technically appropriate as respiratory protection. However, ensure the actual exposure levels are measured — many aquaculture environments have ammonia below the OSHA action level, in which case engineering controls (ventilation) may eliminate the need for respiratory protection entirely.
Does the 6004 require a written change schedule?Yes — OSHA 29 CFR 1910.134(d)(3)(iii) requires a written change schedule for sorbent-based cartridges. The ammonia sorbent in the 6004 is a reactive (chemically impregnated) media that exhausts based on cumulative ammonia exposure. Develop a change schedule based on 3M's service life data and your measured concentrations. Document in your written respiratory protection program. Never rely on odor detection as the change indicator — ammonia olfactory fatigue makes this unreliable.
Yes — OSHA 29 CFR 1910.134(d)(3)(iii) requires a written change schedule for sorbent-based cartridges. The ammonia sorbent in the 6004 is a reactive (chemically impregnated) media that exhausts based on cumulative ammonia exposure. Develop a change schedule based on 3M's service life data and your measured concentrations. Document in your written respiratory protection program. Never rely on odor detection as the change indicator — ammonia olfactory fatigue makes this unreliable.
What happens if I use the 6004 in an environment that also has organic vapors?The worker receives zero protection against the organic vapors — only the ammonia and methylamine components are captured. This is a compliance failure and a health hazard. If SDS review or air monitoring identifies any organic vapor exposure alongside ammonia, the 6004 must be replaced with the 60924 (which adds OV protection) or a program change must eliminate the OV hazard through engineering controls.
The worker receives zero protection against the organic vapors — only the ammonia and methylamine components are captured. This is a compliance failure and a health hazard. If SDS review or air monitoring identifies any organic vapor exposure alongside ammonia, the 6004 must be replaced with the 60924 (which adds OV protection) or a program change must eliminate the OV hazard through engineering controls.
Is the 6004 suitable for food industry refrigeration maintenance?For refrigeration technicians working in equipment rooms where only ammonia vapor is the hazard (controlled machine room environment, no food product dust or processing chemicals), the 6004 is appropriate. For work in product storage areas where food dust, frost particles, and other particulates may coexist with ammonia leaks, add P100 protection via the modular approach (6004 + 2091 filter) or use the 60924 for full combined protection.
For refrigeration technicians working in equipment rooms where only ammonia vapor is the hazard (controlled machine room environment, no food product dust or processing chemicals), the 6004 is appropriate. For work in product storage areas where food dust, frost particles, and other particulates may coexist with ammonia leaks, add P100 protection via the modular approach (6004 + 2091 filter) or use the 60924 for full combined protection.
How should the 6004 be stored between uses?Store in a sealed zip-lock bag or airtight container between uses. The ammonia sorbent continues to react with ambient ammonia and other alkaline compounds in the air even when not being worn, reducing cartridge capacity. In ammonia-containing work environments (equipment rooms, storage areas with residual ammonia), this ambient exposure is particularly significant — always seal cartridges when not in use to maximize service life.
Store in a sealed zip-lock bag or airtight container between uses. The ammonia sorbent continues to react with ambient ammonia and other alkaline compounds in the air even when not being worn, reducing cartridge capacity. In ammonia-containing work environments (equipment rooms, storage areas with residual ammonia), this ambient exposure is particularly significant — always seal cartridges when not in use to maximize service life.
Can I use the 6004 for composting operations that generate ammonia?Large-scale composting generates ammonia from nitrogen-rich organic material decomposition. For workers monitoring or turning compost piles where ammonia exposure has been measured below the IDLH (300 ppm), the 6004 provides appropriate ammonia protection. However, composting environments also generate significant biological aerosol (fungi, bacteria, endotoxin) that requires P100 filtration. For composting, the 60924 (ammonia + OV + P100) or the 6004 + 2091 P100 filter combination is more appropriate than the 6004 alone.
Large-scale composting generates ammonia from nitrogen-rich organic material decomposition. For workers monitoring or turning compost piles where ammonia exposure has been measured below the IDLH (300 ppm), the 6004 provides appropriate ammonia protection. However, composting environments also generate significant biological aerosol (fungi, bacteria, endotoxin) that requires P100 filtration. For composting, the 60924 (ammonia + OV + P100) or the 6004 + 2091 P100 filter combination is more appropriate than the 6004 alone.
What are the Honeywell North equivalents to the 3M 6004?Honeywell North offers ammonia-specific cartridges for their respirator platform. Browse the Honeywell North respirator cartridges collection and the Honeywell North cartridge guide for equivalent options. Honeywell and 3M cartridges are not interchangeable between facepiece brands.
Honeywell North offers ammonia-specific cartridges for their respirator platform. Browse the Honeywell North respirator cartridges collection and the Honeywell North cartridge guide for equivalent options. Honeywell and 3M cartridges are not interchangeable between facepiece brands.
Where can I buy the 3M 6004 cartridge?The 3M 6004 ammonia/methylamine cartridges are available through WCSafety in the 3M respirator cartridges and filters collection. For bulk orders for industrial programs, contact WCSafety for volume pricing. Also available on Check Price on Amazon → for smaller quantities.
The 3M 6004 ammonia/methylamine cartridges are available through WCSafety in the 3M respirator cartridges and filters collection. For bulk orders for industrial programs, contact WCSafety for volume pricing. Also available on Check Price on Amazon → for smaller quantities.
