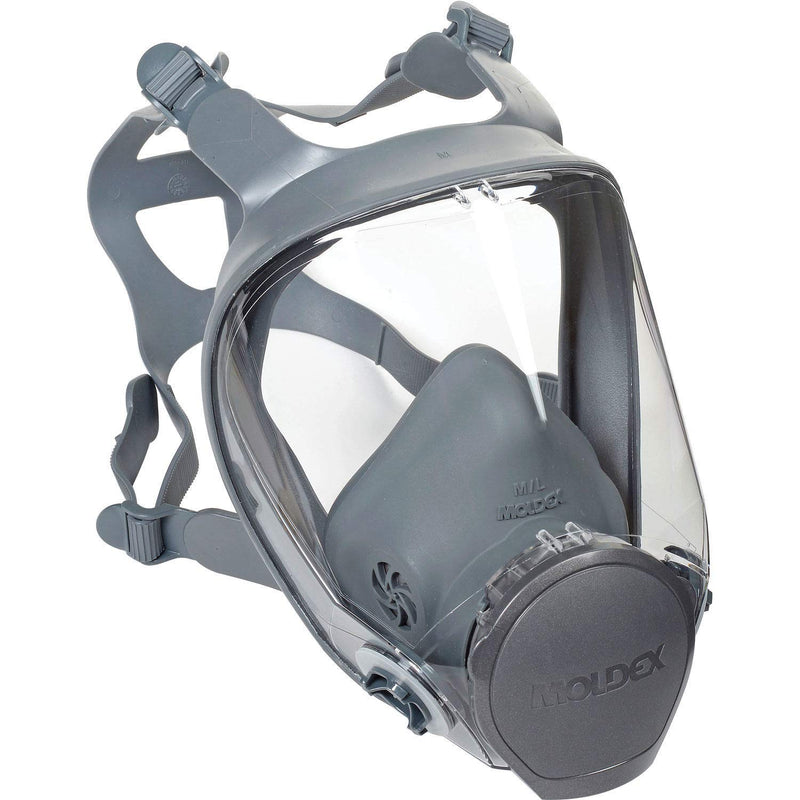

Moldex 9002 Full Face Respirator — Medium

For industrial workers in chemical processing, hazardous materials handling, and environments requiring combined respiratory and eye-face protection in a single integrated unit, the Moldex 9002 Full Face Respirator — Medium (SKU: 9002) provides NIOSH-approved full-face respiratory protection in Moldex's Medium frame geometry. The 9002 full-face respirator combines a wide-view polycarbonate lens with a silicone face seal and accepts the full range of Moldex-compatible chemical cartridges — delivering both respiratory protection from airborne chemical and particulate hazards and eye-face protection in a sealed system that eliminates the face seal leakage risk inherent in half-face respirator configurations.

Key Features

• Full-face coverage — integrated eye-face protection eliminates need for separate safety glasses
• Silicone face seal — superior conformance to facial contours for low leak rate performance
• Wide-view polycarbonate lens — clear peripheral vision with impact-rated lens protection
• Size: Medium — engineered for medium facial geometry for optimal face seal
• Compatible with Moldex chemical cartridges — full gas, vapor, and particulate protection options
• Adjustable 5-point harness — secure, even pressure distribution across the face seal perimeter
• Brand: Moldex
• NIOSH approved

Detailed Description

Full-face respirators provide a qualitatively higher level of respiratory protection than half-face units by sealing across a larger face area — from the forehead to below the chin — and simultaneously protecting the eyes and face from chemical vapor, gas, and liquid splash exposure. In environments where chemical eye exposure is a hazard alongside respiratory risk, the 9002 full-face respirator eliminates the need to coordinate safety glasses with a half-face respirator, reducing the interface leakage risk at the glasses/respirator seal boundary that is the primary weakness of combined protection systems.

The silicone face seal of the 9002 provides superior chemical resistance and conformance to facial anatomy compared to thermoplastic elastomer or rubber alternatives. Silicone maintains its elastic properties across a wide temperature range — critical in environments with elevated ambient temperatures where thermoplastic face seal materials can lose elasticity and degrade seal integrity. The silicone material also resists absorption of the chemical agents the respirator is protecting against, preventing chemical contamination of the face seal surface that would require decontamination between uses.

The Medium sizing ensures correct face seal geometry for workers with medium facial dimensions. Full-face respirator fit is more complex than half-face fit because the seal contact area extends from the forehead to the chin and around the cheeks — covering a much larger facial surface area. The Moldex Medium size is engineered with the nose bridge radius, cheekbone clearance, chin cup depth, and forehead width dimensions appropriate for medium facial profiles. Using an incorrectly sized full-face respirator is the single largest source of face seal failure in quantitative fit testing.

The five-point adjustable harness distributes the required positive sealing force evenly across the face seal contact perimeter. Full-face respirators require more sealing force than half-face units due to the larger seal perimeter — the harness design ensures this force is applied symmetrically without excessive local pressure at any contact point. The symmetric pressure distribution also prevents the progressive head and neck fatigue that causes workers to loosen harness adjustment over the course of a shift, maintaining seal integrity throughout extended wear periods.

Applications and Use Cases

• Chemical processing — operator protection in reactor, transfer, and sampling operations with eye exposure risk
• Hazardous material handling — HAZMAT response and chemical waste remediation
• Spray painting and coating — combined respiratory and face protection for paint booth operations
• Pesticide application — agricultural and facility fumigation requiring face and respiratory protection
• Laboratory operations — chemical vapor, fume, and splash protection in enclosed chemical handling areas
• Industrial cleaning — solvent and acid cleaning operations with splash and vapor hazards

Specifications

Related Products

• Respirators — Full Collection
• Safety Glasses — Eye Protection
• Hearing Protection
• Work Gloves — Chemical Resistant
• Hard Hats — Head Protection

Frequently Asked Questions

Do I still need safety glasses with the 9002?

No. The full-face respirator integrates sealed polycarbonate eye-face protection, eliminating the need for separate safety glasses in chemical and particulate environments within the respirator's protection zone.

What cartridges are compatible?

Moldex-compatible cartridges for the full-face respirator series — organic vapor, acid gas, P100 particulate, and combination types. Verify series compatibility before purchase.

How do I perform a seal check?

Negative pressure check: cover cartridge ports, inhale gently — respirator should collapse slightly with no air leaking in. Positive pressure check: cover exhalation valve, exhale gently — respirator should expand slightly. Perform before every donning.

Is it approved for IDLH environments?

No. Air-purifying respirators are not approved for IDLH or oxygen-deficient environments — those require SCBA or supplied-air systems per OSHA 1910.134.
